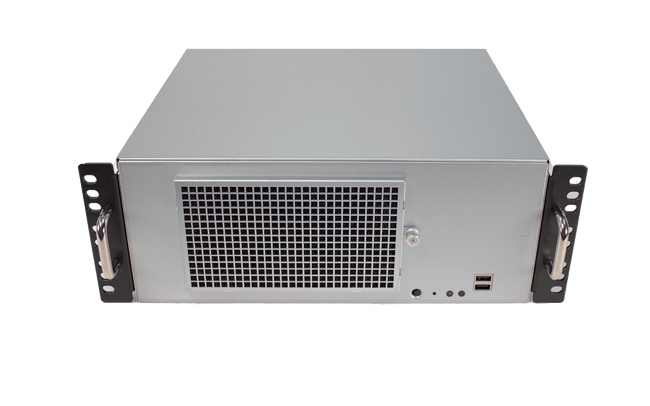

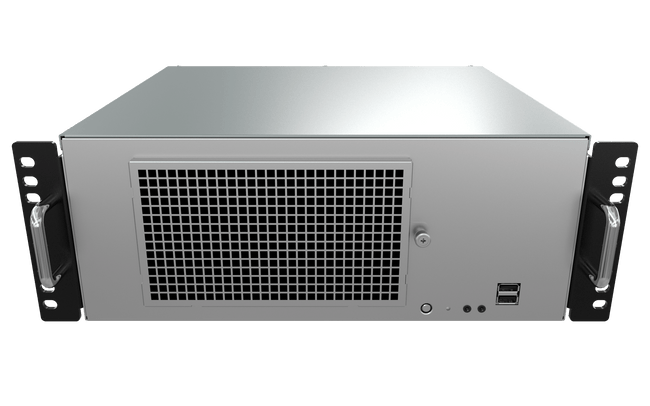

KCO-3000-CFL Industrial Computer with 3U Certification-Ready, 9th Gen Intel® Core® Processor and Q370 PCH, 1x PCIe x16 Low-Profile

SKU Alias: KCO-3000

  • 3U Compact Chassis with Rack Mount Options
  • Industrial Grade mATX Motherboard with Intel Q370 CFL-RS Chipset
  • Support Intel 8th/9th Gen Core Processors (LGA 1151, 35W/65W/95W TDP)
  • Support 4x 288-pin DDR4 DIMM, Max. up to 128GB
  • 2x Intel GbE Ports Support Wake-on-LAN, PXE and vPRO (with i5 and above processors)
  • Triple Independent Display Ports among VGA, DVI-D and DP (1.2) ports
  • 1x PCIe X16 (Gen3), 2x PCIe X4 (Gen3) Expansion slots for full height add-on cards
  • 1x M.2 M Key, NVMe PCIe X4, SATA 2242/2260/2280
  • 1x M.2 E Key PCIe X2, USB2.0. 2230
  • 4x COM Ports (DB9) 2x RS-232/422/485 + 2x RS-233, 2x RS-232 (internal header)
  • 4x USB3.1 ports, 6x USB2.0 External Ports, Internal 1x USB3.1 Gen 2, 2x USB2.0 headers
  • 1x 3.5" SATA HDD drive or 2x 2.5" SSD/HDD up to 15mm
  • Support UEFI Secure Boot, TPM2.0
  • Tool-less Washable Dust Filter
  • Internal 300W Flex Power Supply
  • 13.15"(W) x 11.78"(D) x 5.23"(H)
  • CE, FCC, UL Certified

Model:

KCO-3000-CFL

Certifications:

Intel Partner
AWS Greengrass IoT


Certification-Ready industrial computers are embedded computing solutions that act as sub-assembly building blocks or final OEM system configuration in key enterprise and IoT applications. System integrators and platform builders can accelerate time-to-market with this certification-ready industrial computer for new product introduction (FCC, CE, and UL). This industrial computer also acts as a perfect solution to upgrade legacy computing platforms that require re-certification of sub-assembly builds in a accredited lab. The KCO-3000-CFL industrial computer is a commercial off the shelf (COTS) computing solution that provides reliability and embedded longevity with its extended lifecycle support. The certification-ready KCO-3000-CFL industrial computer is deployable in applications that rely on computing solution in Kiosks, ATMs, Security and Surveillance, Metrology and Automation inspection, and mobile medical carts.

Compact Size and High Performance with Micro ATX Motherboard

The KCO Series is built around Premio’s CT-MCL01 Micro-ATX motherboard. This motherboard is 244mm x 244mm (W x D) and uses a LGA 1151 Socket that supports 8th/9th Gen Intel® Core™ Processor with the Q370 chipset. The KCO Series computers are designed to be compact enough to fit in space limiting IoT deployments. The KCO-3000-CFL Series uses a standard rack mountable option for easy mounting in applications that use rackmount designs.

Rich I/O

KCO-3000-CFL is equipped with numerous ports and I/O, 4x Serial, 2x LAN, 10x USB. KCO-3000-CFL also includes multiple display interfaces digital DP, HDMI, DVI as well as VGA to maximize user's needs.

Storage - Hot-Swappable 2.5” SATA Drive Tray and m.2 NVMe On-Board

The KCO comes standard with a hot-swappable drive tray that offers support for solid-state drives (SSDs) and hard disk drives (HDDs). The KCO also features on-board NVMe storage in m.2 form factor that can support NVMe PCIe x 4 in 2242, 2260, 2280 dimensions.

Expansion - PCIe Gen3

KCO-3000-CFL series comes with 3x PCI Express slots (1x PCIe x16, 2x PCIe x4), allowing users to add multiple add-in cards to the system

Hardware Security with TPM 2.0

KCO has TPM 2.0 to provide boot security and platform integrity at the hardware level. TPM functions by storing RSA encryption keys on a specific chip that cannot be accessed by software, protecting the system against unauthorized firmware and software modifications.

Industrial-Grade Chassis & Dust Filter

The chassis of the KCO-Series is built using heavy-duty metals while maintaining practicality and ease-of-use, forming an excellent housing for the sensitive internal components. The KCO Series comes equipped with an external dust filter that lowers the amount of dust that can make its way into the industrial computer. This can prevent sensitive internal components from dust and debris damage. A key design feature is the washable dust filter, making it easy to clean to keep dust out of the PC and keep air easily flowing throughout the system for embedded reliability.

* Barebone Pricing Only; Sales team to review component configuration and price
Regular price $0.00
*Starting At: $0.00

Specification

System
Processor

  • Support 8th/9th Gen Intel® CFL-R S Processor (LGA 1151, 65W/35W TDP)

  • Intel® Core™ i7-9700E, 8 Cores, 12MB cache, up to 4.4 GHz

  • Intel® Core™ i5-9500E, 6 Cores, 9MB Cache, up to 4.2 GHz

  • Intel® Core™ i3-9100E, 4 Core, 6MB Cache, 3.7 GHz

  • Intel® Core™ i7-9700TE, 8 Cores, 12MB cache, up to 3.8 GHz

  • Intel® Core™ i5-9500TE, 6 Cores, 9MB Cache, up to 3.6 GHz

  • Intel® Core™ i3-9100TE, 4 Core, 6MB Cache, 3.2 GHz

  • Intel® Core™ i7-8700T, 6 Cores, 12MB cache, up to 4.0 GHz

  • Intel® Core™ i5-8500T, 6 Cores, 9MB Cache, up to 3.5 GHz

  • Intel® Core™ i3-8100TE, 4 Cores, 6MB Cache, 3.1 GHz

  • Intel® Pentium® G5400T, 2 Cores, 4MB Cache, up to 3.1 GHz

  • Intel® Celeron® G4900T, 2 Cores, 2MB Cache, up to 2.9 GHz

System ChipsetIntel® Q370 Express Chipset
LAN ChipsetGbE1: Intel® I219LM (Support Wake-on-LAN and PXE)

GbE2: Intel® I210-AT (Support Wake-on-LAN and PXE)
Audio CodecRealtek ALC888S
System Memory2x 260-Pin DDR4 2400/2666MHz SODIMM.
Max. up to 128GB
GraphicsIntel® UHD Graphics 610/630
BIOSAMI 256Mbit SPI BIOS
WatchdogSoftware Programmable Supports 1~255 sec. System Reset
iAMTIntel® AMT 12.0 supported
TPMTPM 2.0
Display
Display Port2x DP (DP 1.2)
DVI1x DVI
Multiple DisplayTriple Display
VGA1x VGA
Storage
M.21x M.2 (M Key, NVMe PCIe x4, 2280)
1x M.2 (E Key, PCIe x2, USB 2.0, 2230)
SSD/HDD1x 3.5" SATA HDD drive or 2x 2.5" SSD/HDD up to 15mm
Expansion
PCIe1x PCIe x16 (full height, up to 10" card length)

2x PCIe x4
I/O
Audio1x Mic-in, 1x Line-out
COM2x RS-232/422/485 + 2x RS-232

2x RS-232 (internal header)
LAN2x RJ45
USB4x USB 3.0

6x USB 2.0
Operating system
WindowsWindows 10
LinuxLinux Kernel
Power
Power ModeAT, ATX
Power Supply VoltageInternal 300W Flex Power Supply
Power ConnectorStandard US power cord
Environment
Operating Temperature0°C to 45°C
Storage Temperature0°C to 60°C
Relative Humidity10% to 95% (non-condensing)
CertificationCE, FCC, UL Certified
Vibration1 Grms, 5 - 500 Hz, 0.5 hr/axis
With SSD: 25G, half sine, 11ms
Physical
Form Factor3U
Dimensions (W x H x D)13.15"(W) x 11.78"(D) x 5.23"(H)
Weights12.5 lbs (barebone w/ chassis, mb, and PSU only)
ConstructionHeavy Duty Metal
Mounting OptionsRack Mountable

Mechanical Layout

Product Dimension

Unit:mm
