HIO-W210-ADL 10.1" WXGA Capacitive IP65 Open Frame Touchscreen Computer With 12th Gen Intel® N Series Processor, 2x LAN, 4x USB, 1x DP, 1x HDMI

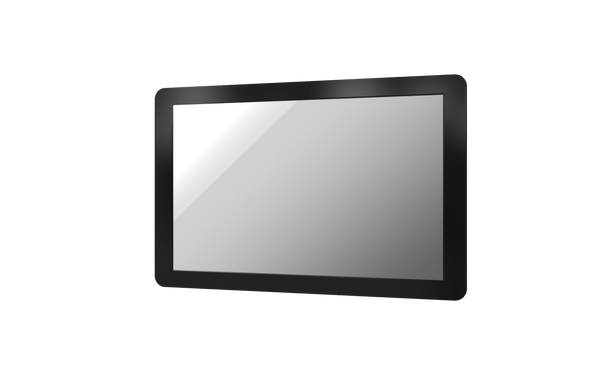

  • 10.1" (16:10) WXGA Open Frame Touchscreen Computer
  • World Class Certifications for Safety and Reliability: CE/FCC
  • Front IP65 Rating for protection against water and dust
  • Scratch Resistant 7H Glass Hardness
  • Versatile Display Outputs; HDMI and DP
  • MTBF Up to 30,000 Hours
See Datasheet

Certifications:

Intel Partner
AWS Greengrass IoT

Fanless Design

10-Points PCAP Touch

Triple Independent Displays

Diverse I/O Customization

Front Panel IP65

High Efficient Computing




12th Gen. Intel IoTG Alder Lake Processors

Embrace the cutting-edge technology of Intel's 12th Gen Alder-N Lake processors with Premio's CT-DAL01 single board computer. This advanced board capitalizes on Intel's innovative architecture, using 4 of the 8 efficiency cores (E-cores, Gracemont Architecture).

Industrial Grade Durability

  • IP65 Front Panel
  • Wide Operating Temperature: -10°C - 50°C
  • MIL-STD-810G Method 516.7 Procedure

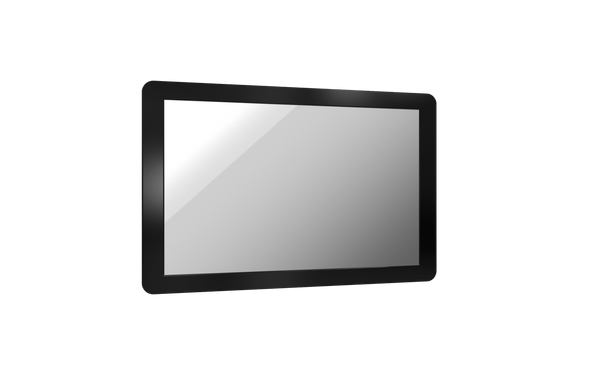

Enhanced Optical Clarity

The HIO Series delivers ultimate readability and clarity for industrial applications and settings. Its wide viewing angles and high contrast ratio offers flexibility and consistent high-quality visibility to accommodate operators with varying viewing positions.

Advanced Expansion with M.2 Capability

The HIO Series boosts its capabilities with M.2 slots, enabling advanced expansions for wireless low-latency communication essential in IoT, and SSDs for quick and reliable data storage.

  • M.2 B Key 128G SSD
  • M.2 E Key Support WiFi 6e (Optional)

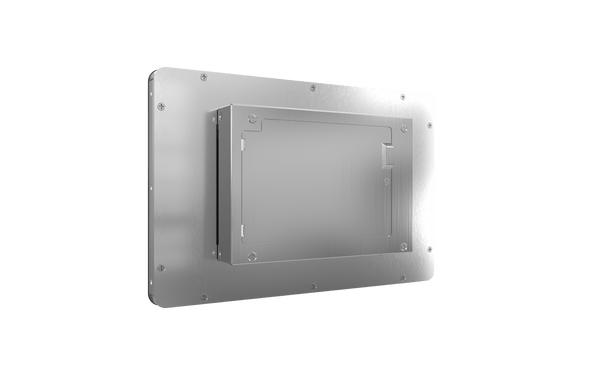

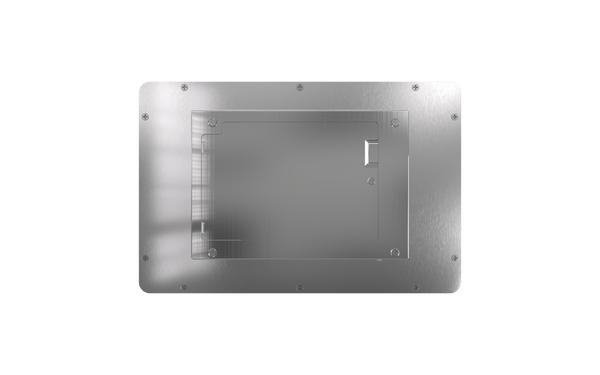

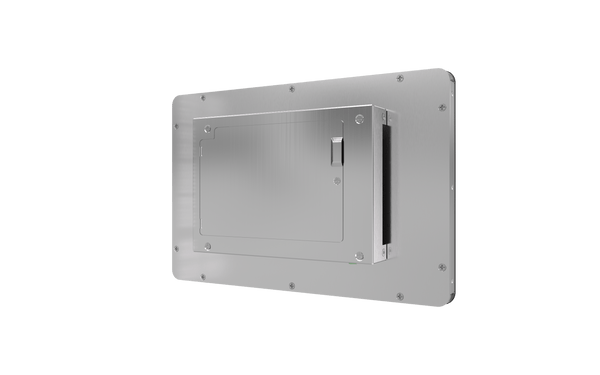

Open Frame Integration

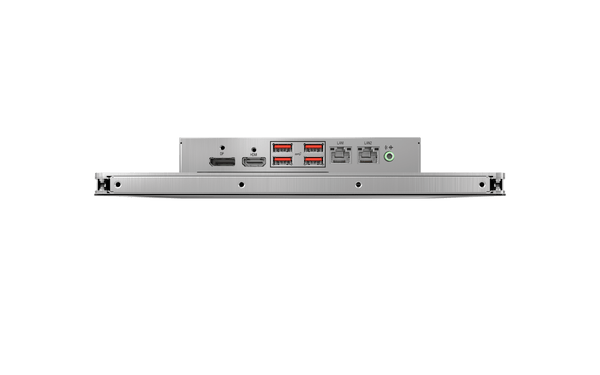

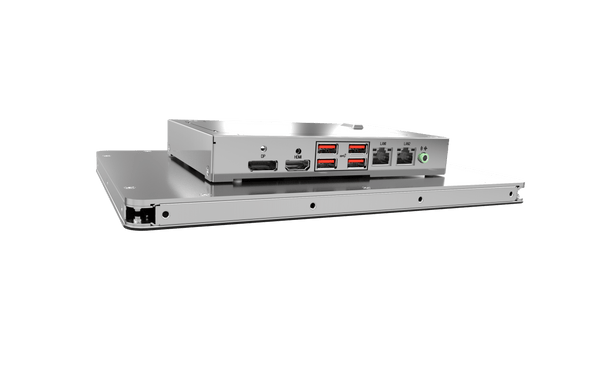

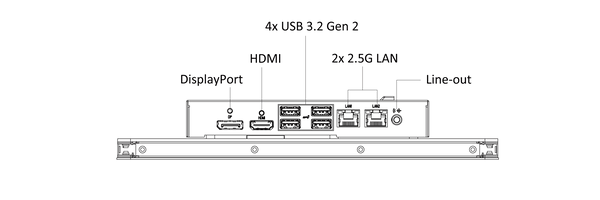

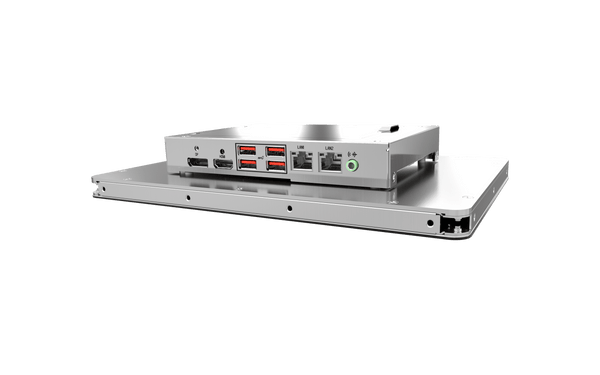

I/O Connectivity

  • 2x Intel® I225-V 2.5GbE LAN for reliable, high-speed network connections
  • 4x USB 3.2 Gen 2
  • 6x USB 2.0 ( internal header cable)
  • 2x RS-232/422/485 (internal header cable)
  • 2x Pifa Antenna (option)
* Barebone Pricing Only; Sales team to review component configuration and price
*Starting At: $583.00

Specification

Display
IP Rating Front IP65
LCD Size 10.1" (16:10)
Max. Resolution 1280 x 800 (WXGA)
Brightness (cd/m²) 400 nits
Contrast Ratio 800:1
LCD Color 16.7M
Pixel Pitch (mm) 0.169(H) x 0.1695(V)
Viewing Angle 89/89/89/89 (Typ.) (CR>=10)
Backlight MTBF 30,000 Hours
Display Port 1x DP, support 4096 x 2304 Real 4K @60Hz
HDMI 1x HDMI, support 3840 x 2160 UHD@30Hz
LVDS Default touchscreen LCD, support 1920 x 1200 WUXGA @60Hz
Multiple Display Triple Independent Displays
Touch
Touch Type 10-Point PCAP Touch
Surface Hardness 7H / IK07
System
Processor Intel® Processor N97 6M Cache, up to 3.60 GHz
System Chipset SoC integrated
System Memory Default 8GB DDR5 4800MT/s SODIMM (up to 16GB)
LAN Chipset GbE1: Intel I225-V (Support Wake-on-LAN and PXE)
GbE1: Intel I225-V (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC897
BIOS AMI uEFI 8Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 sec. System Reset
Storage
M.2 B Key 128G M.2 B Key SSD (Default)
Expansion
M.2 E Key 1x M.2 E Key Support WiFi 6e (Optional)
I/O
COM 2x RS-232/422/485
USB 6x USB 2.0 by internal cable
4x USB 3.2 Gen 2
LAN 2x 2.5GbE LAN
Audio 1x Audio out
Others Support 2x Pifa Antenna (optional)
Operating System
Windows Windows 10 / Windows 11
Linux Linux Ubuntu 22.04
Power
Power Adapter 60W (12V 5A, Default)
Power Supply Voltage DC 9~36V
Power Connector DC Jack 5.5mm/2.5mm
Environment
Operating Temperature -10°C to 50°C
Storage Temperature -20°C to 60°C
Relative Humidity 10% to 80% (non-condensing)
Certification CE, FCC Class A
Vibration IEC60068-2-64:2008
With SSD: 3 Grms (5 - 500 Hz, 0.5 hr/axis)
Designed to comply with MIL-STD-810G Method 514.7 Procedure I
Shock IEC60068-2-27:2008
With SSD: 20G half-sin 11ms
Designed to comply with MIL-STD-810G Method 516.7 Procedure I
Physical
Dimension 252 (W) x 166 (H) x 39 (D) mm
Weights 1.3 kg
Mounting Open Frame Panel Mount, Wall Mount

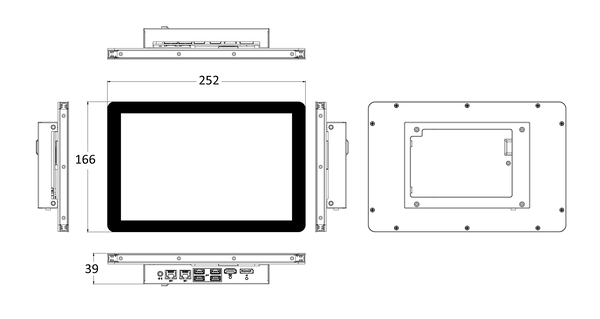

Mechanical Layout

Product Dimension

Unit:mm
