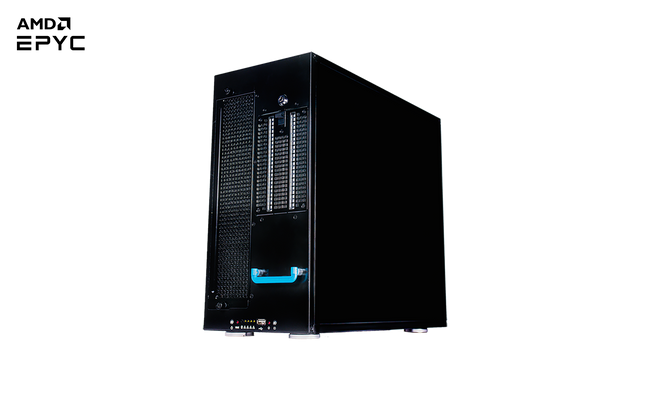

FLACHESAN4N24M-UM 3rd GEN AMD EPYC UP Server 24 bay

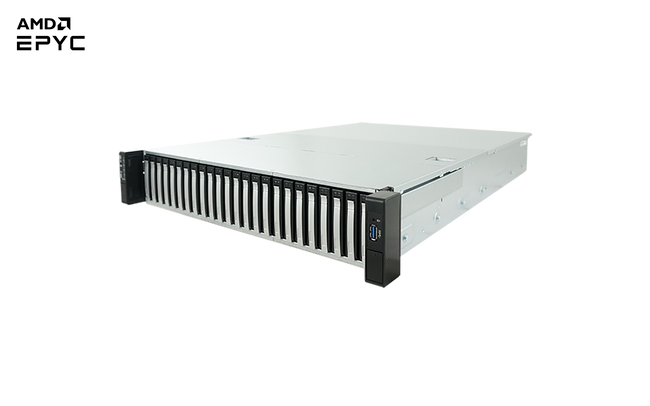

FlacheSAN2N24U-UM 2U24 NVMe U.2 3RD GEN AMD EPYC Server

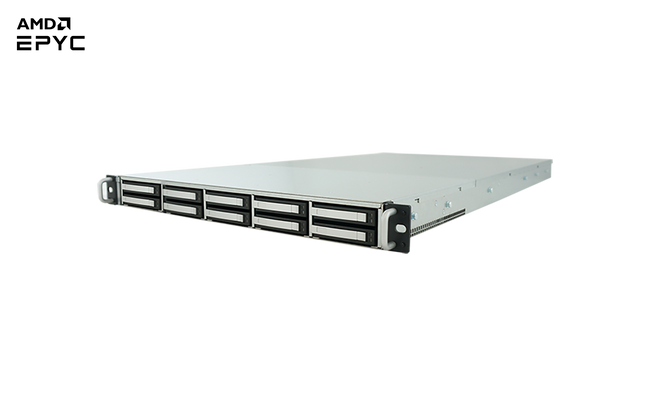

FlacheSAN1N10U-UM 1U10 NVMe U.2 Single AMD EPYC Server
FlacheSAN1N36M-UM 1U36 NVMe 3RD GEN AMD EPYC Flash Storage Server

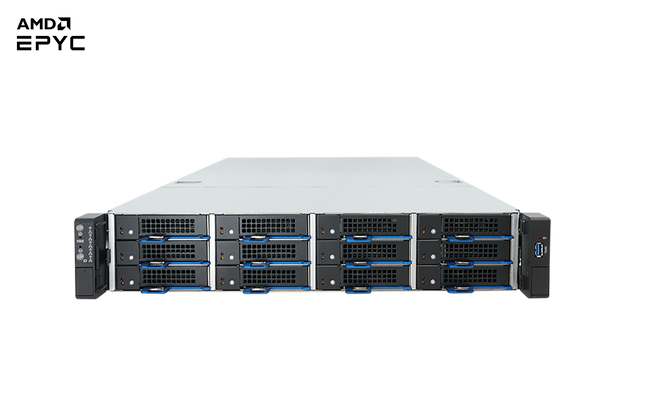

FlacheSAN2N12C-DM 2U 12 Dual AMD EPYC DPU Server
FlacheSAN2N12C-UM 2U 12 Single AMD EPYC DPU Server

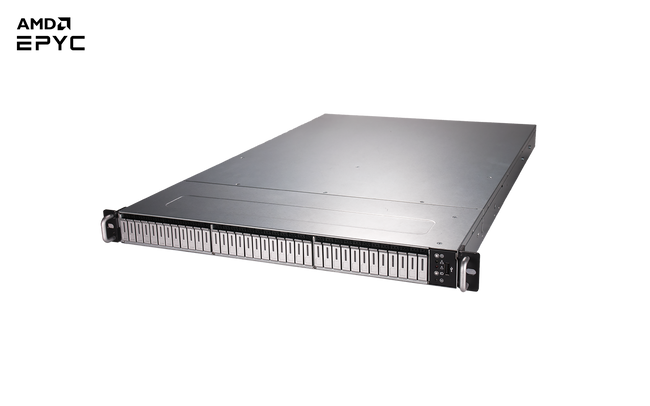

FlacheSAN1N36M-UM 1U36 NVMe 3RD GEN AMD EPYC Flash Storage Server

  • Storage server supports Single Socket 3rd Gen Milan AMD EPYC up to 64 cores
  • Single/Multi NUMA domain
  • 1U with 36x hot-swappable M.2 NVMe SSD bays
  • Supports 2x Gen4 x16 and 1x Gen3 x16 OCP Slots; Up to 4TB DDR4 RAM
  • Capable of sustaining up to 300Gbps of bandwidth and 7.8M IOPS

Certifications:

Regular price

Specification

System
Processor Supports Single Socket AMD MILAN up to 240W TDP socket SP3
System Memory Supports up to 16x DIMMs DDR4 2666/3200 MHz
Network 2x GbE ports, 1x GbE dedicated for IPMI
Storage x48 lanes PCIe
Driver Bays 36x M.2 (2260/2280/22110) NVMe with adapter tray; 2x internal M.2 NVMe for OS drives
Supported OS Microsoft Windows Server 64bit 2012.R2, 2016, 2019, Linux RHEL 7.6, SuSE SLES 11/12, Ubuntu 16.04.3 LTS VMWare vSphere 6.5, XenServer 7.0
Cooling 5x 40mm fans with Smart Fan Control
Other Features Dedicated GbE for IPMI 2.0
I/O 2x USB 3.0 ports; 1x VGA port(s); 1x COM Port; 2x 1GbE ports; 1x 1GbE MGMT
Front I/O Power On/Off switch & LED, Locate switch & LED, NMI switch, 2x LAN LED
Expansion 2x PCIe 3.0/4.0 x16; 1x PCIe 3.0 x16 OCP 2.0 Mezzanine
Power 1+1 850W AC/DC or -48VDC/DC high efficiency
redundant power supplies
Environment
Operating Temperature 0°C ~ 35°C
Storage Temperature -20°C ~ 70°C
Relative Humidity 5% ~ 95% relative humidity, non-condensing
HTS Code 8473 30 5100
ECCN 4A994
Compliance CE, FCC Class A, RoHS 6/6 compliant
Physical
Dimensions (W x H x D) System: 27.5"x19"x1.75" (LxWxH) Packaging: 35"x 24.5"x9"(LxWxH)
Weights Gross: 50lbs without drives; Net: 35lbs without drives

Resources

Data Sheet FlacheSAN1N36M-UM-datasheet.pdf
Product Brief PB_FlacheStreams_AMD.pdf
