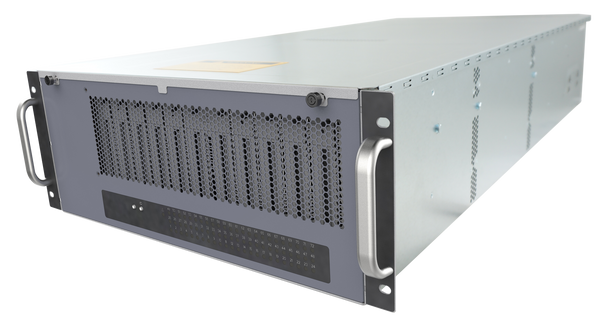

eDrawer4072J-S3 4U 72 BAYS 3.5" HDD 12G SAS DUAL EXPANDER JBOD 1100W HRP
- 4U with 72x top-load 12G SAS/SATA hot-swap trayless bays
- “Support total 12x SFF8644 ports for up to 384Gbps of SAS bandwidth to Host and Expansion connections”
- “Dual 12G SAS expander modules supporting 12G SAS devices and EDFB for 6G SATA devices”
- 1100W FAN+PSU modules with individual hot-swappable fan modules
Model:
EDRAWER4072J-S3-4U-60-BAYS
Certifications:
Specification
| Expander | Two LSI SAS 12Gbps Expander |
| Controller Support | 12 & 6Gb/s Host-based RAID Controller cards and HBAs with external connectivity |
| Storage | 72x 3.5" 12/6Gbps SAS/SATA Trayless bays |
| Enclosure Management | 1 x Realtek ALC886 HD audio codec |

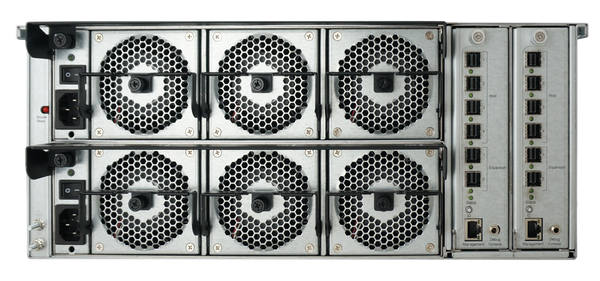

| Cooling | Six 80mm hot-swap exhaust fan modules with Smart Fan Control for optimal cooling |
| I/O | 8x 12Gbps SAS SFF8644 for Uplink 4x 12Gbps SAS SFF8644 for Downlink |
| Environment | |
|---|---|
| Operating Temperature | 0°C ~ 35°C |
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
| Physical | |
| Dimension | System: 36"x19"x7" (LxWxH) Packaging: 47.6"x 25"x23"(LxWxH) palletized |
| Weights | 72lbs w/o Hard Drives |
