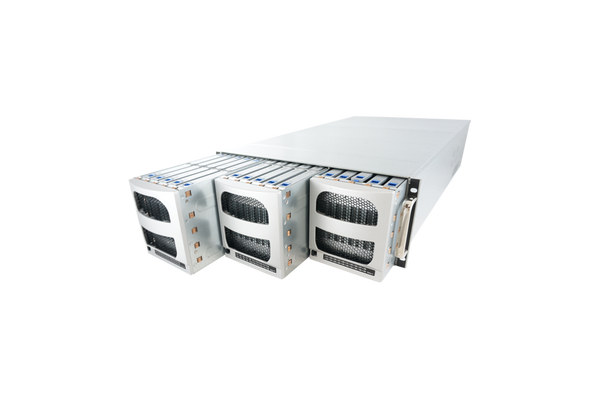

eDrawer4060S-D5 4U 60 Bay 3.5" HDD 12G SAS Dual Xeon SP
Key Features
- Storage server supports Dual Intel® Xeon® E5-2600v3/v4 Skylake
- Support 60 x 3.5″ Trayless Drive Bays in 4RU
- Two 48 ports 12G SAS expanders for maximum throughput
- Support full height PCIe expansions without risers
Model:
EDRAWER4060J-S3-4U-60-BAYSCertifications:
![Intel Partner](https://cdn.shopify.com/s/files/1/0028/7509/7153/files/IPA-Badge-Titanium-primary-rgb-DIGITAL-3000x3000_120x.png?v=1663868251)
![](https://cdn.shopify.com/s/files/1/0028/7509/7153/files/thomas-shield-tier-v-lg_120x.png?v=1638320912)
![](https://cdn.shopify.com/s/files/1/0028/7509/7153/files/fcc-logo_black-85w_120x.png?v=1586367868)
![](https://cdn.shopify.com/s/files/1/0028/7509/7153/files/ce-logo-85w_120x.png?v=1586367868)
Specification
System | |
---|---|
Processor | Supports Dual Intel® Xeon® SP (Skylake) up to 205W TDP socket LGA3647 |
System Chipset | Intel C621 chipset |
System Memory | Supports 8x DIMMs DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 |
Storage | Two 48 ports SAS Expander 6 SFF8643 24 ports 12G SAS/SATA to HBA/RAID |
Driver Bays | 60 hot-swap 3.5" 6G SAS/SATA trayless drive bays 2x internal 2.5" 7mm for OS drive bays |
Cooling | 5x 97mm exhaust blower |
Expansion | 2 PCIe2 x16; 3 PCIe3 x8; 1 PCIe 3.0 x4 (in x8 slot) |
Environment | |
Operating Temperature | 0°C ~ 35°C |
Storage Temperature | -20°C ~ 70°C |
Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
HTS Code | 8473 30 5100 |
ECCN | 4A994 |
Compliance | CE, FCC Class A, RoHS 6/6 compliant |
Physical | |
Dimensions (W x H x D) | System: 36.5"x19"x7" (LxWxH) Packaging: 47.6" x 24.8"x13.6"(LxWxH) |
Weights | Gross: 69Kg/152 Lbs; Net: 60Kg/132Lbs |
Resources
AVL |
eDrawer4060S-D5-AVL.pdf
|
BIOS |
X11DPLI_7_703.zip
|
Data Sheet |
eDrawer4060S-D5-premio.pdf
|
Firmware |
SMT_X11IPMI_102.zip
|
Product Brief |
PB_ScaleStreams_Intel.pdf
|
