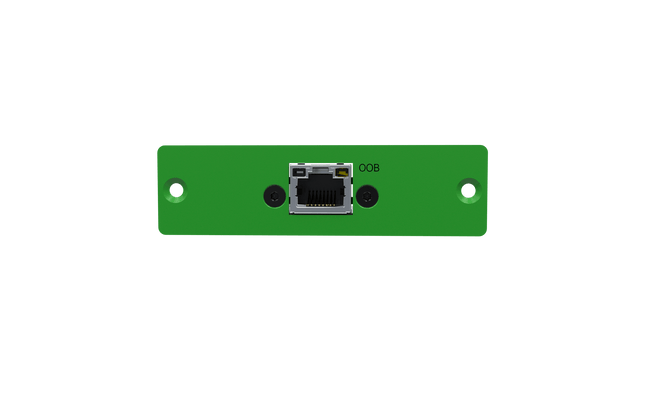

EBIO-OOB-J EDGEBoost I/O Module with 1x RJ45 OOB

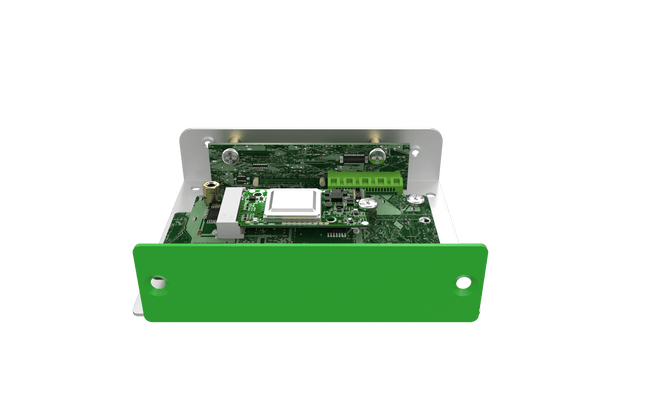

EBIO-M2MK-J EDGEBoost I/O Module with 1x M.2 M-Key

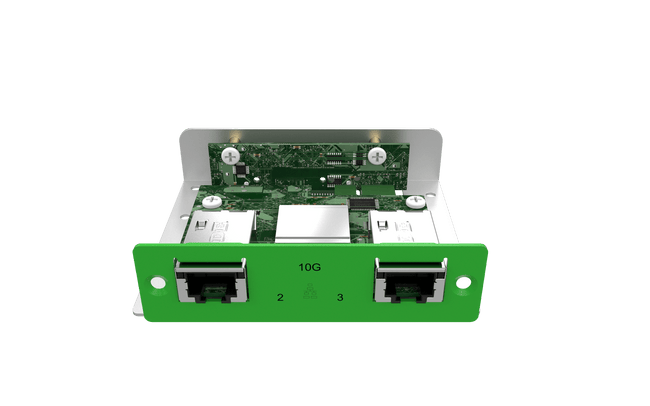

EBIO-D10G-J EDGEBoost I/O Module with 2x 10GbE LAN Ports
EBIO-4U3L-J EDGEBoost I/O Module with 4x USB 3.0 Type-A Ports with locking type

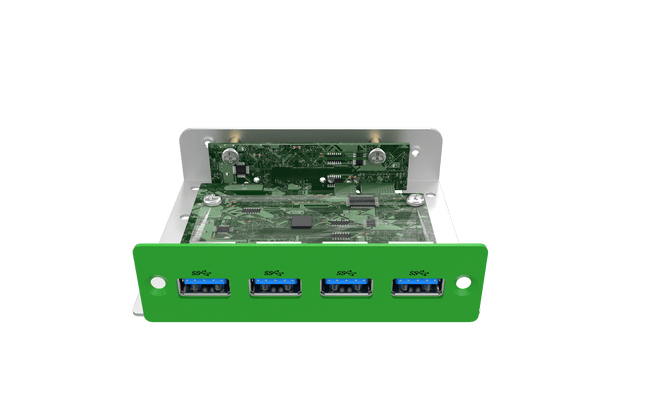

EBIO-4U3-J EDGEBoost I/O Module with 4x USB 3.0 Type-A Ports
EBIO-4ETH-POE-M12-J EDGEBoost I/O Module with 4x PoE M12 Ports

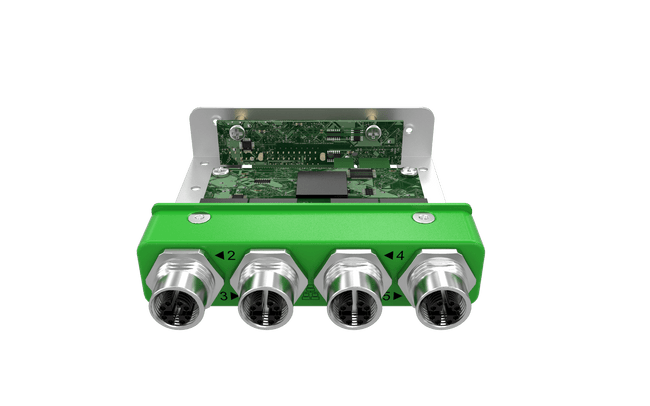

EBIO-4ETH-M12-J EDGEBoost I/O Module with 4x LAN M12 Ports

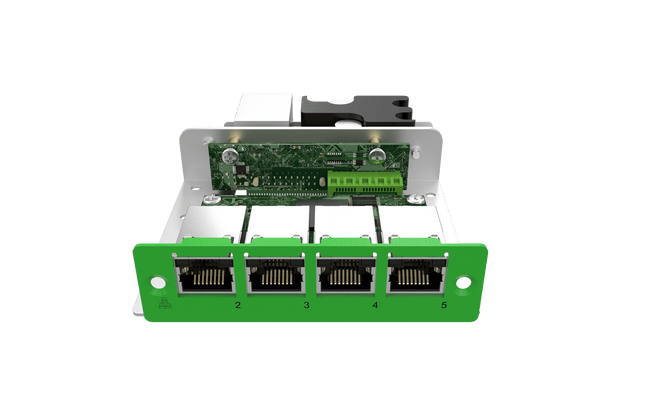

EBIO-4ETH-POE-J EDGEBoost I/O Module with 4x PoE Ports

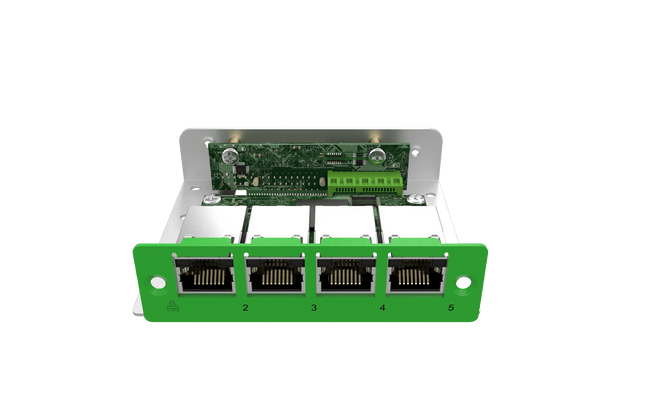

EBIO-4ETH-J EDGEBoost I/O Module with 4x LAN Ports

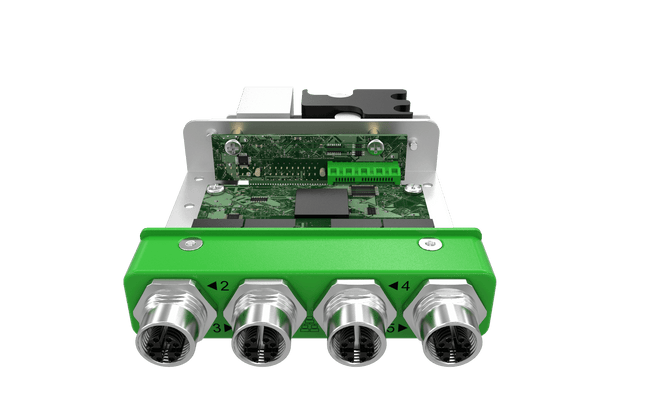

EBIO-4ETH-POE-M12-J EDGEBoost I/O Module with 4x PoE M12 Ports

  • EDGEBoost I/O module supporting 4x locking GbE M12 LAN ports for industrial environments that require ingress protection from dust, debris, shock and vibration. Optional Power over Ethernet support is also available through an additional add-on module
  • 4x 1GbE PoE M12 Ports
  • Support Power over Ethernet through optional PoE module (up to 25.5 watt per port)
  • Intel® Ethernet Controller I350
  • PCIe x1 Gold Finger (PCIe 3.0 x4 performance)
  • Complies with IEEE 802.3at
  • Occupies 1x EDGEBoost Bracket
See Datasheet

Certifications:

Intel Partner

Key Design Features of Premio's EDGEBoost I/O

* Barebone Pricing Only; Sales team to review component configuration and price

Specification

Chipset Intel® Ethernet Controller I350
Interface PCIe x1 gold finger (PCIe 3.0 x4 performance)
Additional I/O 4x M12 X-code 8-Pin, Female Ports
I/O Bracket Occupies 1x EDGEBoost Bracket
Power Output Up to 25.5 Watt per port
Special Features Power-Over-Ethernet
Standards and Certifications Complies with IEEE 802.3at
UL, CE, FCC Class B

Mechanical Layout
