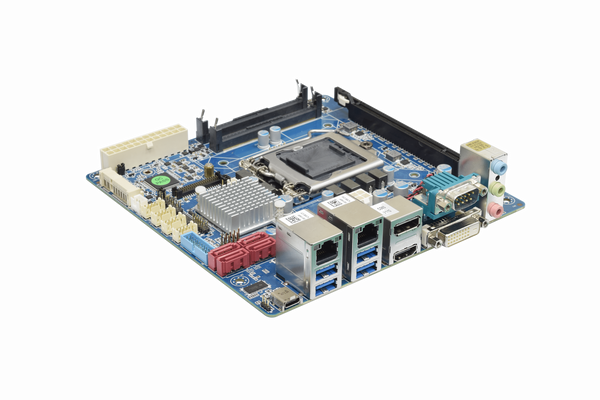

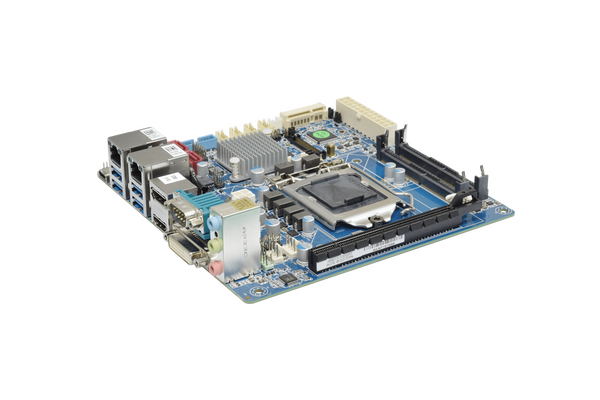

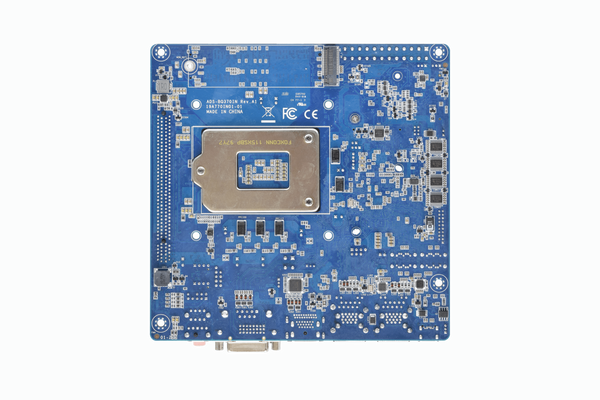

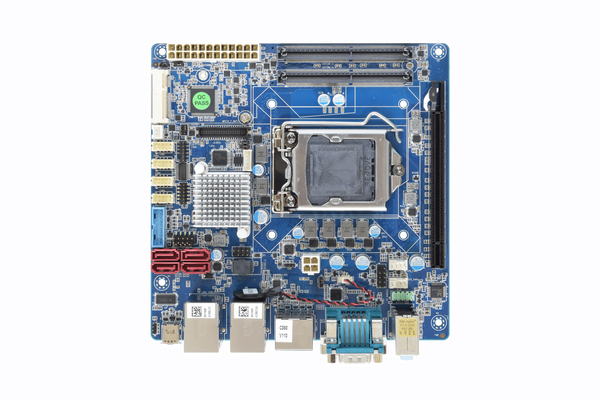

CT-XCL01 Mini-ITX Industrial Motherboard with LGA 1151 Socket Support 9th Gen. Intel® Core™ Desktop Processor, Q370 Chipset
- LGA 1151 Socket Support 9th Gen. Intel® Coffee Lake-S Core™ i7/i5/i3 Desktop Processor Up to 65W
- Q370 Chipset
- 2x DDR4 SO-DIMM support up to 32GB
- Triple Independent Display
- External IO Interface Ports: 1 x RS-232/422/485; 4 x USB3.1 Ports, 1 x USB3.1 Type C (optional)
- Internal IO Interface Ports: 4 x RS232; 2 x USB3.1 Ports, 2 x USB2.0 Ports
- 1x M.2 SATA, 4x SATA
- 1x PCIe x16, 1x Mini PCie
- OS Support: Windows 10 (64 Bit) and Linux Fedora/Ubuntu
- TPM 2.0
Certifications:
Specification
| System | |
|---|---|
| Processor | Socket LGA1151 supports Intel next generation DT processors (Coffee Lake-S) |
| System Chipset | Intel 300 series chipset (Intel Q370) (Co-Lay H310) |
| LAN Chipset | Realtek RTL8111G GbE LAN |
| Audio Codec | ALC892 (Co-Lay ALC888S) |
| System Memory | 2x SO-DIMM, DDR4, 2133/2400/2666 (depend on CPU) MT/s, Max 32 GB |
| BIOS | AMI® UEFI BIOS 256Mb Flash |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | TPM 2.0 Through Infineon® SLB9665TT2.0 or Equivalent (Optional) |
| Display | |
| Display Port | 1x DP 1.2 |
| DVI | 1x DVI-D |
| HDMI | 1x HDMI 1.4 |
| LVDS | 1x LVDS |
| Storage | |
| M.2 | 1x M.2 (w/ SATA III) (for Key-M, 2280) SATA Only |
| mSATA | 1x mSATA (shared with Mini PCIe) |
| SATA | 4x SATA III (support RAID 0/1/5/10) |
| Expansion | |
| Mini PCIe | 1x Full/Half Mini PCIe |
| PCIe | 1x PCIe x16 gen 3 |

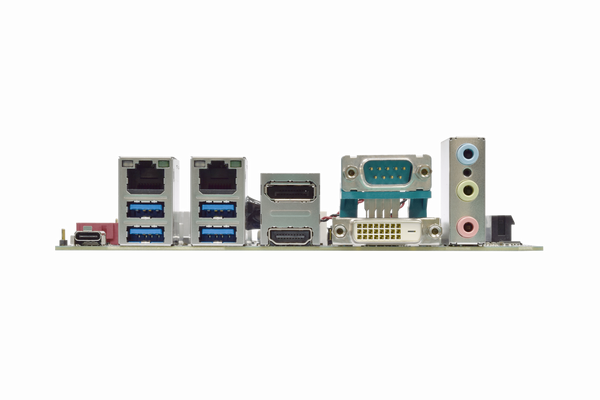

| Rear I/O | |
| Audio | 1x Line-in , Line-out, Mic-in |
| COM | 1x RS-232 (1 support RS422/485) |
| LAN | 2x RJ45 |
| USB | 4x USB 3.1 Gen 2 1x USB-C (optional) |
| Internal I/O | |
| COM | 4x RS-232 Headers (2.0 mm Pitch Locking Type) |
| DIO | 8bit (2.00 mm pin Header) |
| USB | 1x USB 3.0 Headers (2 Ports) 1x USB 2.0 Headers (2 Ports) |
| Others | 1x Backlight Locking Type Header 2x 4-pin PWM Smart Fan 1x LPC Header (2.0mm Pitch) 1x SPI Header (2.0mm Pitch) 1x Cable Stype CMOS Battery |
| Operating System | |
| Windows | Microsoft® Windows® 10 64-bit |
| Linux | Linux (Fedora/Ubuntu) |
| Power | |
| Power Mode | ATX 12V |
| Power Connector | 24 Pin ATX Power Connector |
| Environment | |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -40°C ~ 90°C |
| Relative Humidity | 95% @ 40°C (non-condensing), operating 95% @ 60°C (non-condensing), Non-operating |
| Certification | CE, FCC Class B (pre-test) |
| Vibration | Random vibration 3.5g (Non-op) |
| Physical | |
| Dimensions (W x H x D) | mini ITX (170mm x 170mm) |

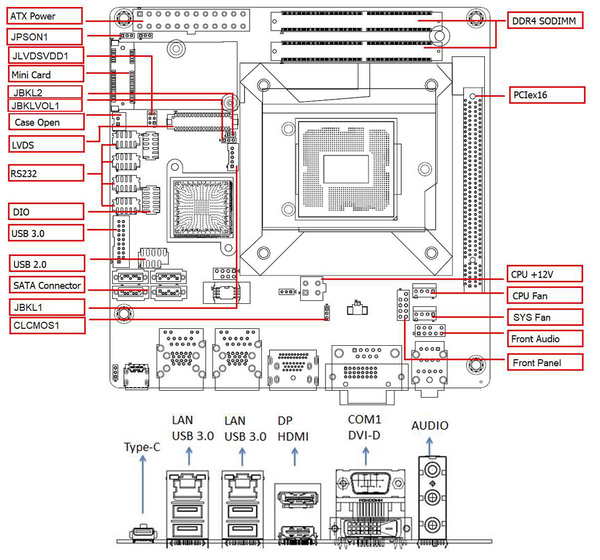

Mechanical Layout
