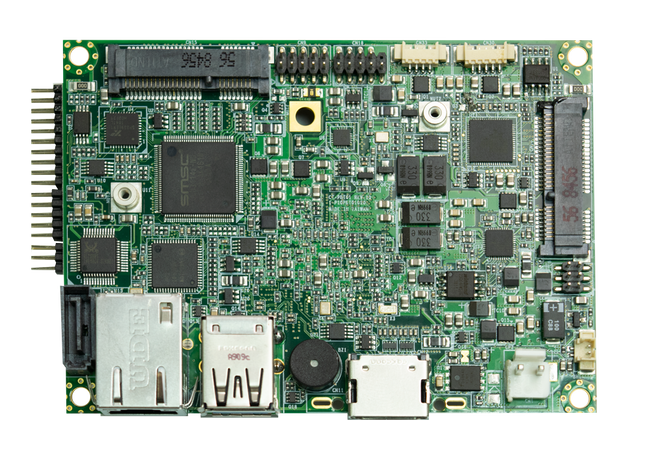

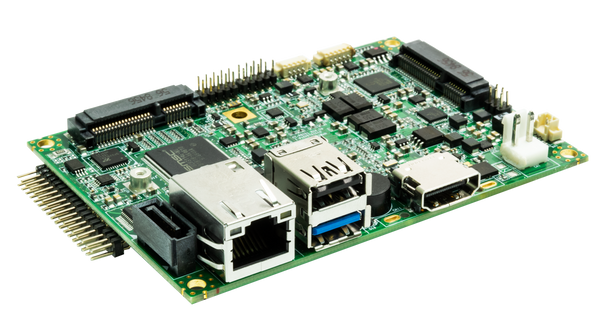

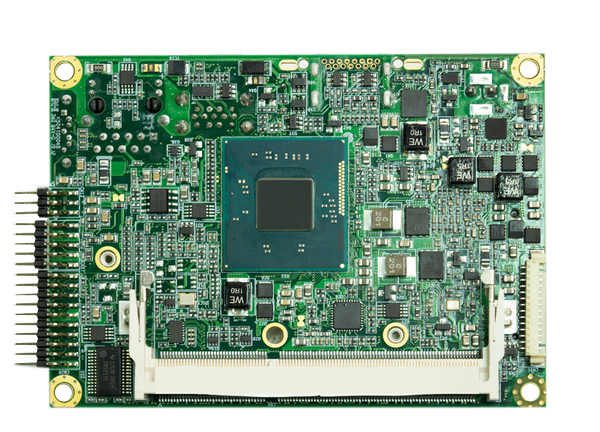

CT-PBT01 2.5" Pico-ITX Single Board Computer with Intel® Celeron® J1900
- Intel® Celeron® processor J1900, up to 2.0GHz
- 1x 204-pin DDR3L SODIMM. max up to 8GB
- 1x Intel® GbE
- Dual independent display supported by 1x HDMI and 1x LVDS
- 2x half-size mini PCIe for communication or expansion modules, 1x mSATA Socket
- 1x USB 3.0, 3x USB 2.0
- -10°C to 70°C extended operating temperature
Certifications:
This model is built-to-order only with a minimum order quantity
* Estimated Total Only; Sales team to review component configuration and price
*All specifications are subject to change without notice. Please contact us for exact offers. Products may not be available in all markets.
Specification
| System | |
|---|---|
| Processor | Intel® Celeron® Processor J1900 (2.0GHz/4C/10W) |
| System Chipset | SoC integrated |
| LAN Chipset | 1x Intel® I210AT GbE controller |
| Audio Codec | Realtek ALC888S |
| System Memory | 1x 204-Pin DDR3L 1066/1333MHz SODIMM Max. 8GB |
| Graphics | Intel® SoC Integrated |
| BIOS | AMI 64Mbit SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| Display | |
| HDMI | 1x HDMI (2048x1080 @60Hz) (HDMI-Model) |
| LVDS | 1x LVDS (Single Channel, 18bit/24bit) |
| Multiple Display | Dual display |
| VGA | 1x VGA (VGA-Model) |
| Storage | |
| mSATA | 1x mSATA (Shared by 1x Mini PCIe) |
| SATA | 1x SATA 3.0Gb/s |
| Expansion | |
| Mini PCIe | 2x Half-size Mini PCIe |
| I/O | |
| LAN | 1x RJ45 |
| USB | 1x USB 3.0, 1x USB 2.0 |
| Internal I/O | |
| Audio | 1x Front panel audio |
| COM | 1x RS-232/422/485, 1x RS-232 |
| DIO | 1x 8-bit GPIO (4-in/4-out) |
| SATA | 1x SATA 3.0Gb/s |
| USB | 2x USB 2.0 |
| Others | 1x Front panel 1x SMBus |
| Operating System | |
| Windows | Windows 10, Windows 8.1, WES8.1, Windows 7, WES7 |
| Linux | Linux kernel 3.X |
| Power | |
| Power Management | ACPI |
| Power Supply Voltage | 12V DC Input |
| Power Connector | 2-pin power connector |
| Environment | |
| Operating Temperature | -10°C ~ 70 °C |
| Storage Temperature | -40 °C ~ 85 °C |
| Relative Humidity | 10% ~ 90% relative humidity, non-condensing |
| Physical | |
| Dimensions (W x H x D) | PICO-ITX Form Factor 100mm x 72mm |
Resources
| Data Sheet |
DS_CT-PBT01_Premio.pdf
|
| User's Manual |
UM_CT-PBT01_Generic.pdf
|
