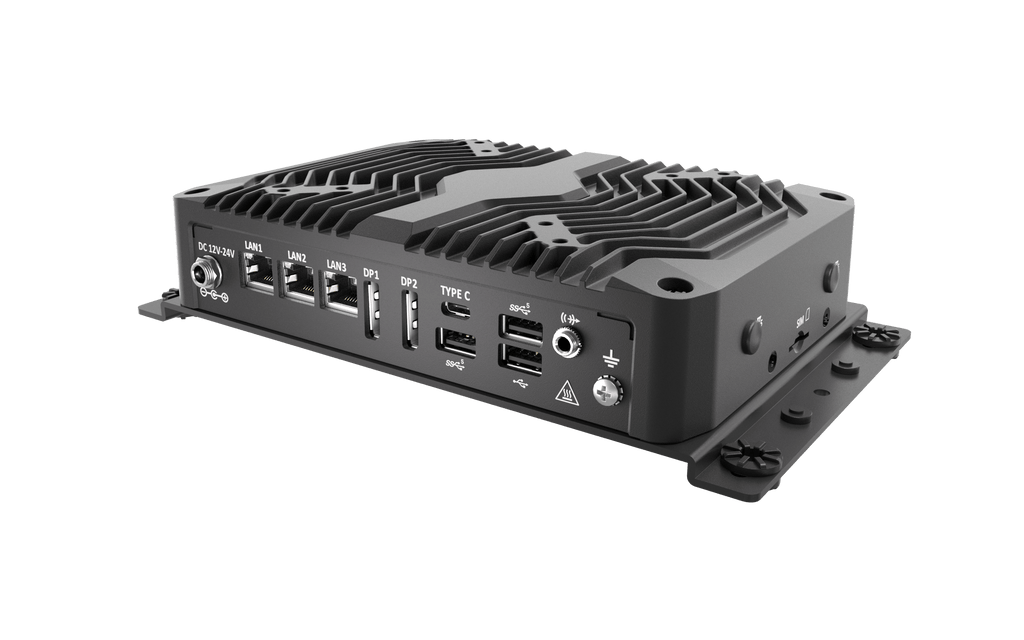

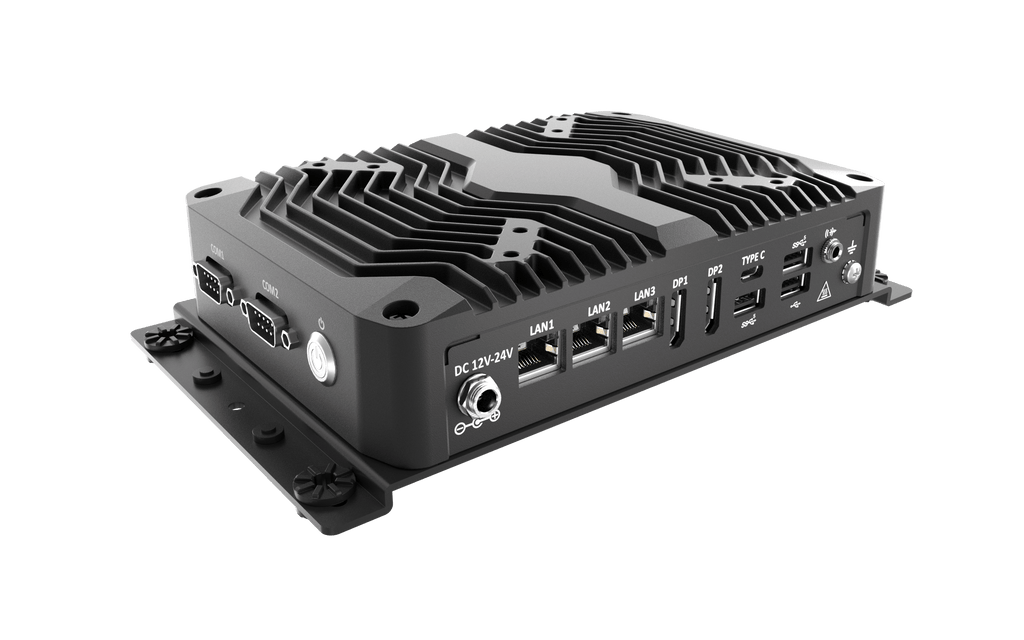

BCO-500-MTL Semi-Rugged Fanless Mini Computer with Intel® Core™ Ultra Processors, 2x DP, 3x USB, 1x Type C, 3x LAN, 1x 150W ADP

  • Supports Intel® Core™ Ultra Processors, Meteor Lake-U, TDP 15W
  • 1x 262-pin DDR5 5600 SO-DIMM. Max. up to 32GB
  • 3x Intel® 2.5 GbE
  • Dual Independent Display: 2x DisplayPort
  • 1x M.2 M Key for NVMe/SATA SSD (Default: 128GB)
  • 1x M.2 B Key for 4G/5G/NVMe support, 1x M.2 E Key for Wifi/Bluetooth
  • 1x SIM Socket
  • 2x COM, 1x USB Type-C Gen 1, 2x USB 3.2 Gen 1, 1x USB 2.0
  • Wide Operating Temperature: -20°C to 60°C
  • dTPM 2.0 Supported
  • Wide Voltage DC IN 12~24V
See Datasheet

Model:

BCO-500-MTL

Certifications:

Intel Partner

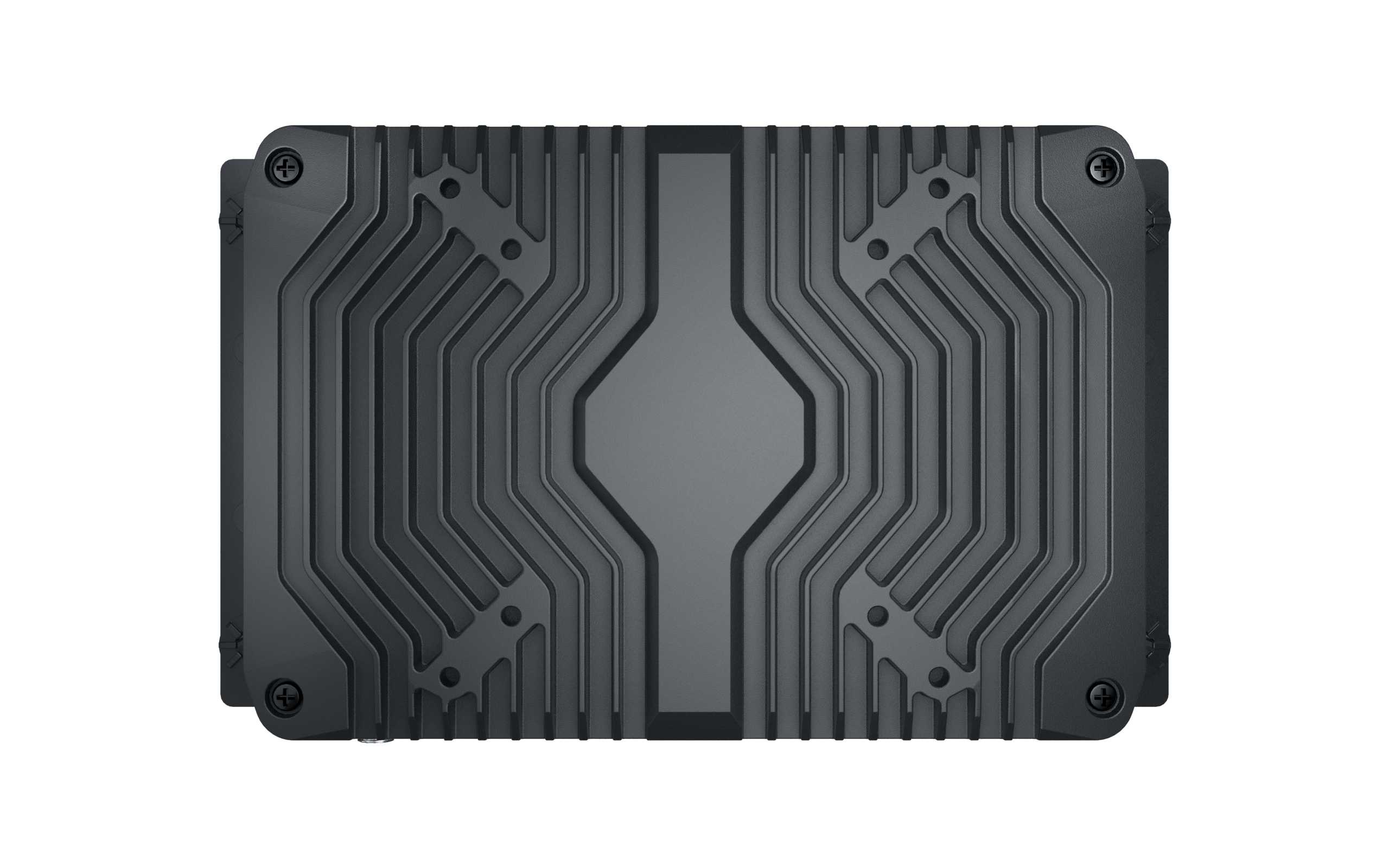

The BCO-500-MTL Series is a high-performance mini industrial computer powered by Intel® Core™ Ultra Series 1 (Meteor Lake) processors for advanced edge workloads. With an integrated Intel® Arc™ GPU and AI Boost NPU, it delivers up to 11 TOPS of AI acceleration for real-time, compute-intensive applications.

Key Benefits:

  • Compact Power Efficiency for Edge Computing
  • Built-In NPU AI Performance
  • Optimized I/O for Practical Industrial Deployments

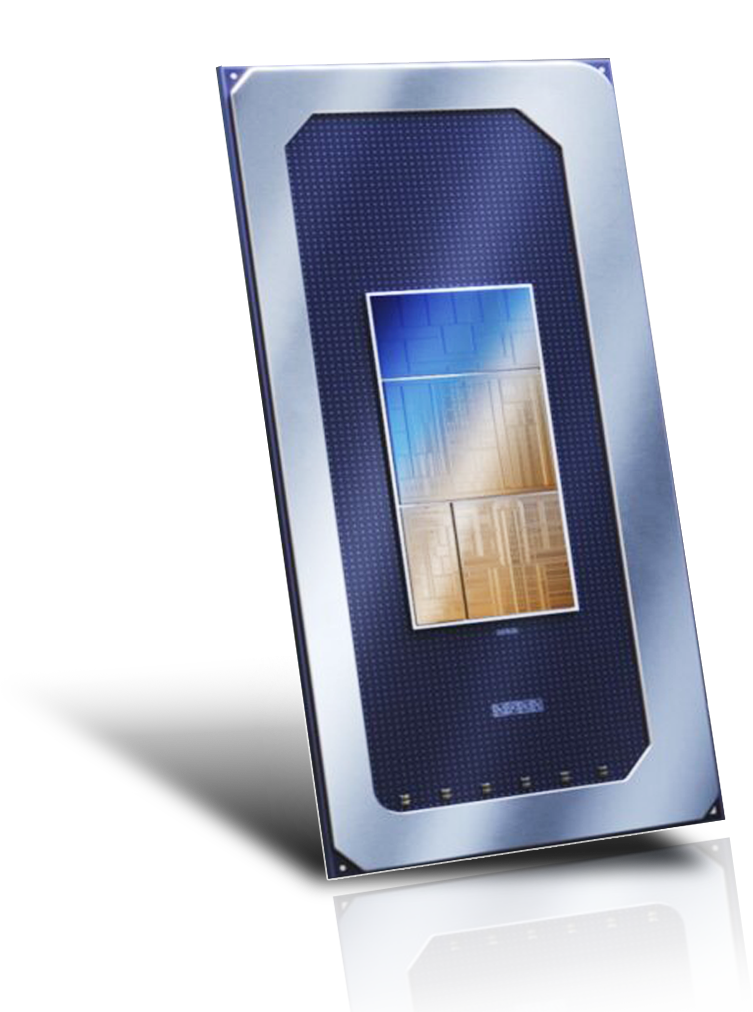

3D Performance Hybrid Architecture

Leveraging the Intel® Core™ Ultra Series 1 processors, the BCO-500-MTL Series delivers next-generation performance with 2 P-cores, 8 E-cores, and 2 LPE-cores, reaching up to 4.8 GHz turbo frequency for efficient multitasking and AI-accelerated computing at the edge.

125U

155U

Up To

12 Cores & 14 Threads

Intel Arc GPU & AI Boost NPU

11 TOPS

15W TDP

Power Efficiency

10-Years

Product Support Lifecycle

High-Speed DDR5 Memory

The BCO-500-MTL Series supports up to 32 GB of DDR5 5600 MHz memory for faster data processing and system responsiveness.

NVMe SSD for Accelerated Data Access

Supports ultra-fast NVMe SSDs via one M.2 M Key (2280) slot, with an additional M.2 B Key (3042/3052) slot available for expanded storage options.

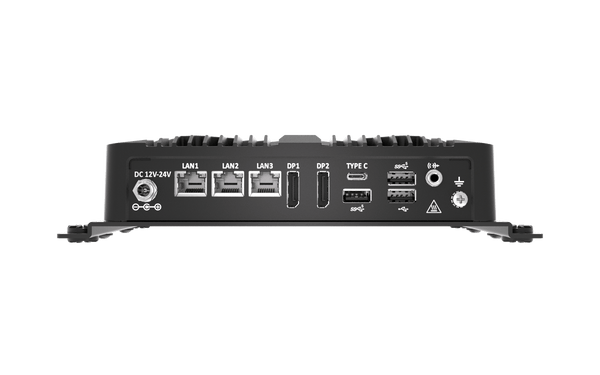

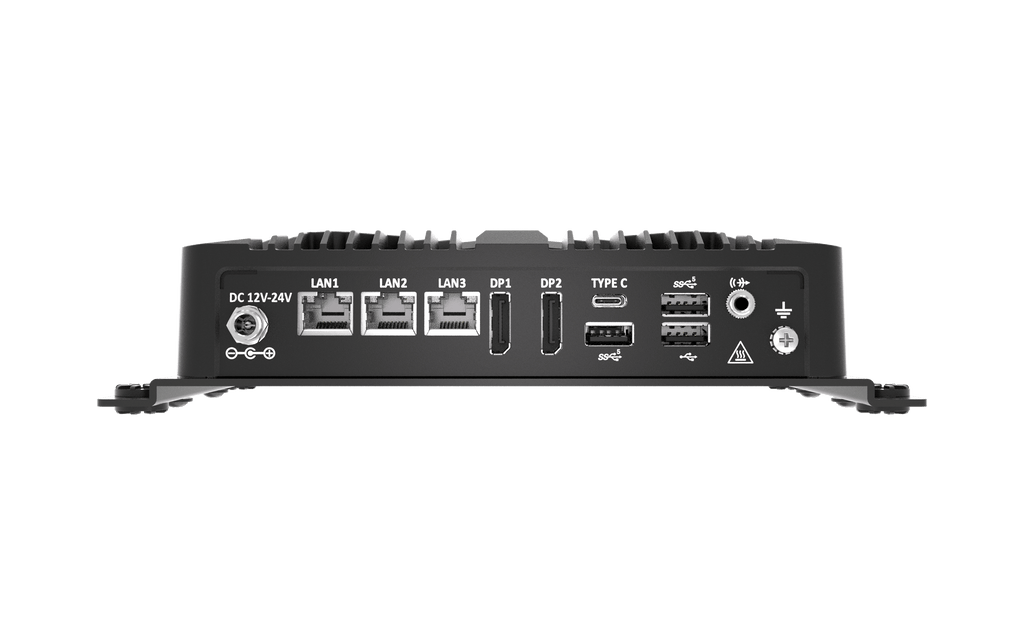

IIoT-Ready Connectivity

Equipped with all essential industrial I/Os for IIoT integration within an ultra-compact form factor, the BCO-500-MTL Series ensures reliable connectivity in space-constrained deployments.

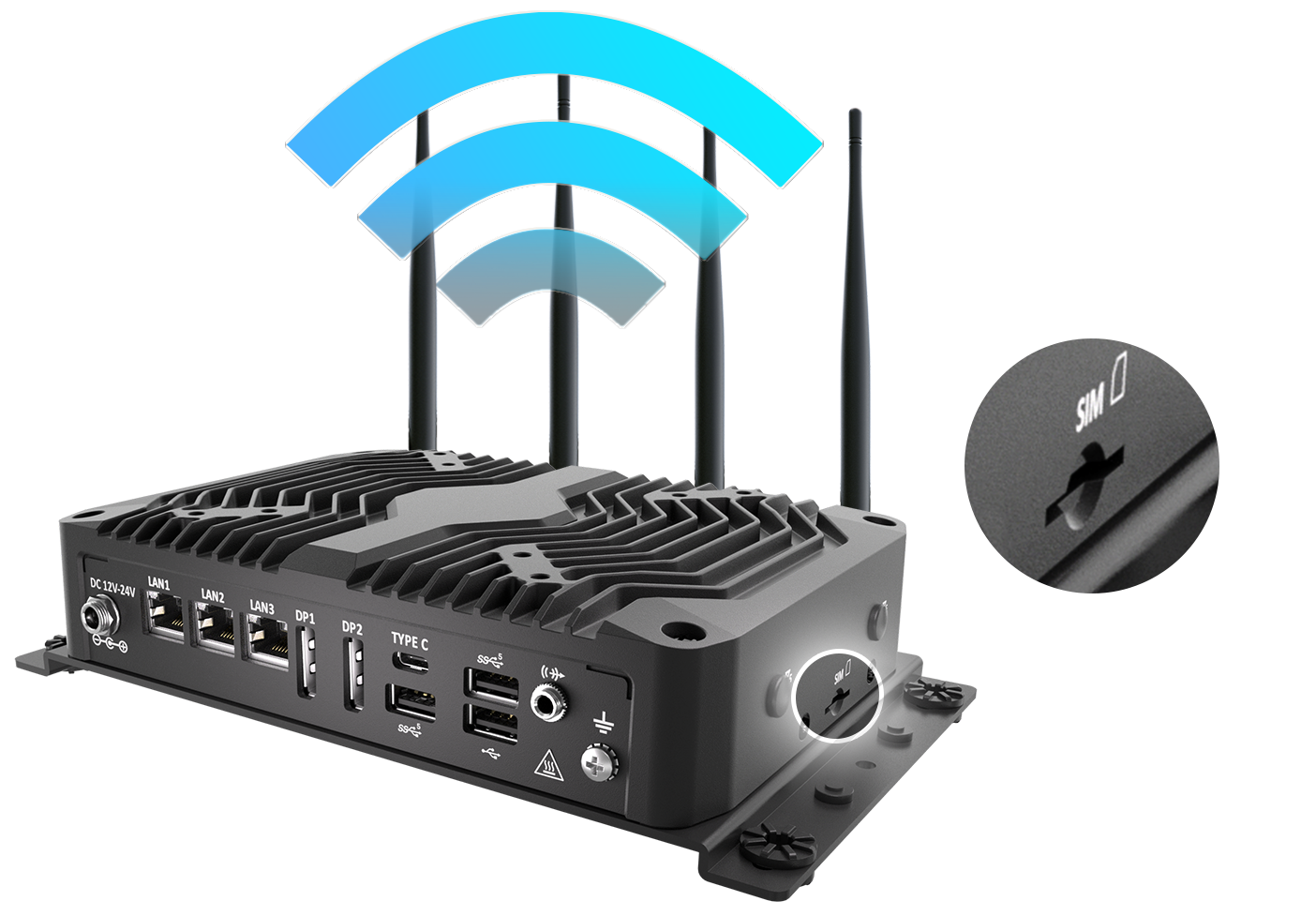

Robust Wireless & Cellular Connectivity

The BCO-500-MTL Series provides flexible wireless expansion for connected edge applications with a sim socket.

  • Industrial 5G
  • 4G/LTE
  • Wi-Fi 6E
  • Bluetooth 5.3

Industrial-Grade Reliability

The BCO-500-MTL Series features a semi-rugged design engineered for long-term operation in demanding industrial environments.

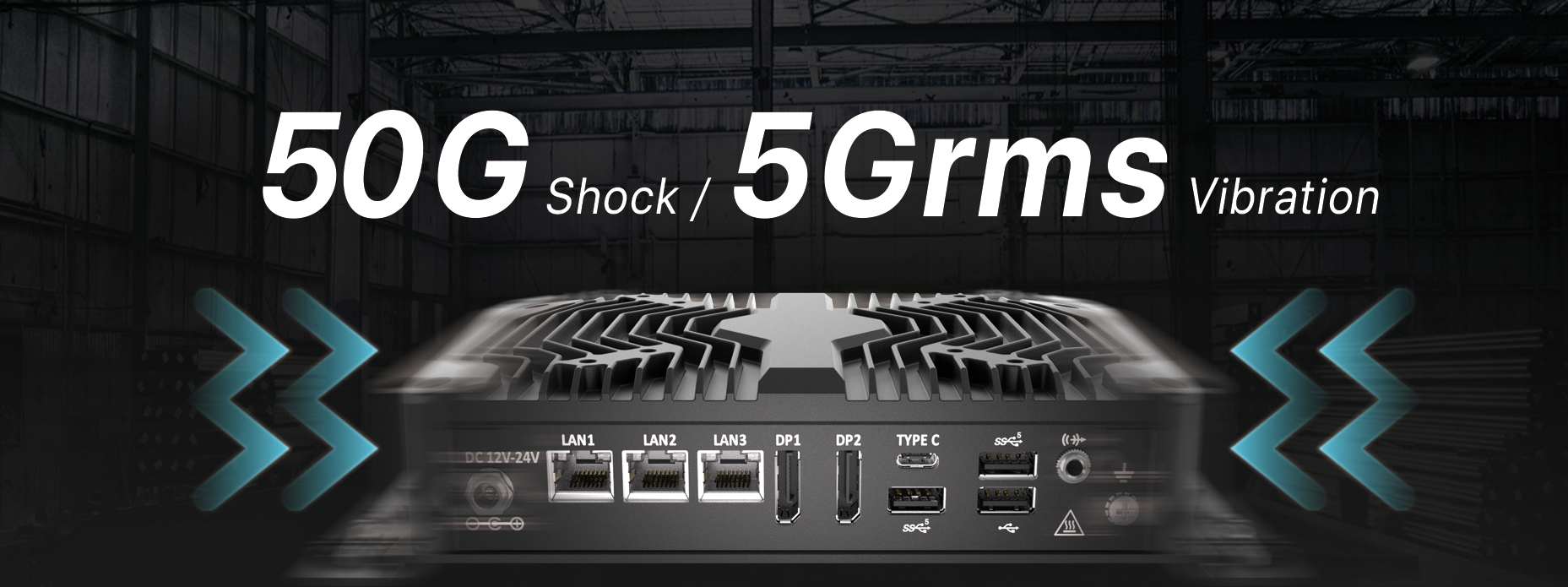

BCO-500-MTL Shock and Vibration

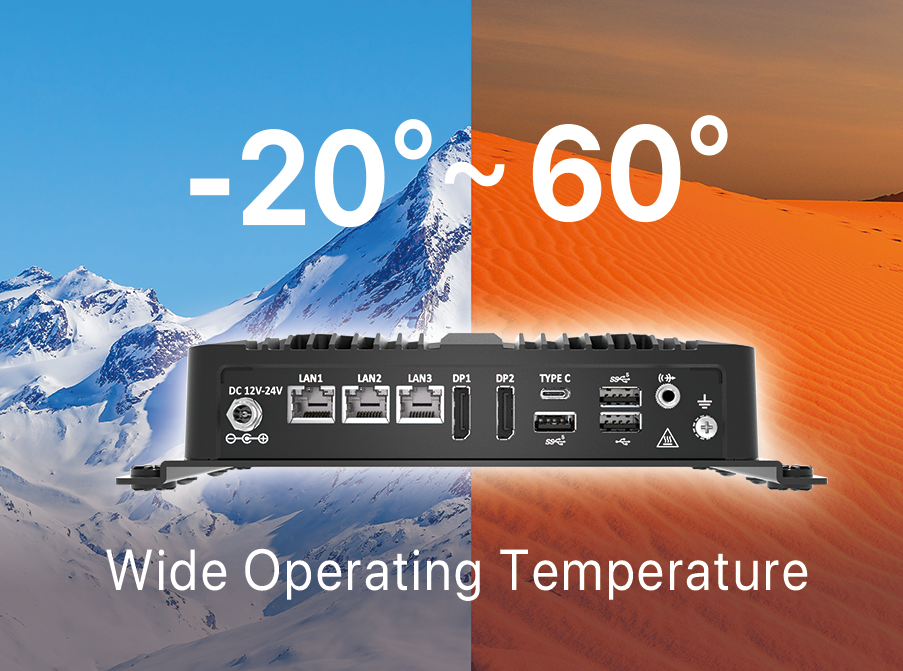

BCO-500-MTL Wide Operating Tepmerature
BCO-500-MTL Wide Power Input

TPM 2.0 Security

The BCO-500-MTL Series supports TPM 2.0 through both Intel® Platform Trust Technology (PTT) and dTPM, providing hardware- and firmware-level protection to ensure trusted system integrity in industrial and IoT environments.

World-Class Safety Certifications

Developed under the IEC 62443-4-1 secure development process, the BCO-500-MTL Series complies with globally recognized safety and EMC standards.

* Barebone Pricing Only; Sales team to review component configuration and price
*Starting At: $0.00

Specification

System
Processor • Intel® Core™ Ultra 5 Processor 125U 12M Cache, up to 4.30 GHz (2+8+2 core), 15W
• Intel® Core™ Ultra 7 Processor 155U 12M Cache, up to 4.80 GHz (2+8+2 core), 15W
System Chipset SoC integrated
LAN Chipset GbE1: Intel i226-LM 2.5GbE LAN PXE iAMT Support
GbE2: Intel i226-V 2.5GbE LAN PXE iAMT Support
GbE3: Intel i226-V 2.5GbE LAN PXE iAMT Support
Audio Codec Realtek® ALC897 CODEC
System Memory 1x 262-Pin DDR5 5600MHz SO-DIMM. Max. up to 32GB (Non-ECC)
BIOS AMI uEFI BIOS
Watchdog Software Programmable Supports 1~255 sec. System Reset
TPM fTPM 2.0, dTPM 2.0
Display
Display Port 2x DP++ 1.4 up to 3040x2160 @60Hz
Multiple Display 2x Independent Displays
Storage
M.2 M-Key 1x M.2 M Key (2280, PCIe x4 Gen 4/SATA) support for NVMe/ SATA SSD (Default: 128GB)
Expansion
M.2 1x M.2 B Key (3042/3052, PCIe x2+USB 3.0+USB 2.0) support for 4G/5G/NVMe
1x M.2 E Key (2230, PCIe+USB 2.0) for Wifi/Bluetooth

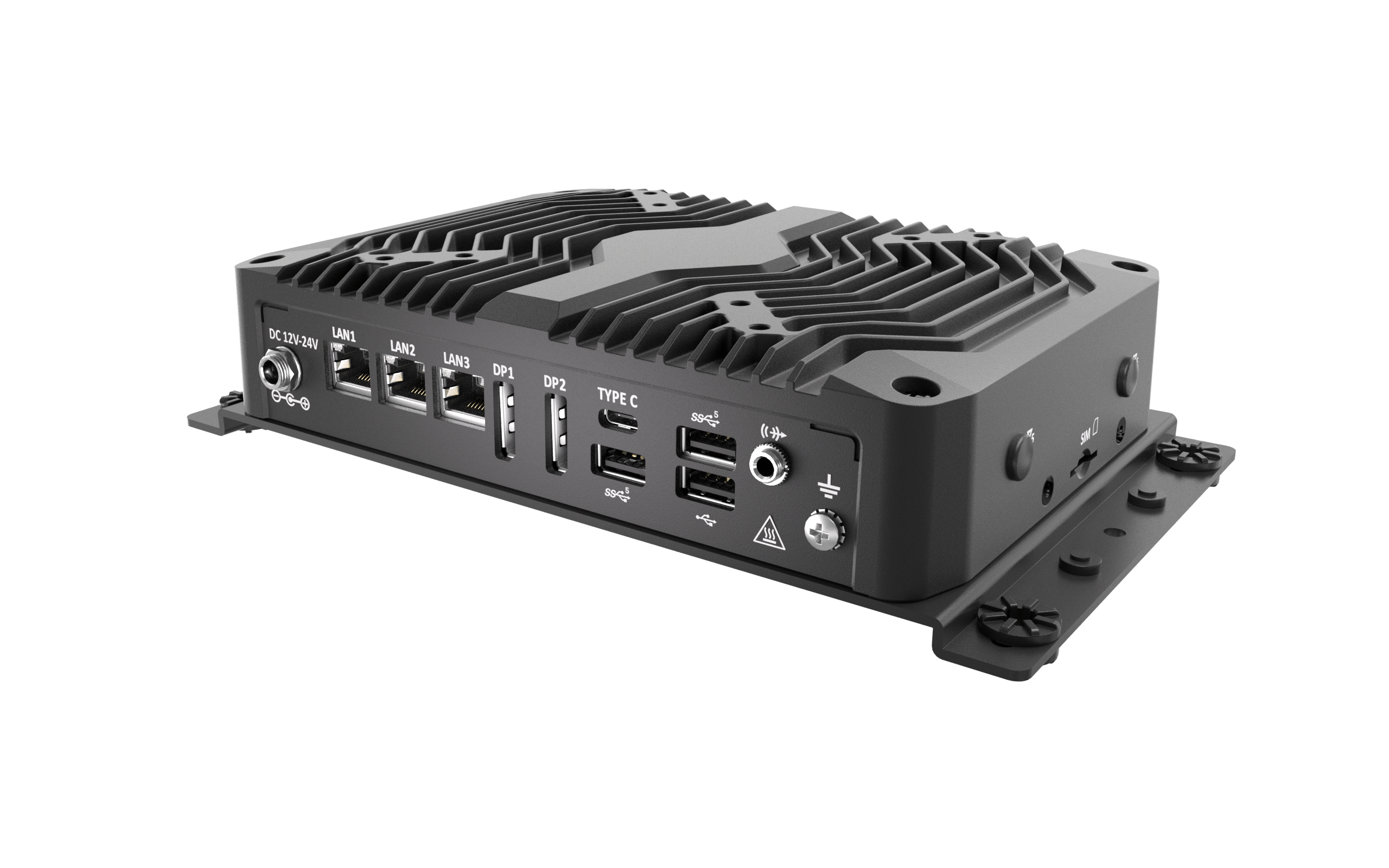

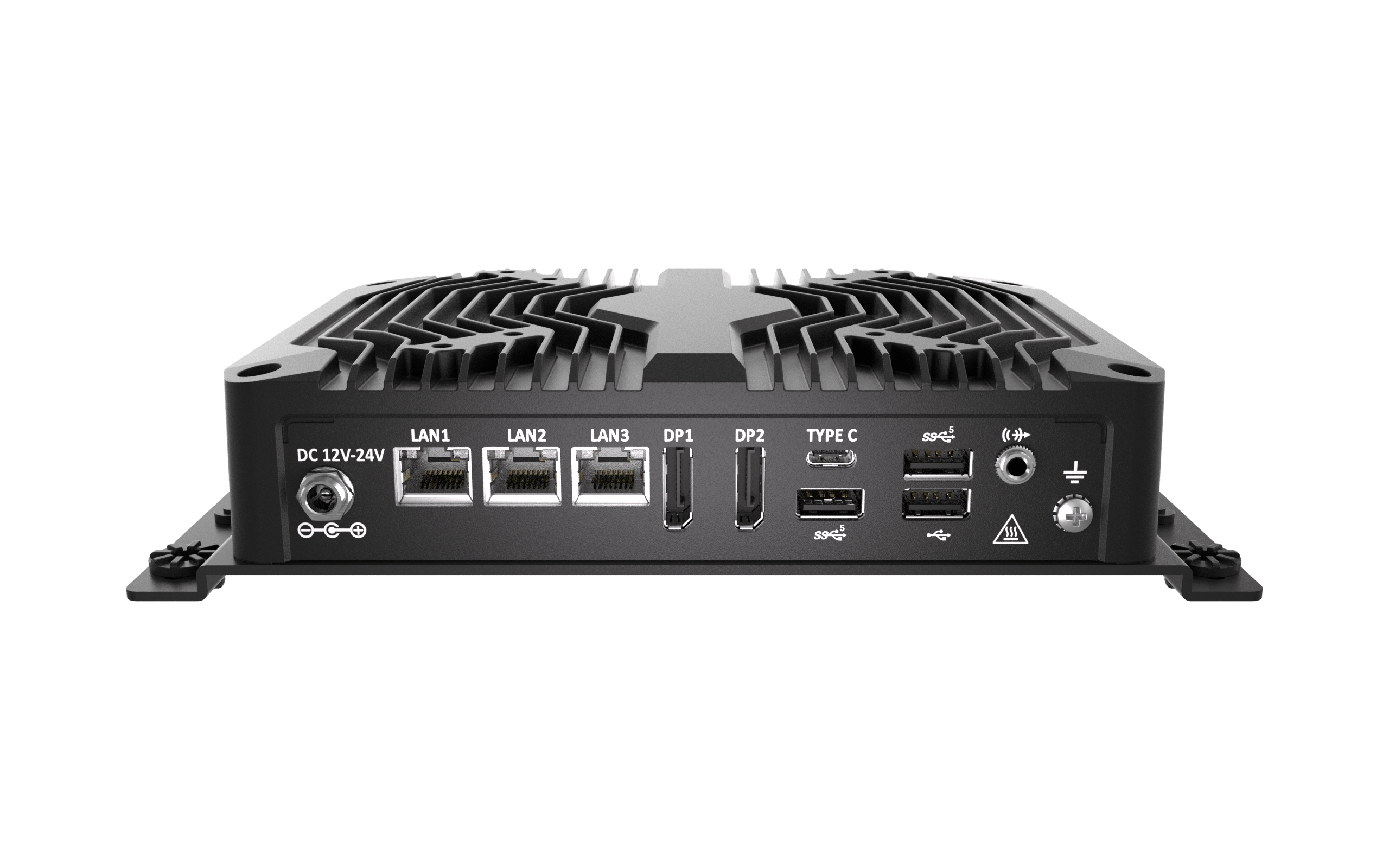

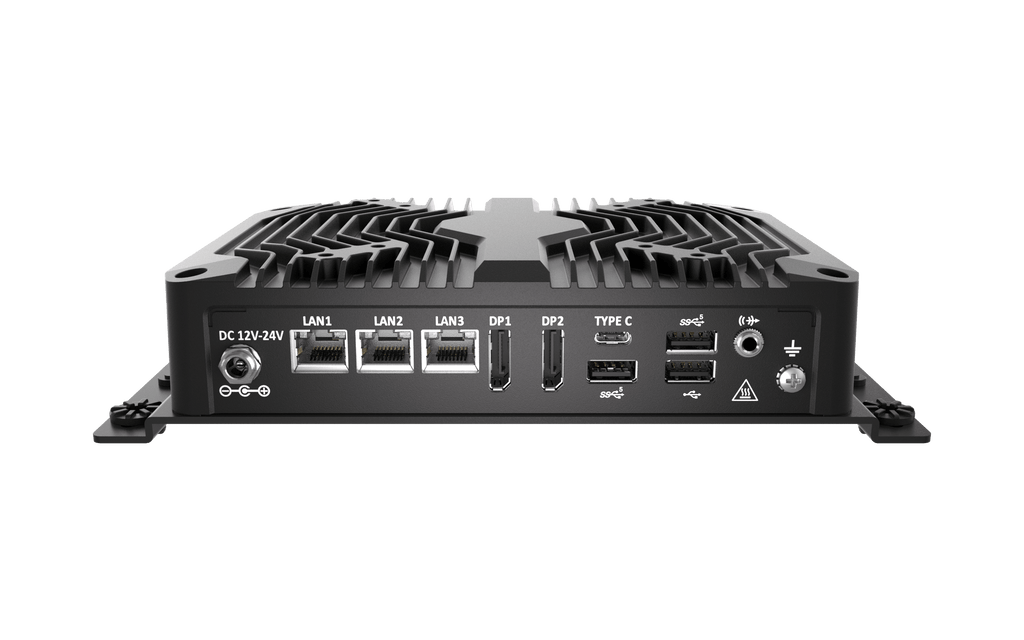

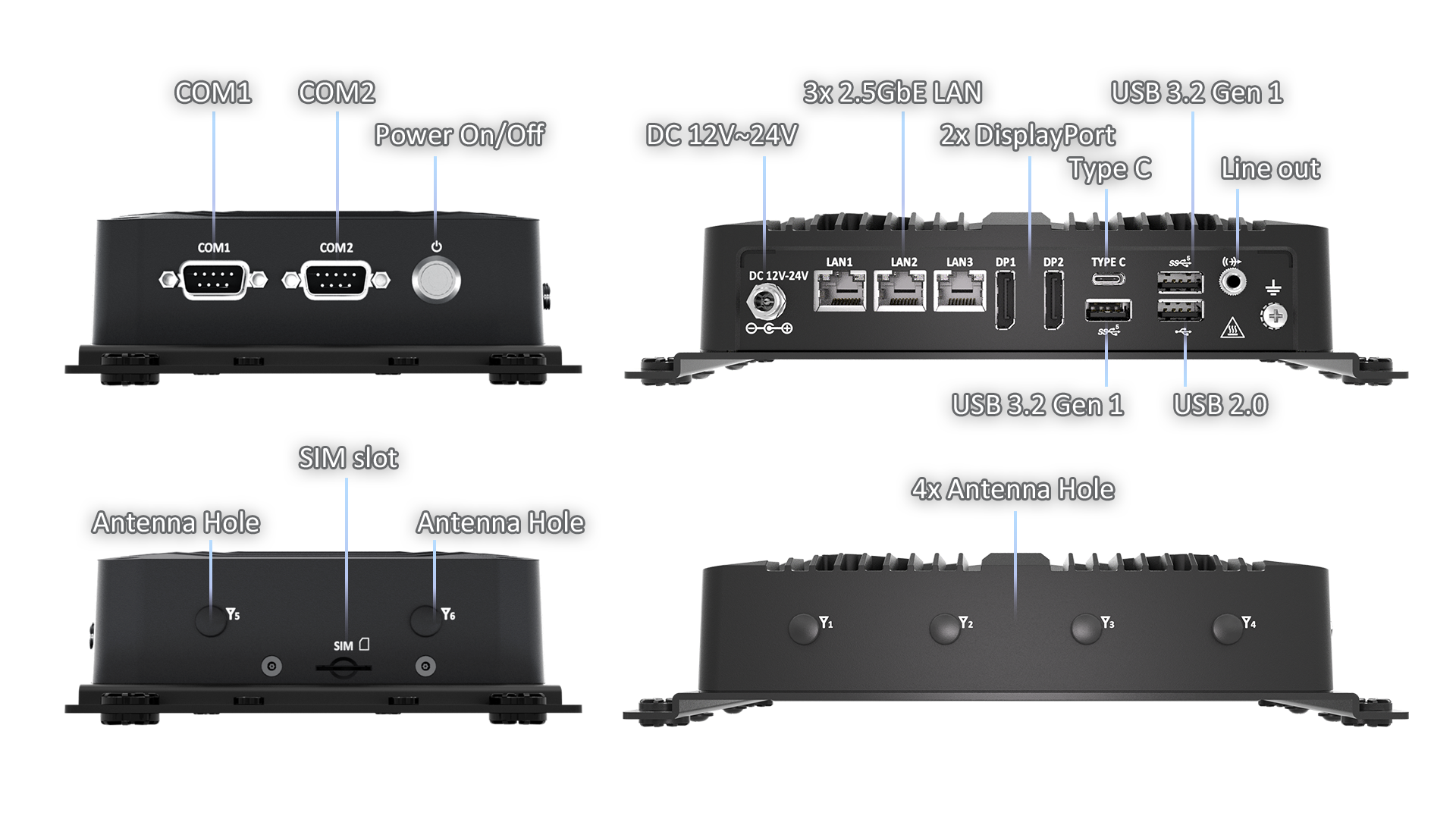

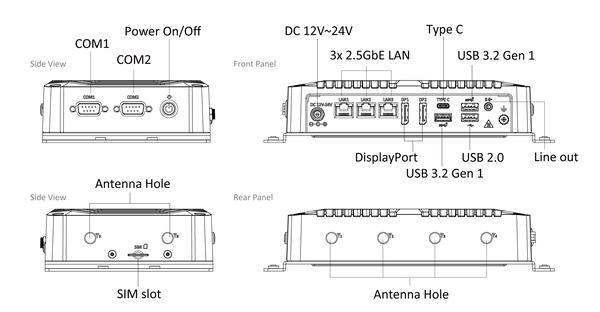

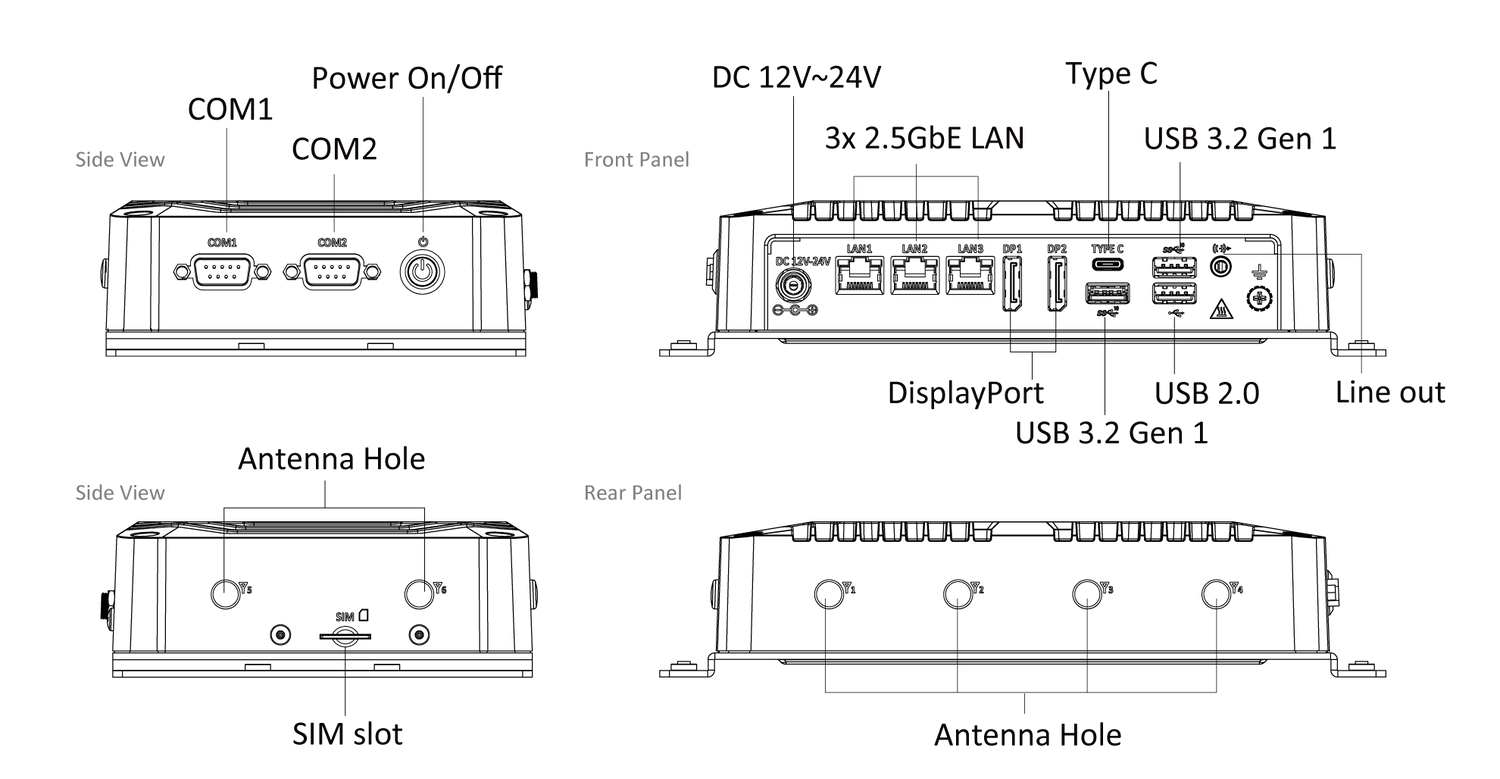

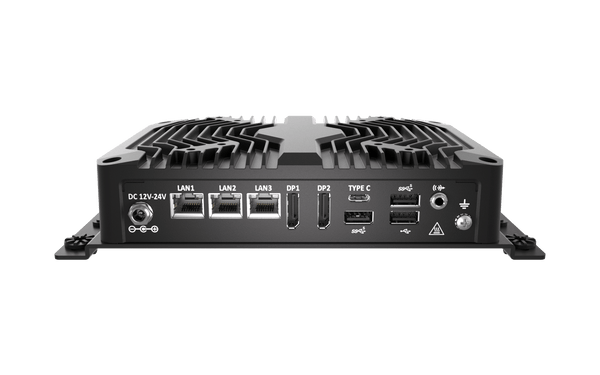

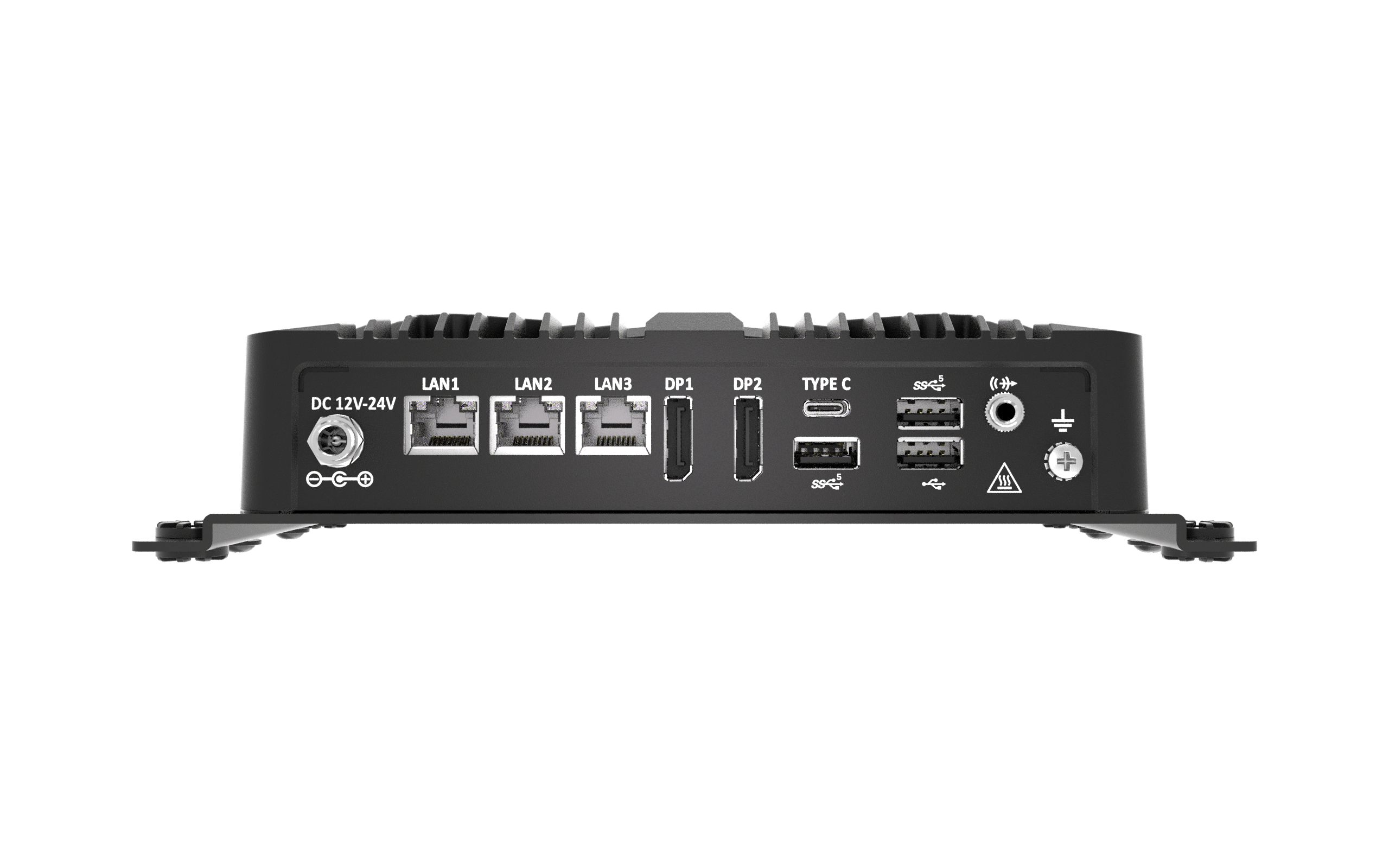

I/O
DisplayPort 2x DisplayPort

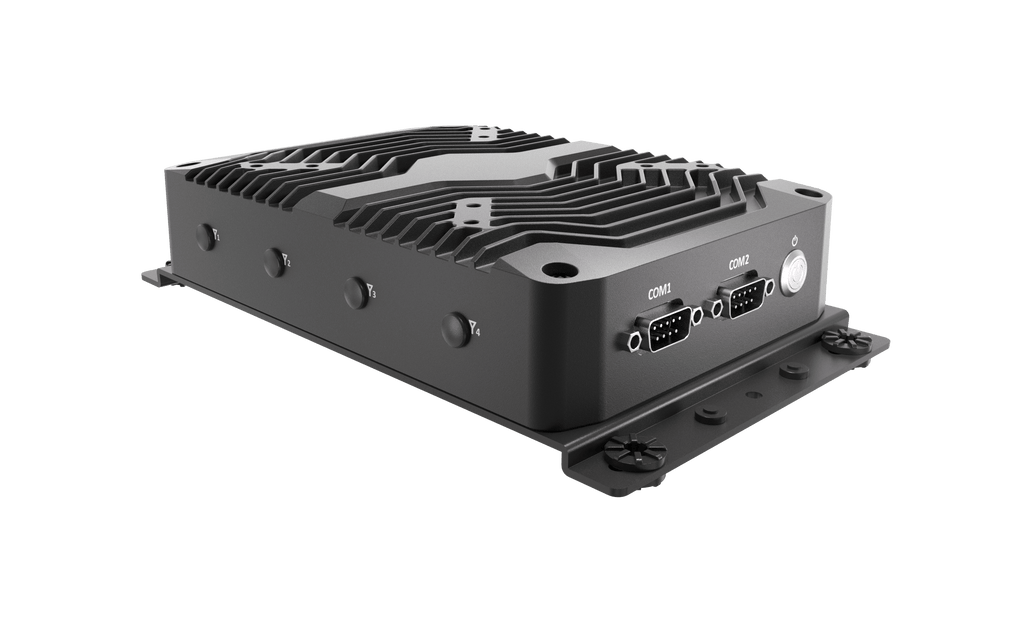

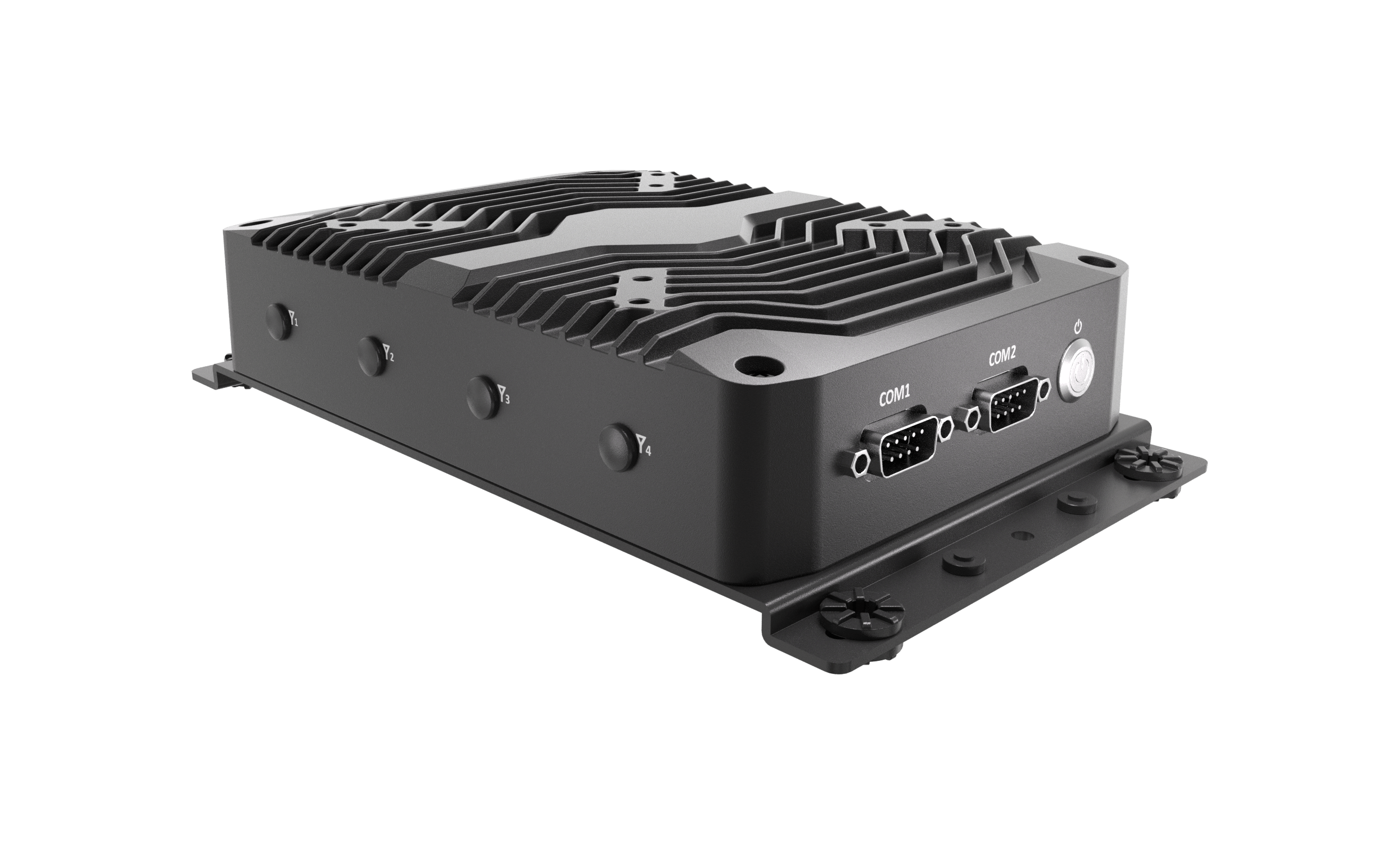

COM 2x DB9
COM1: RS232/422/485
COM2: RS232
USB 1x USB 3.2 Type-C (5 Gbps)
2x USB 3.2 Gen 1 (5 Gbps)
1x USB 2.0
LAN 3x 2.5GbE RJ45
Audio 1x Line-Out
SIM 1x SIM Socket
DC-in Jack 1x DC IN Power Jack with Lock

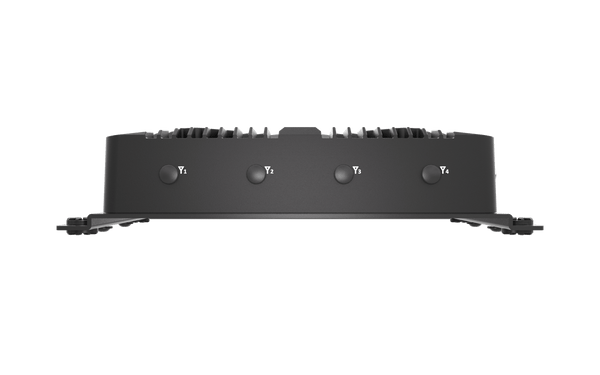

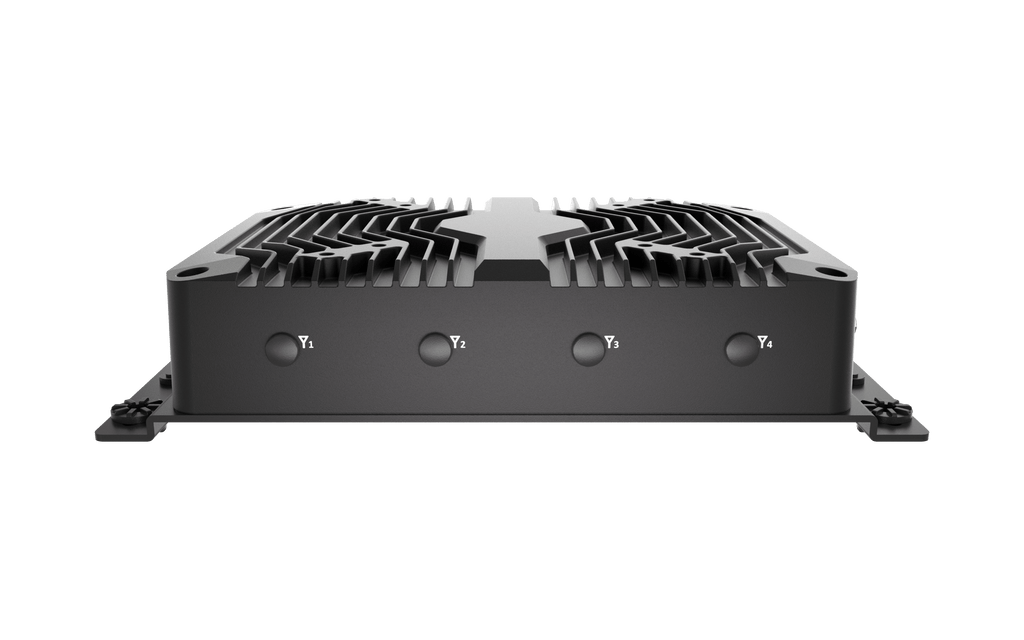

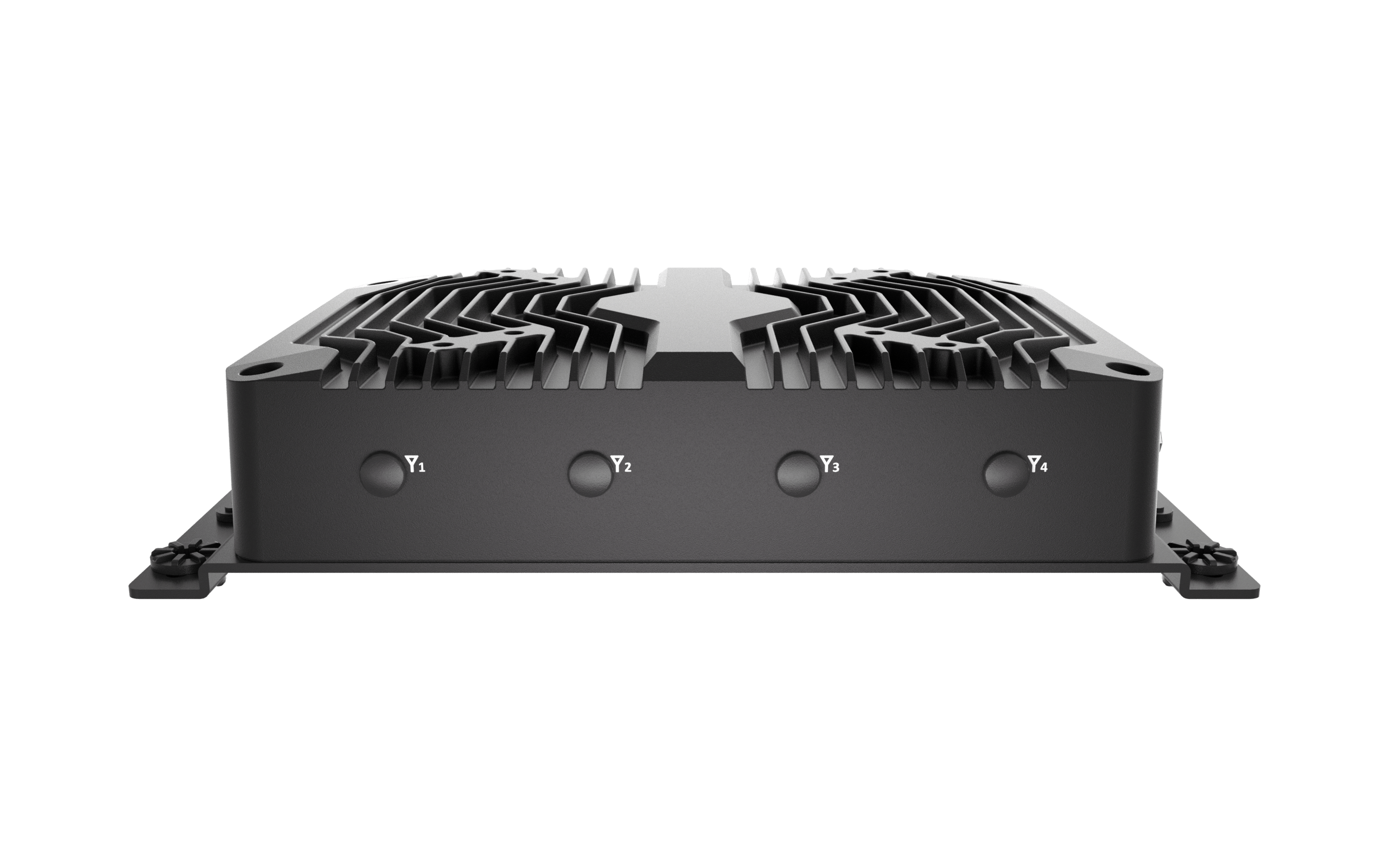

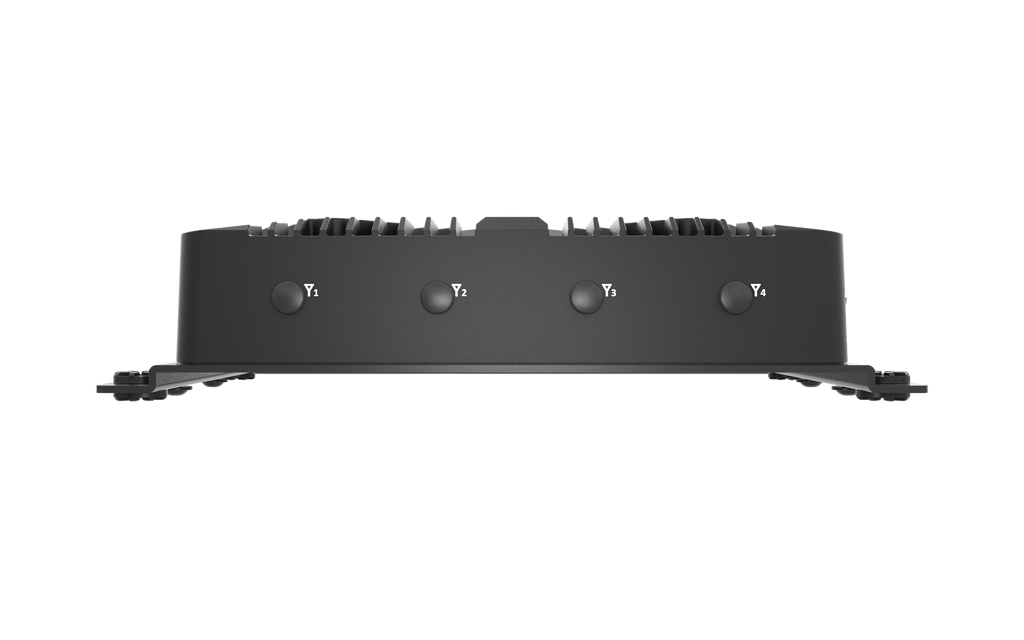

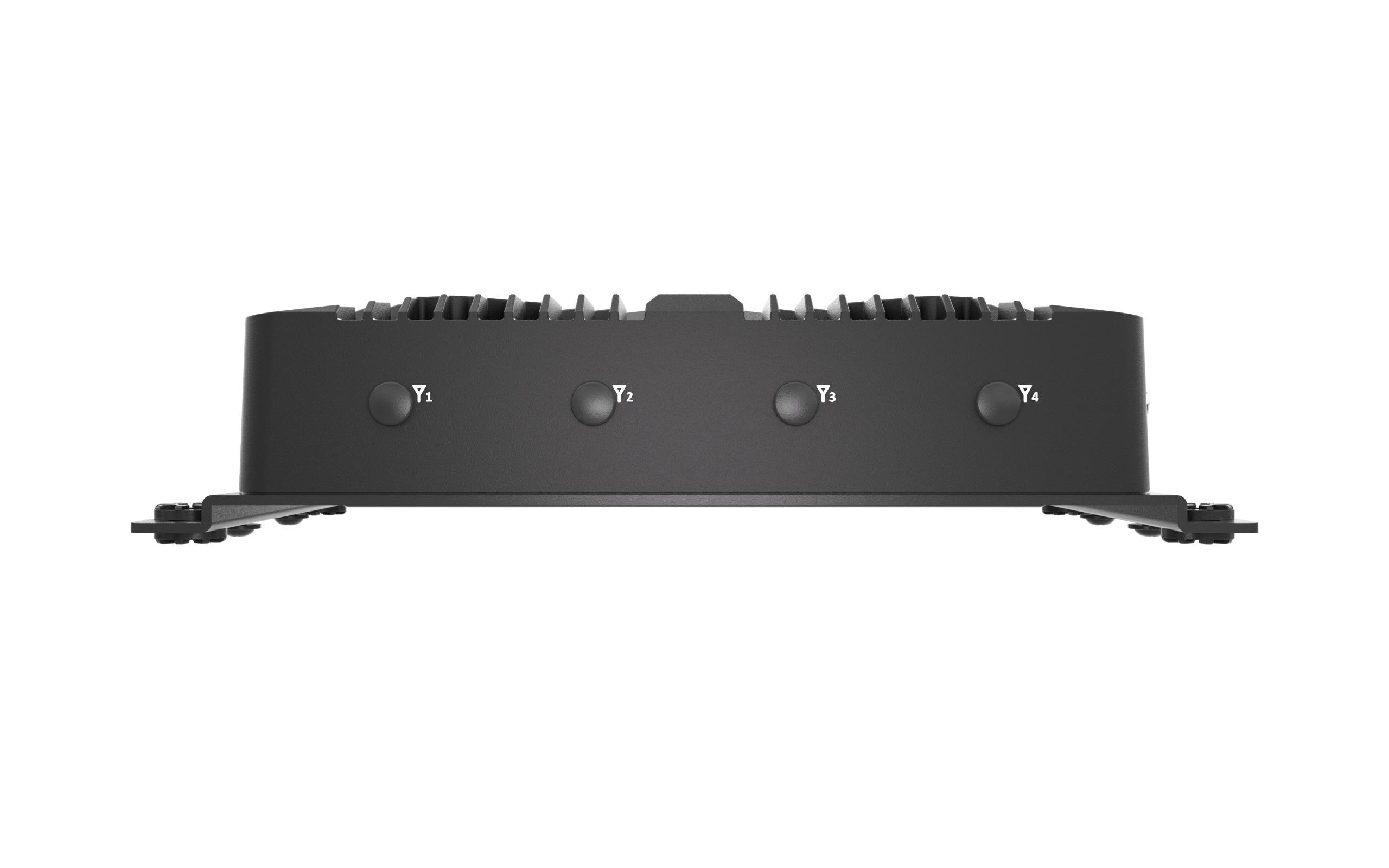

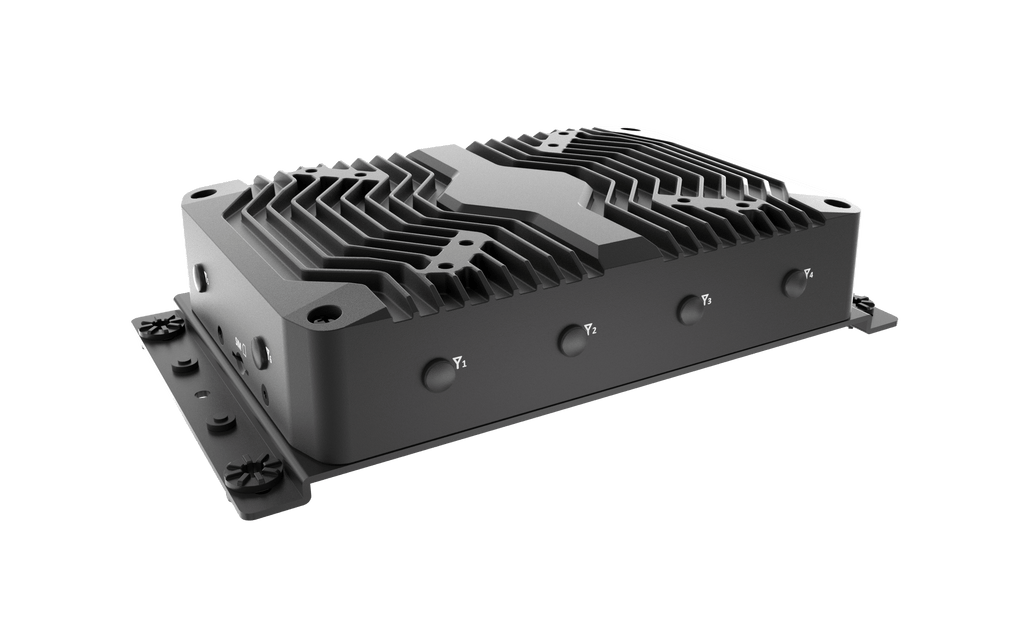

Others 6x Antenna Holes
1x Power Button
Operating System
Windows Windows 11
Linux Ubuntu 22.04
Power
Power Adapter AC/DC Adapter 20V/7.5A, 150W
Power Mode AT, ATX (Default ATX)
Power Supply Voltage 12~24VDC
Power Connector DC in Power Jack with Lock
Power Protection OVP (Over Voltage Protection)
OCP (Over Current Protection)
Reverse Protection
Surge Protection
Environment
Operating Temperature -20°C to 60°C
Storage Temperature -20°C to 75°C
Relative Humidity 10% to 95% (non-condensing)
Certification UL 62368 Ed. 3
CE, FCC Class A, UKCA
Vibration With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis)
Shock With SSD: 50G half-sin 11ms
Physical
Dimensions 225 x 130 x 48 mm
Weights 2 Kg

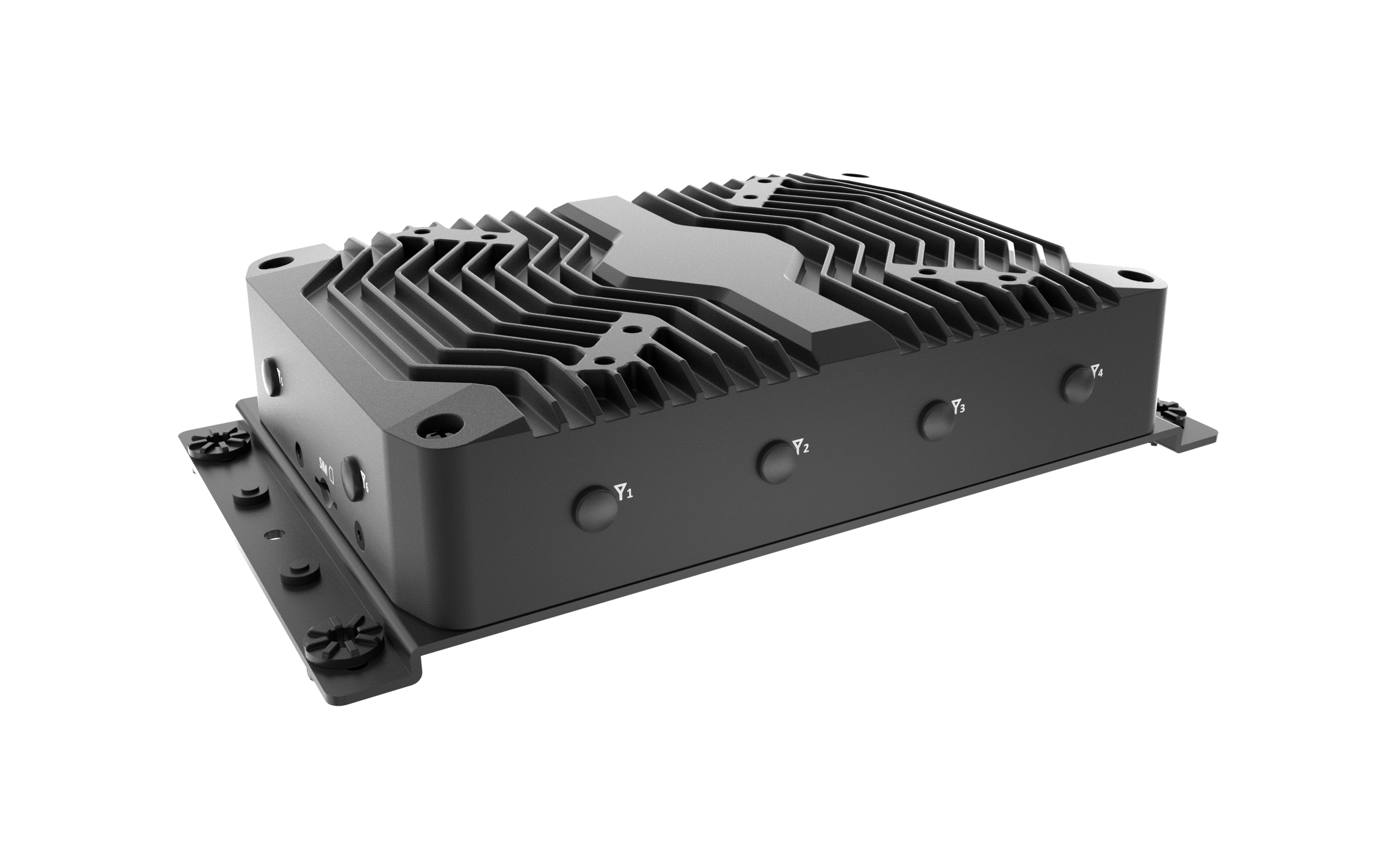

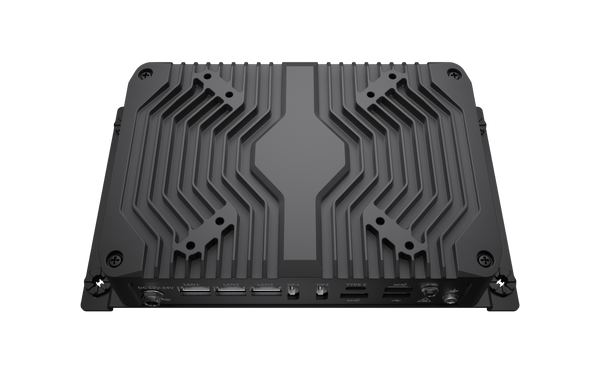

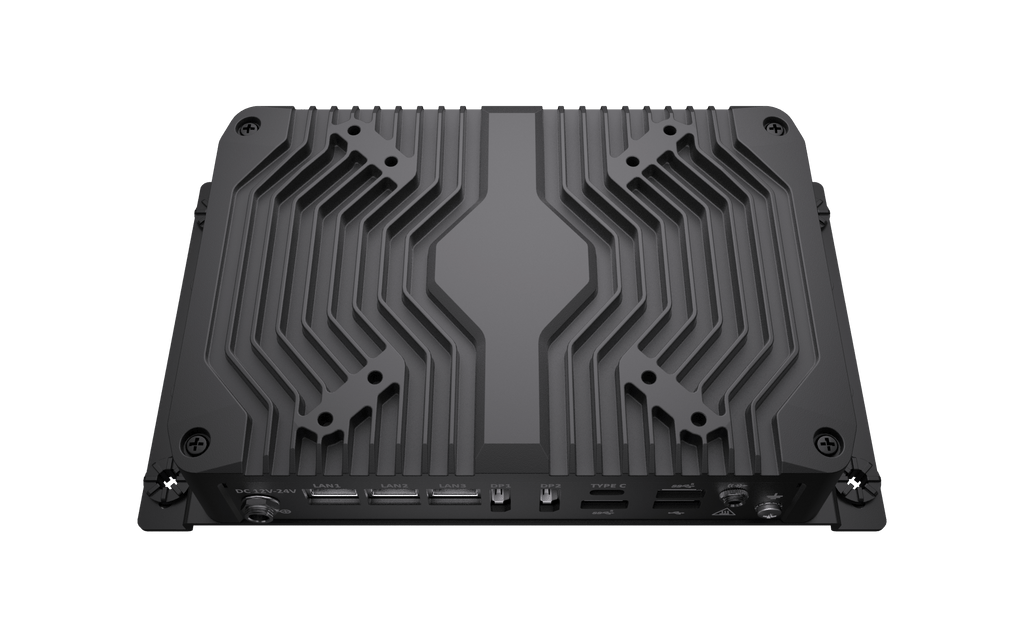

Construction Extruded Aluminum with Heavy Duty Metal
Mounting Options Wall Mounting
Vesa Mounting
Din-Rail Mounting (Optional)

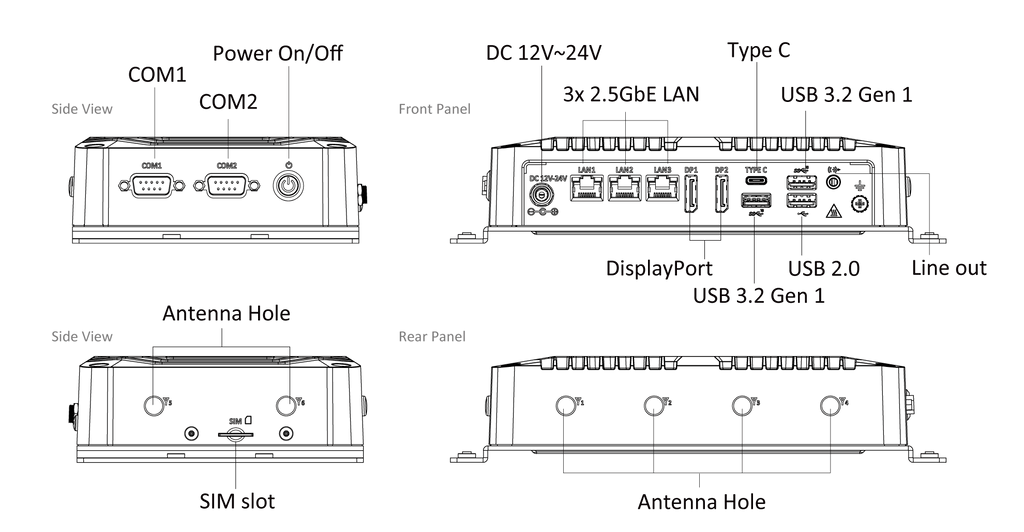

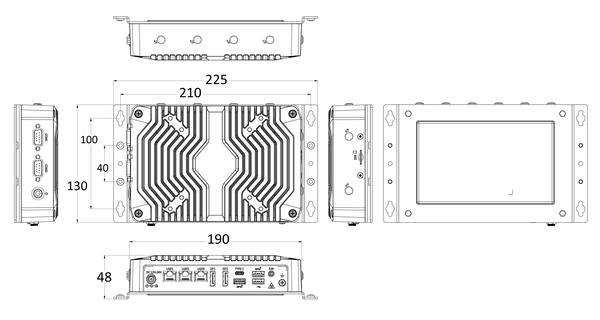

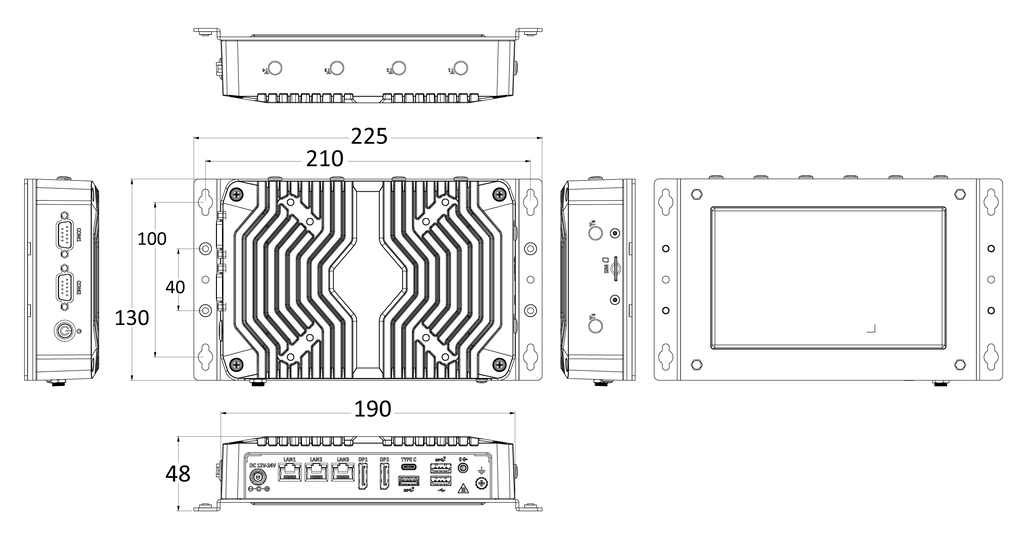

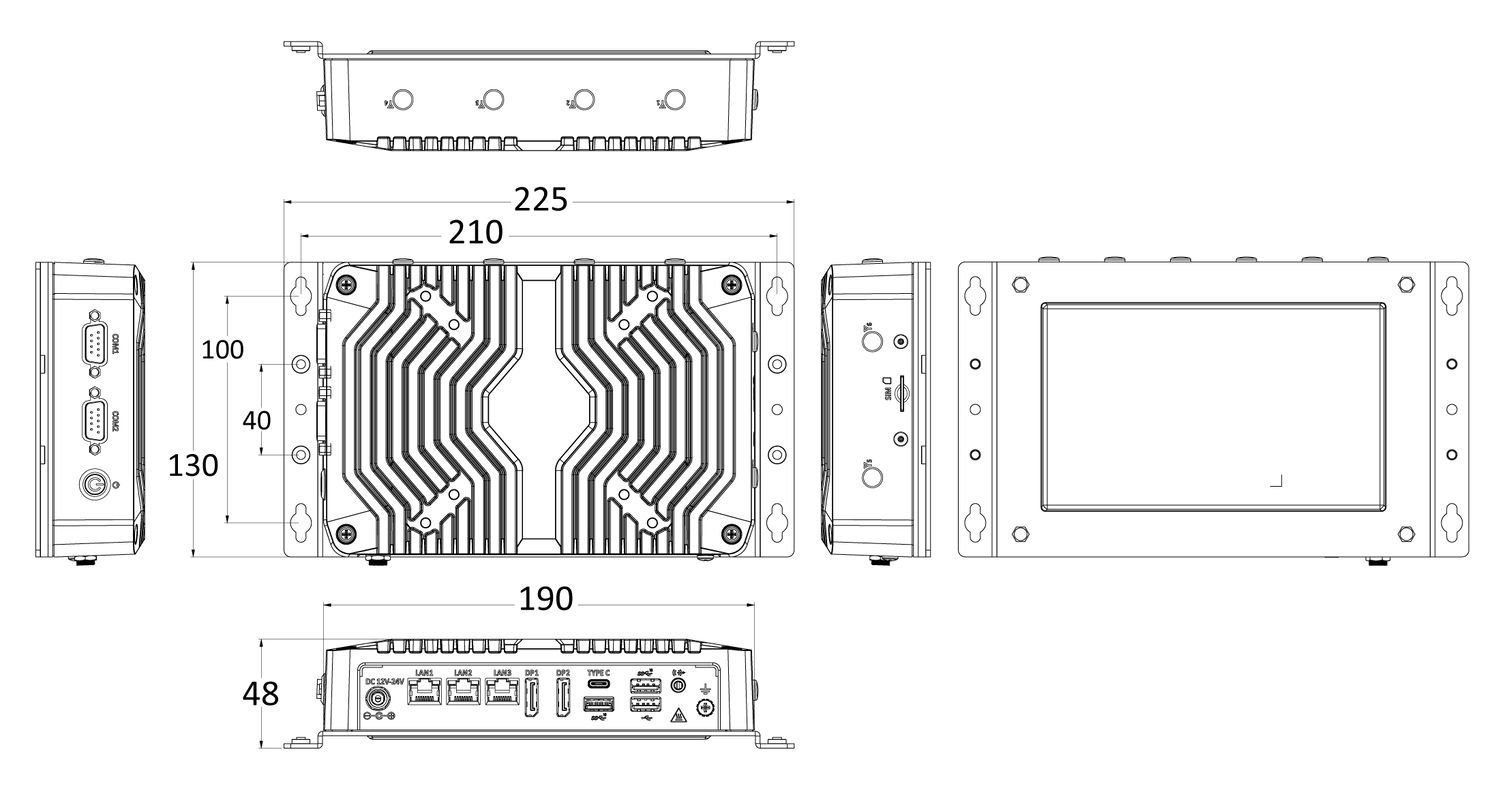

Mechanical Layout

Product Dimension

Unit:mm

Resources

Datasheet DS_BCO-500-MTL_Premio.pdf

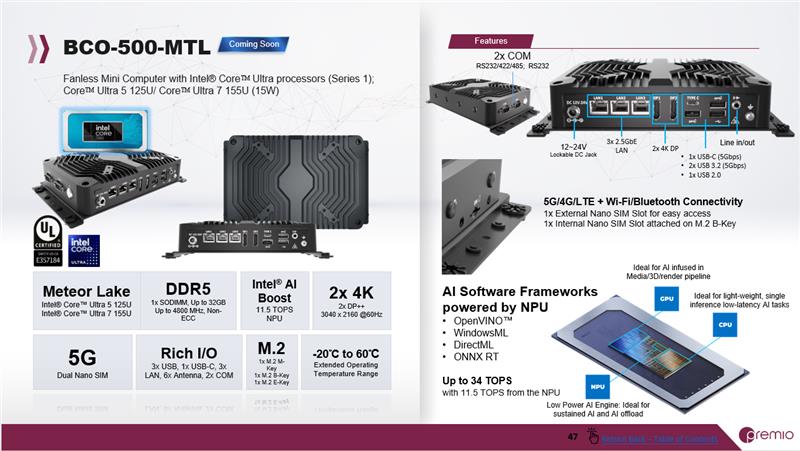

Product Brief PB_BCO-500-MTL.pdf
User's Manual UM_BCO-500-MTL.pdf
