BCO-2000-WHL-U Fanless Mini Computer with 8th Gen Intel® Core™ Mobile-U And Celeron® Processor, 2x LAN, 4x USB 3.2

SKU Alias: BCO-2000

Support 8th Gen. Intel® Core™ i5, i3 & Intel® Celeron® Processor
1x 260-pin DDR4 2400 SO-DIMM. Max. up to 32GB
2x Intel® GbE (Support Wake-on-LAN and PXE)
Dual Independent Display by 1x DisplayPort and HDMI (Optional)
2x Mini PCIe (Gen3) w/ one SIM slot supports
4x USB 3.2 Gen 2 (10Gbps), 4x RS-232/422/485 (w/ 2x Internal)
1x Internal 2.5" SATA HDD Bay and 1x mSATA
Watchdog timer 1-225s system reset
TPM 2.0 Supported
UL Listed

See datasheet

Model:

BCO-2000-WHL-U

Certifications:

BCO-2000-WHL-U series of fanless mini computer pack incredible performance, I/O flexibility, and powerful processing in a palm-sized, form factor. Based on Premio’s industrial-grade 3.5” motherboard, the BCO-2000-WHL-U Series fanless mini computers provide multi-core processing, memory, storage, and feature essential connectivity options. A key differentiation of the BCO-2000-WHL-U series fanless mini computers is the rich I/O expansion options in such a compact form, which satisfy the market demands for high-performance, flexible rugged mini PCs in space-constrained IoT deployments. These rugged mini computers are ideal for applications ranging from manufacturing and machine automation, security and surveillance, outdoor kiosk and retail, and IoT gateways for edge data connectivity and telemetry.

Power Efficient Mobile-U Processors

The BCO-2000-WHL-U Series Fanless Mini PC supports Intel’s 8th Generation Core® i3 and 8th Generation Core® i5 Processors, delivering multi-core processing power in a compact size that meets the rising demands for faster processing in space-constrained IoT deployments.

Ultra-Compact Size

Based on Premio’s Industrial-grade 3.5” motherboard, the BCO-2000-WHL-U Series are ultra-compact–that literally fit in the palm of a hand–without sacrificing the flexibility in I/O expansion that is often required for IoT scalable sensor connectivity.

Wireless Connectivity for Remote Deployments

The BCO-2000-WHL-U Series are built with multiple wireless connectivity options necessary for remote and mobile deployments, which include Bluetooth, WiFi and 4G/LTE that enable connections with a variety of industrial IoT devices.

Comprehensive I/O Kits for Custom Expandability

Why settle with fixed configurations when you have options for flexible I/O. The BCO-2000-WHL-U Series break the limits of fixed I/O on typical fanless mini PCs by offering comprehensive, ready-to-buy I/O kits for maximized deployment flexibility.

Wide Operating Temperature, Shock and Vibration Resistance

The BCO-2000-WHL-U Series is validated to operate reliably in wide temperature ranges from -20°C to 60°C and has shock & vibration rating of 20G and 3 Grms

TPM 2.0 Hardware Security Encryptions

The BCO-2000-WHL-U Series is equipped with TPM 2.0 to safeguard the device, data, and transmissions from malicious actors. TPM 2.0 is an advanced crypto-processor that offers hardware-based protection that is tamper-resistant

Certified by UL Solutions

For additional re-assurance in product quality and safety, this edge computer has earned the UL Certified Mark for ultimate reliability when operating in extreme industrial deployments.
• UL Listed (I.T.E E357184)

*Barebone Pricing Only; Sales team to review component configuration and price

*Starting At: $0.00

Configure Product
See Product Features

Specifications

System
Processor	Support 8th Gen. Intel® WL-UE Processor (15W TDP) Intel® Core™ i5-8365UE Processor 6M Cache, up to 4.10 GHz Intel® Core™ i3-8145UE Processor 4M Cache, up to 3.90 GHz Intel® Celeron® Processor 4305UE 2M Cache, 2.00 GHz
System Chipset	SoC integrated
LAN Chipset	GbE1: Intel® I219LM (Support Wake-on-LAN and PXE) GbE2: Intel® I210-IT (Support Wake-on-LAN and PXE)
Audio Codec	Realtek ALC888S HD Audio Codec
System Memory	1x 260-Pin DDR4 2400MHz SO-DIMM slot. Max 32 GB
Graphics	Intel® UHD Graphics 620 for Core series Intel® UHD Graphics 610 for Celeron series
BIOS	AMI uEFI 256MB SPI flash
Watchdog	Software Programmable Supports 1~255 Sec. System Reset
TPM	TPM 2.0
Display
Display Port	1x DP Support 4096x 2304 Resolution @60Hz
HDMI	1x HDMI Support 4096 x 2304 resolution @24Hz (optional)
Multiple Display	Dual Display
Storage
mSATA	1x mSATA (Shared by 1x Mini PCI Express)
SSD/HDD	1x Internal 2.5" SATA HDD Bay (support H=9.5mm)
Expansion
Mini PCIe	2x Full-size Mini PCIe (1x shared by 1x mSATA)

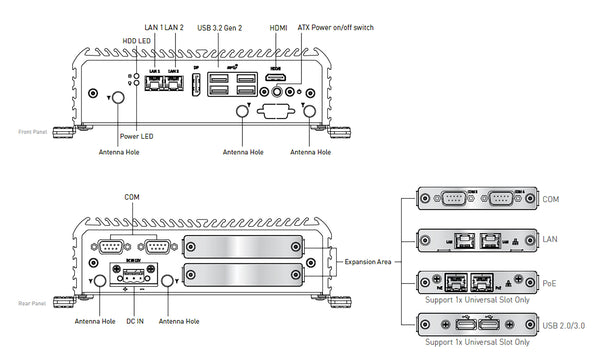

I/O
Audio	1x Mic-in, 1x Line-out
COM	2x RS-232/422/485 2x RS-232/422/485 (internal)
DIO	2 x4-bit DIO (4-in/4-out) with 2.0 Pitch Header
LAN	2x RJ45 GbE
Universal I/O Bracket	2x Universal I/O Bracket (By mini PCIe interface)
USB	4x USB 3.2 Gen 2 (10 Gbps) 2x USB 2.0 header (internal)
Others	5x WiFi Antenna Holes 1x 4-pin PWM smart fan 1x RTC battery by cable 1x Power LED, 1x HDD LED indicator
Operating System
Windows	Microsoft Windows 10 64-bit (RS5 or above)
Linux	Linux Kernel 5.x (Fedora 30 or above / Ubuntu 19.04 or above)
Power
Power Adapter	Optional AC/DC 12V/5A, 60W, Optional AC/DC 12V/6.67A, 80W for PoE Module
Power Management	ACPI
Power Mode	AT, ATX 12V
Power Connector	3-pin Terminal Block
Power Protection	Reverse Polarity Protection (RPP)
Environment
Operating Temperature	-20 °C ~ 60 °C (15W CPU)
Storage Temperature	-30 °C ~ 85 °C
Relative Humidity	10% to 95% (non-condensing)
Certification	UL, CE, FCC Class A
Vibration	With SSD: 3 Grms, 5 - 500 Hz, 0.5 hr/axis With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock	With SSD: 20G, half sine, 11ms
Physical
Dimensions	140 (D) x 192 (W) x 61 (H) mm
Weights	1.4 Kg
Construction	Extruded Aluminum with Heavy Duty Metal
Mounting Options	Wall Mounting/DIN-Rail Mounting (Optional)

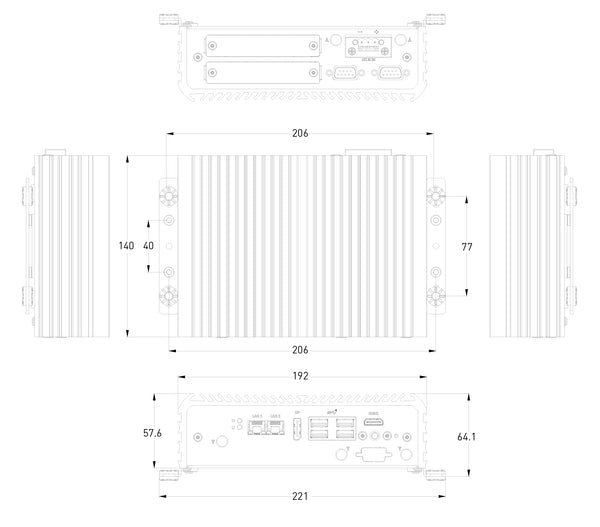

Mechanical Layout

Dimensions

Unit:mm

Resources

Datasheet	DS_BCO-2000-WHL-U_Premio.pdf
Install Guide	LTE Modem Installation Guide.pdf
Product Brief	PB_BCO-2000-fanless-mini-pc.pdf
User's Manual	UM_BCO-2000-WHL-U_Generic.pdf
