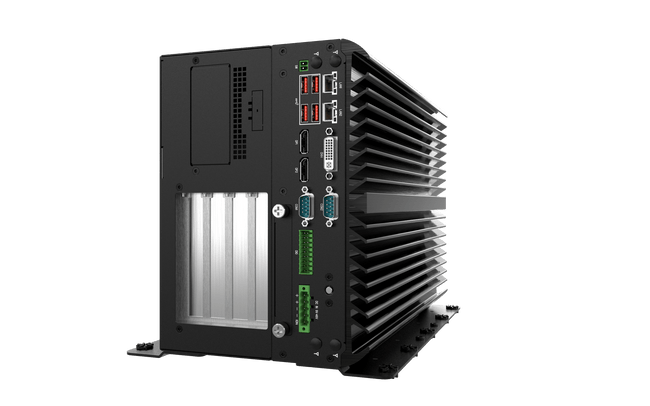

VCO-6000-RPL-4-2PWR Machine Vision Computer w/ LGA 1700 for Intel 12/13th Gen CPU & R680E PCH, 3x PCIe, 4x Expansion Slots, 2x Power Input

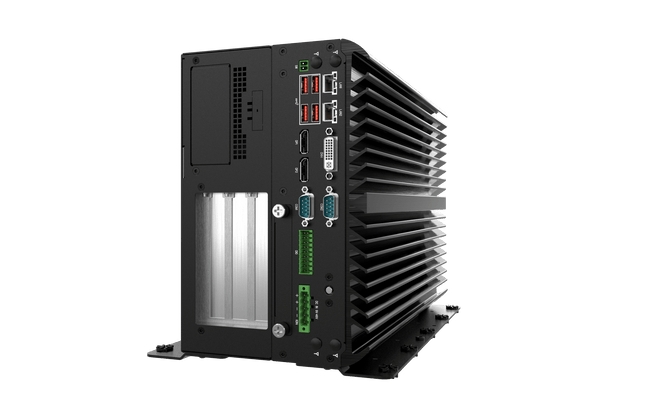

VCO-6000-RPL-3-2PWR Machine Vision Computer w/ LGA 1700 for Intel 12/13th Gen CPU & R680E PCH, 3x PCIe, 3x Expansion Slots, 2x Power Input

VCO-6000-RPL-3-2PWR Machine Vision Computer w/ LGA 1700 for Intel 12/13th Gen CPU & R680E PCH, 3x PCIe, 3x Expansion Slots, 2x Power Input

  • LGA 1700 socket for 12/13th Gen. Intel® ADL & RPL Processor (35W TDP)
  • Intel® R680E chipset
  • 2x DDR5 4800/5600MHz SODIMM. Max. up to 64GB
  • Triple Independent Display: 2x DisplayPort, 1x DVI-I
  • 2x Intel® 2.5GbE supporting Wake-on-LAN and PXE
  • 2x Full-size Mini PCIe (1x shared by 1x mSATA), 2x SIM socket
  • 2x 2.5” SATA HDD Bay (1x Internal) and with RAID 0, 1 support
  • 1x M.2 (E Key, PCIe x1, USB 2.0, 2230, Support CNVi)
  • 6x RS-232/422/485 (4x internal), 4x USB 3.2 Gen 2, 5x USB 3.2 Gen 1 (internal)
  • 8x DI + 8x DO with isolation
  • 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
  • Wide Operating Temperature -25°C to 70°C (35W CPU)
  • TPM 2.0 Supported

Certifications:

Intel Partner
AWS Greengrass IoT

12th/13th Gen Intel® Core™ Processor

NVMe/SATA SSDs

DDR5 RAM

PCIe 4.0 Expansion Slots

FHFL GPU

MIL-STD-810G Shock and Vibration

Built Rugged. Built Ready.

  • Wide Operating Temp. (-25°C to 70°C)
  • Shock & Vibration Resistant (MIL-STD-810G Compliant)
  • Wide Power Input (9~48VDC)

Edge Workload Ready: Intel® 13th Gen Hybrid P & E Cores

The VCO-6000-RPL leverages Intel’s latest hybrid-core architecture with performance and efficiency cores for optimized high-performance processing at the rugged edge.

  • Intel® Core™ i3/i5/i7/i9 Core TE Processors (35W TDP)
  • Up to 24 Cores (8 P-Cores, 16 E-Cores)
  • Up to 32 Threads
  • Additional L2 & L3 Cache

DDR5 Speed for Volatile Workloads

Doubling the performance of its predecessor, the VCO-6000-RPL utilizes DDR5 to deliver remarkable speeds for real-time edge computing.

  • 2x DDR5 4800/5600MHz SODIMM
  • ECC & Non-ECC Supported

Automation Ready with Isolated DIO

The VCO-6000-RPL has a built-in isolated DIO terminal block for programmable automation procedures and protocols.

  • On-board DIO (8 in/8 out, Isolated)
  • Flexible Programmable Source Code

Lower Latency and Faster Speeds: PCIe Gen 4.0

Purpose-built to support a full-height, full-length GPU with PCIe Gen 4.0 performance, the VCO-6000-RPL has proven to enable edge AI computer vision applications.

VCO-6000-3-2PWR:

  • 1x PCIe 4.0 x16 for FHFL GPU
  • 2x PCIe 3.0 x1

Industry-Leading NVMe/SATA Hot-Swappability

For real-time data acquisition, redundancy, and convenient data offloading, the VCO-6000-RPL offers hot-swappable 2.5” storage drives in NVMe or SATA interfaces.

  • 2x Removable 2.5" U.2 NVMe Bay (15mm) Support RAID 0, 1
  • 2x Removable 2.5" SATA HDD Bay (15mm) Support RAID 0, 1, 5, 10
  • 4x Removable 2.5" SATA HDD Bay (7mm) Support RAID 0, 1, 5, 10

Versatile Operating Systems for Enterprise Manageability

Manage and facilitate the interaction between hardware, software applications, and end-user applications

  • Windows 10 IoT LTSC
  • Windows 11 IoT Enterprise
  • Canonical Ubuntu/Linux

Certified by UL Solutions

For additional re-assurance in product quality and safety, this edge computer has earned the UL Certified Mark for ultimate reliability when operating in extreme industrial deployments.
• UL Listed (I.T.E E357184)


* Barebone Pricing Only; Sales team to review component configuration and price
Regular price $0.00
*Starting At: $0.00

Specification

System
Processor Support 12/13th Gen Intel® ADL & RPL Processor (LGA 1700, 35W TDP)
- Intel® Core™ i9-13900TE/i9-12900TE, up to 24 Cores, 36MB Cache, up to 5 GHz
- Intel® Core™ i7-13700TE/i7-12700TE, up to 16 Cores, 30MB cache, up to 4.8 GHz
- Intel® Core™ i5-13500TE/i5-12500TE, up to 14 Core, 24MB Cache, up to 4.5 GHz
- Intel® Core™ i3-13100TE/i3-12100TE, up to 4 Cores, 12MB Cache, up to 4.1 GHz
- Intel® Pentium® G7400E,2 Cores, 6MB Cache, 3.6 GHz, 46W
- Intel® Pentium® G7400TE, 2 Cores, 6MB Cache, 3.0 GHz
- Intel® Celeron® G6900E, 2 Cores, 4MB Cache, 3.0 GHz, 46W
- Intel® Celeron® G6900TE, 2 Cores, 4MB Cache, 2.4 GHz
System Chipset Intel® R680E Express Chipset
LAN Chipset 2.5 GbE1: Intel I226,
2.5 GbE2: Intel I226,
Support Wake-on-LAN and PXE, Support TSN
Audio Codec Realtek ALC888S
System Memory 2x 262-Pin DDR5 4800/5600MHz SODIMM.

Max. up to 64GB (ECC and Non-ECC)
Graphics Intel® UHD Graphics 770/710
BIOS AMI 256Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 sec. System Reset
TPM TPM 2.0
Display
Display Port 2x DisplayPort, Support resolution 5120 x 3200,
Up to 7680 x 4320
DVI 1x DVI-I, support resolution 1920 x 1200
Multiple Display Triple Display
VGA Yes (by optional split cable)
Storage
M.2 1x M.2 B Key, 2242/3042/3052
(PCIe x2, Support AI Module/NVMe Storage)
(PCIe x1 & USB 3.2 Gen1, Support 4G/5G)
mSATA 1x mSATA (Shared by 1x Mini PCI Express)
SIM Socket 2x Internal SIM socket (Mini PCIE/M.2 B Key attached)
SSD/HDD 1x Internal 2.5" SATA/SSD HDD Bay (support H=9mm)
1x Removable 2.5" SATA HDD Bay (support H=7mm, Hot-swappable)
Support RAID 0, 1

Configuration Options:
• 4x Removable 2.5" SATA HDD Bay (support H=7mm, Hot-swappable, Optional) Support RAID 0, 1, 5, 10
• 2x Removable 2.5" SATA HDD Bay (support H=15mm, Hot-swappable, Optional) Support RAID 0, 1, 5, 10
• 2x Removable 2.5" U.2 NVMe Bay (support H=15mm, Hot-swappable, Optional) Support RAID 0, 1
Expansion
Mini PCIe 1x Full-size Mini PCIe (1x shared by 1x mSATA)
PCIe 1x PCIe x16 (Gen4)
2x PCIe x1 (Gen3)
Card Dimension 310 (L) x 112 (H) mm
I/O
COM 2x RS-232/422/485 ; 4x RS-232/422/485 (internal)
DIO 8 in / 8 out (Isolated)
LAN 2x RJ45
Universal I/O Bracket 2x Universal I/O Bracket (By mini PCIe interface)
USB 4x USB 3.2 Gen 2 (10 Gbps)
5x USB 3.2 Gen 1 (5 Gbps, Internal)
1x USB 3.2 Gen 1 header (5 Gbps, internal)
Others 4x WiFi Antenna Holes
1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off
1x PC/Car Mode Switch, 1x Delay Time Switch
1x Removable CMOS Battery (internal)
1x 6CM FAN Module (Optional)
Operating System
Windows Windows 10/11
Linux Linux kernel
Power
Power Adapter Optional AC/DC 24V/9.2A, 220W
Optional AC/DC 24V/11.67A, 280W (for more advanced CPU or as second power supply for GPU/Card Expansion)
Optional AC/DC 24V/15A, 360W (for more advanced i7/i9 CPU)
Power Mode AT, ATX
Power Ignition Sensing Power Ignition Management
Power Supply Voltage • 9~48VDC
• 12~48VDC (For GPU/Card Expansion)
Power Connector 5-pin Terminal Block
4-pin Terminal Block (optional second power supply)
Power Protection OVP (Over Voltage Protection)
OCP (Over Current Protection)
Reverse Protection
Environment
Operating Temperature -25°C to 70°C (35W CPU)
Storage Temperature -30°C to 85°C
Relative Humidity 10% to 95% (non-condensing)
Certification UL 62368 Ed. 3, CE, FCC Class A
Vibration IEC60068-2-64:2008
With HDD: 1 Grms (5 - 500 Hz, 0.5 hr/axis)
With SSD: 3 Grms (5 - 500 Hz, 0.5 hr/axis)
Designed to comply with MIL-STD-810G Method 514.7 Procedure I
Shock IEC60068-2-27:2008
With SSD: 20G half-sin 11ms
Designed to comply with MIL-STD-810G Method 516.7 Procedure I
Physical
Dimensions (W x H x D) 157 (W) x 340 (D) x 240 (H) mm
Weights 9.2 KG
Construction Extruded Aluminum with Heavy Duty Metal
Mounting Options Wall Mounting

Mechanical Layout

Product Dimension

Unit:mm
