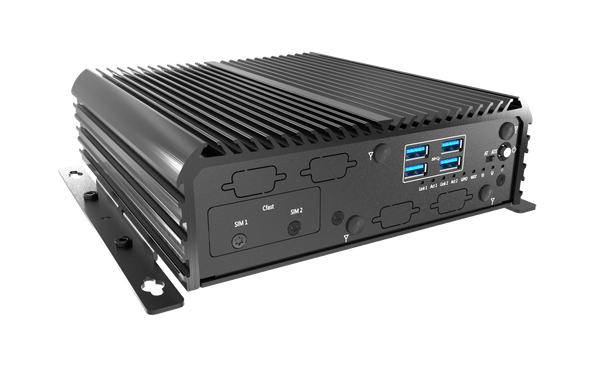

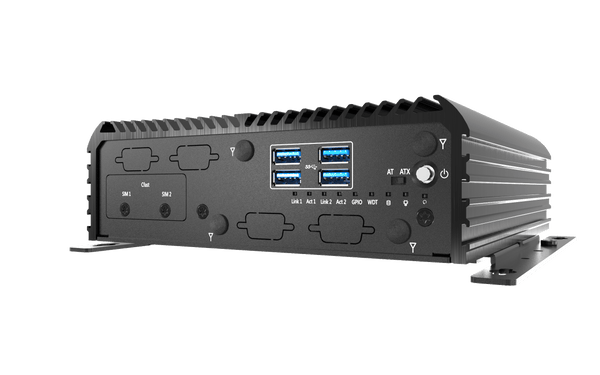

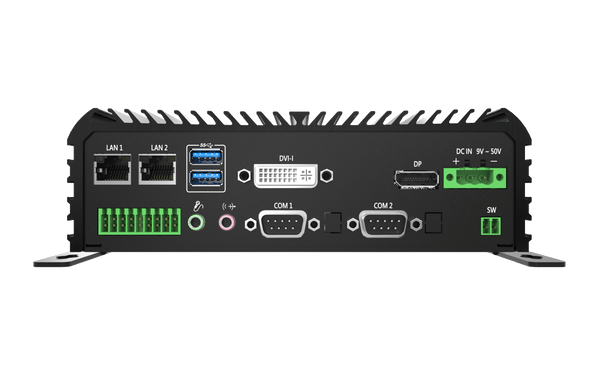

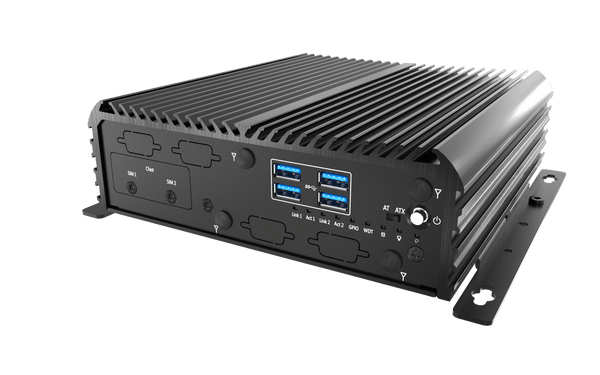

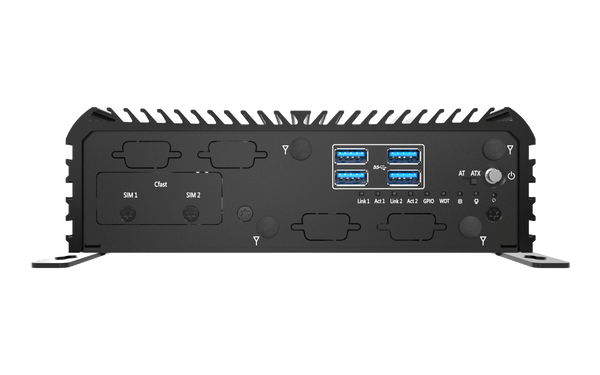

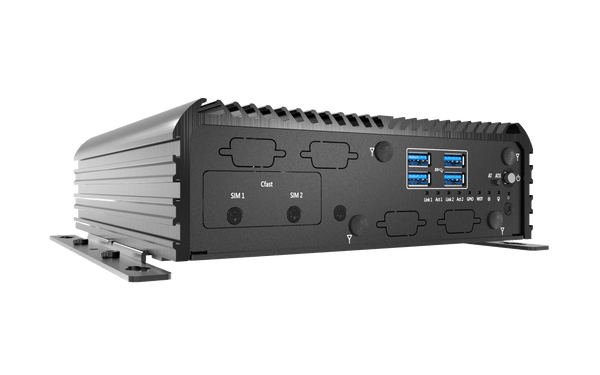

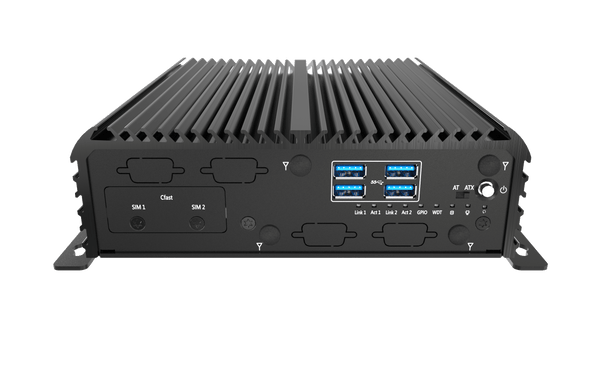

RCO-3000-KBL Industrial Computer with 7th Gen Intel® Core™ Processor and Q170 PCH

SKU Alias: RCO-3600

  • LGA 1151 socket for 6th/7th Gen. Intel® Core™ i7/i5/i3 or
    Pentium® / Celeron® Desktop Processor
  • Intel® Q170 chipset
  • 2x DDR4 1866/2133MHz SODIMM. Max. up to 32GB
  • Intel® HD Graphics 530 / 630
  • Triple independent display supported by 1x DVI-I,
    1x DisplayPort, 1x HDMI (Optional)
  • 2x Intel® GbE supporting Wake-on-LAN and PXE
  • 2x internal 2.5" SATA HDD bay with RAID 0, 1, 5, 10 support,
    2x mSATA (shared by 2x Mini PCIe), 1x CFast
  • 2x full-size Mini PCIe (shared by 2x mSATA) for communication or
    expansion modules, 2x external SIM socket
  • 4x RS-232/422/485 (w/ 2x internal),
    6x USB 3.0, 2x USB 2.0 (internal)
  • 8x DI + 8x DO with isolation
  • 9 to 50VDC wide range power input supporting AT/ATX mode
  • -25°C to 60°C extended operating temperature




Intel Partner
AWS Greengrass IoT

This model is built-to-order only with a minimum order quantity

* Estimated Total Only; Sales team to review component configuration and price
Regular price $850.00
Starting At: $850.00

*All specifications are subject to change without notice. Please contact us for exact offers. Products may not be available in all markets.


Processor Support 6th & 7th Gen Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Desktop Processor (LGA 1151)
- 7th Gen Intel® Core™ i7-7700T, Quad Core, 8MB cache, up to 3.8 GHz
- 7th Gen Intel® Core™ i5-7500T, Quad Core, 6MB cache, up to 3.3 GHz
- 7th Gen Intel® Core™ i3-7101TE, Dual Core, 3MB Cache, 3.4 GHz
- 6th Gen Intel® Core™ i7-6700TE, Quad Core, 8MB Cache, up to 3.4 GHz
- 6th Gen Intel® Core™ i5-6500TE, Quad Core, 6MB Cache, up to 3.3 GHz
- 6th Gen Intel® Core™ i3-6100TE, Dual Core, 4MB Cache, 2.7 GHz
- Intel® Pentium® G4400TE, Dual Core, 3MB Cache, 2.4 GHz
- Intel® Celeron® G3900TE, Dual Core, 2MB Cache, 2.3 GHz
System Chipset Intel® Q170 Express Chipset
LAN Chipset GbE1: Intel® I219LM (Support Wake-on-LAN and PXE)

GbE2: Intel® I210-AT (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S
System Memory 2x DDR4 1866/2133MHz SODIMM.

Max. up to 32GB
Graphics Intel® HD Graphics 530 / 630
Watchdog Software Programmable Supports 1~255 Sec. System Reset
Display Port 1x DP
HDMI 1x HDMI (Optional)
Multiple Display Triple Display
CFast 1x CFast
mSATA 2x mSATA (shared by 2x Mini PCIe)
SIM Socket 2x External SIM socket
SSD/HDD 2x Internal 2.5" SATA HDD Bay

Support RAID 0, 1, 5, 10
Mini PCIe 2x Full-size Mini PCIe
Audio 1x Mic-in, 1x Line-out
COM 2x RS-232/422/485
2x RS-232/422/485 (Internal)
DIO 8 in / 8 out (Isolated)
LAN 2x RJ45
USB 6x USB 3.0, 2x USB 2.0
Others 4x WiFi Antenna Holes
1x Power Switch, 1x AT/ATX Switch,
1x Remote Power On/Off
Operating System
Windows 6th Gen CPU: Windows 10, Windows 7, WES7

7th Gen CPU: Windows 10
Linux Linux kernel 4.X
Power Adapter Optional AC/DC 12V/5A, 60W
Power Mode AT, ATX
Power Supply Voltage 9~50VDC
Power Connector 3-pin Terminal Block
Power Protection OVP (Over Voltage Protection)
OCP (Over Current Protection)
Reverse Protection
Operating Temperature -25°C to 60°C
Storage Temperature -40°C to 85°C
Relative Humidity 10% to 95% (non-condensing)
Certification CE, FCC Class A
Vibration with SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis

with HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock Shock with SSD: 20G, half sine, 11ms
Dimensions (W x H x D) 185 (W) x 197 (D) x 57.4 (H) mm
Weights 2.28kg
Construction Extruded Aluminum with Heavy Duty Metal
Mounting Options Wall Mounting

DIN-Rail Mounting(Optional)

Mechanical Layout

Product Dimension
