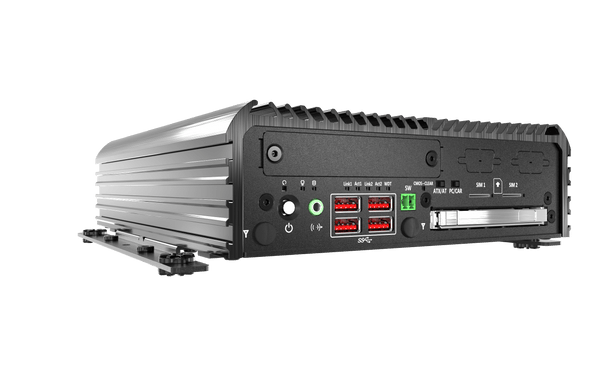

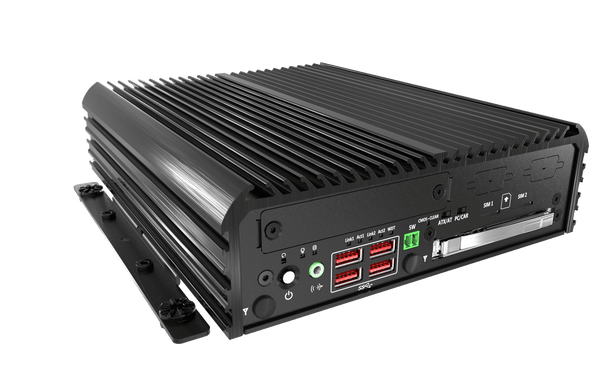

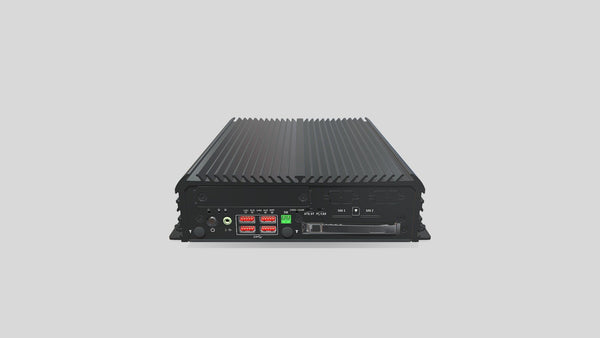

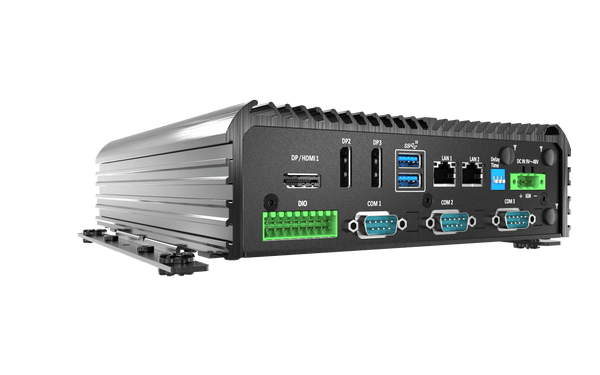

RCO-3000-CML Small Form Factor Computer with LGA 1200 for 10th Gen Intel CPU & Q470E PCH

RCO-3000-CML Small Form Factor Computer with LGA 1200 for 10th Gen Intel CPU & Q470E PCH

  • Support 10th Gen Intel® CML S Processor (LGA 1200, 35W TDP)
  • Intel® Q470E Express Chipset
  • Triple Independent Display by 3x DisplayPort
  • 2x Intel® GbE supporting Wake-on-LAN and PXE
  • 1x Full-size Mini PCIe and 2x External SIM socket
  • 2x 2.5" SATA HDD Bay (1x Internal) and 1x mSATA, with RAID 0, 1, 5 support
  • 1x M.2 (E Key, PCIe x1, USB 2.0, 2230)
  • 1x M.2 (B Key, 2242/3042/3052, Support NVMe/5G/AI)
  • 5x RS-232/422/485 (2x internal)
  • 6x USB 3.2 Gen 2 (10 Gbps), 1x USB 3.2 Gen 1 (internal)
  • 8x DI + 8x DO with isolation
  • 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
  • Wide Operating Temperature (-25°C to 70°C)
  • TPM 2.0 Supported
  • Edge AI Ready with Hailo-8™ (26 TOPS / 2.5W)
  • UL Listed
See Datasheet

Model:

RCO-3000-CML

RCO-3000-CML

Certifications:

Intel Partner
AWS Greengrass IoT

10th Gen Intel® Core™ Processor

Fanless Design For Durability and Reliability

-25° to 70°C Wide Operating Temperature

2x SIM Sockets, Wifi, Bluetooth

MIL-STD-810G 50G Shock
5 GRMS Vibration

Data Security TPM 2.0 Supported

Powerful Multicore Processors

The RCO-3000-CML SFF industrial computer enables up to 10 cores of compute power in a low TDP to enable heavy industrial workloads.

  • 10th Gen Intel® Core™ (35W TDP)
  • Up to ten hyperthreading cores
  • Intel® UHD Graphics 630

EDGEBoost I/O - Modular Daughterboards

Tap into Premio’s EDGEBoost I/O modules to enable plug and play high speed modular expansion for increased flexibility, connectivity, integration, and automation.

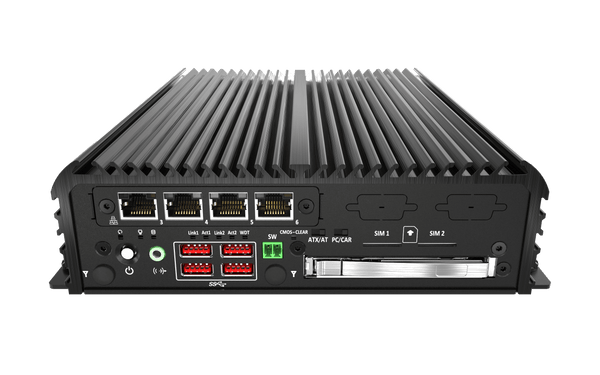

4x Port GbE/PoE RJ45 Connectors

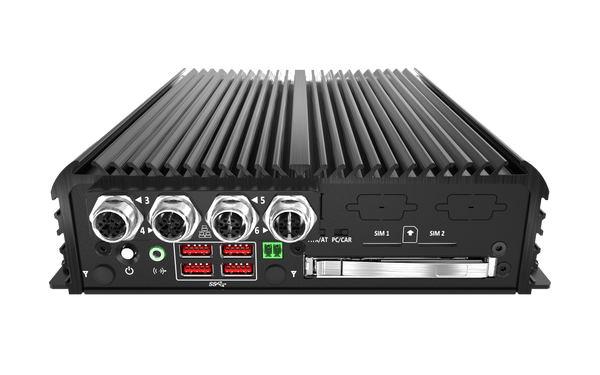

4x Port GbE/PoE M12 Connectors

2x Port 10GbE RJ45 Connector

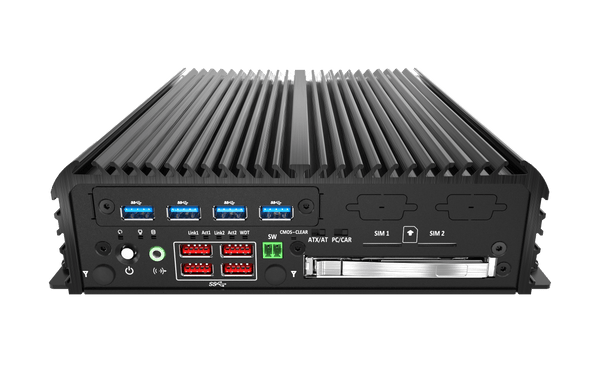

4x Port USB 3.2 Gen 1

5G, Edge AI, and NVMe Storage

Edge AI and NVMe Storage

Edge AI Ready

Enable Edge AI capabilities with RCO-3000-CML's modular EDGEBoost I/O daughterboard or on-board M.2 slot to consolidate resource-intensive machine learning and AI inferencing tasks with an AI accelerator.

  • Supports:
  • • On-board PCIe m.2 slot (x1 Hailo-8™ AI processor)
  • • EDGEBoost I/O module (x2 Hailo-8™ AI processor)

Workload Consolidation Ready

  • Isolated GPIO for automation triggers
  • Digital and Analog I/O in high-speed USB and Serial Analog
  • Power Ignition Management for in-vehicle and intelligent transportation

Built-in CAN Bus for Vehicle Telematics

The RCO-3000-CML supports a built in dual-channel CAN Bus feature that allows the computer to leverage vehicle telematics data for intelligent transportation systems, fleet management, process analytics, and system optimization.

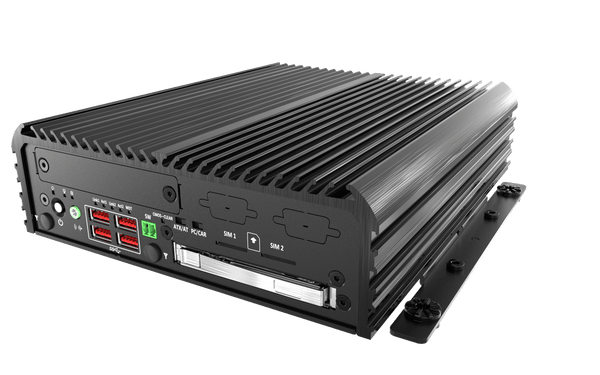

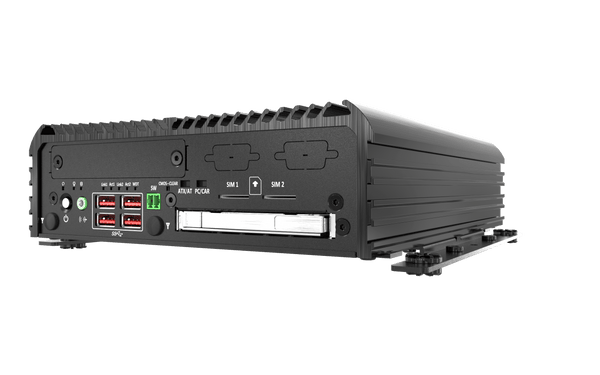

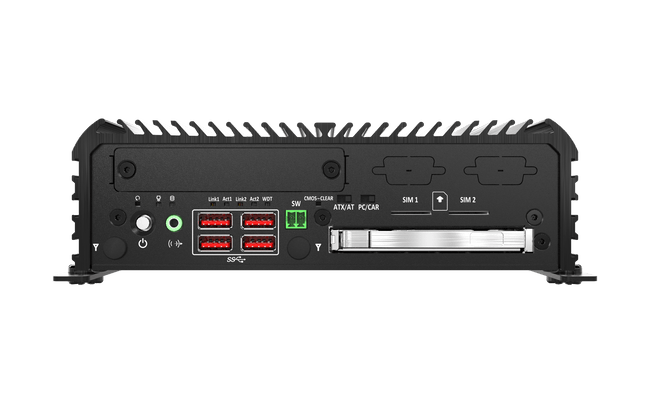

Hot Swappable And Toolless SSD Tray

  • 1x Hotswap 2.5" SATA HDD Bay (support H=7mm)
  • 1x Internal 2.5" SATA HDD Bay (support H=9mm)
  • Support RAID 0, 1, 5

Wireless Connectivity

  • Dual SIM sockets for 5G & 4G/LTE connectivity
  • Wi-Fi
  • Bluetooth

Certified by UL Solutions

For additional re-assurance in product quality and safety, this edge computer has earned the UL Certified Mark for ultimate reliability when operating in extreme industrial deployments.
• UL Listed (I.T.E E357184)



Built Rugged. Built Ready.

A ruggedized design architecture safeguards the SFF computer in the harshest, remote, and dynamic environments.

  • Fanless Passive cooling to eliminate failure points
  • -25C – 70C wide operating temperature
  • 50G shock and 5Grms vibration resistance
  • 9 – 48 VDC wide input voltage
  • TPM 2.0 enabling password protection, device authentication, and future-ready cybersecurity
* Barebone Pricing Only; Sales team to review component configuration and price
*Starting At: $1,104.00

Specification

System
Processor Support 10th Gen Intel® CML S Processor (LGA 1200, 35W TDP)
- Intel® Core™ i9-10900TE, 10 Cores, 20MB Cache, up to 4.5 GHz
- Intel® Core™ i7-10700TE, 8 Cores, 16MB cache, up to 4.4 GHz
- Intel® Core™ i5-10500TE, 6 Core, 12MB Cache, 3.7 GHz
- Intel® Core™ i3-10100TE, 4 Cores, 9MB Cache, up to 3.6 GHz
System Chipset Intel® Q470E Express Chipset
LAN Chipset GbE1: Intel I219 (Support Wake-on-LAN and PXE)

2.5 GbE2: Intel I225 (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S
System Memory 2x 260-Pin DDR4 2666/2933MHz SODIMM.
Max. up to 64GB
BIOS AMI 256Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 sec. System Reset
AI Accelerator Supports 3x Hailo-8™ modules
TPM TPM 2.0
Display
Display Port 3x DisplayPort, support resolution 4096 x 2304

(1x DP Port Co-layout HDMI Connector)
HDMI Yes, Shared by 1x DP port
Multiple Display Triple Display
Storage
mSATA 1x mSATA
SIM Socket 2x External SIM socket (Mini PCIe attached)
SSD/HDD 1x Internal 2.5" SATA HDD Bay (support H=9mm)

1x Removable 2.5" SATA HDD Bay (support H=7mm, hot-swappable)

Support RAID 0, 1, 5
Expansion
M.2 1x M.2 (E Key, PCIe x1, USB 2.0, 2230),
1x M.2 B Key, 2242/3042/3052
(PCIex2, Support AI Module/NVMe Storage)
(PCIex1&USB 3.2 Gen1, Support 4G/5G)
Mini PCIe 1x Full-size Mini PCIe
Expansion Modules Occupied One Universal I/O Slot:
• 4-port GbE module with Intel® I350 Chipset, RJ-45 or M12 connector (PoE optional)
• 2-Port 10GbE RJ45 with Intel X710 Chipset
• 4-Port USB with Renesas uPD720201K8 host controller (share PCIe Gen2 x1 bandwidth)
• 1x M.2 M-Key (PCIe x4 Lane, 2242/2260) for NVMe/AI Module
• 2x M.2 B-Key 2242/3042/3052:
- 2x M.2 (PCIe x2 Lane) for NVMe/AI Module
- 1x M.2 (PCIe x2 Lane) for NVMe/AI Module and 1x M.2 (PCIe x1 Lane + USB 3.2 Gen 1) for 4G/5G Module, 1x External SIM socket (M.2 attached)

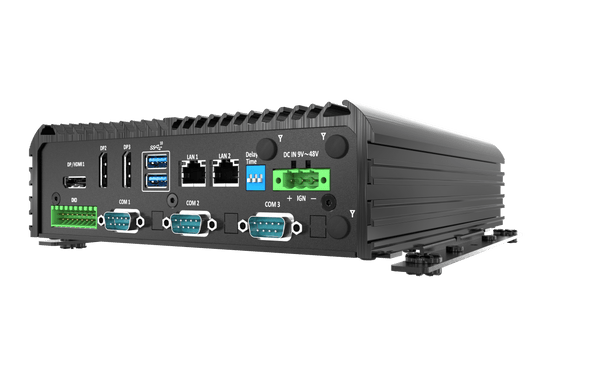

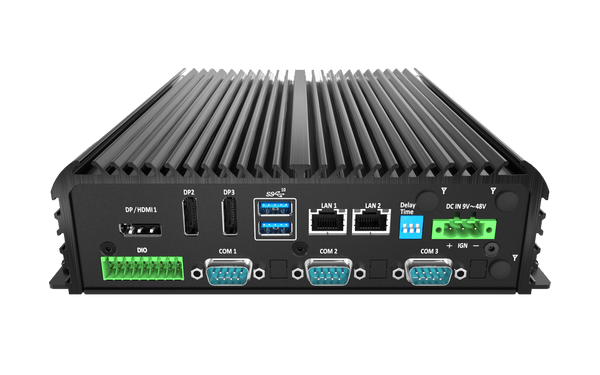

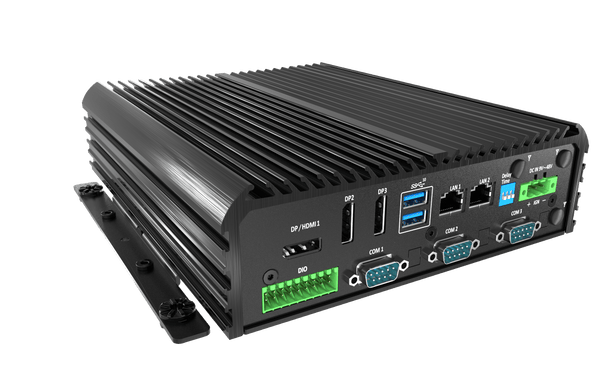

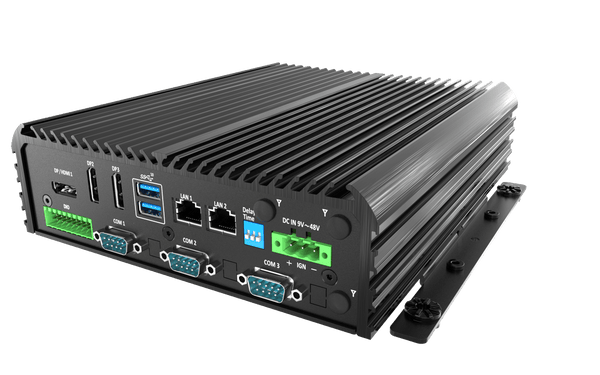

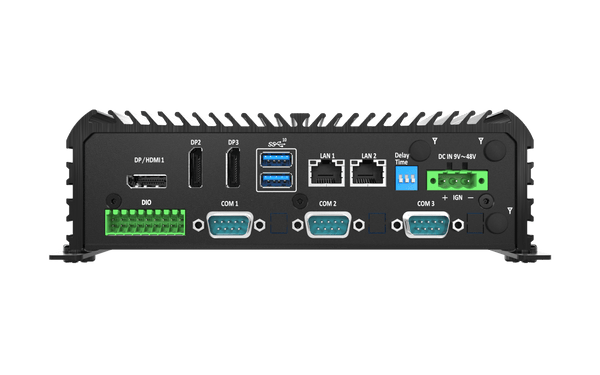

I/O
Audio 1x Line-out
CAN 2x CAN 2.0 A/B 2-pin Internal header
COM 3x RS-232/422/485 ; 2x RS-232/422/485 (internal)
DIO 8 in / 8 out (Isolated)
LAN 2x RJ45
Universal I/O Bracket 1x Universal I/O Bracket (By mini PCIe interface)
USB 6x USB 3.2 Gen 2 (10Gbps)

1x USB 3.2 Gen 1 (5 Gbps, internal)
1x USB 2.0 (internal)
Others 5x WiFi Antenna Holes

1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off

1x PC/Car Mode Switch, 1x Delay Time Switch

1x CMOS Battery

1x 4-Pin FAN Connector
Operating System
Windows Windows 10/11
Linux Linux kernel
Power
Power Adapter Optional AC/DC 24V/5A, 120W

Optional AC/DC 24V/9.2A, 220W
Power Mode AT, ATX
Power Ignition Sensing Power Ignition Management
Power Supply Voltage 9~48VDC
Power Connector 3-pin Terminal Block
Power Protection OVP (Over Voltage Protection)

OCP (Over Current Protection)

Reverse Protection
Environment
Operating Temperature -25°C to 70°C (35W CPU)
Storage Temperature -30°C ~ 85°C
Relative Humidity 10% to 95% (non-condensing)
Certification UL 62368 Ed. 3, CE, FCC Class A,

EMC Conformity with EN50155 & EN50121-3-2
Vibration With HDD: 1 Grms (5 - 500 Hz, 0.5 hr/axis)
With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis)
Shock With SSD: 50G half-sin 11ms
Physical
Dimension 192 (W) x 227 (D) x 60.3 (H) mm
Weights 3.3kg - 4.1 kg
Construction Extruded Aluminum with Heavy Duty Metal
Mounting Options Wall Mounting

Mechanical Layout

Product Dimension

Unit:mm
