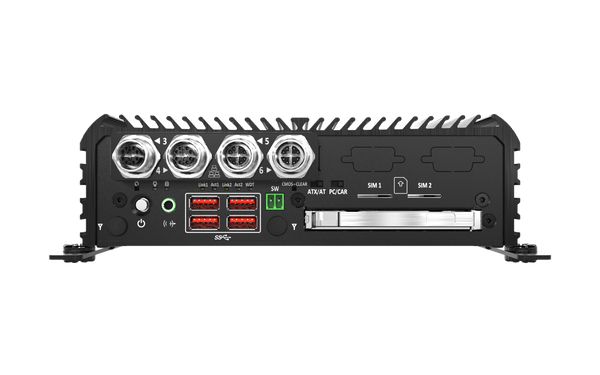

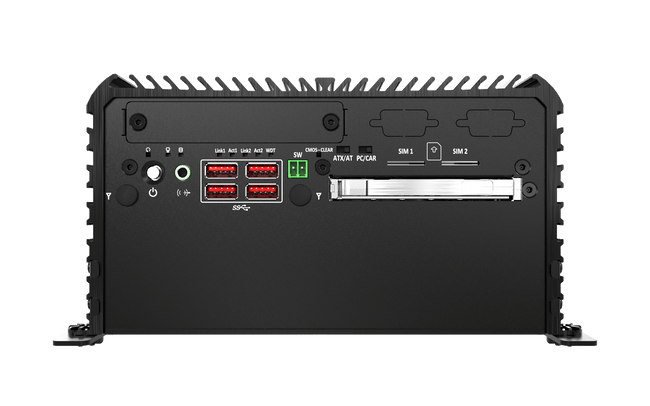

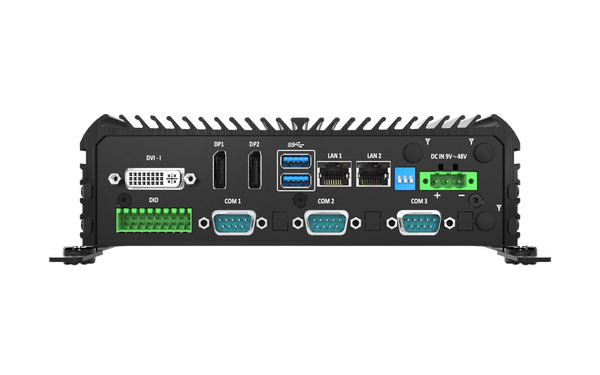

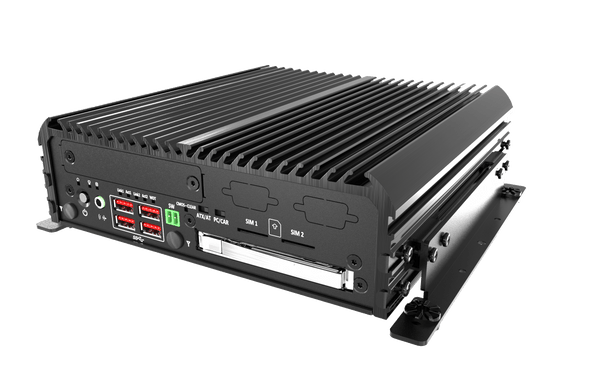

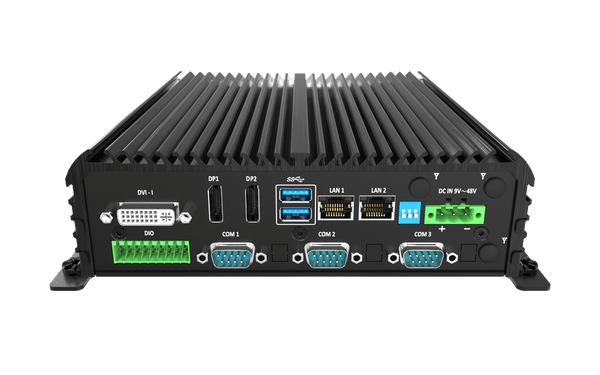

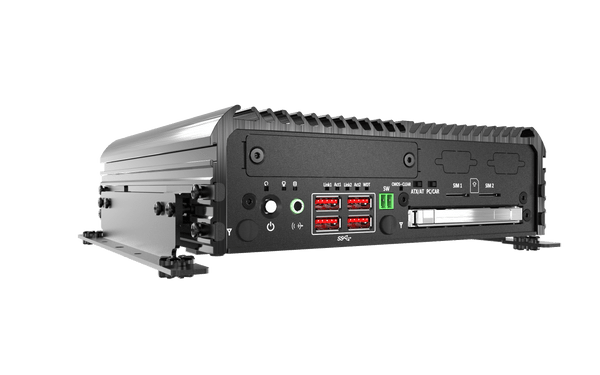

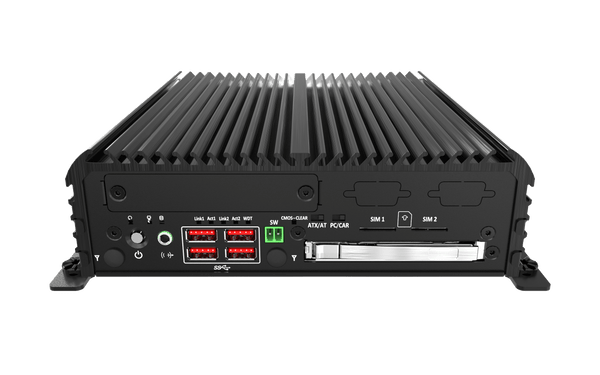

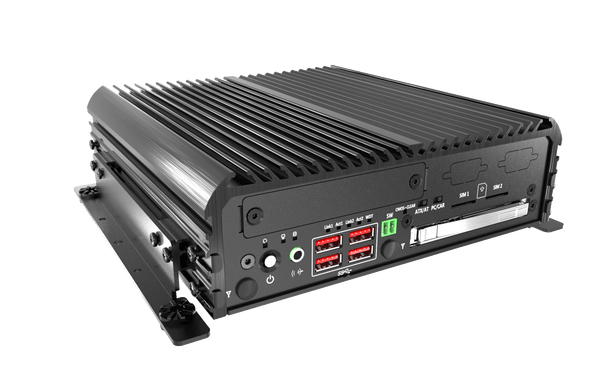

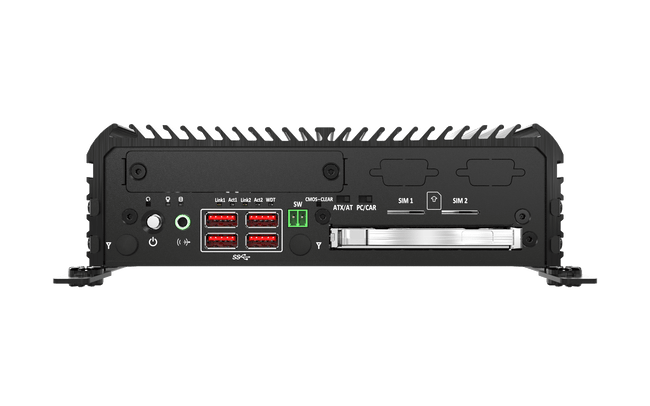

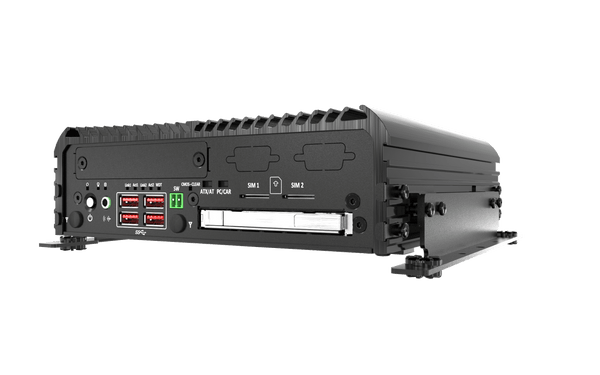

RCO-3000-CFL Industrial Computer with 9th Gen Intel® Core™ Processor, Q370 PCH
SKU Alias: RCO-3700
• Support 9th Gen Intel® CFL-R S Processor (LGA 1151, 35W TDP)
• 2x 260-Pin DDR4 2400/2666MHz SODIMM, Max. up to 64GB
• Intel® Q370 Chipset
• Triple Independent Display by 1x DVI-I and 2x DisplayPort
• 2x Intel® GbE supporting Wake-on-LAN and PXE
• 2x Full-size Mini PCIe (shared by 1x mSATA), and 2x SIM socket
• 2x 2.5"" SATA HDD Bay with RAID 0, 1, 5 support, 1x mSATA (Shared by 1x Mini PCIe)
• 1x M.2 (E Key, PCIe x1, USB 2.0, 2230, Support CNVi))
• 5x RS-232/422/485 (2x internal)
• 4x USB 3.2 Gen 2 (10 Gbps), 4x USB 2.0 (2x internal)
• 8x DI + 8x DO with isolation
• 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
• Wide Operating Temperature (-25°C to 60°C)
• TPM 2.0 Supported
• 2x 260-Pin DDR4 2400/2666MHz SODIMM, Max. up to 64GB
• Intel® Q370 Chipset
• Triple Independent Display by 1x DVI-I and 2x DisplayPort
• 2x Intel® GbE supporting Wake-on-LAN and PXE
• 2x Full-size Mini PCIe (shared by 1x mSATA), and 2x SIM socket
• 2x 2.5"" SATA HDD Bay with RAID 0, 1, 5 support, 1x mSATA (Shared by 1x Mini PCIe)
• 1x M.2 (E Key, PCIe x1, USB 2.0, 2230, Support CNVi))
• 5x RS-232/422/485 (2x internal)
• 4x USB 3.2 Gen 2 (10 Gbps), 4x USB 2.0 (2x internal)
• 8x DI + 8x DO with isolation
• 9 to 48VDC Wide Range Power Input Supporting AT/ATX Mode
• Wide Operating Temperature (-25°C to 60°C)
• TPM 2.0 Supported
Model:
RCO-3000-CFL
Certifications:
Specification

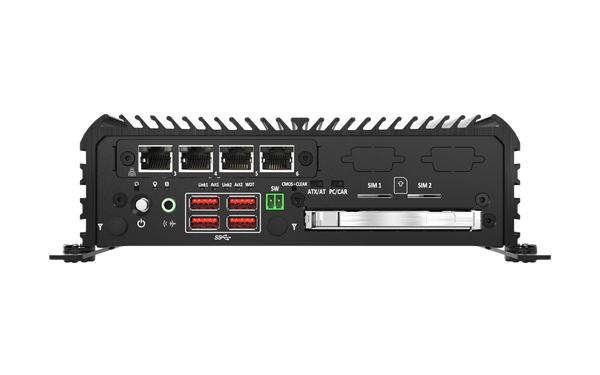

| System | |
|---|---|
| Processor | Support 9th Gen Intel® Core™ CFL-R S Processor (LGA 1151, 35W TDP) - Intel® Core™ i7-9700TE, 8 Cores, 12MB cache, up to 3.8 GHz - Intel® Core™ i5-9500TE, 6 Cores, 9MB Cache, up to 3.6 GHz - Intel® Core™ i3-9100TE, 4 Core, 6MB Cache, 3.2 GHz |
| System Chipset | Intel® Q370 Express Chipset |
| LAN Chipset | GbE1: Intel I219LM (Support Wake-on-LAN and PXE) GbE2: Intel I210-AT (Support Wake-on-LAN and PXE) |
| Audio Codec | Realtek ALC888S |
| System Memory | 2x 260-Pin DDR4 2400/2666MHz SODIMM. Max. up to 64GB (Un-buffered and Non-ECC) |
| Graphics | Intel® UHD Graphics 610/630 |
| BIOS | AMI 256Mbit SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | TPM 2.0 |
| Display | |
| Display Port | 2x DisplayPort, support resolution 4096 x 2304 |
| DVI | 1x DVI-I, support resolution 1920 x 1200 |
| Multiple Display | Triple Display |
| VGA | Yes (by optional split cable) |
| Storage | |
| M.2 | 1x M.2 (E Key, PCIe x1, USB 2.0, 2230, Support CNVi) |
| mSATA | 1x mSATA (shared by 1x Mini PCIe) |
| SIM Socket | 2x External SIM socket |
| SSD/HDD | 1x Internal 2.5" SATA HDD Bay (support H=9mm) 1x Hotswap 2.5" SATA HDD Bay (support H=7mm) Support RAID 0, 1, 5 |
| Expansion | |
| Mini PCIe | 2x Full-size Mini PCIe (1x Shared with mSATA) |
| Expansion Modules | 4-port GbE module with Intel® I350-AT4 Chipset, RJ-45 or M12 connector 4-Port USB with Renesas uPD720201K8 host controller 2-Port RJ45 10GbE with Intel X710-AT2 Chipset |
| I/O | |
| Audio | 1x Line-out |
| COM | 3x RS-232/422/485 ; 2x RS-232/422/485 (internal) |
| DIO | 8 in / 8 out (Isolated) |
| LAN | 2x RJ45 |
| Universal I/O Bracket | 1x Universal I/O Bracket (By mini PCIe interface) |
| USB | 4x USB 3.2 Gen 2 (10Gbps) 4x USB 2.0 (2x Internal) |
| Others | 5x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off 1x PC/Car Mode Switch, 1x Delay Time Switch |
| Operating System | |
| Windows | Windows 10 |
| Linux | Linux kernel 5.X |
| Power | |
| Power Adapter | Optional AC/DC 24V/11.67A, 280W Optional AC/DC 24V/9.2A, 220W |
| Power Mode | AT, ATX |
| Power Ignition Sensing | Power Ignition Management |
| Power Supply Voltage | 9~48VDC |
| Power Connector | 3-pin Terminal Block |
| Power Protection | Over-Voltage Protection (OVP) Over-Current Protection (OCP) Reverse Polarity Protection (RPP) |
| Environment | |
| Operating Temperature | -25°C to 60°C (35W CPU) |
| Storage Temperature | -30°C ~ 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | CE, FCC Class A, EMC Conformity with EN50155 & EN50121-3-2 |
| Vibration | 5 Grms, 5 ~ 500 Hz, 0.5 hr/axis (SSD) 1 Grms, 5 ~ 500 Hz, 0.5 hr/axis (HDD) |
| Shock | 50G, half-sine, 11 ms (SSD) |
| Physical | |
| Dimensions (W x H x D) | 192 (W) x 197 (D) x 60.3 (H) mm |
| Weights | 2.8kg - 3.6 kg |
| Construction | Extruded aluminum with heavy duty metal |
| Mounting Options | Wall Mounting / DIN Rail (Optional) |

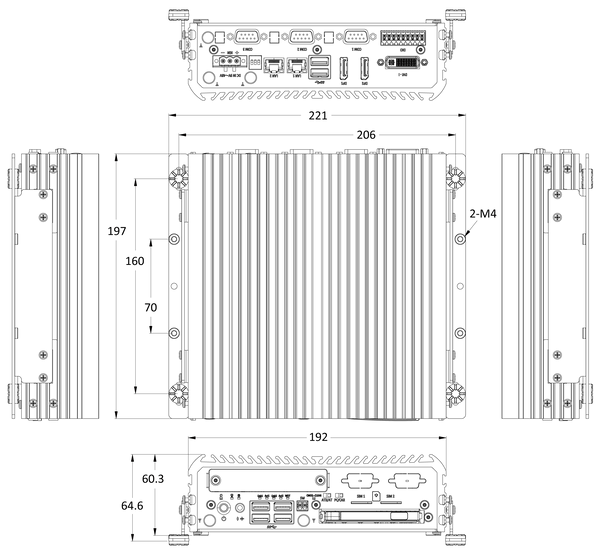

Mechanical Layout
Product Dimension
Unit:mm
