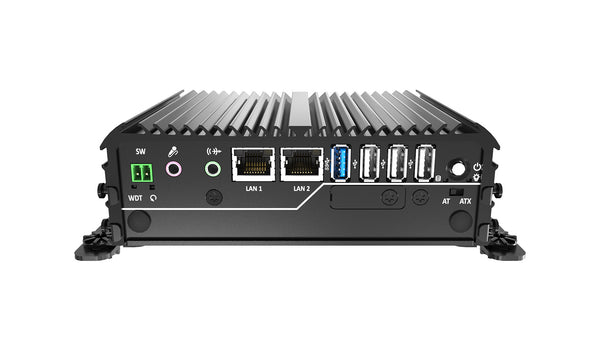

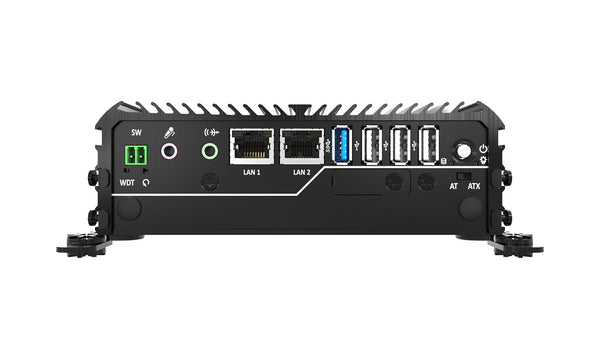

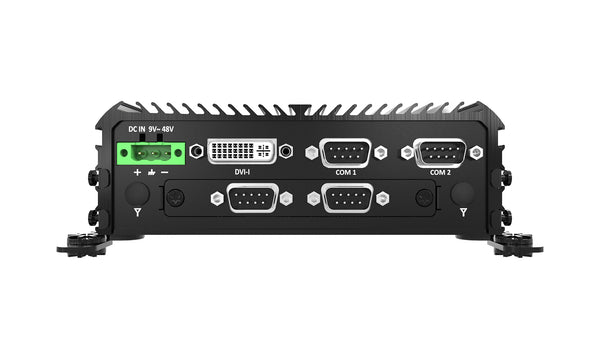

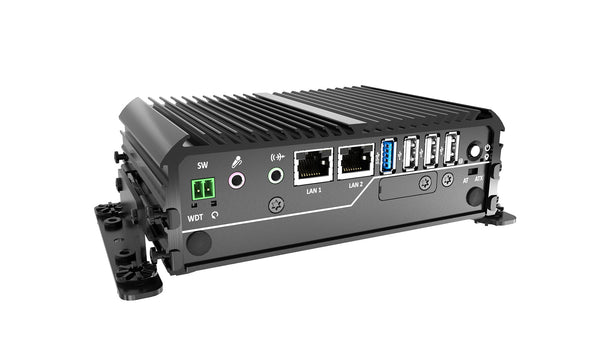

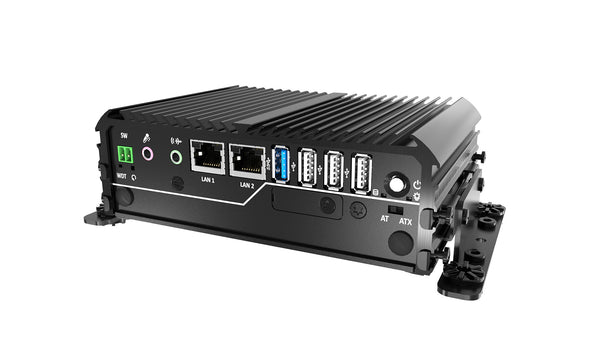

RCO-1000-J1900-10B Industrial Computer with Intel® Celeron® J1900 Processor, 4x COM
SKU Alias: RCO-1010B
- Intel® E3845, or J1900 processor onboard
- 1x SO-DIMM socket, DDR3L-1066/1333, up to 8GB
- Dual independent display supported by 1x DVI-I
- 4x COM, 1x USB 3.0, 3x USB 2.0, 2x GbE
- 2x mini-PCIe (1x mSATA auto-switch)
- 2x external SIM slots
- 1x Universal I/O
- Line-out/Mic-in phone jacks
- Power switch, remote switch, AT/ATX select
- Operating temperature: -25 °C ~ 70 °C
- Vibration: 5 Grms, 5 - 500 Hz, 0.5 hr/axis; Shock: 50G, half sine, 11ms (with SSD)
Model:
RCO-1000-J1900-10BCertifications:
This model is built-to-order only with a minimum order quantity
* Estimated Total Only; Sales team to review component configuration and price
*All specifications are subject to change without notice. Please contact us for exact offers. Products may not be available in all markets.
Specification
System | |
---|---|
Processor | Intel® Atom® E3827 (MOQ, Build to Order Only) Intel® Atom® E3845, Quad Core, 2MB Cache, 1.91 GHz Intel® Celeron® J1900, Quad Core, 2MB Cache, 2.0 GHz |
System Chipset | SoC integrated |
LAN Chipset | GbE1: Intel® I210-AT (Support Wake-on-LAN and PXE) |
Audio Codec | Realtek ALC888S |
System Memory | 1x 204-Pin DDR3L 1066/1333MHz SODIMM. Max up to 8GB |
BIOS | AMI 64Mbit SPI BIOS |
Watchdog | Software Programmable Supports 1~255 Sec. System Reset |
Display | |
DVI | 1x DVI-I |
Multiple Display | Dual Display |
VGA | Yes (by optional split cable) |
Storage | |
mSATA | 1x mSATA (shared by 1x Mini PCIe) |
SIM Socket | 2x External SIM socket |
SSD/HDD | 1x Internal 2.5" SATA HDD Bay |
Expansion | |
Mini PCIe | 2x Full-size Mini PCIe |
I/O | |
Audio | 1x Mic-in, 1x Line-out |
COM | 2x RS-232/422/485 2x RS-232/422/485 (module) |
LAN | 2x GbE RJ45 |
USB | 1x USB 3.0, 3x USB 2.0 |
Others | 4x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off |
Operating System | |
Windows | Windows 10, Windows 8.1, WES8.1, Windows 7, WES7 |
Linux | Linux kernel 3.X |
Power | |
Power Adapter | Optional AC/DC 12V/5A, 60W |
Power Management | ACPI 5.0a compliant |
Power Mode | AT/ATX selectable |
Power Supply Voltage | 9 ~ 48 VDC |
Power Connector | 3-pin Terminal Block |
Power Protection | Over-Voltage Protection (OVP) Over-Current Protection (OCP) Reverse Polarity Protection (RPP) |
Environment | |
Operating Temperature | -25 °C ~ 70 °C (-13 °F ~ 158 °F ) |
Storage Temperature | -30 °C ~ 85 °C (-22 °F ~ 185 °F ) |
Relative Humidity | 10% to 95% (non-condensing) |
Vibration | with SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis with HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis |
Shock | with SSD: 50G, half sine, 11ms |
Physical | |
Dimension | 5.91" x 4.13" x 1.93" (150 x 105 x 49 mm) |
Weights | 0.88kg |
Construction | Extruded aluminum with heavy duty metal |
Mounting Options | Wall Mounting Side / VESA / DIN-Rail Mounting (Optional) |
