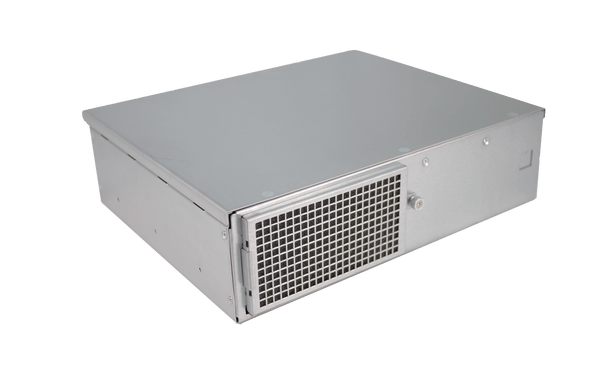

KCO-2000-CFL Industrial Computer with 2U Certification-Ready, 9th Gen Intel® Core® Processor and Q370 PCH

SKU Alias: KCO-2000

2U Slim Form Factor (SFF) Chassis with Tool-less Mounting Options
Industrial Grade mATX Motherboard with Intel Q370 CFL-R Chipset
Support Intel 8th/9th Gen Core Processors (LGA 1151, 35W/65W/95W TDP)
Support 4x 288-pin DDR4 DIMM, Max. up to 128GB
2x Intel GbE Ports Support Wake-on-LAN, PXE and vPRO (with i5 and above processors)
Triple Independent Display Ports among VGA, DVI-D and DP (1.2) ports
1x PCIe X16 (Gen3) slot for low profile addon cards
1x M.2 M Key, NVMe PCIe X4, SATA 2242/2260/2280
1x M.2 E Key PCIe X2, USB2.0. 2230
4x COM Ports (DB9) 2x RS-232/422/485 + 2x RS-23, 2x RS-232 (internal header)
6x USB3.1 ports, 7x USB2.0 External Ports
1x Hot-swappable 2.5" SATA drive tray support 7" SSD or HDD
TPM2.0, Support UEFI Secure Boot
Tool-less Washable Dust Filter
Internal 250W Flex Power Supply
12.73"(W) x 10.75:(D) x 3.45"(H)
CE, FCC, UL Certified

See datasheet

Model:

KCO-2000-CFL

KCO-2000-RPL

KCO-3000-RPL

KCO-2000-CFL

KCO-3000-CFL

Certifications:

Certification-Ready industrial computers are embedded computing solutions that act as sub-assembly building blocks or final OEM system configuration in key enterprise and IoT applications. System integrators and platform builders can accelerate time-to-market with this certification-ready industrial computer for new product introduction (FCC, CE, and UL). This industrial computer also acts as a perfect solution to upgrade legacy computing platforms that require re-certification of sub-assembly builds in a accredited lab. The KCO-2000-CFL industrial computer is a commercial off the shelf (COTS) computing solution that provides reliability and embedded longevity with its extended lifecycle support. The certification-ready KCO-2000-CFL industrial computer is deployable in applications that rely on computing solution in Kiosks, ATMs, Security and Surveillance, Metrology and Automation inspection, and mobile medical carts.

Compact Size and High Performance with Micro ATX Motherboard

The KCO Series is built around Premio’s CT-MCL01 Micro-ATX motherboard. This motherboard is 244mm x 244mm (W x D) and uses a LGA 1151 Socket that supports 8th/9th Gen Intel® Core™ Processor with the Q370 chipset. The KCO Series computers are designed to be compact enough to fit in space limiting IoT deployments. The KCO-2000-CFL Series uses a tool-less mounting option that can be quickly mounted in a variety of industrial spaces.

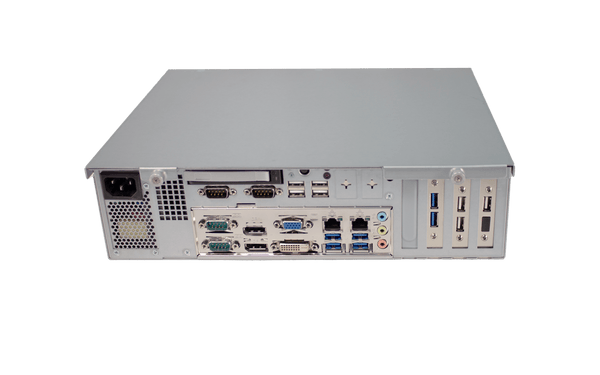

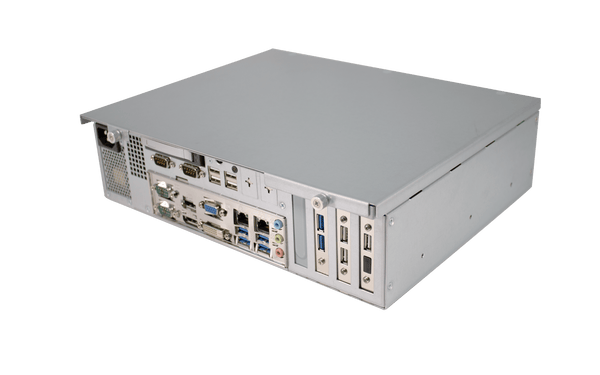

Rich I/O

KCO-2000-CFL is equiped with numerous ports and I/O, 4x Serial, 2x LAN, 6x USB 3.1, and 7x USB 2.0 Ports. KCO-2000-CFL also includes multiple display interfaces digital DP, HDMI, DVI as well as VGA to maximize user's needs.

Storage - Hot-Swappable 2.5” SATA Drive Tray and m.2 NVMe On-Board

The KCO comes standard with a hot-swappable drive tray that offers support for solid-state drives (SSDs) and hard disk drives (HDDs). The KCO also features on-board NVMe storage in m.2 form factor that can support NVMe PCIe x 4 in 2242, 2260, 2280 dimensions.

Expansion - PCIe Gen3

The KCO-2000-CFL Series comes with a single PCIe Gen 3 x16 slot, allowing system integrators to add a low-profile add-in card to the system.

NVIDIA RTX A2000 12GB for Edge AI Workloads

The NVIDIA RTX A2000 12GB accelerates machine learning performance in a low-profile design that fits perfectly into the KCO-2000-CFL chassis. A dedicated GPU is necessary to streamline data-intensive applications from AI inference and enable real-time data analysis for edge workloads.

Only 70W TDP
Dual-Slot Low-Profile (2.7” H x 6.6” L) PCIe 4.0 x16
3328 NVIDIA Ampere Architecture CUDA Cores
12GB GDDR6 Memory with ECC Support
Designed for Edge AI workloads

Hardware Security with TPM 2.0

KCO has TPM 2.0 to provide boot security and platform integrity at the hardware level. TPM functions by storing RSA encryption keys on a specific chip that cannot be accessed by software, protecting the system against unauthorized firmware and software modifications.

Industrial-Grade Chassis & Dust Filter

The chassis of the KCO-Series is built using heavy-duty metals while maintaining practicality and ease-of-use, forming an excellent housing for the sensitive internal components. The KCO Series comes equipped with an external dust filter that lowers the amount of dust that can make its way into the industrial computer. This can prevent sensitive internal components from dust and debris damage. A key design feature is the washable dust filter, making it easy to clean to keep dust out of the PC and keep air easily flowing throughout the system for embedded reliability.

*Barebone Pricing Only; Sales team to review component configuration and price

*Starting At: $0.00

Configure Product
See Product Features

Specifications

System
Processor	• Support 8th/9th Gen Intel® CFL-R S Processor (LGA 1151, 65W/35W TDP) • Intel® Core™ i7-9700E, 8 Cores, 12MB cache, up to 4.4 GHz • Intel® Core™ i5-9500E, 6 Cores, 9MB Cache, up to 4.2 GHz • Intel® Core™ i3-9100E, 4 Core, 6MB Cache, 3.7 GHz • Intel® Core™ i7-9700TE, 8 Cores, 12MB cache, up to 3.8 GHz • Intel® Core™ i5-9500TE, 6 Cores, 9MB Cache, up to 3.6 GHz • Intel® Core™ i3-9100TE, 4 Core, 6MB Cache, 3.2 GHz • Intel® Core™ i7-8700T, 6 Cores, 12MB cache, up to 4.0 GHz • Intel® Core™ i5-8500T, 6 Cores, 9MB Cache, up to 3.5 GHz • Intel® Core™ i3-8100TE, 4 Cores, 6MB Cache, 3.1 GHz • Intel® Pentium® G5400T, 2 Cores, 4MB Cache, up to 3.1 GHz • Intel® Celeron® G4900T, 2 Cores, 2MB Cache, up to 2.9 GHz
System Chipset	Intel® Q370 Express Chipset
LAN Chipset	GbE1: Intel® I219LM (Support Wake-on-LAN and PXE) GbE2: Intel® I225-V (Support Wake-on-LAN and PXE)
Audio Codec	Realtek ALC888S
System Memory	2x 260-Pin DDR4 2400/2666MHz SODIMM. Max. up to 128GB
Graphics	Intel® UHD Graphics 610/630
BIOS	AMI 256Mbit SPI BIOS
Watchdog	Software Programmable Supports 1~255 sec. System Reset
iAMT	Intel® AMT 12.0 supported
TPM	TPM 2.0
Display
Display Port	2x DP (DP 1.2)
DVI	1x DVI
Multiple Display	Triple Display
VGA	1x VGA
Storage
M.2	1x M.2 (M Key, NVMe PCIe x4, 2280) 1x M.2 (E Key, PCIe x2, USB 2.0, 2230)
SSD/HDD	1x Hot-Swappable 2.5" SATA Drive Bay (support H=7mm)
Expansion
PCIe	1x PCIe x16 slot (low profile, up to 9" card length)
I/O
Audio	1x Mic-in, 1x Line-out
COM	2x RS-232/422/485 + 2x RS-232 2x RS-232 (internal header)
LAN	2x RJ45
USB	6x USB 3.0 7x USB 2.0
Operating system
Windows	Windows 10
Linux	Linux Kernel
Power
Power Mode	AT, ATX
Power Supply Voltage	Internal 250W Flex Power Supply
Power Connector	Standard US power cord
Environment
Operating Temperature	0°C to 35°C
Storage Temperature	0°C to 60°C
Relative Humidity	10% to 95% (non-condensing)
Certification	CE, FCC, UL Certified
Vibration	1 Grms, 5 - 500 Hz, 0.5 hr/axis With SSD: 25G, half sine, 11ms
Physical
Form Factor	2U
Dimensions	12.73"(W) x 10.75"(D) x 3.45"(H)
Weights	11 lbs (barebone w/ chassis, mb, and PSU only)
Construction	Heavy Duty Metal
Mounting Options	Tool-less Mounting Options

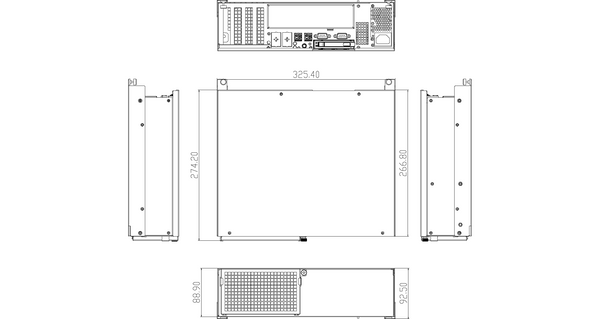

Dimensions

Unit:mm

Resources

Datasheet	DS_KCO-2000-CFL_Premio.pdf
GPU	nvidia-rtx-a2000-datasheet-1987439-r5.pdf
Product Brief	PB_KCO_Series.pdf
