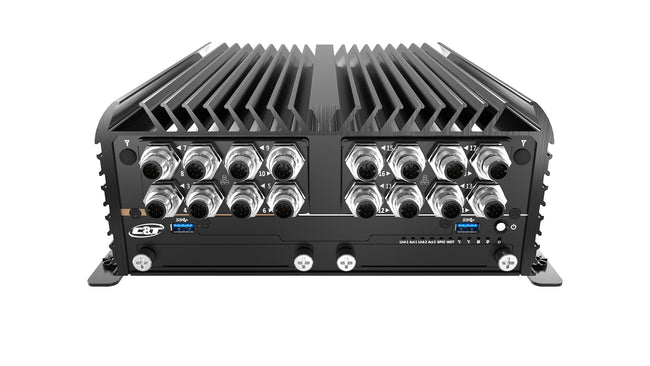

ACO-6010-16X Surveillance Applied Computer with LGA 1151 for Intel® 6th/7 th Gen Processor and Q170 PCH, 18x LAN

  • LGA 1151 socket for 6th /7th Gen. Intel® Core™ i7/i5/i3 or Pentium® / Celeron® Desktop Processor
  •  Intel® Q170 Chipset
  •  2x 260-pin DDR4 SODIMM. Max up to 32GB
  •  Triple independent display supported by 1x DVI-I and 2x DisplayPort
  •  18x Intel® GbE (w/ 2x supporting Wake-on-Lan and PXE)
  •  4x 2.5” SATA HDD bay and 2x mSATA supporting RAID 0, 1, 5, 10
  •  3x Full-size mini PCIe for communication or expansion modules, 3x SIM socket
  •  5x RS-232/422/485 (w/ 3x internal), 6x USB 3.0, 2x USB 2.0 (internal)
  •  8x DI + 8x DO with Isolation
  •  2x Universal Bracket (For mini PCIe application)
  •  9 to 48VDC wide range power input supporting AT/ATX mode
  •  -25°C to 70°C extended operating temperature
  •  Power ignition management
Regular price $0.00 Total: $0.00

*All specifications are subject to change without notice. Please contact us for exact offers. Products may not be available in all markets.

Specification
+DELETE_METAFIELDS+
System
Processor Support 6th & 7th Gen Intel® Core™ i7 / i5 / i3 / Penium® / Celeron® Desktop Processor (LGA 1151)
  • 7th Gen Intel® Core™ i7-7700T, Quad Core, 8MB cache, up to 3.8 GHz
  • 7th Gen Intel® Core™ i5-7500T, Quad Core, 6MB cache, up to 3.3 GHz
  • 7th Gen Intel® Core™ i3-7101TE, Dual Core, 3MB Cache, 3.4 GHz
  • 6th Gen Intel® Core™ i7-6700TE, Quad Core, 8MB Cache, up to 3.4 GHz
  • 6th Gen Intel® Core™ i5-6500TE, Quad Core, 6MB Cache, up to 3.3 GHz
  • 6th Gen Intel® Core™ i3-6100TE, Dual Core, 4MB Cache, 2.7 GHz
  • Intel® Penium® G4400TE, Dual Core, 3MB Cache,2.4 GHz
  • Intel® Celeron® G3900TE, Dual Core, 2MB Cache,2.3 GHz
System Chipset Intel® Q170 Express Chipset
System Memory 2 x 260-pin DDR4 SO-DIMM sockets 1866/2133 MT/s, Non-ECC, unbuffered SDRAM Max. 32GB
Ethernet GbE1: Intel I210-AT (Support Wake-on-LAN and PXE)
GbE2: Intel I219-LM (Support Wake-on-LAN and PXE)
Storage 2 x Internal 2.5" SATA HDD bay
2 x Removable 2.5" SATA HDD bay
Support RAID 0, 1, 5, 10
2 x mSATA (shared with mini-PCIe, auto-detect)
BIOS AMI 128Mbit SPI BIOS
TPM TPM 1.2
Watchdog Timer Software Programmable Supports 1~255 Sec.
System Reset
I/O
I/O COM 2x RS-232/422/485, 3x RS-232/422/485 (internal)
USB 6x USB 3.0, 2x USB 2.0 (internal)
LAN 2x GbE RJ45,

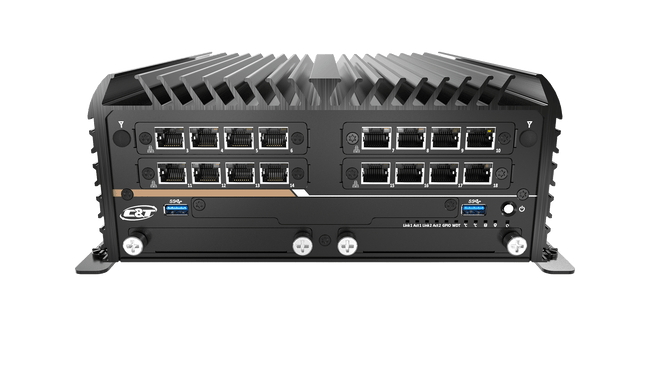

ACO-6010-16L 16x GbE RJ45 (module)
ACO-6010-16P PoE 16x IEEE 802.3at (25.5W) GbE RJ45 (module) 160W total power budget
Audio 1x Mic-in, 1x Speaker-out
DIO 8 in / 8 out (Isolated)
Universal I/O Bracket 2x Universal I/O Bracket (For mini PCIe application)
Others 6x WiFi Antenna Holes, 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off
Power
Power Adapter Optional AC/DC 24V/9.2A, 220W
Power Mode AT, ATX
Power Supply Voltage 9 ~ 48 VDC
Power Connector 3-pin Terminal Block
Power Protection Over-Voltage Protection (OVP)
Over-Current Protection (OCP)
Reverse Polarity Protection (RPP)
Environment
Operating Temperature -13°F ~ 158°F (-25°C ~ 70°C)
Storage Temperature -22°F ~ 185°F (-30°C ~ 85°C)
Relative Humidity 10% to 95% (non-condensing)
Vibration 5 Grms, 5 ~ 500 Hz, 0.5 hr/axis (SSD) 1 Grms, 5 ~ 500 Hz, 0.5 hr/axis (HDD)
Shock 50G, half-sine, 11 ms (SSD)
Physical
Dimensions (W x H x D) 240 (W) x 261 (D) x 100 (H) mm
Weights ACO-6010-16L: 5.34kg
ACO-6010-16P: 5.74kg
Construction Extruded aluminum with heavy duty metal
Mounting Options Wall Mount
Resource

Data Sheet

ACO 6010 with 16 LAN
DS_ACO-6010-16L.pdf
ACO 6010 with 16 POE
DS_ACO-6010-16P.pdf

User's Manual

UM-Premio_ACO-6000.pdf
