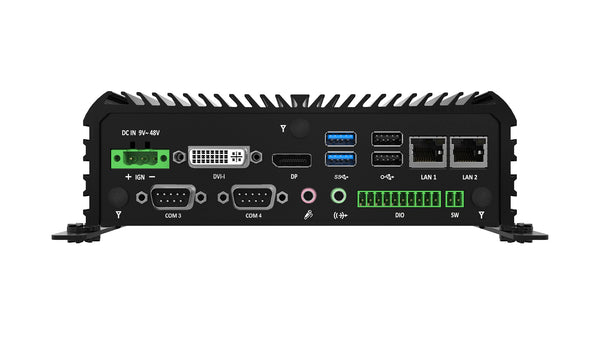

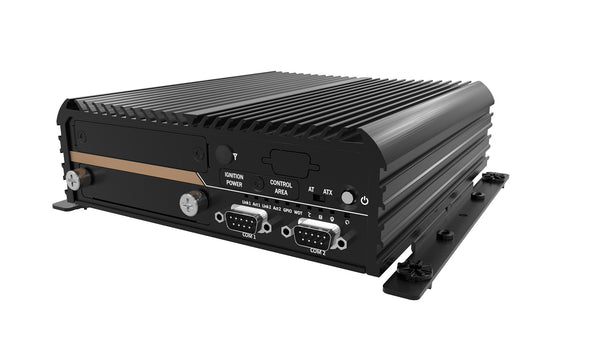

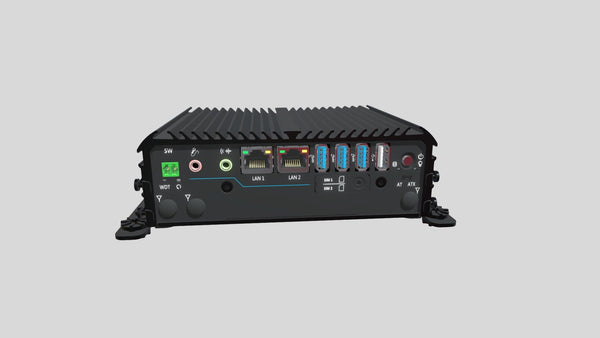

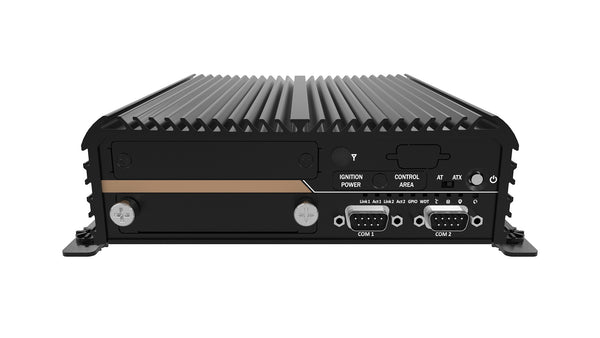

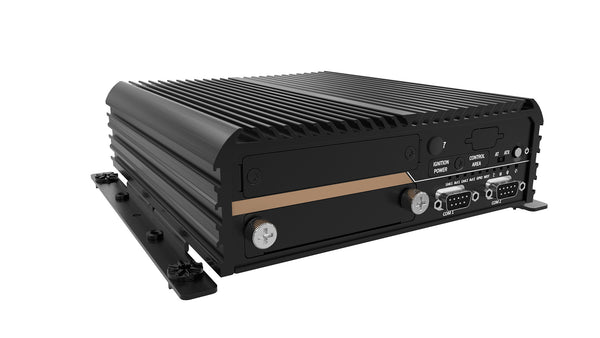

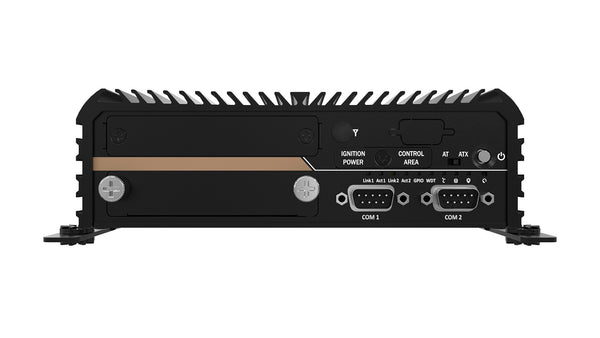

ACO-3000-BRD-U In-Vehicle Computer with 5th Gen Intel® Core™ Processor
SKU Alias: ACO-3000
- 9~48 VDC input with ignition delay and battery voltage monitoring
- Intel Core™ i5-5350U, i3-5010U, or Celeron® 3765U
- 1x SO-DIMM socket, DDR3L-1066/1333, up to 8GB
- DVI-I and DP
- 4x COM, 2x USB 3.0, 2x USB 2.0, 2x GbE
- 2x mini-PCIe (2x mSATA auto-detect)
- 1x Universal I/O slot

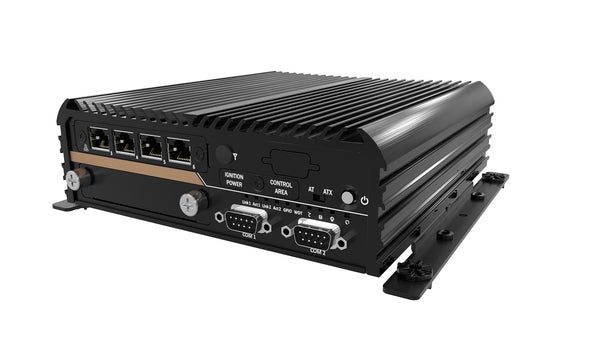

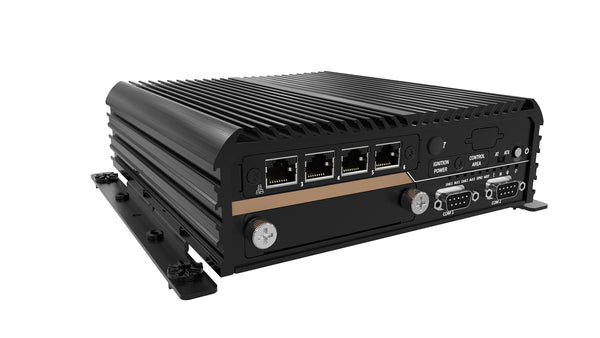

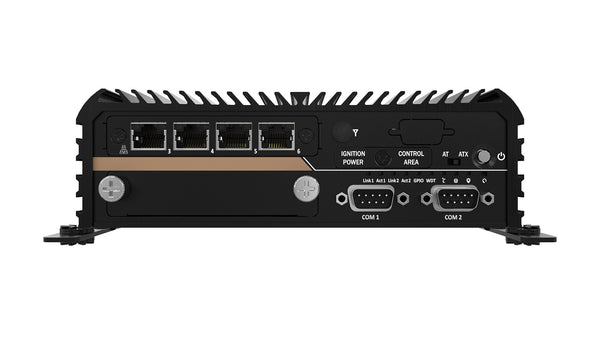

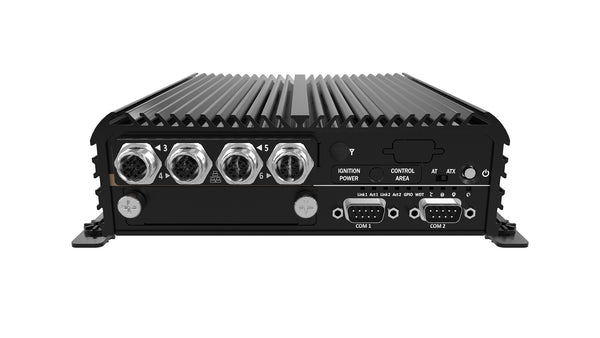

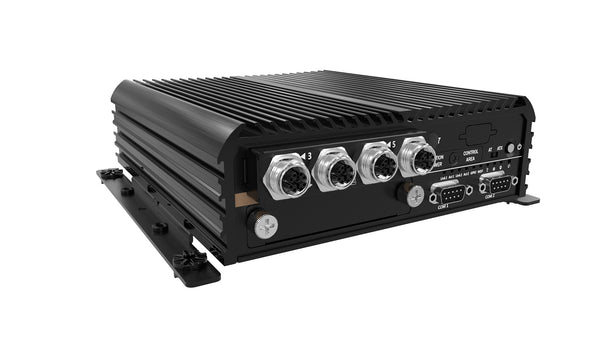

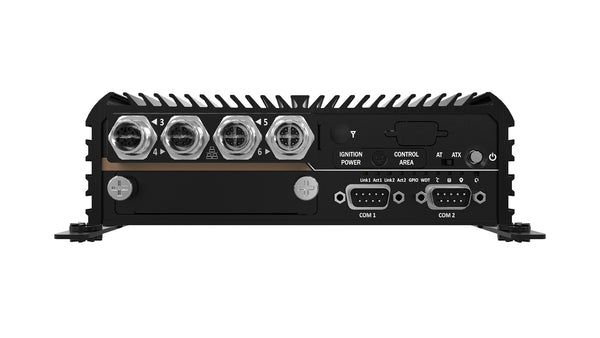

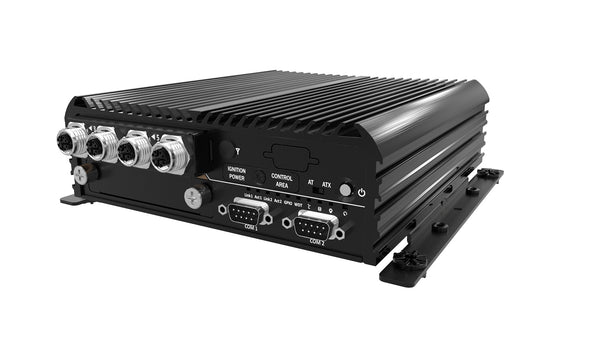

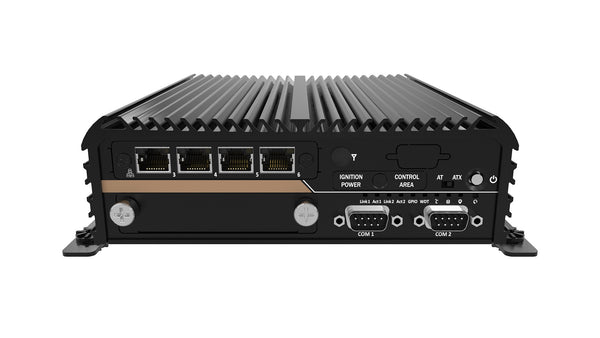

- Optional 4x GbE in RJ-45 or M12 connectors, with 802.3at PoE option
- 2x external SIM slots
- -40 °C ~ 70 °C operating temperature
- 5 Grms vibration, 50G shock (with SSD)
- E-Mark and EN-50121-3-2 certified
- Over voltage/current, reverse polarity protection
Model:
ACO-3000-BRD-U
Certifications:
Specification
| System | |
|---|---|
| Processor | Intel® Core™ i5-5350U Processor, Dual Core, 3MB Cache, up to 2.9 GHz Intel® Core™ i3-5010U Processor, Dual Core, 3MB Cache, 2.1 GHz Intel® Celeron® Processor 3765U, Dual Core, 2MB Cache, 1.9 GHz |
| System Chipset | SoC integrated |
| LAN Chipset | GbE1: Intel® I210-AT (Support Wake-on-LAN and PXE) GbE2: Intel® I218-LM (Support Wake-on-LAN and PXE) |
| Audio Codec | Realtek ALC888S |
| System Memory | 1x 204-Pin DDR3L 1333/1600MHz SO-DIMM Max. up to 8GB |
| BIOS | AMI 128Mbit SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| Display | |
| Display Port | 1x DP |
| DVI | 1x DVI-I |
| Multiple Display | Triple Display |
| VGA | Yes (by optional split cable) |
| Storage | |
| mSATA | 2x mSATA (shared by 2x Mini PCIe) |
| SIM Socket | 2x External SIM socket |
| SSD/HDD | 1x Internal 2.5" SATA HDD Bay 1x Hotswap 2.5" SATA HDD Bay Support RAID 0, 1, 5, 10 |
| Expansion | |
| Mini PCIe | 2x Full-size Mini PCIe |
| Network Modules | 4-port GbE modules with Intel® I210-AT Chipset RJ-45 or M12 connector with PoE option (Occupy 1 Universal I/O slot) |
| I/O | |
| Audio | 1x Mic-in, 1x Line-out |
| COM | 4x RS-232/422/485 |
| DIO | 4 in / 4 out (Isolated) |
| LAN | 2x GbE RJ45 |
| Universal I/O Bracket | 2x Universal Bracket |
| USB | 2x USB 3.0, 2x USB 2.0 |
| Others | 4x WiFi Antenna Holes 1x Power Switch (front), 1x AT/ATX Switch (front) PC/Vehicle Mode, Vehice Voltage, Delay Off Time (front) 1x Remote Power On/Off (rear) |
| Operating System | |
| Windows | Windows 10, Windows 8.1, WES8.1, Windows 7, WES7 |
| Linux | Linux kernel 3.X |
| Power | |
| Power Adapter | Optional External Power Adapter, 60W, 120W, or 220W |
| Power Mode | Vehicle/PC mode select |
| Power Ignition Sensing | Delay On/Off Battery Voltage Monitoring (12V/24V) |
| Power Supply Voltage | 9 ~ 48 VDC |
| Power Connector | 3-pin Terminal Block |
| Power Protection | Over-Voltage Protection (OVP) Over-Current Protection (OCP) Reverse Polarity Protection (RPP) |
| Environment | |
| Operating Temperature | -40°F ~ 158°F (-40°C ~ 70°C) |
| Storage Temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | CE, FCC Class A, E-Mark, EN50121-3-2 |
| Vibration | 5 Grms, 5 ~ 500 Hz, 0.5 hr/axis (SSD) 1 Grms, 5 ~ 500 Hz, 0.5 hr/axis (HDD) |
| Shock | 50G, half-sine, 11 ms (SSD) |
| Physical | |
| Dimension | 7.3" x 7.6" x 2.2" (185 x 197 x 57.4 mm) |
| Weights | 4.6 lb ( 2.1 kg) |
| Construction | Extruded aluminum with heavy duty metal |
| Mounting Options | Wall Mount / Din Rail Mounting (Optional) |
