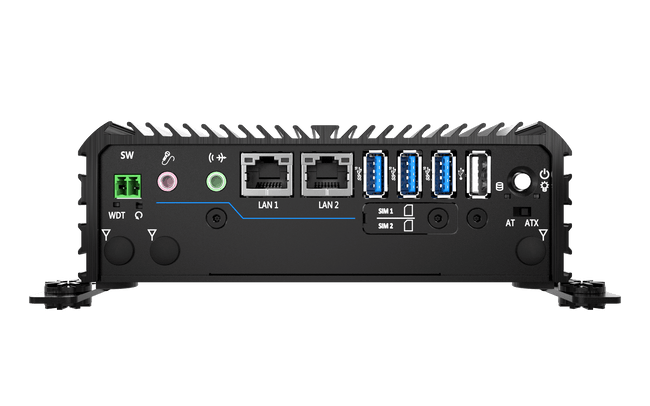

RCO-1000-EHL-10 Fanless Mini Computer with Intel® Atom® X6425E Processor, 2x DP, 2x COM, 1x 2.5" SATA HDD Bay

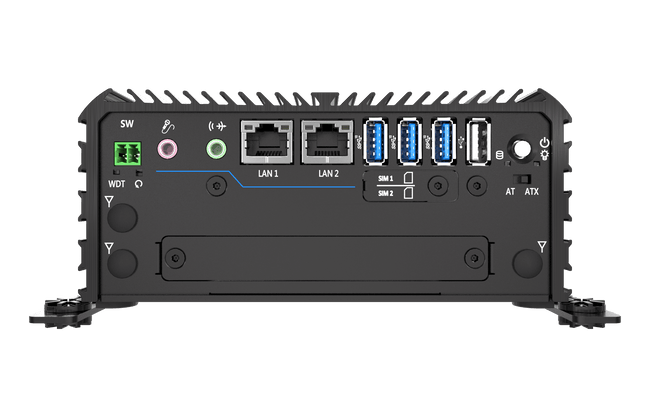

RCO-1000-EHL-20 Fanless Mini Computer with Intel® Atom® X6425E Processor, 2x DP, 2x COM, 1x 2.5" SATA HDD Bay

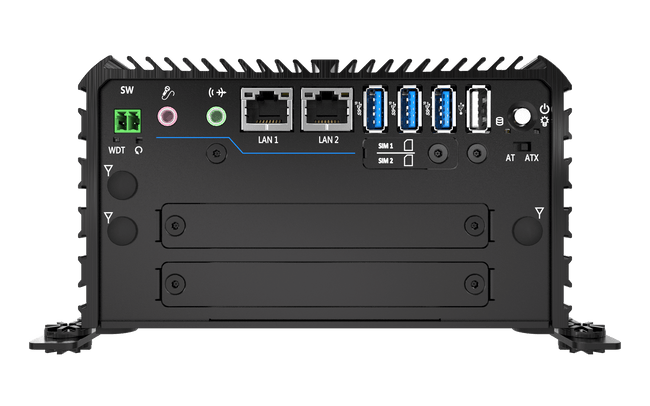

RCO-1000-EHL-30 Fanless Mini Computer with Intel® Atom® X6425E Processor, 2x DP, 2x COM, 1x 2.5" SATA HDD Bay

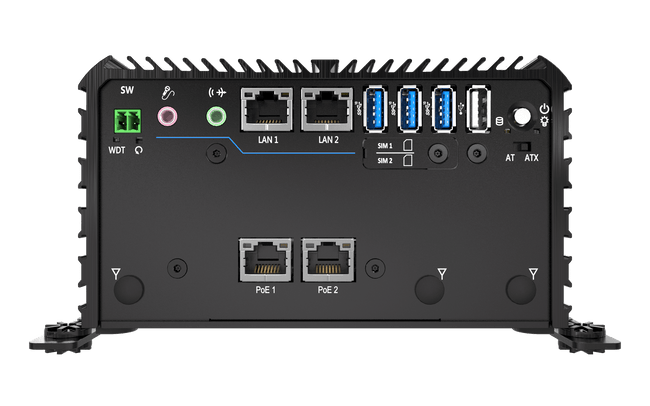

RCO-1000-EHL-30-2P Fanless Mini Computer With Intel® Atom® X6425E Processor, 2x DP, 2x COM, 1x 2.5" SATA HDD Bay, Dual PoE

RCO-1000-EHL-30 Fanless Mini Computer with Intel® Atom® X6425E Processor, 2x DP, 2x COM, 1x 2.5" SATA HDD Bay

  • Support Intel® Atom® X6425E
  • 1x 260-pin DDR4 SODIMM. Max. up to 32GB
  • Dual Independent Display by 2x Display Port
  • 1x 2.5GbE, 1x GbE supporting (Wake-on-LAN and PXE)
  • 1x 2.5” SATA HDD Bay, 1x mSATA,
  • 1x M.2 (B Key, 2242/3042/3052, Support 4G/5G)
  • 1x Full-size mini PCIe for communication or expansion modules
  • 2x RS-232/422/485, 3x USB 3.2 Gen2, 1x USB 2.0
  • 9 to 36VDC Wide Range Power Input Supporting AT/ATX Mode
  • Wide Operating Temperature -40°C to 70°C
  • TPM 2.0 Supported
  • With 5x Universal Expansion Slots
  • UL Listed
See Datasheet

Certifications:

Intel Partner
AWS Greengrass IoT

Intel® Atom® X6425E

Fanless & Cableless Design

Modular I/O Expansion

Wide Temperature

Shock And Vibration
Resistance

TPM 2.0 Security

Ultra Compact In Size

RCO-1000-EHL comes in three models that are designed in an ultra-compact form factor for extremely space-constrained deployments.

  • RCO-1000-EHL-10 (150x105x49mm)
  • RCO-1000-EHL-20 (150x105x65mm)
  • RCO-1000-EHL-30 (150x105x83mm)

Fanless, Rugged, and Hardened Design

  • Wide Temperature Range: -40°C to 70°C
  • 50G Shock & 5Grms Vibration (MIL-STD-810G Compliance)
  • Wide Voltage Input: 9-36VDC
  • Over Current & Over Voltage Protection

High-Speed I/O Ports

RCO-1000-EHL includes high-speed I/O ports for low-latency real-time connectivity.

  • 2.5Gb Ethernet
  • USB 3.2 Gen 2 (10 Gbps)
  • True 4K Dual Independent DisplayPort

Modular I/O Expansion

The RCO-1000-EHL supports up to 3 modular daughterboards for further I/O expansion, giving users more flexibility.

  • Faster Time-to-Market
  • Flexibility & Scalability
  • Modular I/O Configurations
  • Quick Maintenance & Upgradability

1x DisplayPort and 1x DIO(4 in / 4 out, Isolated)

Support up to 1x EDGEBoost Bracket

1x HDMI Port

Support up to 1x EDGEBoost Bracket

4x USB Ports

Support up to 1x EDGEBoost Bracket

2x COM Ports

Support up to 2x EDGEBoost Bracket

Edge AI Ready

Enable Edge AI capabilities with RCO-1000-EHL's on-board M.2 slot to consolidate resource-intensive machine learning and AI inferencing tasks.

  • 1x PCIe M.2 Slot
  • Supports HAILO-8™ AI processor

Mobile IoT Data Telemetry

  • 5G, 4G/LTE
  • Wi-Fi 6
  • Bluetooth 5
  • On board CAN Bus
  • Optional Power Ignition Management

Flexible Mounting

Wall Mount

Side Mount

DIN Mount

Vesa Mount

Certified by UL Solutions

For additional re-assurance in product quality and safety, this edge computer has earned the UL Certified Mark for ultimate reliability when operating in extreme industrial deployments.
• UL Listed (I.T.E E357184)



Why Premio?
Built Rugged. Built Ready.

  • • 30+ years of extensive design expertise for industrial computing solutions in x86 compute power, storage, rich I/O, and high-speed connectivity
  • • Global turnkey manufacturing and support infrastructure in the USA
  • • Regulatory testing and compliance for rugged industrial computers
  • • Long Product Life Cycles to ensure reliability

* Barebone Pricing Only; Sales team to review component configuration and price
*Starting At: $625.00

Specification

System
Processor Supports 11th Gen Intel® Atom® Processor (Elkhart Lake)
- Intel® Atom® Processor X6425E, Quad Core, 1.5 MB Cache, 1.8 GHz, 12W TDP
System Chipset SoC integrated
LAN Chipset 1 GbE1: Intel I210 (Support Wake-on-LAN and PXE)
2.5 GbE2: Intel I225 (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S
System Memory 1x 260-Pin DDR4 2400/2667/3200MT/s SODIMM. Max. up to 32 GB
Graphics Intel® UHD Graphics
BIOS AMI 256Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 sec. System Reset
TPM TPM 2.0
Display
Display Port 2x DisplayPort 1.4, DP++ (4096 x 2160@60Hz)
Multiple Display Dual Display
Storage
M.2 1x M.2 (B Key, 2242/3042/3052, PCIex 1 + USB 3.2 Gen2, Support 4G/5G Module)
mSATA 1x mSATA (shared by 1x Mini PCI Express)
SIM Socket 2x External SIM socket
SSD/HDD 1x Internal 2.5" SATA HDD Bay (support H=9.5 mm)
Expansion
Mini PCIe 1x Full-size Mini PCIe
Expansion Modules Optional:
• 2-port COM module with Super I/O Chipset, Support 2x Universal Slot Only
• 4-Port USB module with USB hub, Support 1x Universal Slot Only
• 1-Port DP 1.4 and DIO (4 in / 4 out, Isolated), Support 1x Universal Slot Only
• 1-Port HDMI 2.0, Support 1x Universal Slot Only
I/O
Audio 1x Mic-in, 1x Line-out
CAN 2x CAN 2.0 A/B 2-pin Internal header
COM 2x RS-232/422/485
LAN 2x RJ45 (2.5 & 1 GbE)
Universal I/O Bracket 5x Universal I/O Bracket (By mini PCIe interface, Proprietary Module)
USB 3x USB 3.2 Gen 2 (10 Gbps)
1x USB 2.0
Others 5x WiFi Antenna Holes
1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off
1x Internal CMOS Battery Cable
1x 4-PIN FAN Connector
Operating System
Windows Windows 10/11
Linux Linux Kernel
Power
Power Adapter Optional AC/DC 12V/5A, 60W
Power Mode AT, ATX
Power Ignition Sensing Adjustable power ignition management can be achieved through BIOS and optional daughter board.
Power Supply Voltage 9~36VDC
Power Connector 3-pin Terminal Block
Power Protection OVP (Over Voltage Protection);
OCP (Over Current Protection)
Reverse Protection
Environment
Operating Temperature -40°C to 70°C
Storage Temperature -40°C to 85°C
Relative Humidity 10% to 95% (non-condensing)
Certification UL 62368 Ed. 3, CE, FCC Class A
Vibration With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock With SSD: 50G, half sine, 11ms
Physical
Dimension 150 (W) x 105 (D) x 83 (H) mm
Weights 1.2 kg
Construction Extruded Aluminum with Heavy Duty Metal
Mounting Options Wall Mounting
SIDE / VESA / DIN-Rail Mounting (Optional)

Mechanical Layout

Product Dimension

Unit:mm
