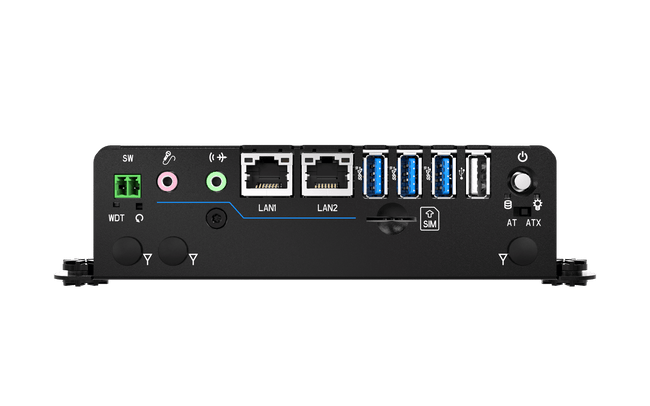

BCO-1000-EHL-10 Fanless Mini Computer with Intel® Celeron® J6413 Processor, 2x DP, 2x COM, 1x 2.5" SATA HDD Bay

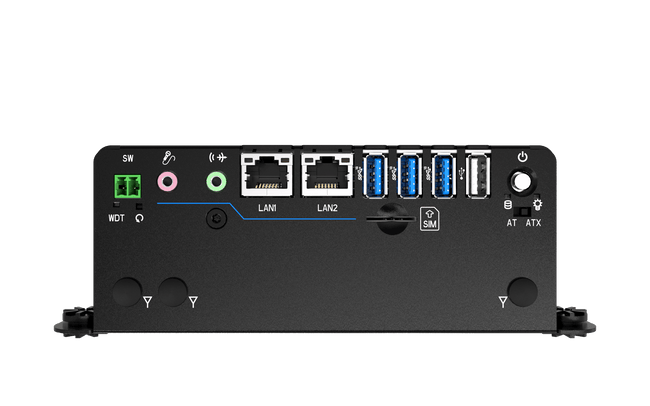

BCO-1000-EHL-20 Fanless Mini Computer with Intel® Celeron® J6413 Processor, 2x DP, 2x COM, 1x 2.5" SATA HDD Bay

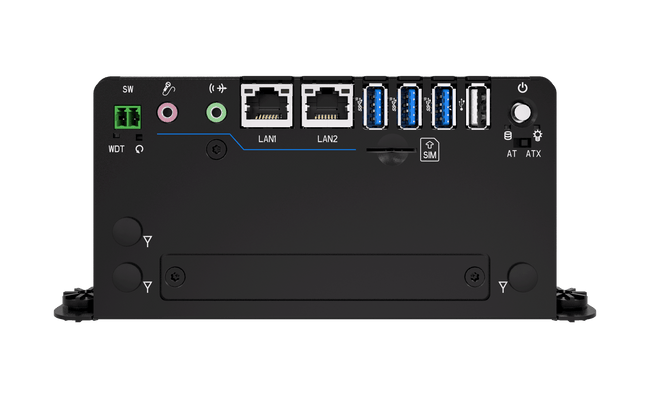

BCO-1000-EHL-30 Fanless Mini Computer with Intel® Celeron® J6413 Processor, 2x DP, 2x COM, 1x 2.5" SATA HDD Bay

BCO-1000-EHL-30 Fanless Mini Computer with Intel® Celeron® J6413 Processor, 2x DP, 2x COM, 1x 2.5" SATA HDD Bay

  • Support Intel® Celeron® Processor
  • 1x 260-pin DDR4 SODIMM. Max. up to 32GB
  • Dual Independent Display by 2x Display Port
  • 1x 2.5GbE, 1x GbE supporting (Wake-on-LAN and PXE)
  • 1x 2.5” SATA HDD Bay, 1x mSATA,
  • 1x M.2 (B Key, 2242/3042/3052, Support 4G/LTE)
  • 1x Full-size mini PCIe for communication or expansion modules
  • 2x RS-232/422/485, 3x USB 3.2 Gen2, 1x USB 2.0
  • 9 to 36VDC Wide Range Power Input Supporting AT/ATX Mode
  • Wide Operating Temperature -20°C to 50°C
  • TPM 2.0 Supported
  • With 4x Universal Expansion Slots
  • UL Listed

Certifications:

Intel Partner

Intel® Celeron® J6413

Fanless & Cableless Design

Modular I/O Expansion

Wide Temperature

Shock And Vibration
Resistance

TPM 2.0 Security

Fanless & Cableless Design

  • Dust & Debris Resistant
  • Wide Operating Temperatures: -20°C to 50°C
  • 50G Shock & 5Grms Vibration (MIL-STD-810G Compliance)
  • Wide Voltage Input: 9VDC – 36VDC
  • Over-Current & Over-Voltage Protection

Ultra-Compact In Size

The BCO-1000-EHL leverages its ultra-compact form factor for the most space-limiting deployment applications.

  • BCO-1000-EHL-10 (142x101.2x41.5mm)
  • BCO-1000-EHL-20 (142x101.2x58mm)
  • BCO-1000-EHL-30 (142x 101.2x75mm)

Modular EDGEBoost I/O

Support up to 3 modular daughterboards with the BCO-1000-EHL for configurable I/O flexibility and additional I/O expansion.

  • Faster Time-to-Market
  • Flexibility & Scalability
  • Modular I/O Configurations
  • Quick Maintenance & Upgradability
1x Display Port and 1x DIO (4 in / 4 out, Isolated)

(Support up to 1x EDGEBoost Bracket)

1x HDMI Port

(Support up to 1x EDGEBoost Bracket)

4x USB Ports

(Support up to 1x EDGEBoost Bracket)

2x COM Ports

(Support up to 2x EDGEBoost Bracket)

Mobile IoT Data Telemetry

Utilize wireless technologies for remote capabilities and real-time data telematics.

  • 4G/LTE
  • Wi-Fi 6
  • Bluetooth 5
  • On board CAN Bus
  • Optional Power Ignition Management

High-Speed I/O Connectivity

The BCO-1000-EHL offers high-speed I/O for low-latency real-time connectivity.

  • 2.5Gb Ethernet
  • USB 3.2 Gen 2 (10 Gbps)
  • True 4K Dual Independent DisplayPort

Certified by UL Solutions

For additional re-assurance in product quality and safety, this edge computer has earned the UL Certified Mark for ultimate reliability when operating in extreme industrial deployments.
• UL Listed (I.T.E E357184)


* Barebone Pricing Only; Sales team to review component configuration and price
Regular price $549.00
*Starting At: $549.00

Specification

System
Processor Support Intel® EHL Processor (Up to 10W TDP)
-Intel® Celeron® Processor J6413, Quad Core, 1.5 MB Cache, 1.8 GHz
System Chipset SoC integrated
LAN Chipset 1 GbE1: Intel I210 (Support Wake-on-LAN and PXE)
2.5 GbE2: Intel I225 (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S
System Memory 1x 260-Pin DDR4 2400/2667/3200MT/s SODIMM. Max. up to 32 GB
Graphics Intel® UHD Graphics
BIOS AMI 256Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 sec. System Reset
TPM TPM 2.0
Display
Display Port 2x DisplayPort 1.4, DP++ (4096 x 2160@60Hz)
Multiple Display Dual Display
Storage
M.2 1x M.2 (B Key, 2242/3042/3052, PCIe x1 + USB 3.2 Gen2, Support 4G/LTE Module)
mSATA 1x mSATA (shared by 1x Mini PCI Express)
SIM Socket 1x External SIM socket
SSD/HDD 1x Internal 2.5" SATA HDD Bay (support H=9.5 mm)
Expansion
Mini PCIe 1x Full-size Mini PCIe
Expansion Modules Optional:
• 2-port COM module with Super I/O Chipset, Support 2x Universal Slot Only
• 4-Port USB module with USB hub, Support 1x Universal Slot Only
• 1-Port DP 1.4 and DIO (4 in / 4 out, Isolated), Support 1x Universal Slot Only
• 1-Port HDMI 2.0, Support 1x Universal Slot Only
I/O
Audio 1x Mic-in, 1x Line-out
CAN 2x CAN 2.0 A/B 2-pin Internal header
COM 2x RS-232/422/485
LAN 2x RJ45 (2.5 & 1 GbE)
Universal I/O Bracket 4x Universal I/O Bracket (By mini PCIe interface, Proprietary Module)
USB 3x USB 3.2 Gen 2 (10 Gbps)
1x USB 2.0
Others 5x WiFi Antenna Holes
1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off
1x Internal CMOS Battery Cable
1x 4-PIN FAN Connector
Operating System
Windows Windows 10
Linux Linux Kernel
Power
Power Adapter Optional AC/DC 12V/5A, 60W
Power Mode AT, ATX
Power Ignition Sensing 6-mode and Adjustable Power Ignition Management, Optional
Power Supply Voltage 9~36VDC
Power Connector 3-pin Terminal Block
Power Protection OVP (Over Voltage Protection);
OCP (Over Current Protection)
Reverse Protection
Environment
Operating Temperature -20°C to 50°C
Storage Temperature -30°C to 70°C
Relative Humidity 10% to 95% (non-condensing)
Certification UL 62368 Ed. 3, CE, FCC Class A
Vibration With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock With SSD: 50G, half sine, 11ms
Physical
Dimensions (W x H x D) 142 (W) x 101.2 (D) x 75 (H) mm
Weights 0.74 kg
Construction Extruded Aluminum with Heavy Duty Metal
Mounting Options Wall Mounting
DIN-Rail Mounting (Optional)

Mechanical Layout

Product Dimension

Unit:mm
