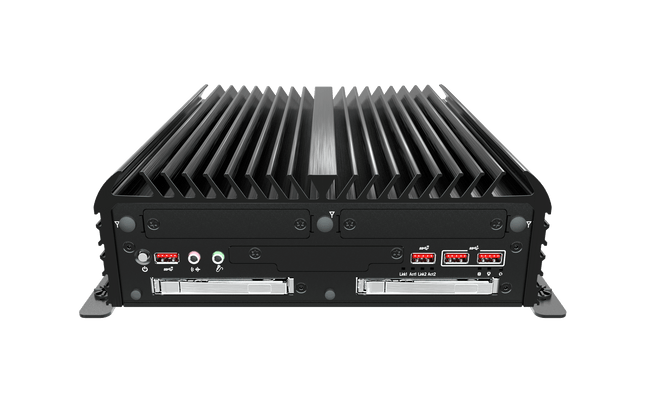

ACO-6000-CML In-Vehicle Computer with LGA 1200 for Intel 10th Gen CPU & W480E PCH, 2x LAN

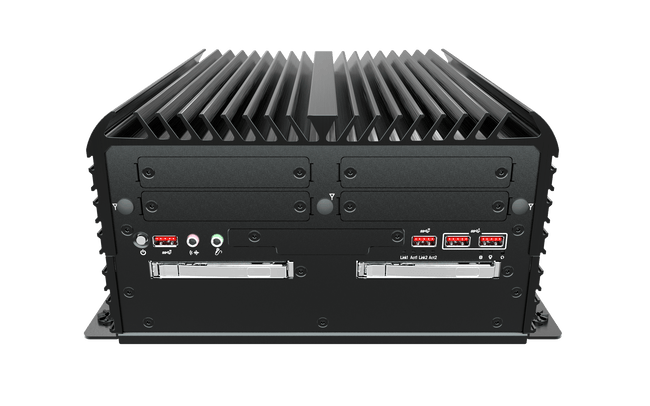

ACO-6000-CML-1 In-Vehicle Computer with LGA 1200 for Intel 10th Gen CPU & W480E PCH, 2x LAN, 1x PCIe

ACO-6000-CML-1 In-Vehicle Computer with LGA 1200 for Intel 10th Gen CPU & W480E PCH, 2x LAN, 1x PCIe

  • LGA 1200 socket for 10th Gen. Intel® CML S Processor (35W TDP)
  • Intel® W480E chipset
  • 2x DDR4 2666/2933MHz SODIMM. Max. up to 64GB
  • Triple Independent Display: 2x DisplayPort, 1x DVI-I
  • 2x Intel® GbE supporting Wake-on-LAN and PXE
  • 2x Full-size Mini PCIe for communication or expansion modules, 2x SIM socket
  • 3x 2.5” SATA HDD Bay (1x Internal) with RAID 0, 1, 5 support
  • 1x M.2 (E Key, PCIe x1, USB 2.0, 2230)
  • 8x RS-232/422/485 (6x internal), 6x USB 3.2 Gen 2, 3x USB 3.2 Gen 1 (1x internal)
  • 8x DI + 8x DO with isolation
  • 9 to 48 or 48 to 110VDC Wide Range Power Input Supporting AT/ATX Mode
  • Wide Operating Temperature -25°C to 70°C (35W CPU)
  • TPM 2.0 Supported
  • Power ignition management
See Datasheet

Model:

ACO-6000-CML-1

ACO-6000-CML

ACO-6000-CML-1

Certifications:

Intel Partner
AWS Greengrass IoT


Intel® Xeon® W Processor

10th Intel® Core™ Processor

2x Hotswap SSD

4x Universal Bracket

1x PCIe x16 Expansion

Power Ignition Management

Fanless Design For Durability and Reliability

-25° to 70°C Wide Operating Temperature

2x SIM Sockets, Wifi, Bluetooth

MIL-STD-810G 50G Shock
5 GRMS Vibration

Data Security TPM 2.0 Supported

EN50155 Railway Compliant

  • Power Protection Rating: 9-48VDC and 48-110VDC
  • Shock and Vibration Rating: 50G Shock & 5 Grms Vibration
  • Operational Temperature Rating: -25°C ~ 70°C
  • Electromagnetic Compatibility Rating: EN50121-3-2 and EN50121-4 for EMC Conformity

Higher Voltage for Railway Deployments (48-110VDC)

Wide Power Input for Railway and Rollling Stock

9-48VDC or 48-110VDC Wide Power Input for Railway and Rolling Stock

Scalable And Versatile I/O: Up To 16x PoE

A key differentiator of the ACO-6000-CML in-vehicle computer is its I/O scale for its size. The modular design supports scalability with universal I/O brackets. The expansions can be configured into RJ45, RJ45 M12, or USB ports, with optional GbE/PoE ports, a key advantage for connecting IoT sensors at the edge.

4x Port GbE/PoE RJ45 Connectors

4x Port GbE/PoE M12 Connectors

4x Port USB 3.2 Gen 1



Built-In CAN Bus

The ACO-6000-CML Series supports a two-channel, two-pin CAN Bus I/O and Protocol embedded on the motherboard. The CAN Bus support allows the computer to leverage vehicle telematics data and provide real-time analytics for intelligent transportation systems, fleet management, process analytics, and system optimization.

Car Mode: Power Ignition Management

The power ignition management feature delays the system shutdown after engine shutoff for a pre-determined, programmable interval to ensure that no data corruption occurs due to a sudden and abrupt shutdown. Configurable for both 12V and 24V systems, this feature ensures that applications close properly, avoiding data loss or corruption.

Wireless Connectivity From The Rugged Edge

  • Wi-Fi 6
  • Bluetooth 5.0
  • Embedded Dual-SIM 4G/LTE cellular
  • Modular Dual-SIM 5G cellular

Performance Accelerators with PCI Express Slots

The ACO-6000-CML Series can be configured with a PCIe Gen 3.0 slot or an optional PCI slot for various high-speed performance accelerators such as:

  • Raid Cards
  • Video Capture Cards
  • Wireless Network Cards
  • I/O Ports Expansion Cards

Why Premio?
Built Rugged. Built Ready.

  • • 30+ years of extensive design expertise for industrial computing solutions in x86 compute power, storage, rich I/O, and high-speed connectivity
  • • Global turnkey manufacturing and support infrastructure in the USA
  • • Regulatory testing and compliance for rugged industrial computers
  • • Long Product Life Cycles to ensure reliability

* Barebone Pricing Only; Sales team to review component configuration and price
*Starting At: $1,665.00

Specification

System
Processor Support 10th Gen Intel® CML S Processor (LGA 1200, 35W TDP)
- Intel® Xeon® W-1290TE, 10 Cores, 20MB Cache, up to 4.5 GHz
- Intel® Core™ i9-10900TE, 10 Cores, 20MB Cache, up to 4.5 GHz
- Intel® Core™ i7-10700TE, 8 Cores, 16MB cache, up to 4.4 GHz
- Intel® Core™ i5-10500TE, 6 Core, 12MB Cache, 3.7 GHz
- Intel® Core™ i3-10100TE, 4 Cores, 9MB Cache, up to 3.6 GHz
System Chipset Intel® W480E Chipset
LAN Chipset GbE1: Intel I219 (Support Wake-on-LAN and PXE)
GbE2: Intel I210 (Support Wake-on-LAN and PXE)
Audio Codec Realtek ALC888S
System Memory 2x 260-Pin DDR4 2666/2933MHz SODIMM.
Max. up to 64GB (ECC and Non-ECC)
Graphics Intel® UHD Graphics 630
BIOS AMI 256Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 sec. System Reset
TPM TPM 2.0
Display
Display Port 2x DisplayPort, support resolution 4096 x 2304, DP++
DVI 1x DVI-I, support resolution 1920 x 1200
Multiple Display Triple Display
VGA Yes (by optional split cable)
Storage
M.2 1x M.2 (E Key, PCIe x1, USB 2.0, 2230, Support CNVi)
SIM Socket 2x External SIM socket (Mini PCIe attached)
SSD/HDD 1x Internal 2.5" SATA HDD/SSD Bay (support H=9mm)
2x Removable 2.5" SATA HDD/SSD Bay (support H=7mm, Hot-swappable)
Support RAID 0, 1, 5
Expansion
M.2 1x M.2 (E Key, PCIe x1, USB 2.0, 2230)
Mini PCIe 2x Full-size Mini PCIe
PCI 1x PCI (Optional)
PCIe 1x PCIe x16
Mini PCIe 2x Full-size Mini PCIe
PCIe 1x PCIe x16
PCI 1x PCI (Optional)
Expansion Modules Occupied One Universal I/O Slot:
• 4-port GbE module with Intel® I350 Chipset, RJ-45 or M12 connector (PoE optional)
• 4-Port USB with Renesas uPD720201K8 host controller (share PCIe Gen2 x1 bandwidth)
I/O
Audio 1x Mic-in, 1x Line-out
CAN 2x CAN 2.0 A/B 2-pin Internal header
COM 2x RS-232/422/485 ; 6x RS-232/422/485 (internal)
DIO 8 in / 8 out (Isolated)
LAN 2x RJ45
Universal I/O Bracket 2x Universal I/O Bracket (By mini PCIe interface)
USB 6x USB 3.2 Gen 2 (10 Gbps)
3x USB 3.2 Gen 1 (5 Gbps, 1x Internal)
2x USB 2.0 header (internal)
Others 5x WiFi Antenna Holes
1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off
1x PC/Car Mode Switch, 1x Delay Time Switch
1x Removable CMOS Battery
4x 4-Pin Power Connector, 1x 4-PIN FAN Connector
Operating System
Windows Windows 10/11
Linux Linux kernel
Power
Power Adapter Optional AC/DC 24V/5A, 120W
Optional AC/DC 24V/9.2A, 220W
Optional AC/DC 24V/11.67A, 280W
Power Mode AT, ATX
Power Ignition Sensing Power Ignition Management
Power Supply Voltage 9~48VDC
48~110VDC (Optional)
Power Connector 5-pin Terminal Block (9~48VDC)
3-pin Terminal Block (48~110VDC, Optional)
Power Protection OVP (Over Voltage Protection);
OCP (Over Current Protection)
Reverse Protection
Environment
Operating Temperature -25°C to 70°C (35W CPU)
Storage Temperature -30°C to 85°C
Relative Humidity 10% to 95% (non-condensing)
Certification CE, FCC Class A,
E-Mark, EMC Conformity with EN50155 & EN50121-3-2
Vibration With SSD: 3 Grms, 5 - 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock With SSD: 20G, half sine, 11ms
Physical
Dimension 240 (W) x 261 (D) x 127.3 (H) mm
Weights ACO-6000-CML-1 : 6.9 kg
ACO-6000-CML-1-110V : 7.1 kg
ACO-6000-CML-1-16PM12 : 8.4 kg
ACO-6000-CML-1-16PM12-110V : 8.6 kg
Construction Extruded Aluminum with Heavy Duty Metal
Mounting Options Wall Mounting

Mechanical Layout

Product Dimension

Unit:mm
