BCO-500-RK3568J Semi-Rugged Fanless Mini Computer with Rockchip ARM Cortex-A55 RK3568J, 1x HDMI, 2x USB, 1x CAN, 2x COM, 2x LAN

  • Supports Rockchip RK3568J ARM Quad Cortex-A55, up to 2.0 GHz
  • LPDDR4 2133MHz 4 GB
  • 64GB of eMMC for OS
  • 1x M.2 B-Key, 1x M.2 E-Key
  • 2x RS-232/422/485, 2x USB 3.0 Type A, 2x LAN
  • 4K Independent Display by 1x HDMI
  • Wide Operating Temperature: -40°C to 70°C
  • Power Input: 12 to 24VDC
  • Android 13 / Debian 11 / Ubuntu 22.04
  • UL 61010-1, UL 61010-2-201, CE, FCC Class A, UKCA, IC
See Datasheet

Model:

BCO-500-RK3568J

Certifications:

Rockchip RK3568J
AWS Greengrass IoT

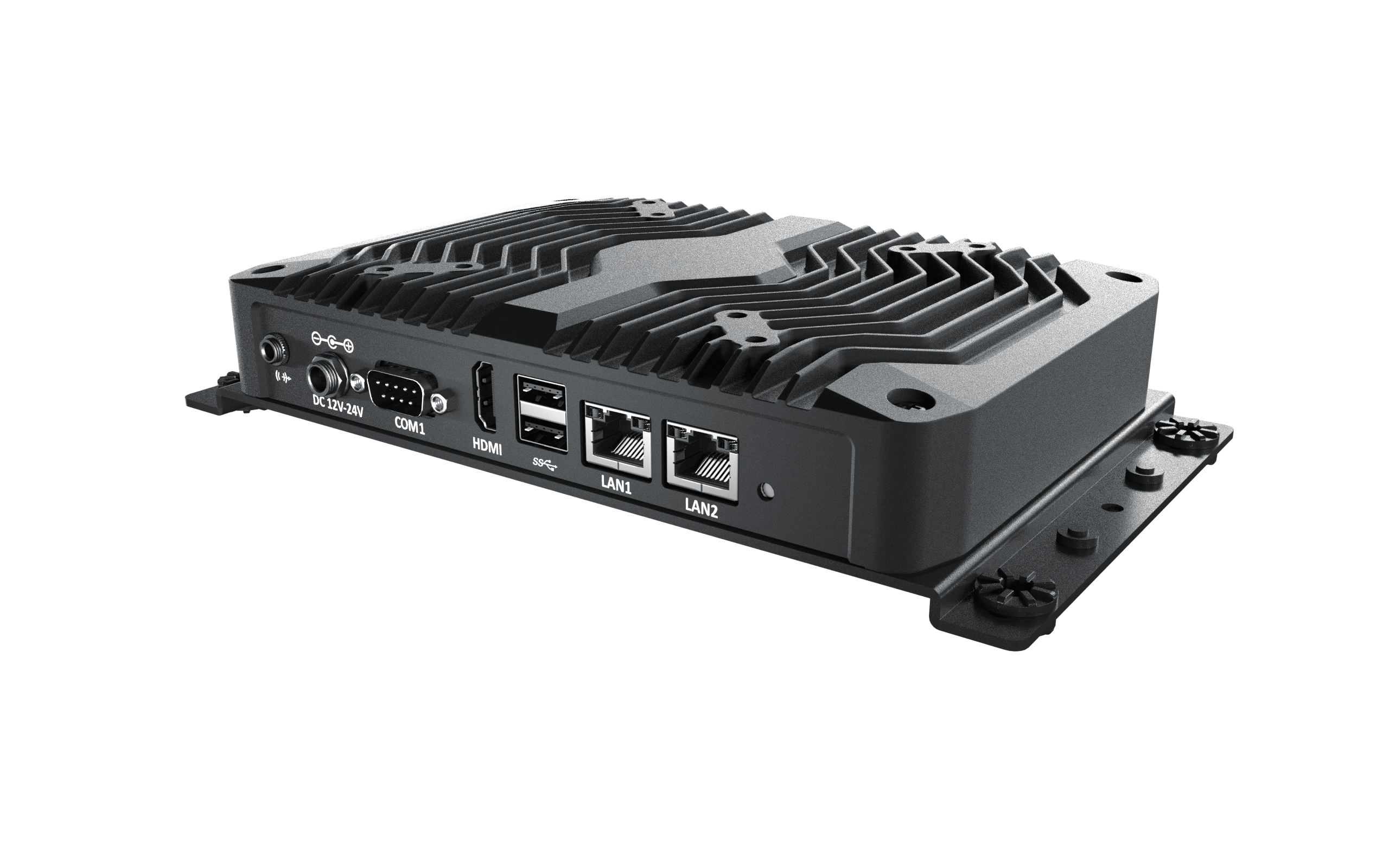

The BCO-500-RK3568 Series is an ARM-based, fanless mini industrial computer purpose-built for edge computing in space-constrained and semi-rugged environments. Powered by the Rockchip RK3568J processor, this compact system balances power efficiency with versatile I/O, wireless expansion, and flexible OS support.

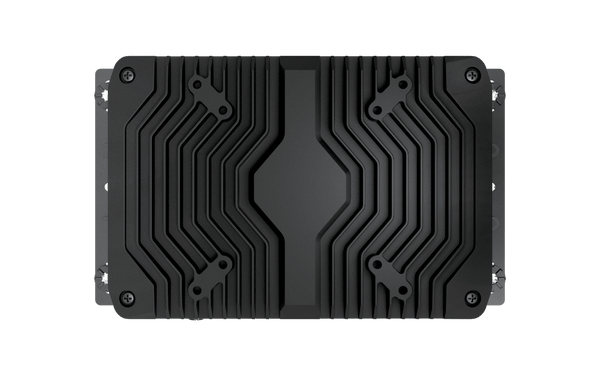

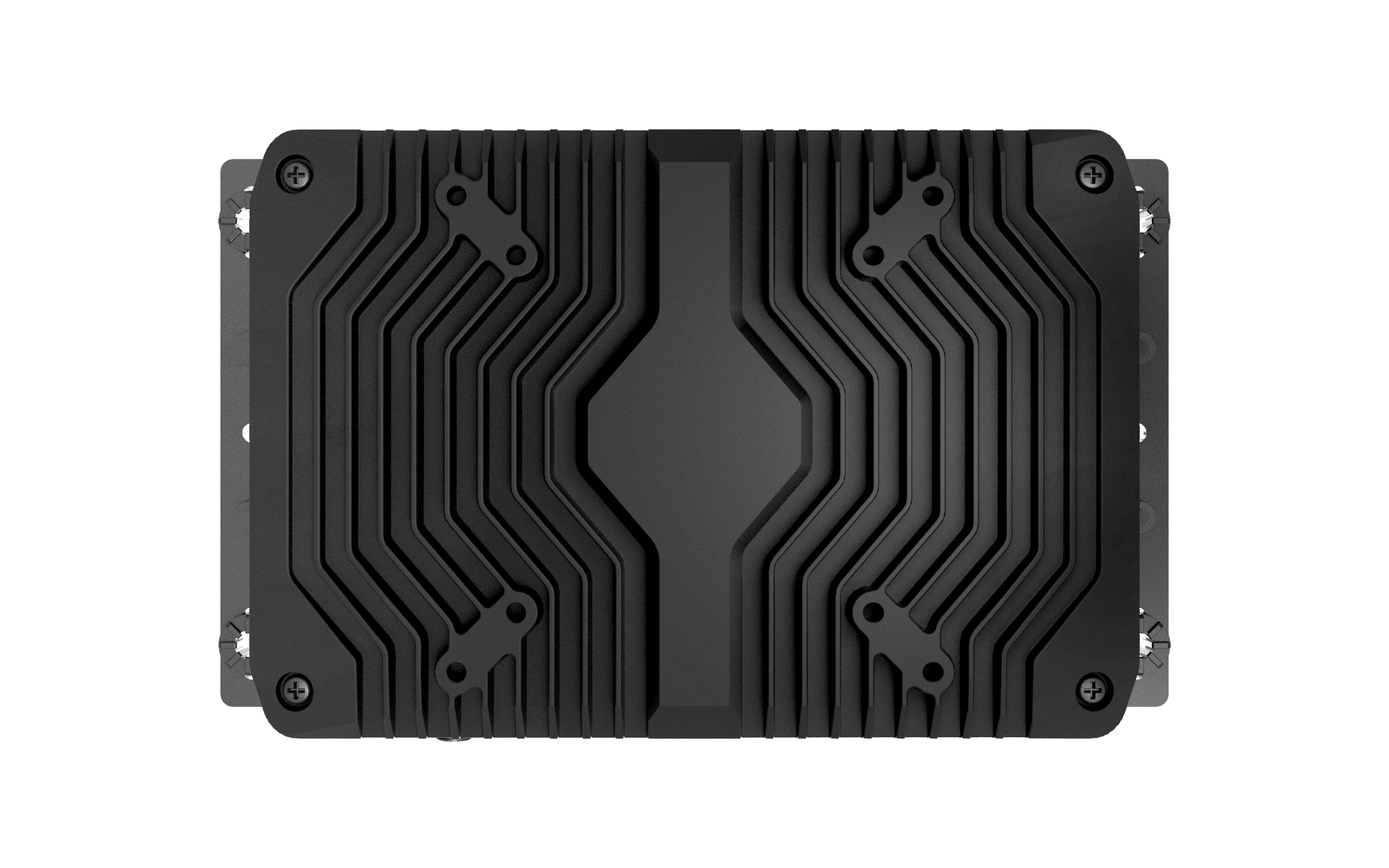

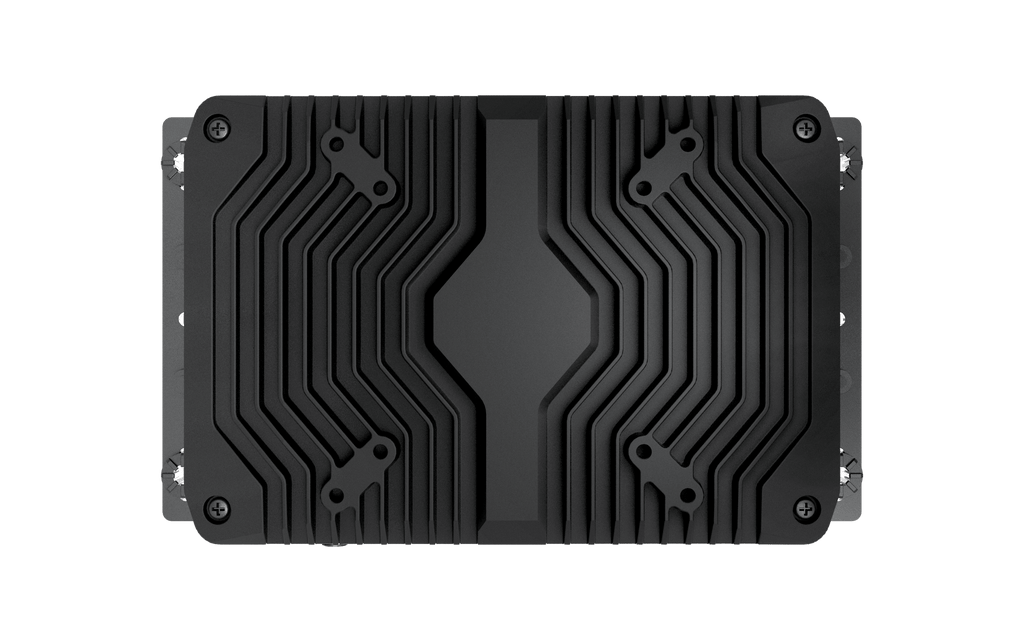

Fanless Design

Rich I/O

Wide Temperature

Shock And Vibration
Resistance

Power-Efficient Performance

Fast Time to Market

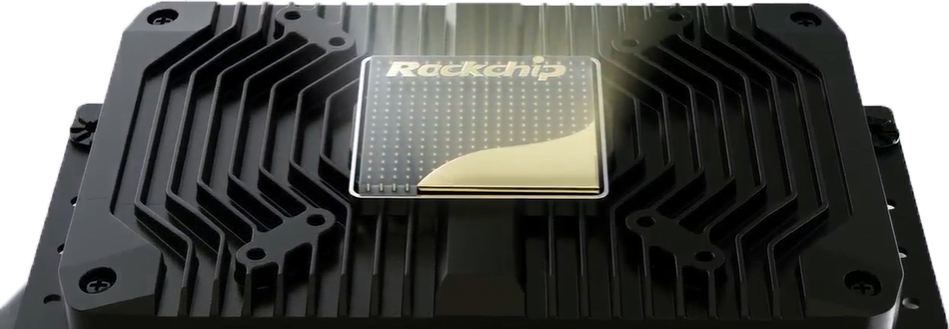

Powered by Rockchip RK3568J Processor

Built on a quad-core Arm Cortex-A55 architecture and 22nm process, the Rockchip RK3568J System-on-Chip (SoC) delivers low-power, efficient performance for fanless, space-constrained environments.

Specification

Details

Processor

Rockchip RK3568J Quad-Core Cortex-A55, up to 2.0 GHz

GPU

Mali-G52 2EE

NPU

512 MAC

Memory

4GB LPDDR4 RAM at 2133 MHz

Flexible Storage Options

The BCO-500-ROK Series offers onboard storage designed for reliability and ease of integration in industrial environments.

  • 64GB eMMC Storage
  • 1x MicroSD Slot

eMMC Storage

MicroSD

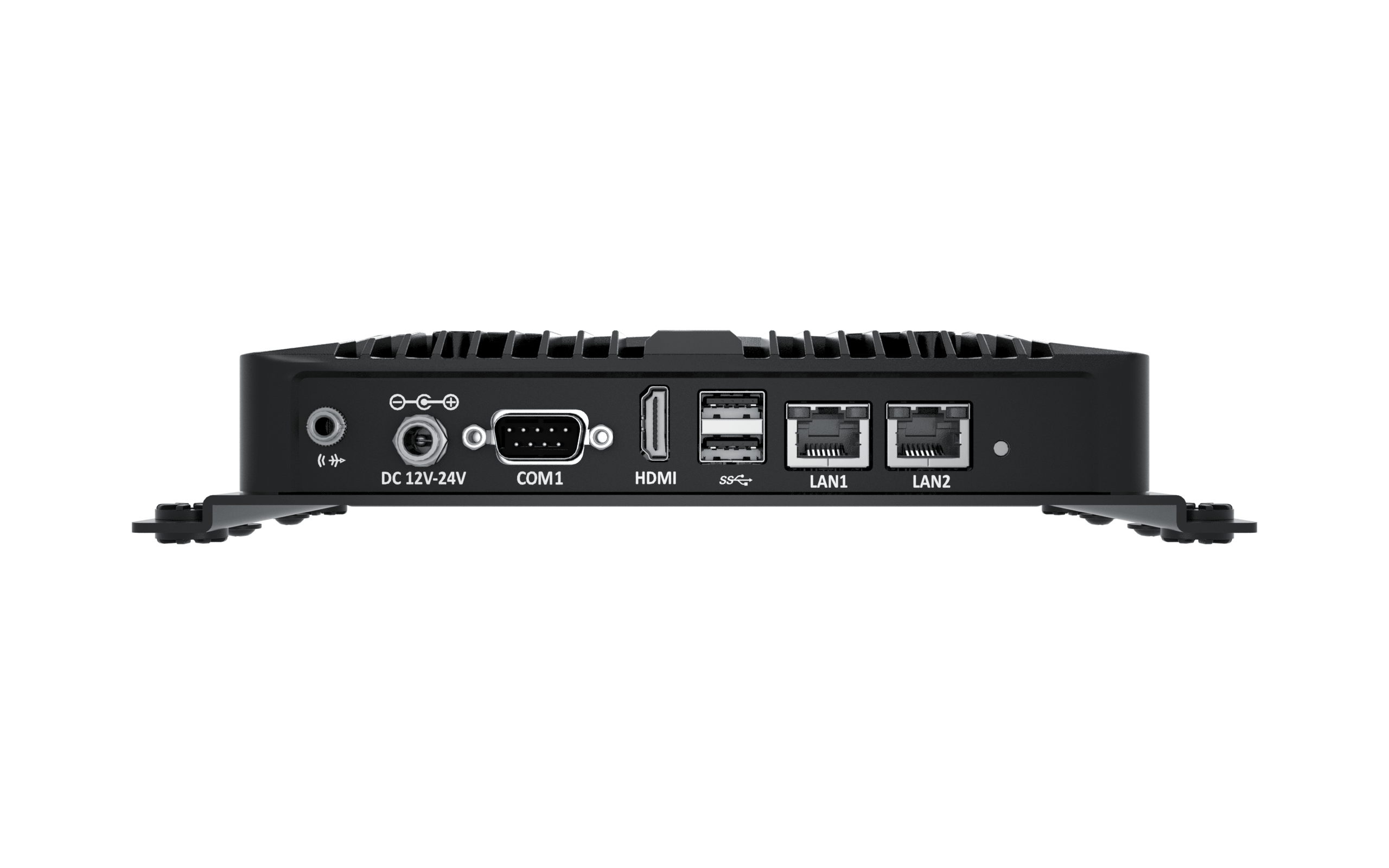

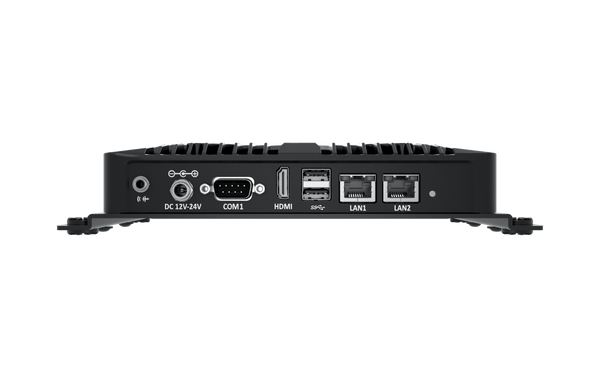

Rich IIoT Centric Connectivity

The BCO-500-ROK Series features comprehensive I/O connectivity on-board within its form factor. The I/O provides seamless integration, compatibility, and performance with various IoT devices and sensors.

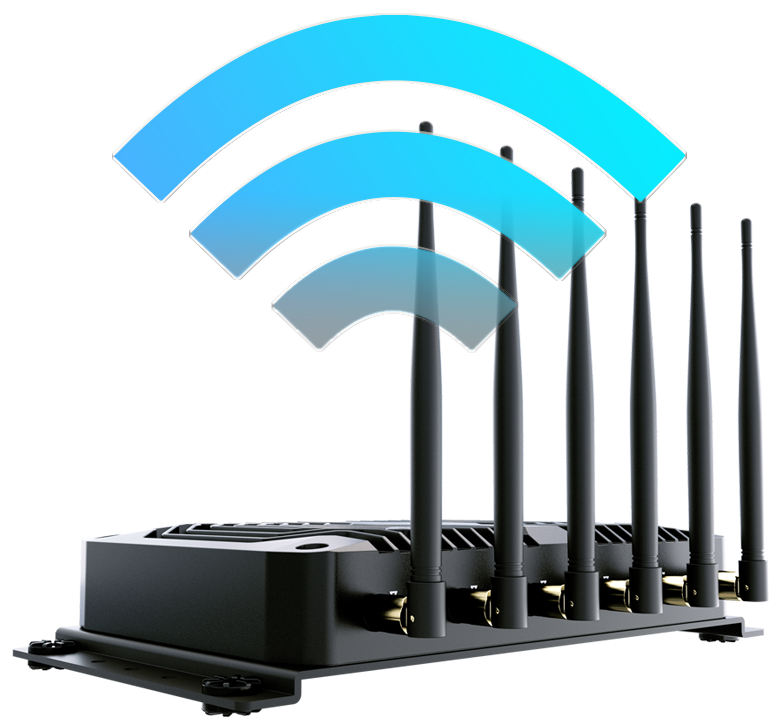

Wireless & Cellular Connectivity with M.2

Enable real-time data transfer and redundant connectivity to maintain uptime. The BCO-500-ROK Series provides M.2 expansion slots integration for wireless and cellular connectivity.

  • M.2 B Key (3042) – Supports 4G/LTE
  • M.2 E Key (2230) – Supports Wi-Fi and Bluetooth Connectivity

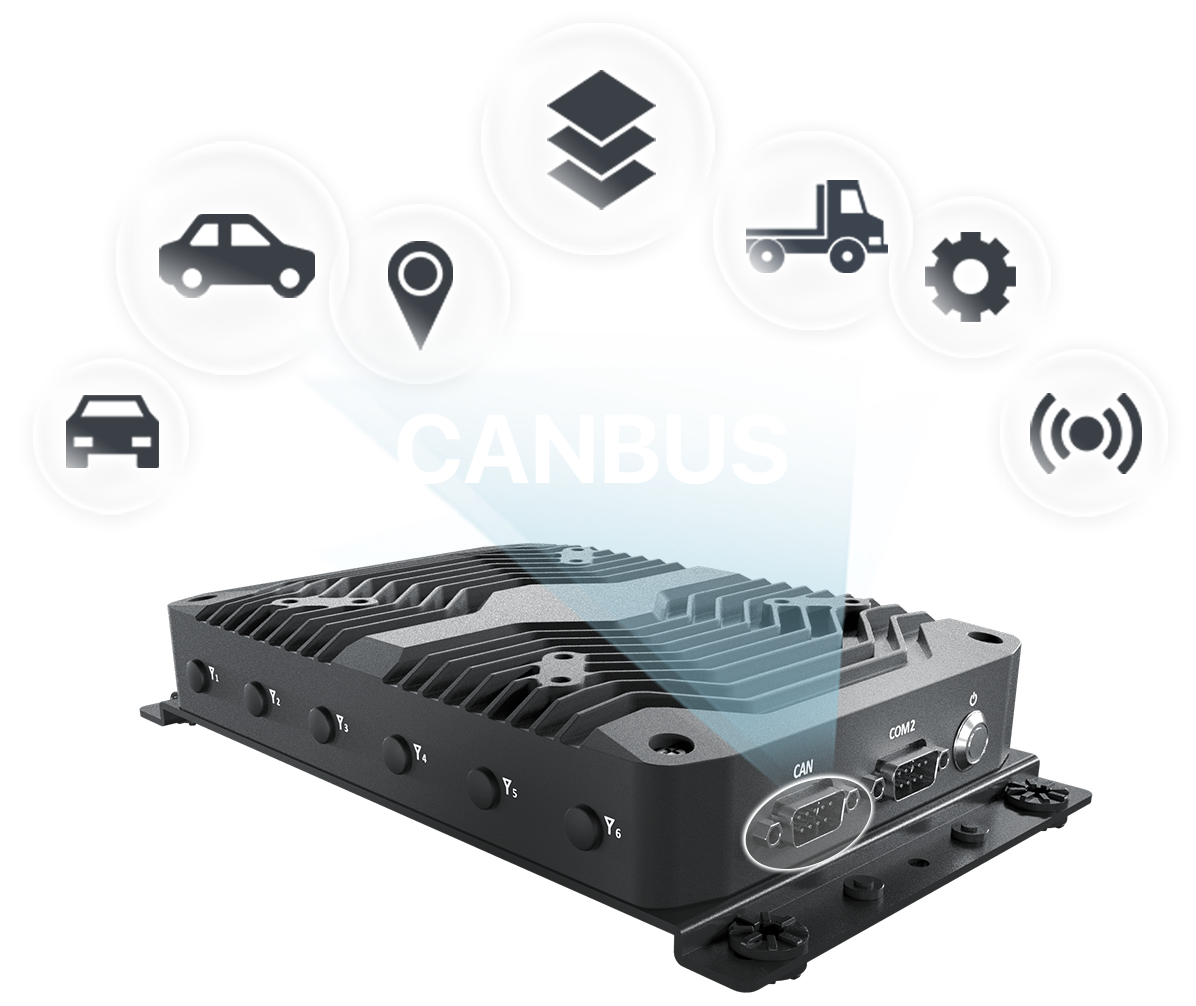

CAN Bus for In-Vehicle Communication

The BCO-500-ROK Series features an integrated CAN Bus port, enabling direct communication with in-vehicle systems and industrial controllers without the need for a central host computer.

Edge-Optimized OS Support

Android 13, Debian 11, Ubuntu 22.04 are optimized for the Rockchip platform, enabling the BCO-500-ROK Series to deliver a streamlined development process and dependable deployment for diverse edge applications.

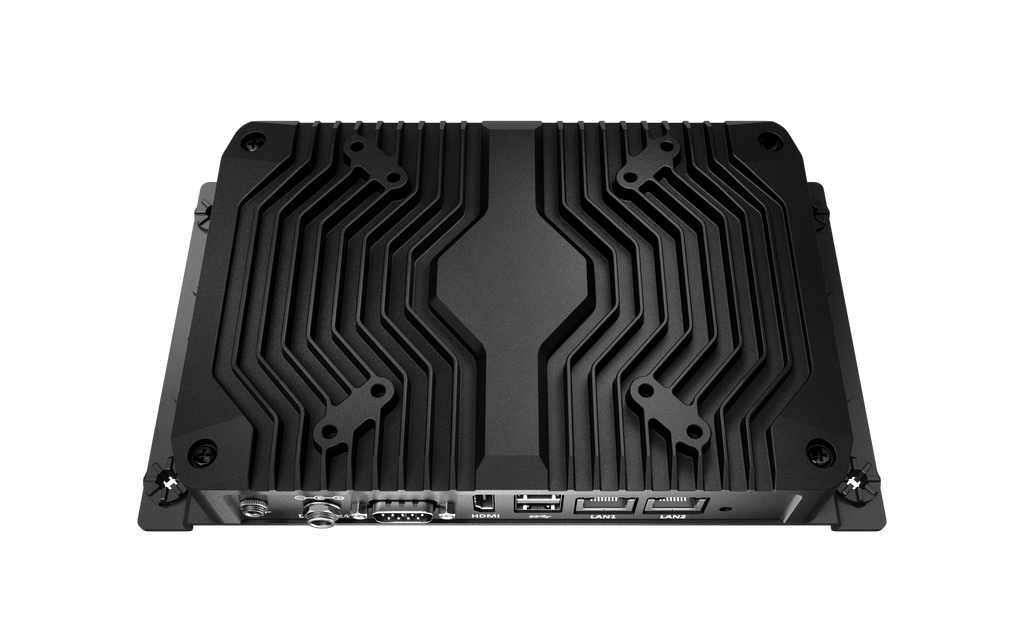

Built Rugged. Built Ready.

Rugged reliability and durability are critical for 24/7 operations in harsh industrial environments and conditions. The BCO-500-ROK Series is purpose-built with industrial-grade components and a fanless design to withstand tough deployment challenges.

  • Fanless & Ruggedized Design
  • Extreme Operating Temperature: -40°C–70°C
  • MIL-STD-810G Shock & Vibration
  • Wide Power Input: 12-24VDC

World-Class Safety Certifications

At Premio, we pride ourselves in providing competent edge computing solutions that deliver reliable performance while deployed in challenging industrial environments. Our flagship line of rugged edge computers has undergone rigorous testing and validation for safety standards compliance to achieve UL Listed.

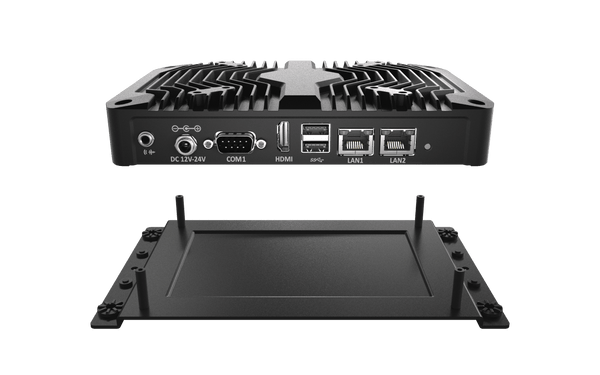

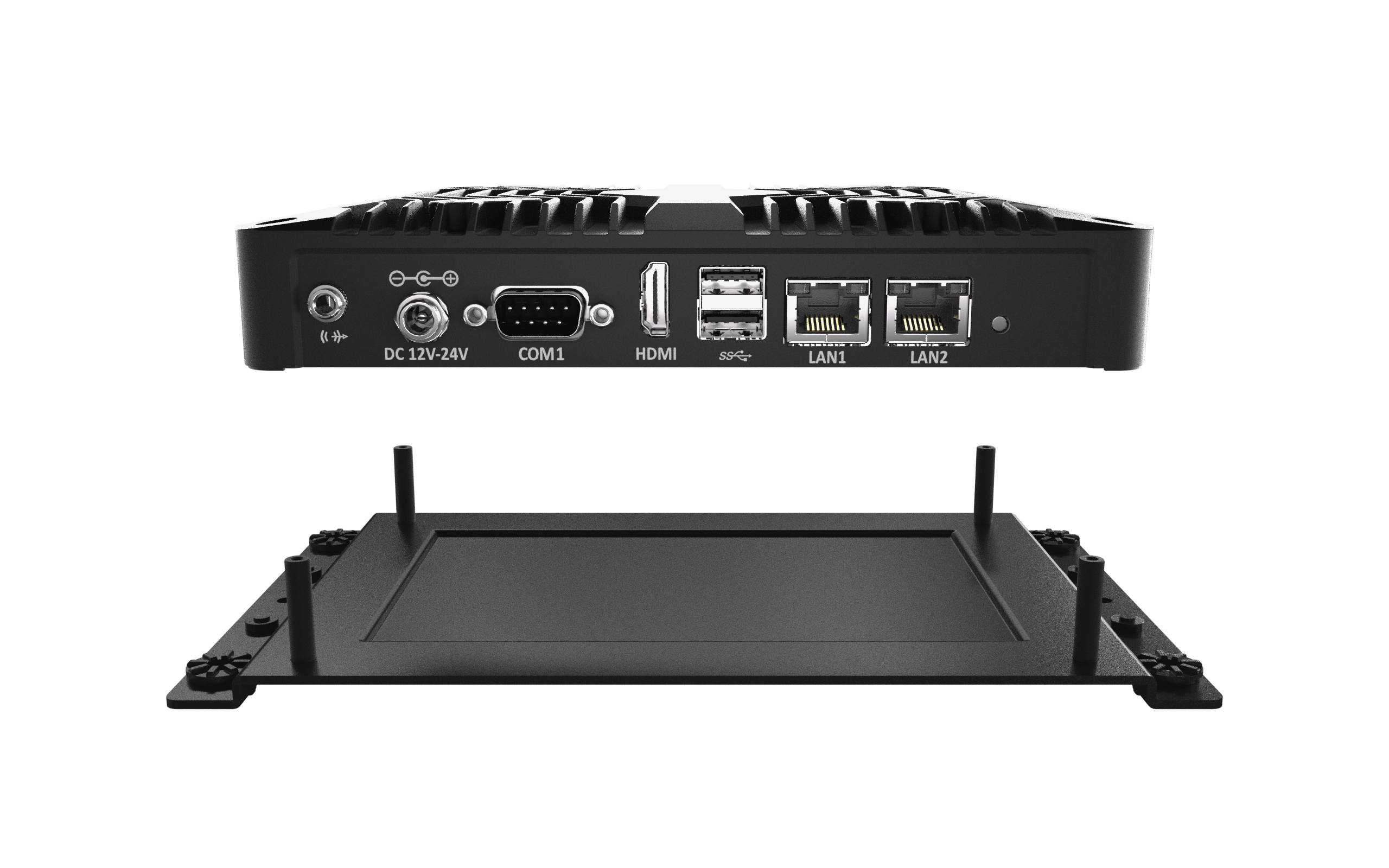

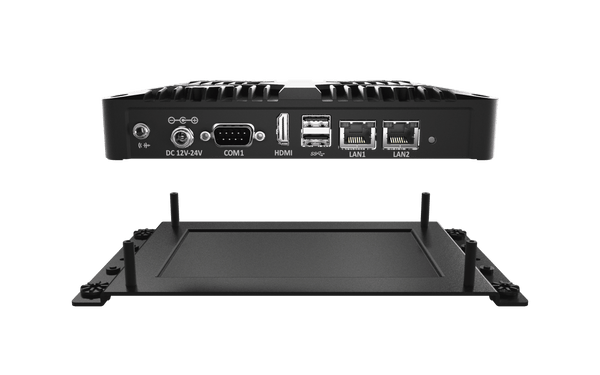

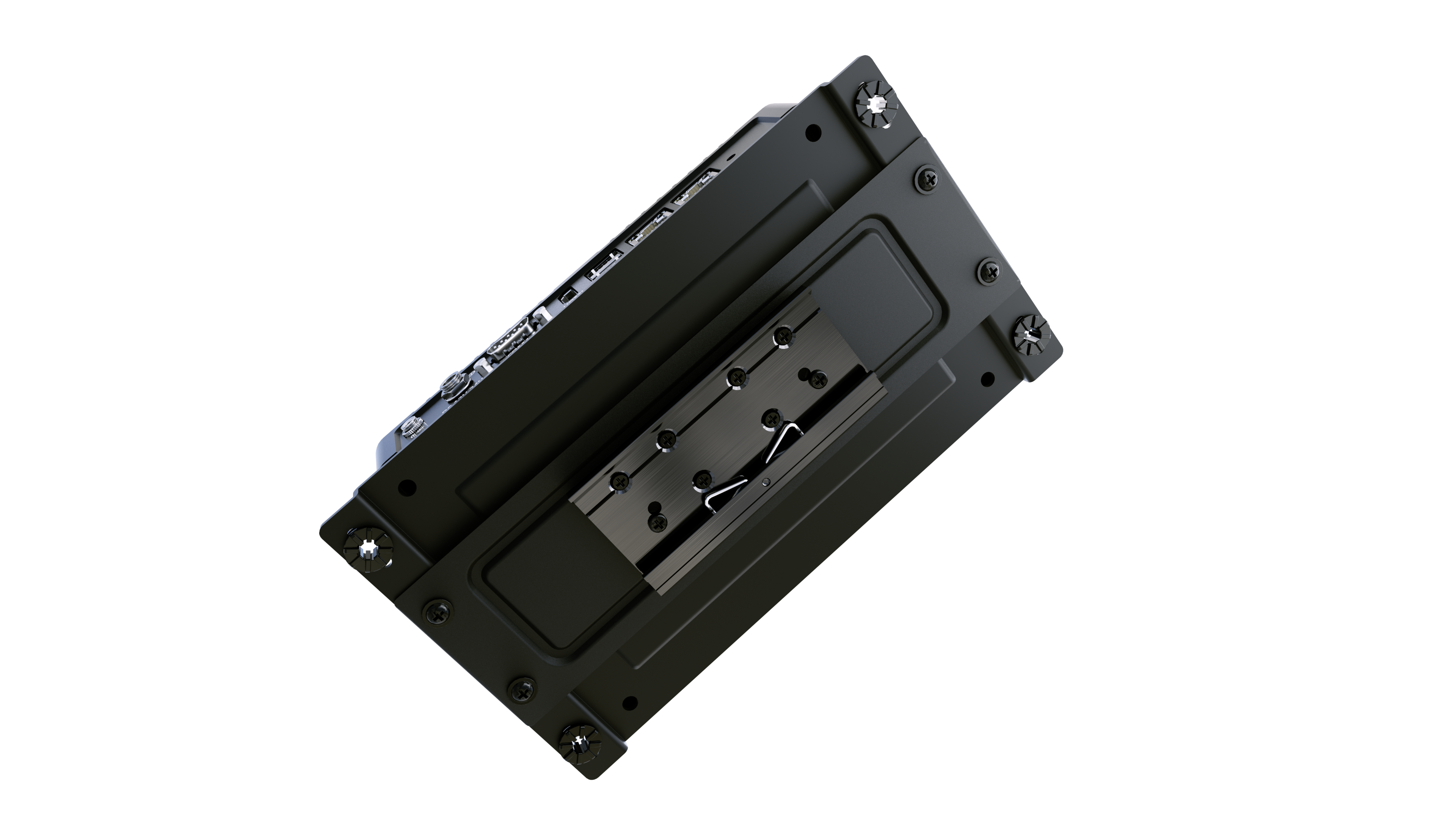

Flexible Mounting Capabilities

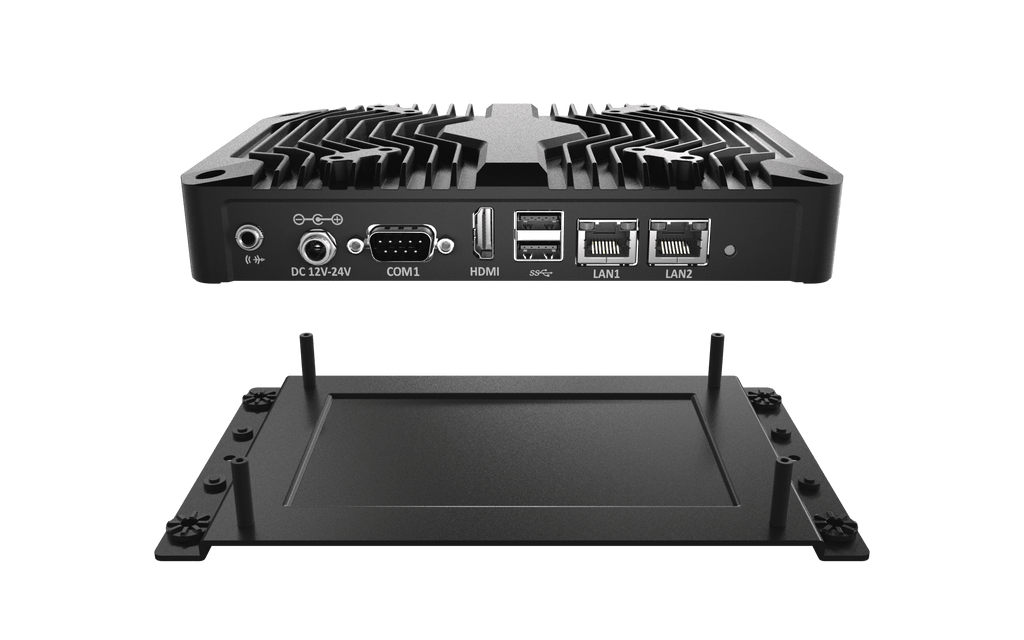

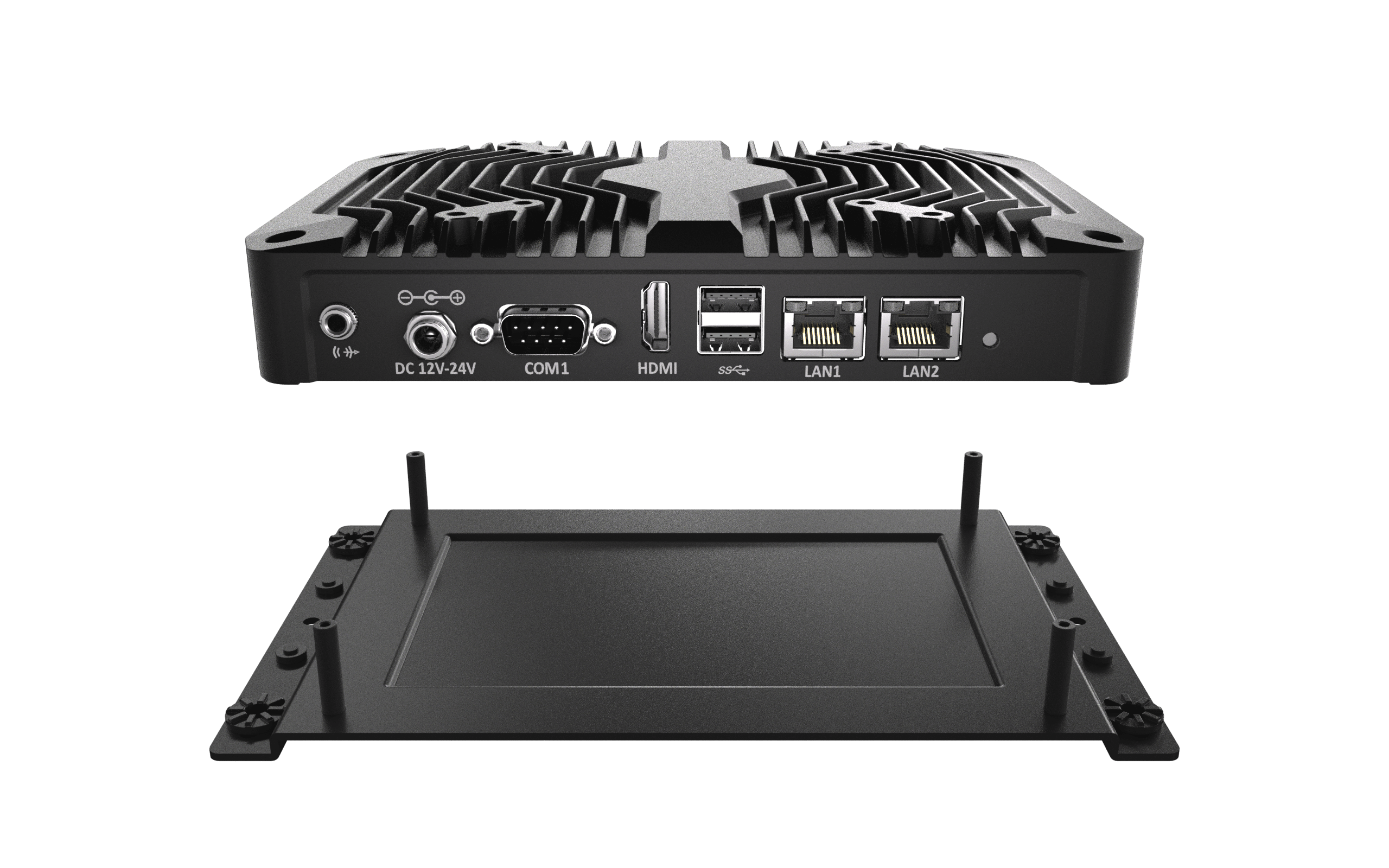

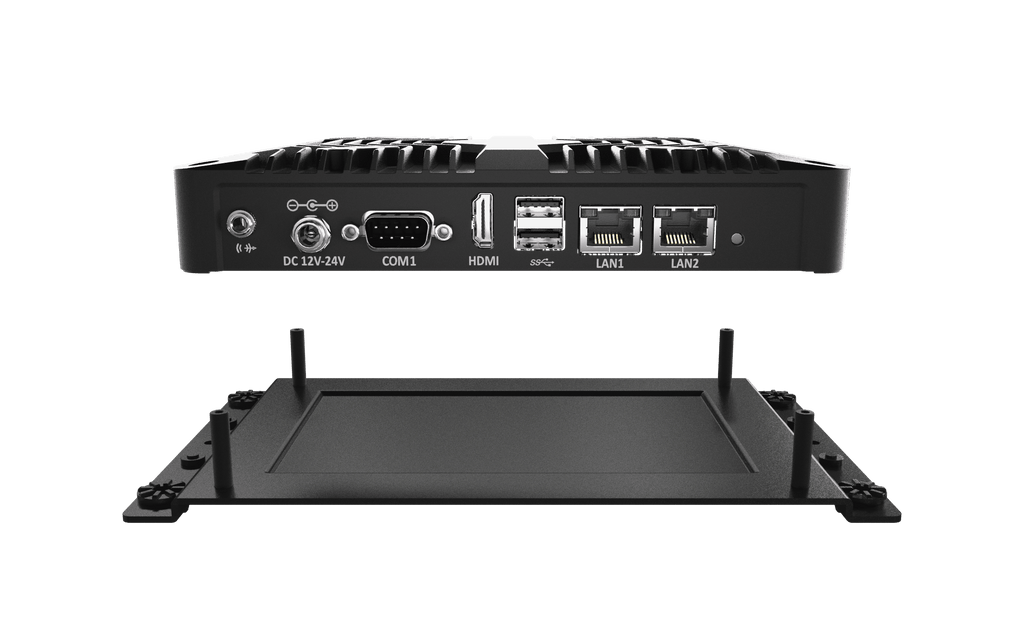

The BCO-500-ROK Series supports three standardized industrial mounting configurations: Wall Mount, VESA Mount and an optional DIN-Rail mount. This provides enhanced flexibility in many applications where space may be extremely limited.

Wall Mount

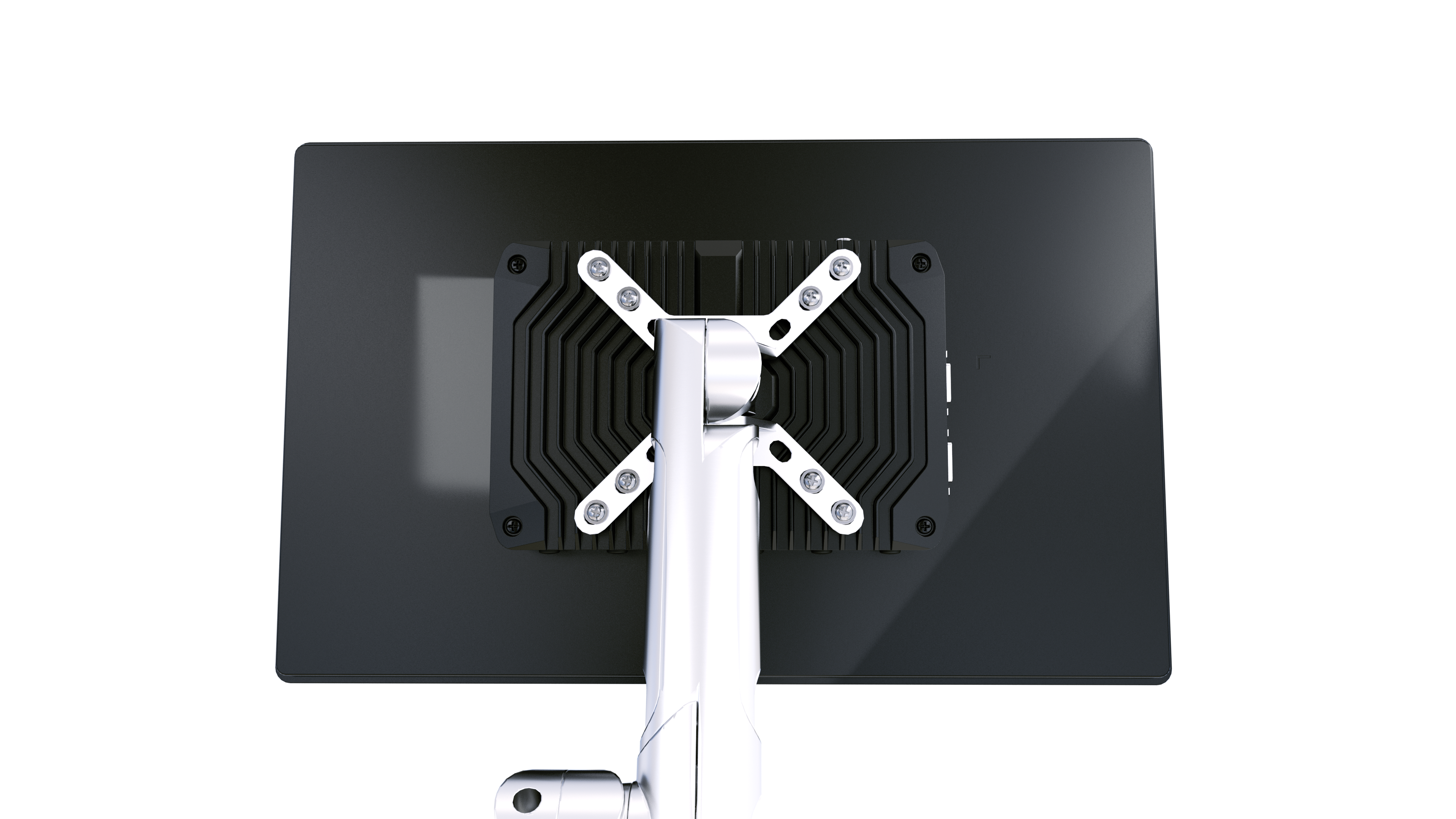

VESA Mount

DIN-Rail Mount (Optional)

* Barebone Pricing Only; Sales team to review component configuration and price
*Starting At: $475.00

Specification

System
Processor Rockchip RK3568J ARM Quad Cortex-A55, up to 2.0 GHz
System Chipset SoC integrated
LAN Chipset GbE1/2: RTL8211FDI 10/100/1000 Mbps
System Memory LPDDR4 2133MHz 4 GB
Graphics Mali-G52 support OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0
Display
HDMI 1 x HDMI Max. resolution 4096 x 2160 @60Hz
Storage
eMMC 64GB
Expansion
M.2 1x M.2 B Key (3042, USB 2.0) support 4G/LTE
1x M.2 E Key (2230, USB 2.0) for Wi-Fi/Bluetooth

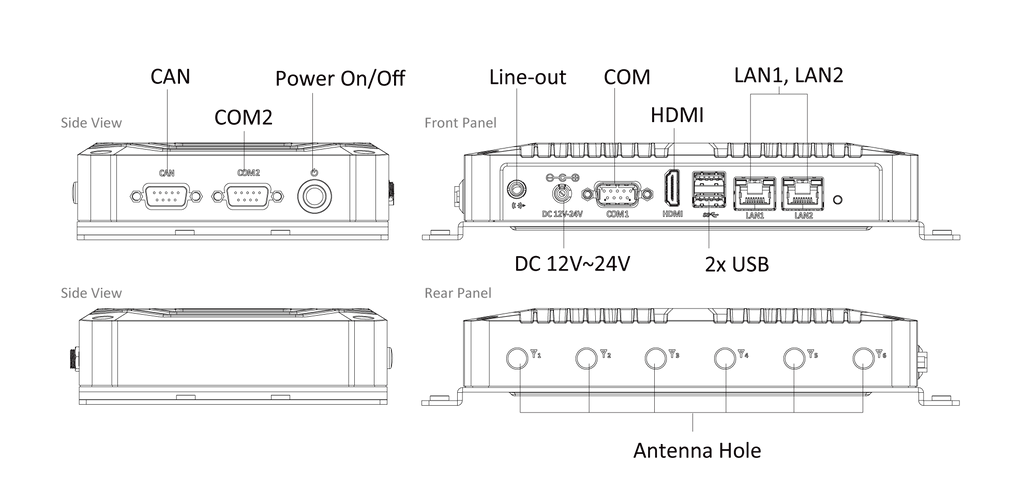

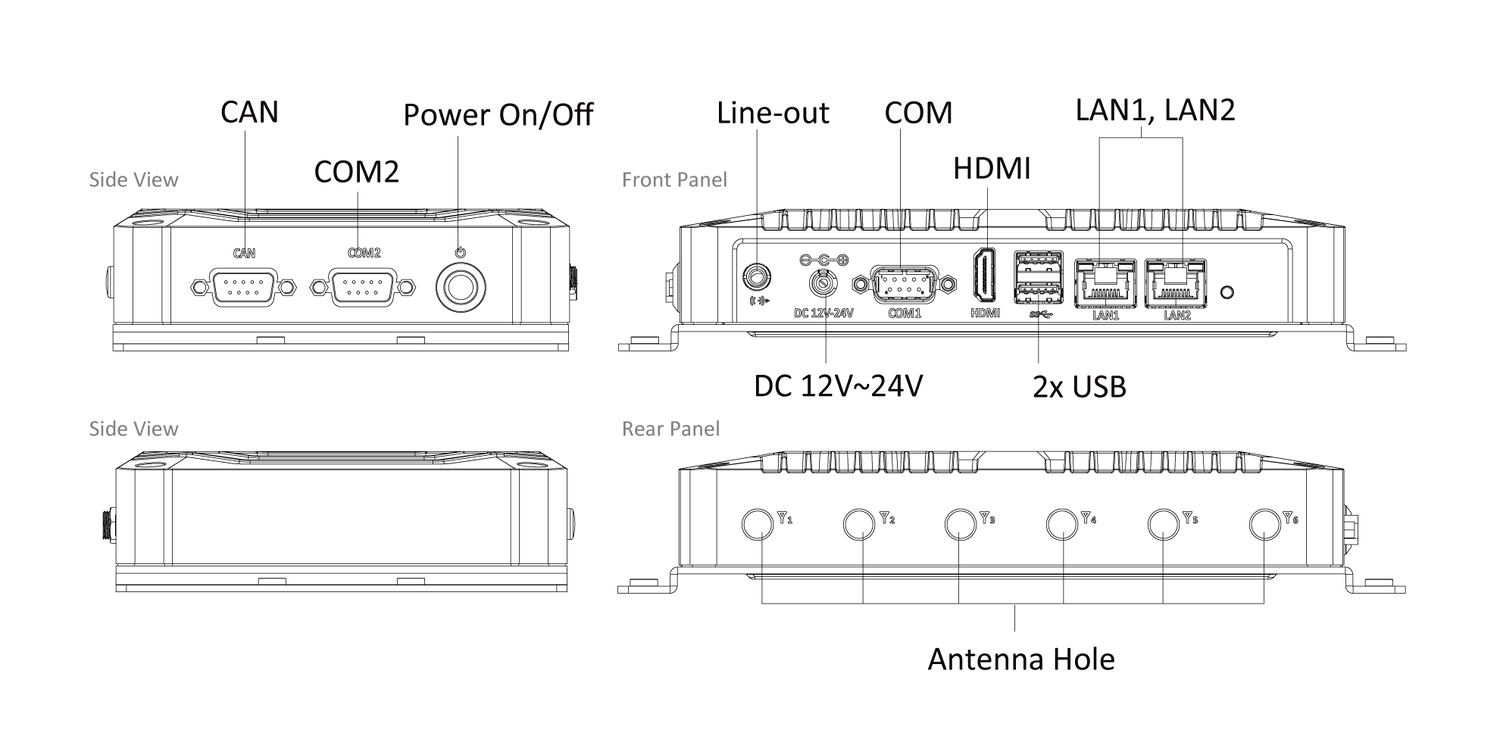

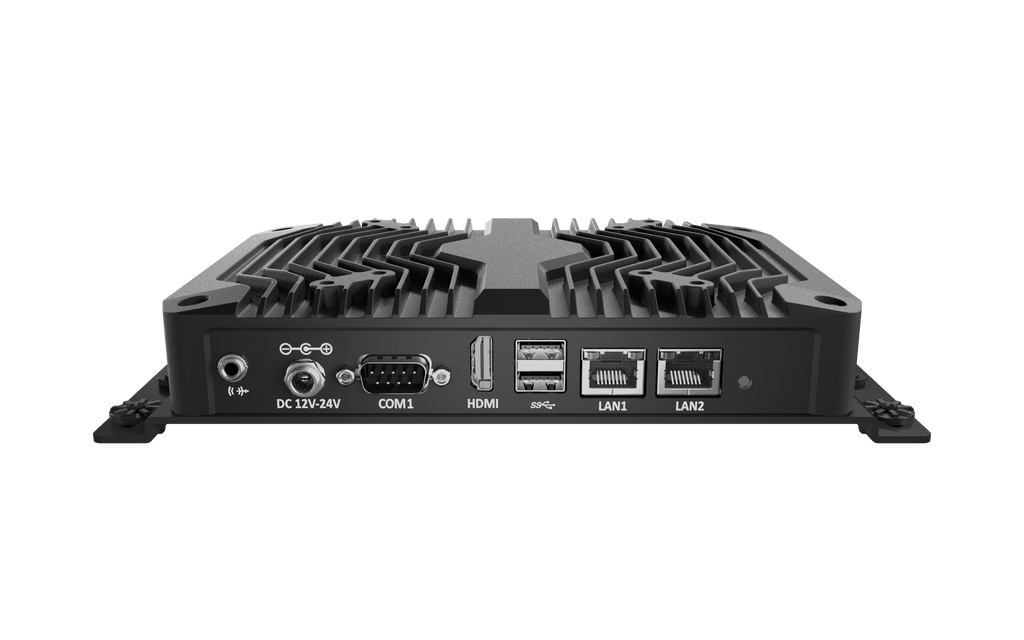

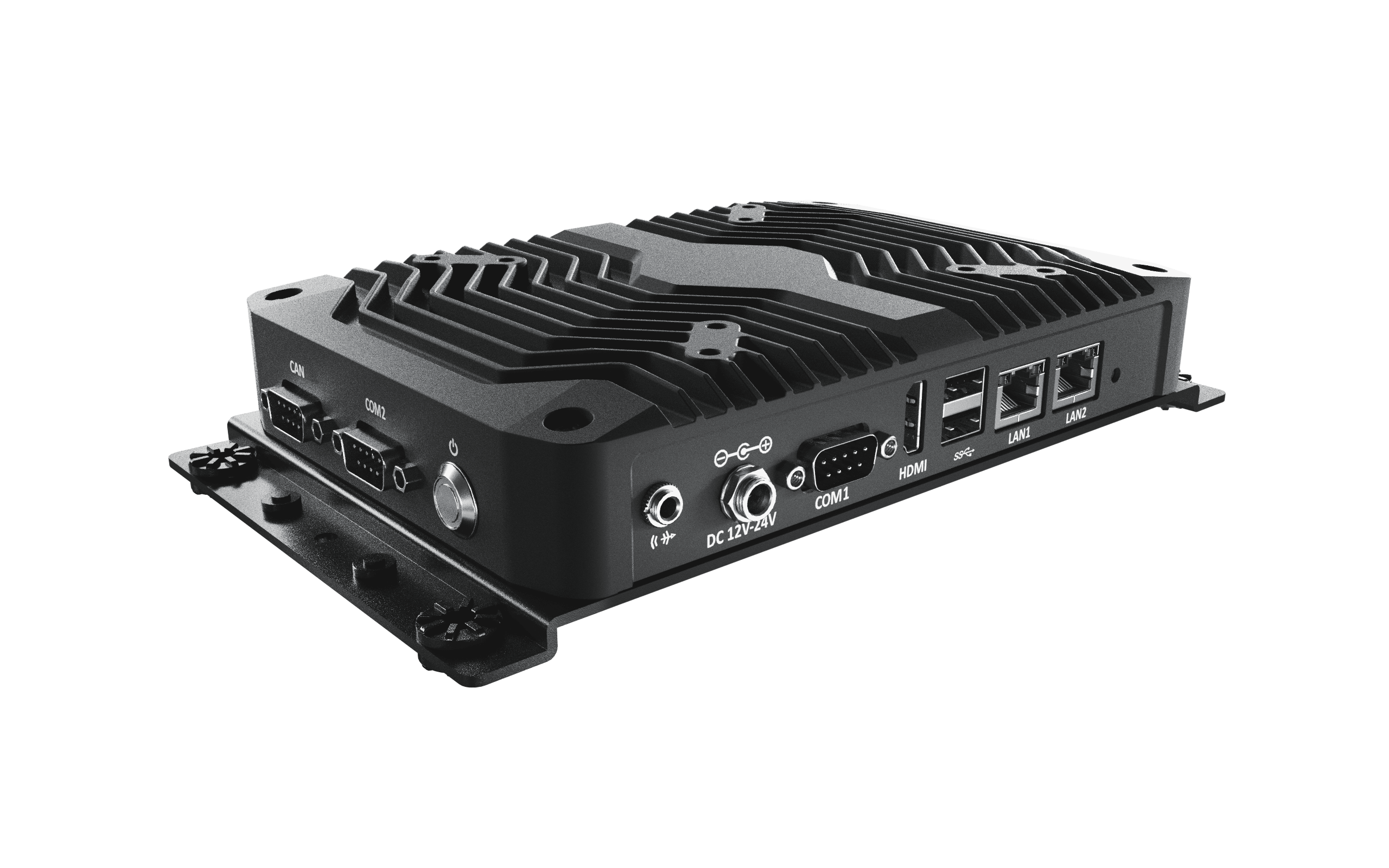

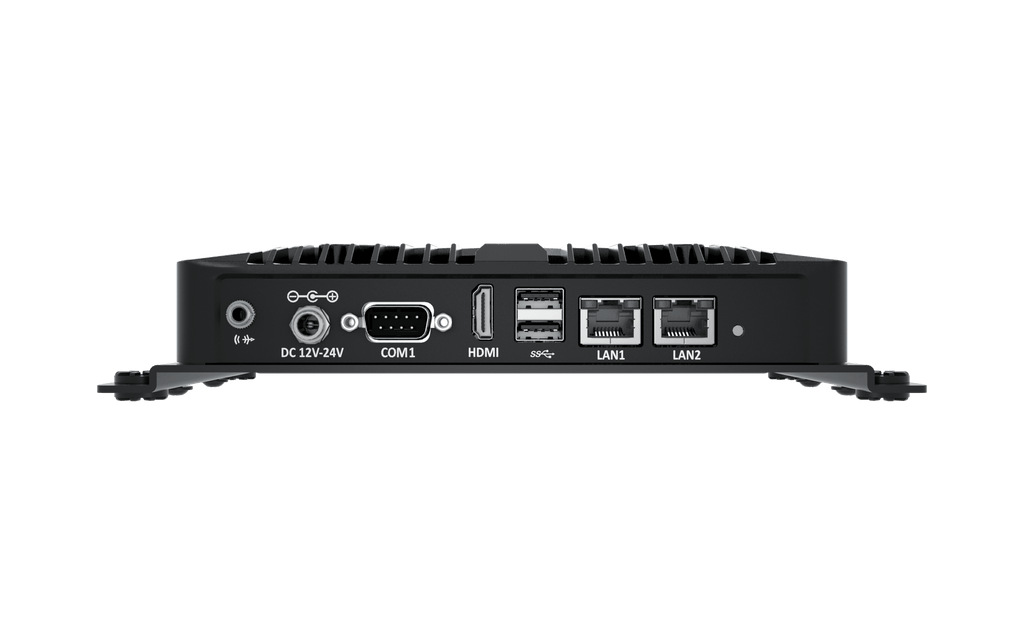

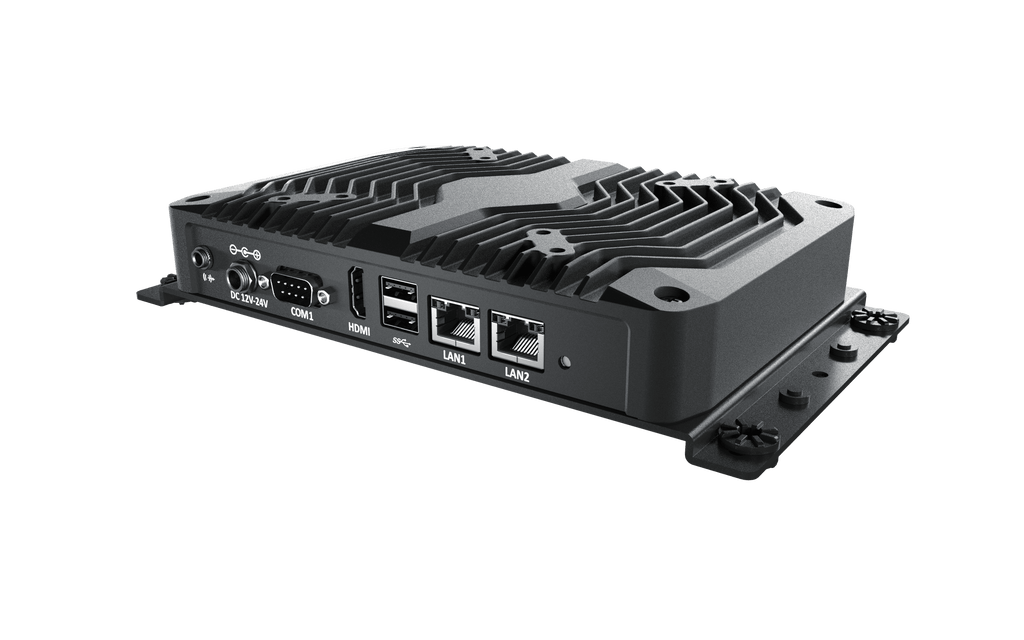

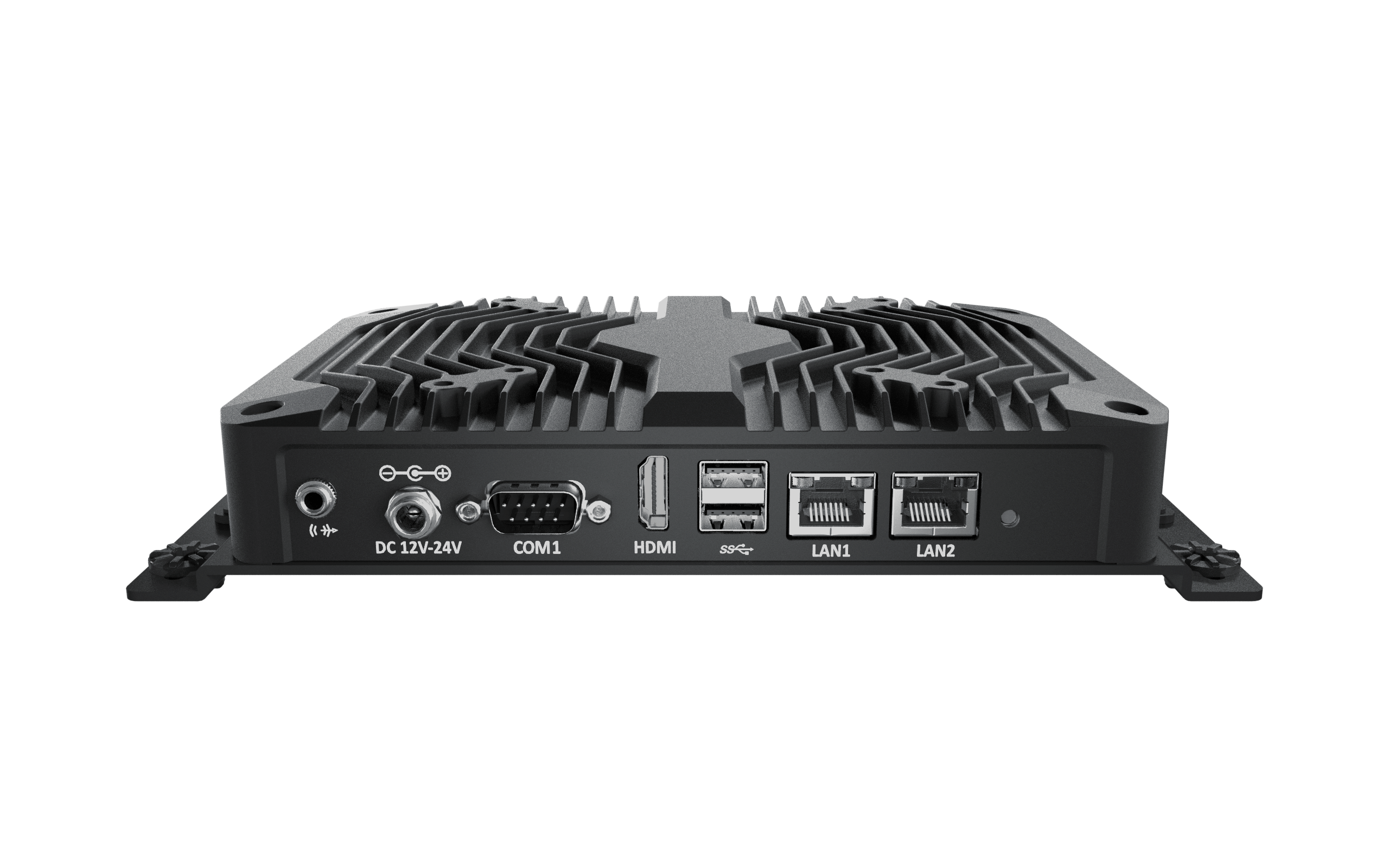

I/O
COM 2x RS-232/422/485
USB 2x USB 3.0 Type A
LAN 2x GbE RJ45 (10/100/1000 Mbps)
Audio 1x Line-out
CAN 1x CAN
DC-in Jack 1x DC IN Power Jack with Lock

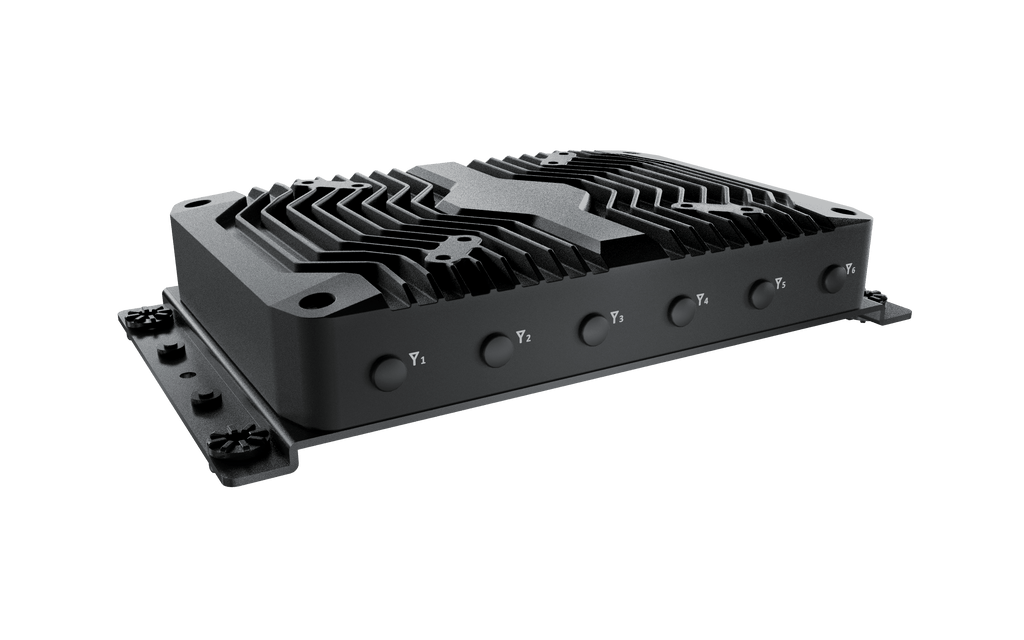

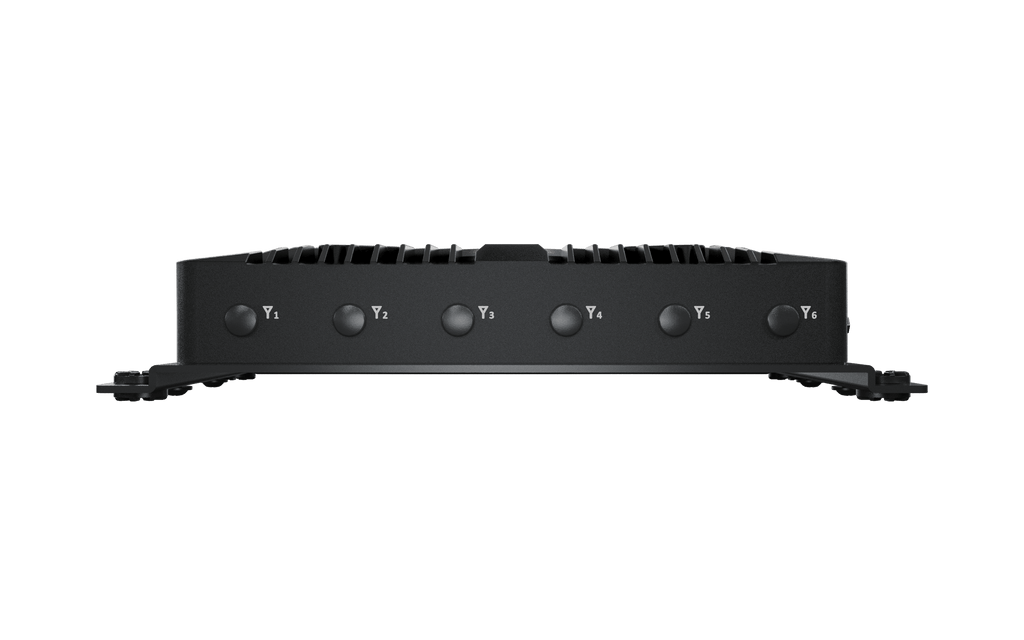

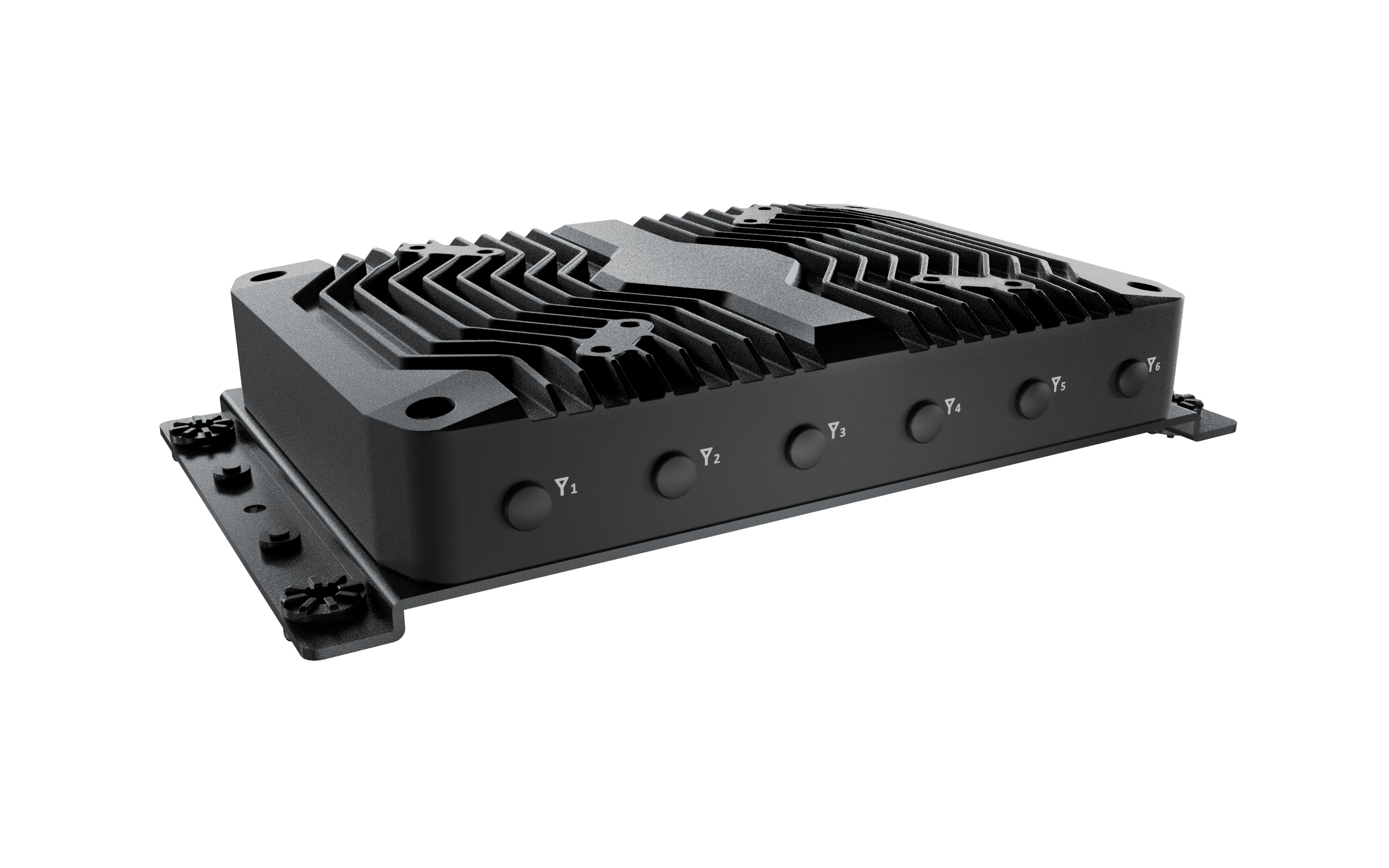

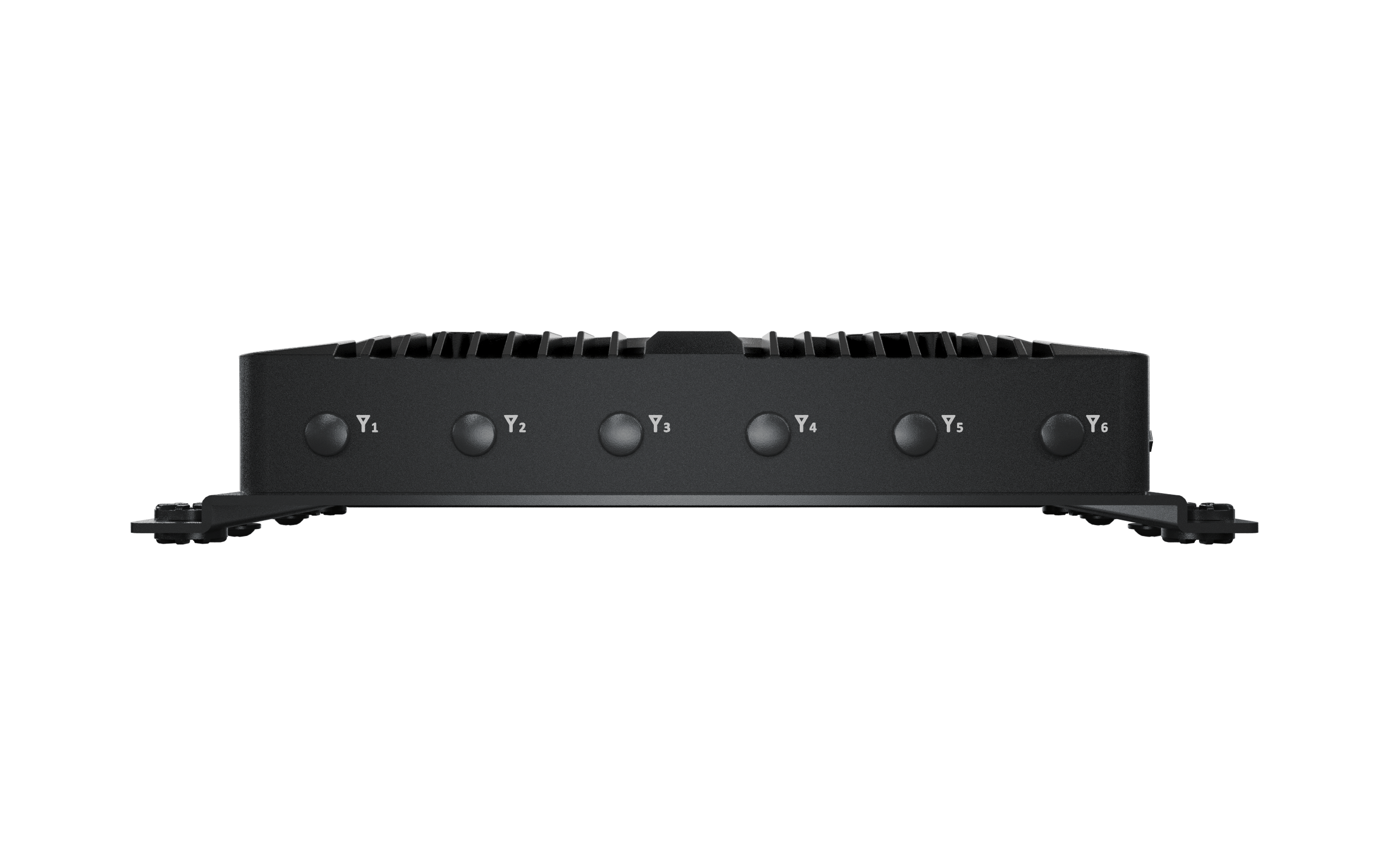

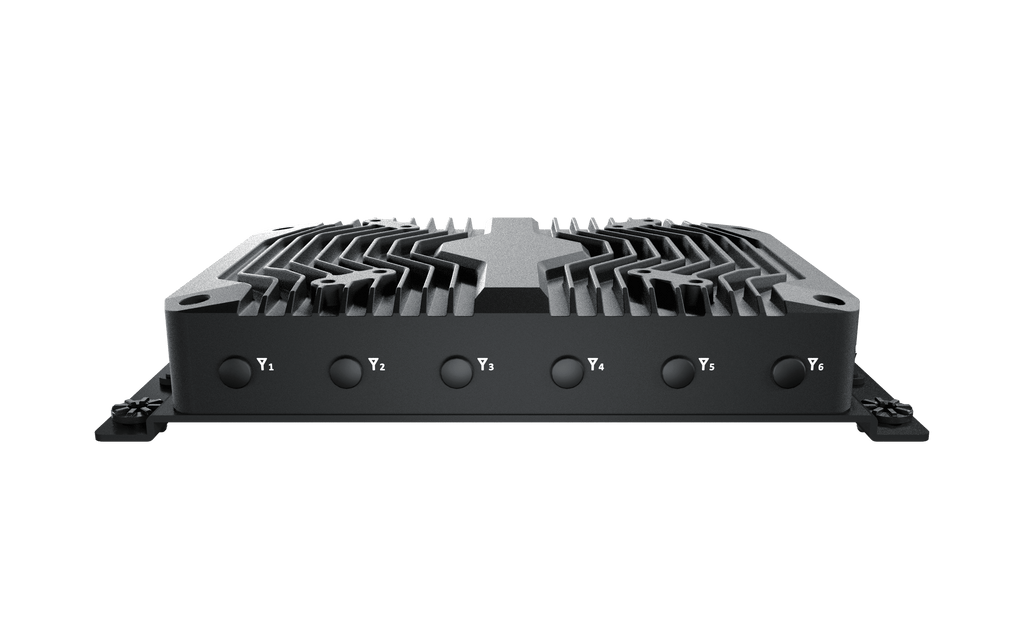

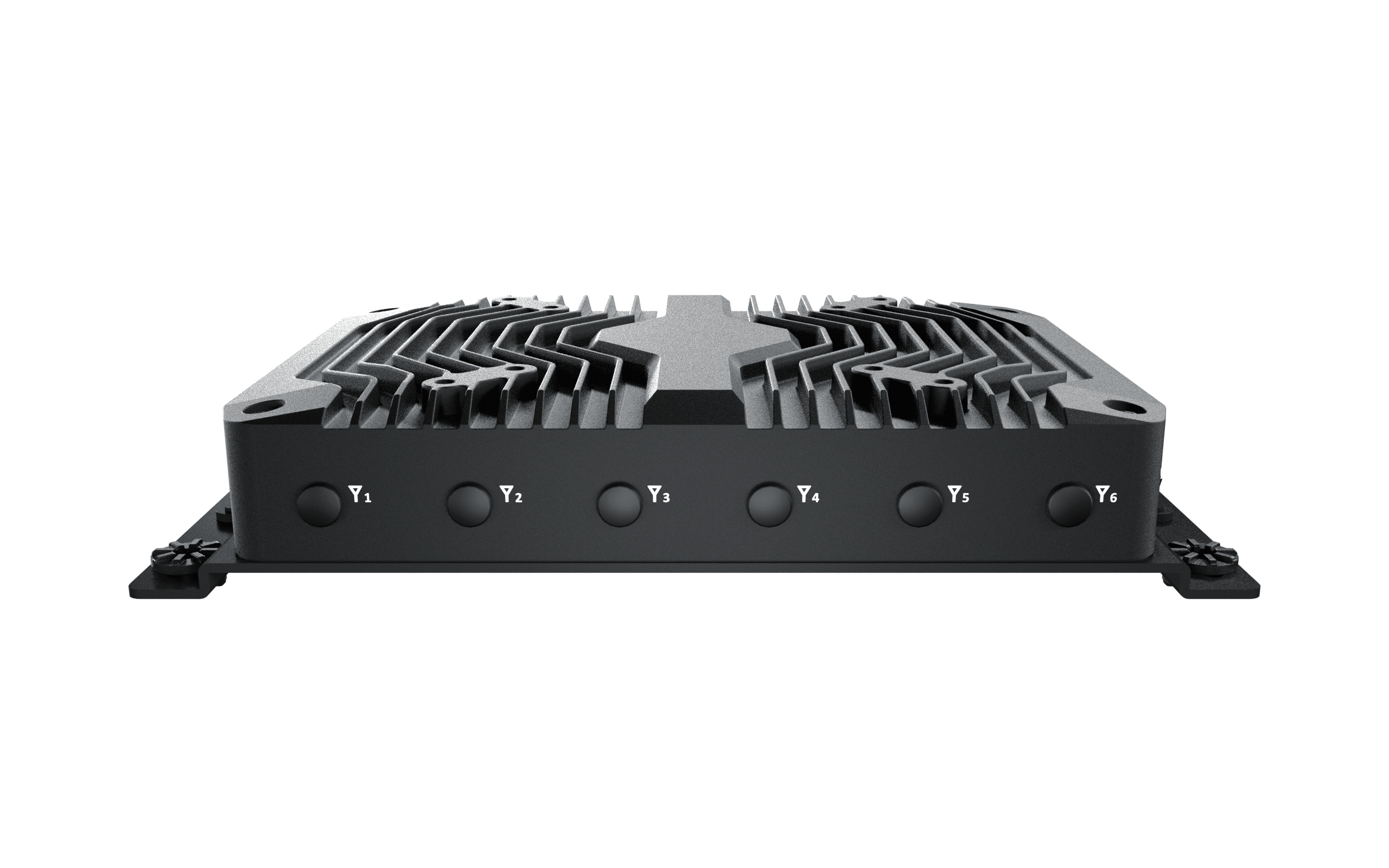

Others 6x Antenna Holes
1x Power Switch with LED
Internal I/O
USB 2x USB 2.0
Others 1x Micro SD Slot
1x SIM Nano Socket
Operating System
Linux Debian 11
Ubuntu 22.04
Android Android 13 (Default)
Power
Power Adapter AC/DC 12V/5A, 60W
Power Mode AT/ATX (Default ATX)
Power Supply Voltage 12~24VDC
Power Connector DC in Power Jack
Power Protection OVP (Over Voltage Protection)
OCP (Over Current Protection)
Reverse Protection
Environment
Operating Temperature -40°C to 70°C
Storage Temperature -40°C to 85°C
Relative Humidity 10% to 95% (non-condensing)
Certification UL 61010-1, UL 61010-2-201
CE, FCC Class A, UKCA, IC
Vibration With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis)
Shock With SSD: 50G half-sin 11ms
Physical
Dimensions 225mm x 130mm x 41mm
Weights 1.2 Kg
Construction Extruded Aluminum with Heavy Duty Metal
Mounting Options Wall Mounting
Vesa Mounting
Din-Rail Mounting (Optional)

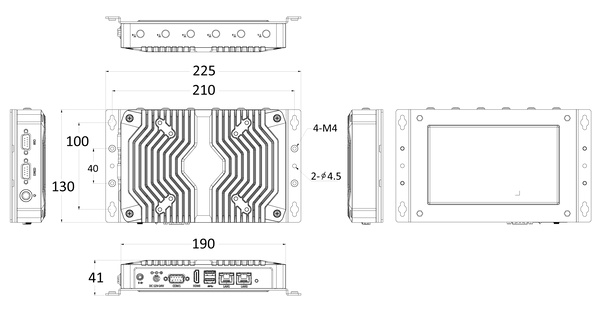

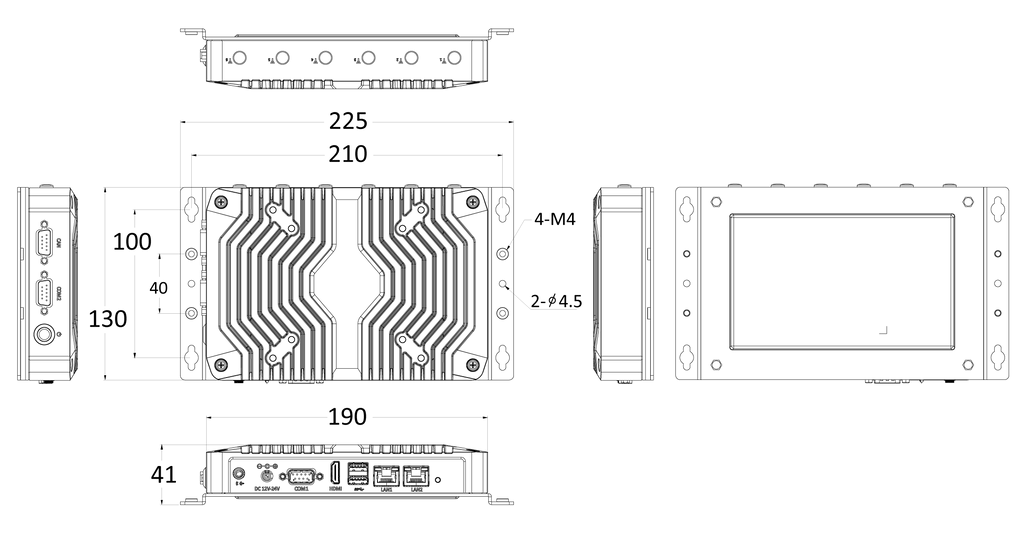

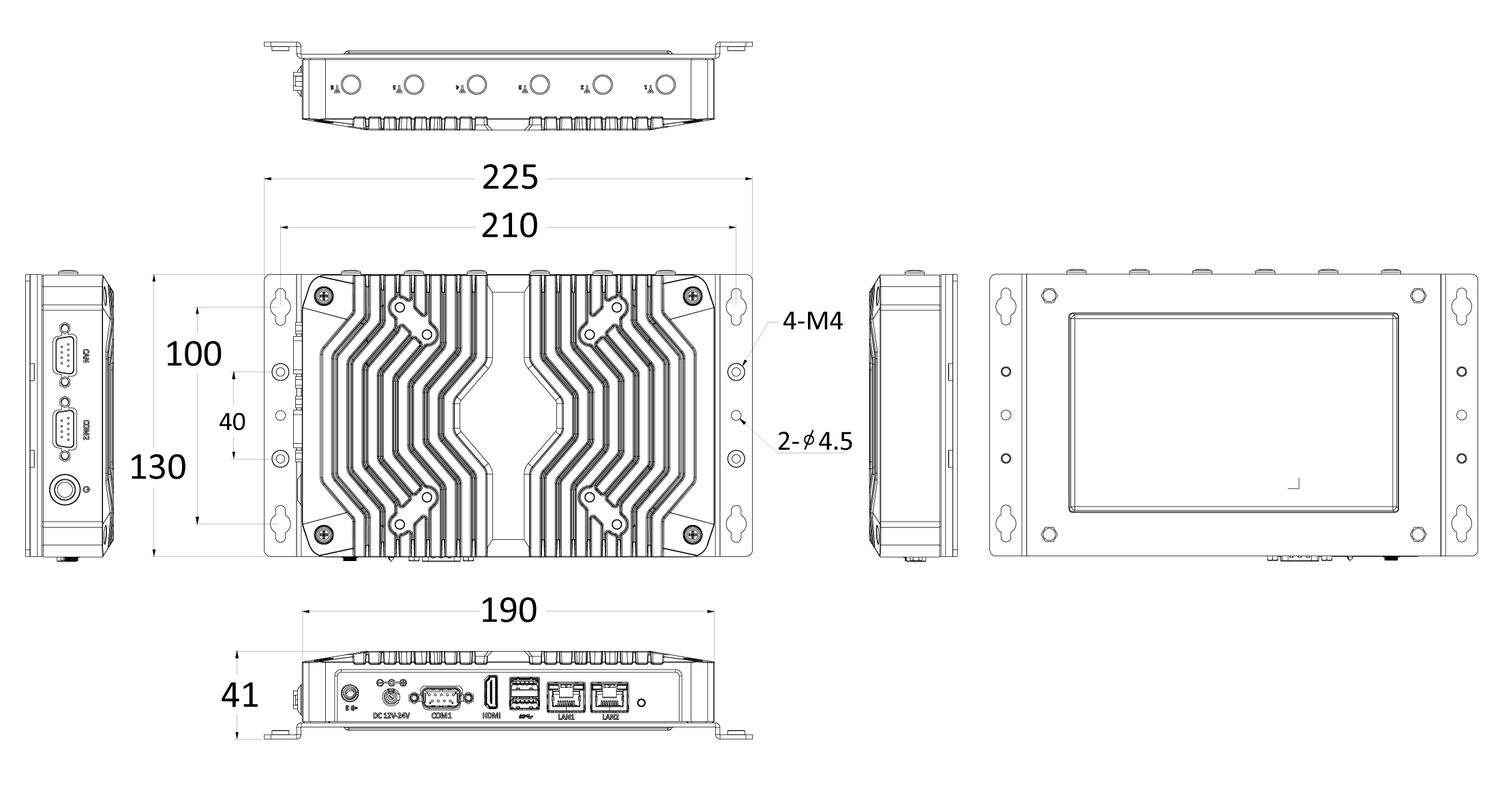

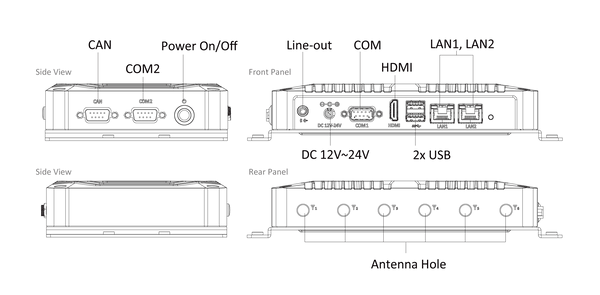

Mechanical Layout

Product Dimension

Unit:mm
