| System | |
|---|---|
| Processor | Supports 11th Gen Intel® Atom® Processor (Elkhart Lake) - Intel® Atom® Processor X6425E, Quad Core, 1.5 MB Cache, 1.8 GHz, 12W TDP |
| System Chipset | SoC integrated |
| LAN Chipset | 1 GbE1: Intel I210 (Support Wake-on-LAN and PXE) 2.5 GbE2: Intel I225 (Support Wake-on-LAN and PXE) |
| Audio Codec | Realtek ALC888S |
| System Memory | 1x 260-Pin DDR4 2400/2667/3200MT/s SODIMM. Max. up to 32 GB |
| Graphics | Intel® UHD Graphics |
| BIOS | AMI 256Mbit SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | TPM 2.0 |
| Display | |
| Display Port | 2x DisplayPort 1.4, DP++ (4096 x 2160@60Hz) |
| Multiple Display | Dual Display |
| Storage | |
| M.2 | 1x M.2 (B Key, 2242/3042/3052, PCIex 1 + USB 3.2 Gen2, Support 4G or Module Expansion) |
| mSATA | 1x mSATA (shared by 1x Mini PCI Express) |
| SIM Socket | 2x External SIM socket |
| SSD/HDD | 1x Internal 2.5" SATA HDD Bay (support H=9.5 mm) |
| Expansion | |
| Mini PCIe | 1x Full-size Mini PCIe (Occupied by PoE Module) |
| Expansion Modules | Optional: • 2-port COM module with Super I/O Chipset, Support 2x Universal Slot Only • 4-Port USB module with USB hub, Support 1x Universal Slot Only • 1-Port DP 1.4 and DIO (4 in / 4 out, Isolated), Support 1x Universal Slot Only • 1-Port HDMI 2.0, Support 1x Universal Slot Only |

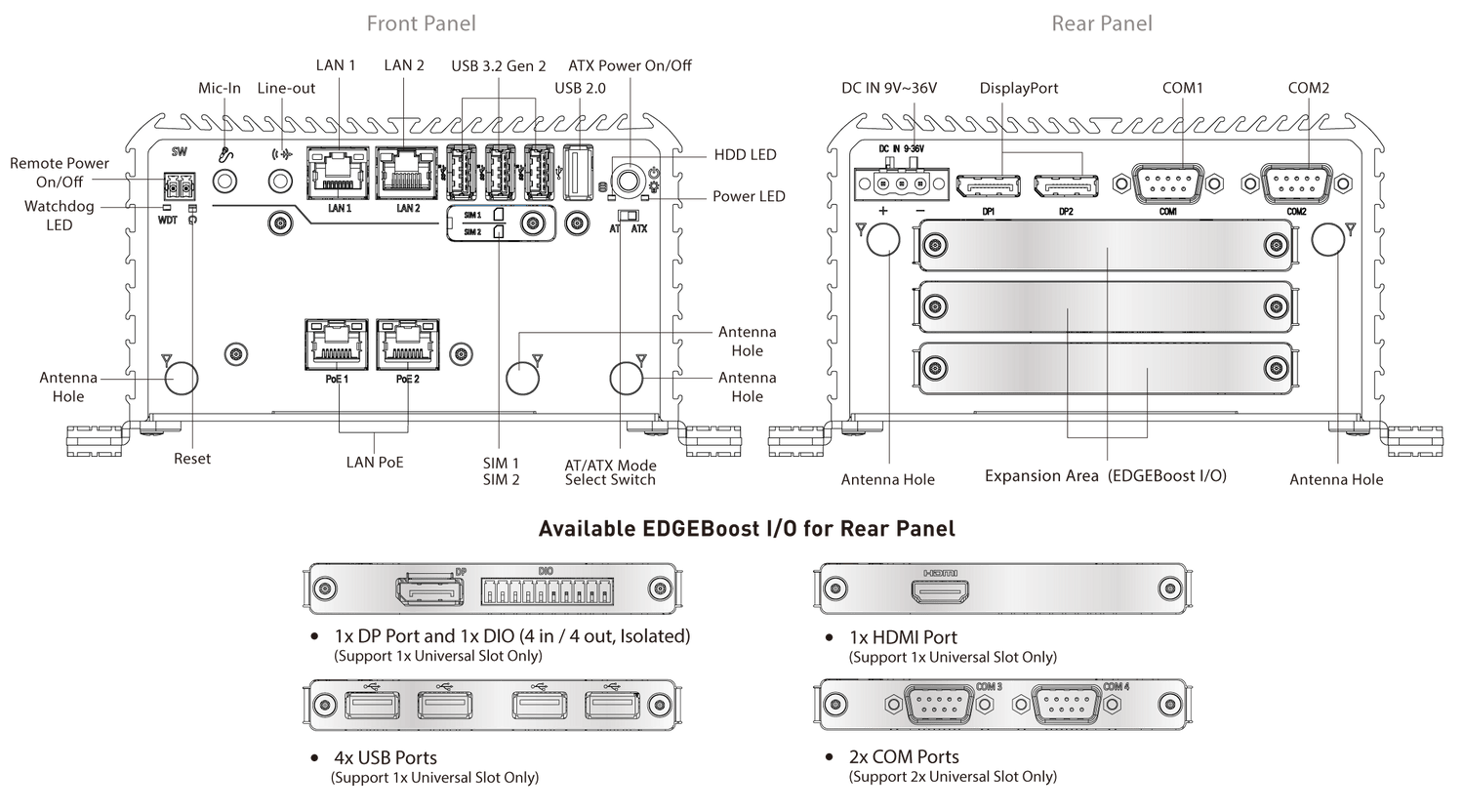

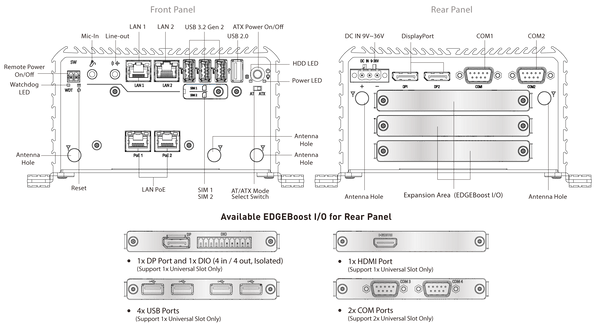

| I/O | |
| Audio | 1x Mic-in, 1x Line-out |
| CAN | 2x CAN 2.0 A/B 2-pin Internal header |
| COM | 2x RS-232/422/485 |
| LAN | 2x RJ45 (2.5 & 1 GbE) |
| PoE | 2x IEEE 802.3af (15.4W) GbE RJ45, Max up to 30w in total |
| Universal I/O Bracket | 3x Universal I/O Bracket (By mini PCIe interface, Proprietary Module) |
| USB | 3x USB 3.2 Gen 2 (10 Gbps) 1x USB 2.0 |
| Others | 5x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off 1x Internal CMOS Battery Cable 1x 4-PIN FAN Connector |
| Operating System | |
| Windows | Windows 10/11 |
| Linux | Linux Kernel |
| Power | |
| Power Adapter | Optional AC/DC 24V 5A, 120W |
| Power Mode | AT, ATX |
| Power Ignition Sensing | Adjustable power ignition management can be achieved through BIOS and optional daughter board. |
| Power Supply Voltage | 9~36VDC |
| Power Connector | 3-pin Terminal Block |
| Power Protection | OVP (Over Voltage Protection); OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | -40°C to 50°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | CE, FCC Class A |
| Vibration | With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis |
| Shock | With SSD: 50G, half sine, 11ms |
| Physical | |

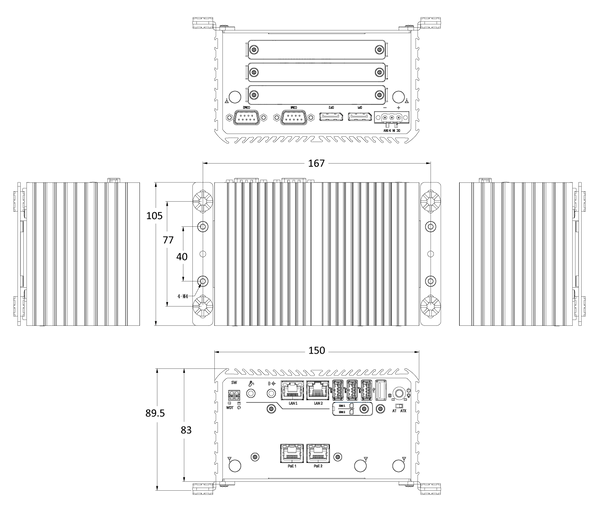

| Dimensions | 150 (W) x 105 (D) x 83 (H) mm |
| Weights | 1.2 kg |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting SIDE / VESA / DIN-Rail Mounting (Optional) |
