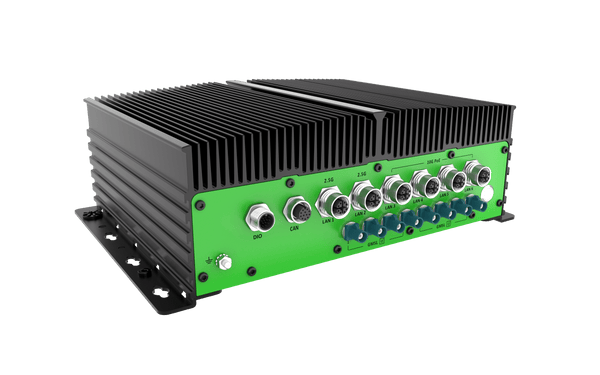

WCO-6000-THR-A IP66準拠の物理AIコンピュータ、NVIDIA® Jetson AGX Thor™搭載、ホロスキャン対応

• IP66準拠の防水・防塵性能
• NVIDIA® Jetson AGX Thor™ T5000 (128GB) および T4000 (64GB)、最大120W
• NVIDIA® Holoscan対応

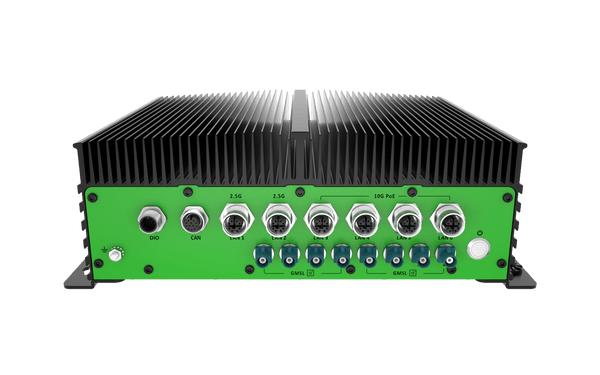

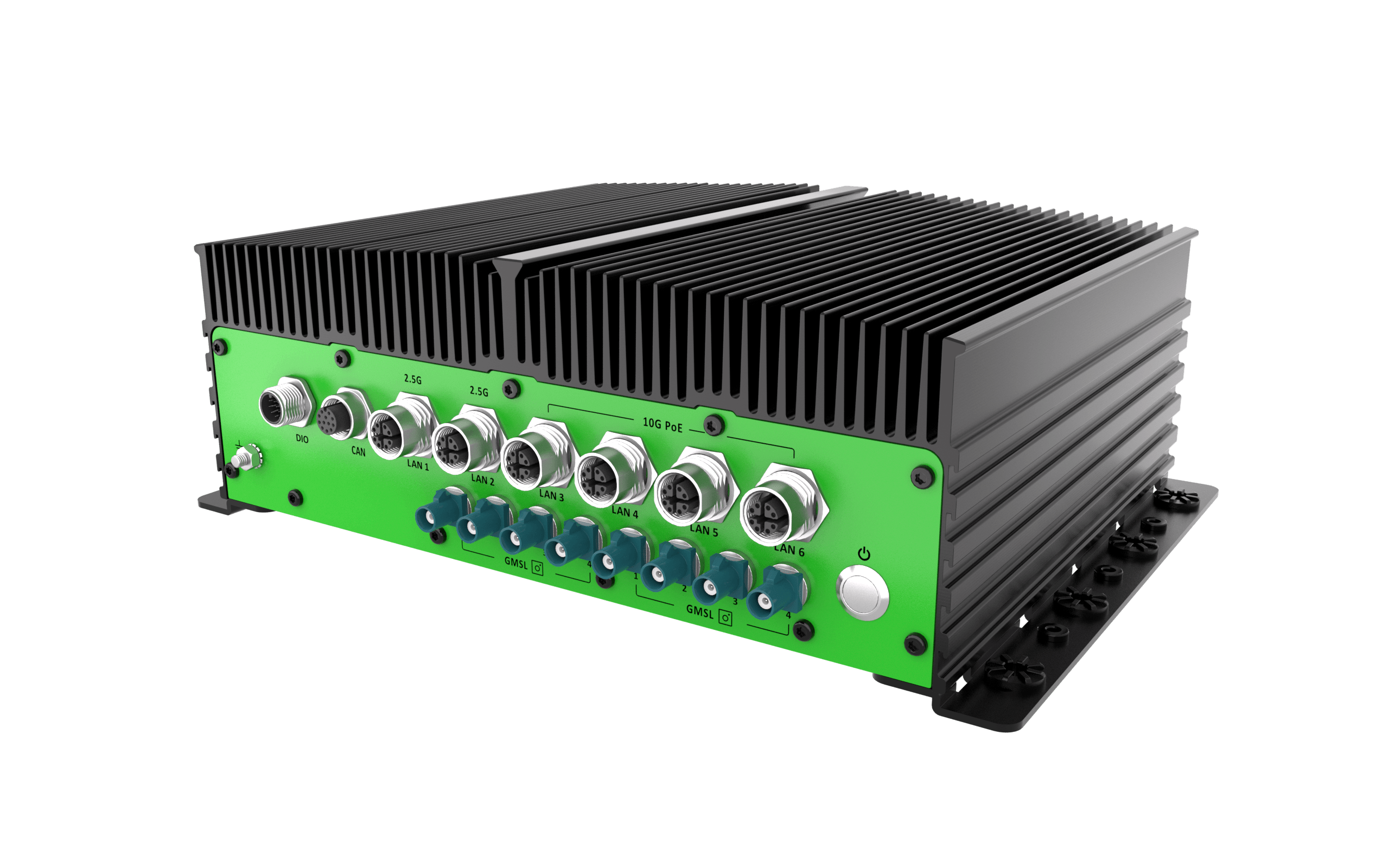

• M12 LANポート×6 (10GbE×4 (PoE+オプション)、2.5GbE×2)
• USB 3.2 Gen 2 (10Gbps)×2
• 防水Fakra-zコネクタ×8、GMSL2カメラ8台接続可能
• M.2 Mキー×1、M.2 Bキー×2、M.2 Eキー×1
• 絶縁型デジタル入力×7 + デジタル出力×7
• RS-232/422/485ポート×2、CAN FDポート×4 (T5000のみ)
• 24～48VDCの広範囲電源入力、AT/ATXモード対応
• 広い動作温度範囲-20℃～60℃
• UL62368-1、EN50155およびEN50121-3-2に準拠したEMC適合、Eマーク（申請中）
データシートを見る

モデル:

WCO-6000-THR-A

認証:

NVIDIA Jetson
*基本構成価格のみ。営業チームが構成部品と価格を確認します。

WCO-6000-THR-A
に興味がありますか？

お問い合わせ

仕様

System
Processor NVIDIA® Jetson AGX Thor™ T4000 (64GB) & T5000 (128GB)
- T5000: 14-core Arm® Neoverse®-V3AE 64-bit CPU, 128GB LPDDR5X
(120W/2070 TFLOPS, FP4-Sparse)
- T4000: 12-core Arm® Neoverse®-V3AE 64-bit CPU, 64GB LPDDR5X
(70W/1200 TFLOPS, FP4-Sparse)
LAN Chipset LAN1 & LAN2: 2.5GbE Intel i226 LAN Chip
LAN3 - LAN6: 10GbE Marvell AQC113 LAN Chip
*Note: LAN6: T4000 not supported
Audio Codec ALC5640
TPM TPM 2.0
Display
Display Single Display
HDMI 1x HDMI
Storage
SIM Socket 1x Dual SIM Socket
SSD/HDD 1x M.2 M Key (2280, PCIe x4, NVMe), Default: 128GB
Expansion
M.2 1x M.2 B Key, 2242 (PCIe x1 & USB 2.0)
1x M.2 B Key, 3042/3052 (USB 3.2 Gen 1, Support 4G/5G)
1x M.2 E Key, 2230 (PCIe x1, USB 2.0, Support Wi-Fi/BT)
I/O
Audio 1x Mic-in, 1x Line-out (M12 A-Coded)
CAN 4x CAN FD (M12 A-Coded)
*Note: T4000 not supported
COM 2x RS-232/422/485 (M12 A-Coded, Switchable by Software)
DIO 7 in/7 out (Isolated, M12 A-Coded)
GMSL 8x Waterproof Fakra-z Connectors, supporting GMSL2 Camera (Optional)

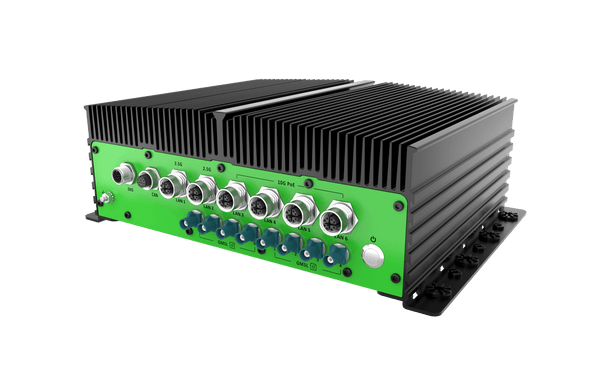

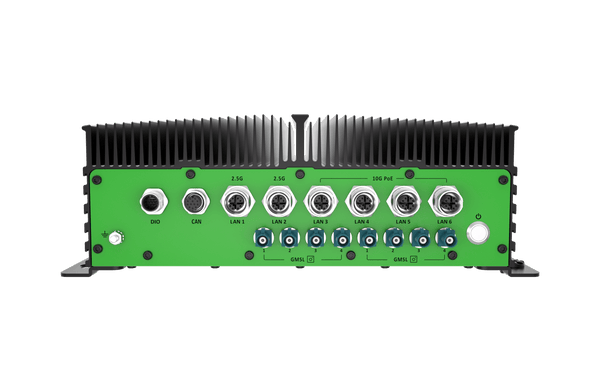

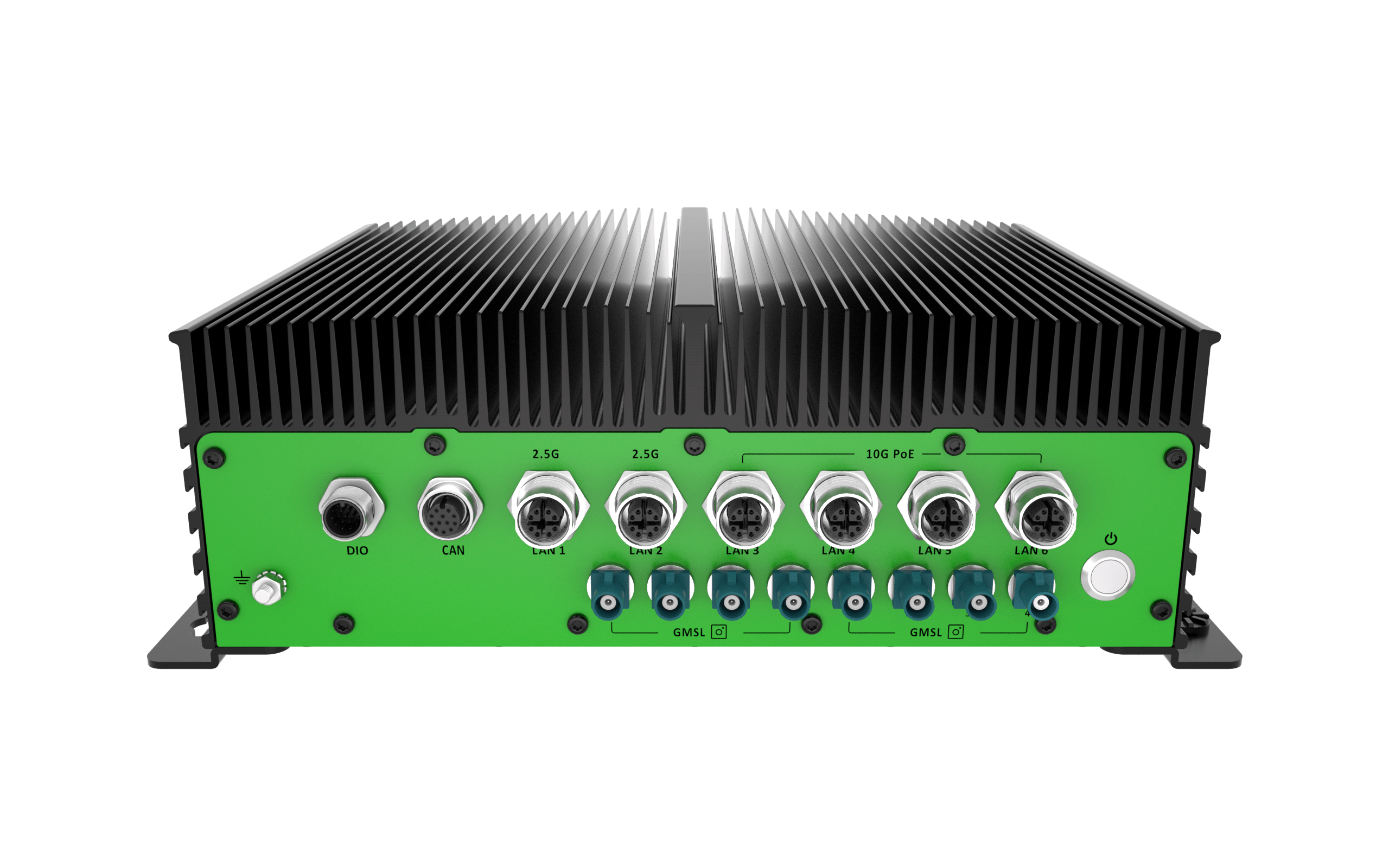

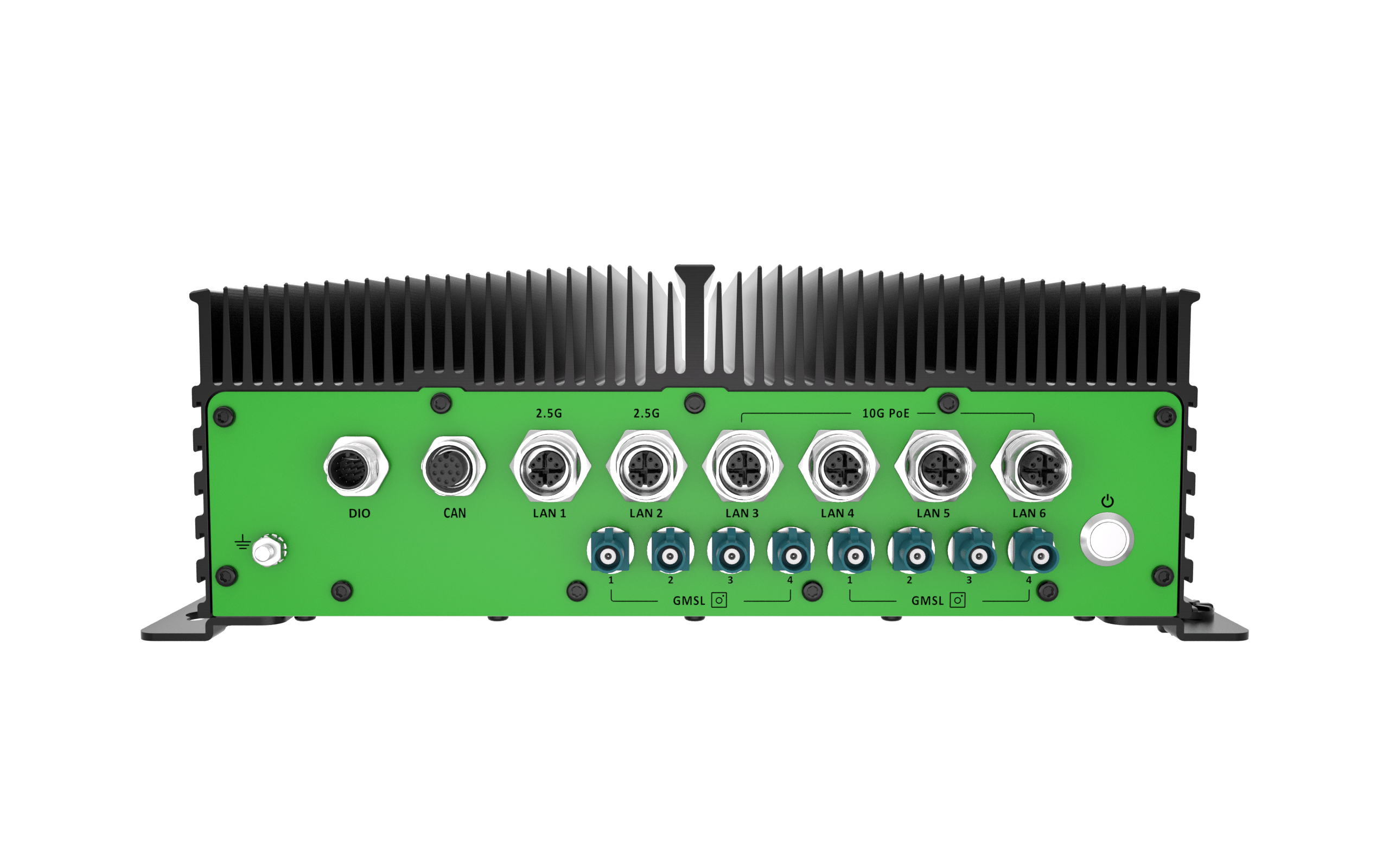

LAN 6x M12 LAN (X-Coded)
PoE 4x 25W PoE+ for LAN3 - LAN6 (120W Module, Optional)
USB 2x USB 3.2 Gen 2 (10 Gbps, under service panel)
1x USB Type-C (For OS Flash, under service panel)
1x Micro USB (For Console, under service panel)
Others • 6x WiFi Antenna Holes

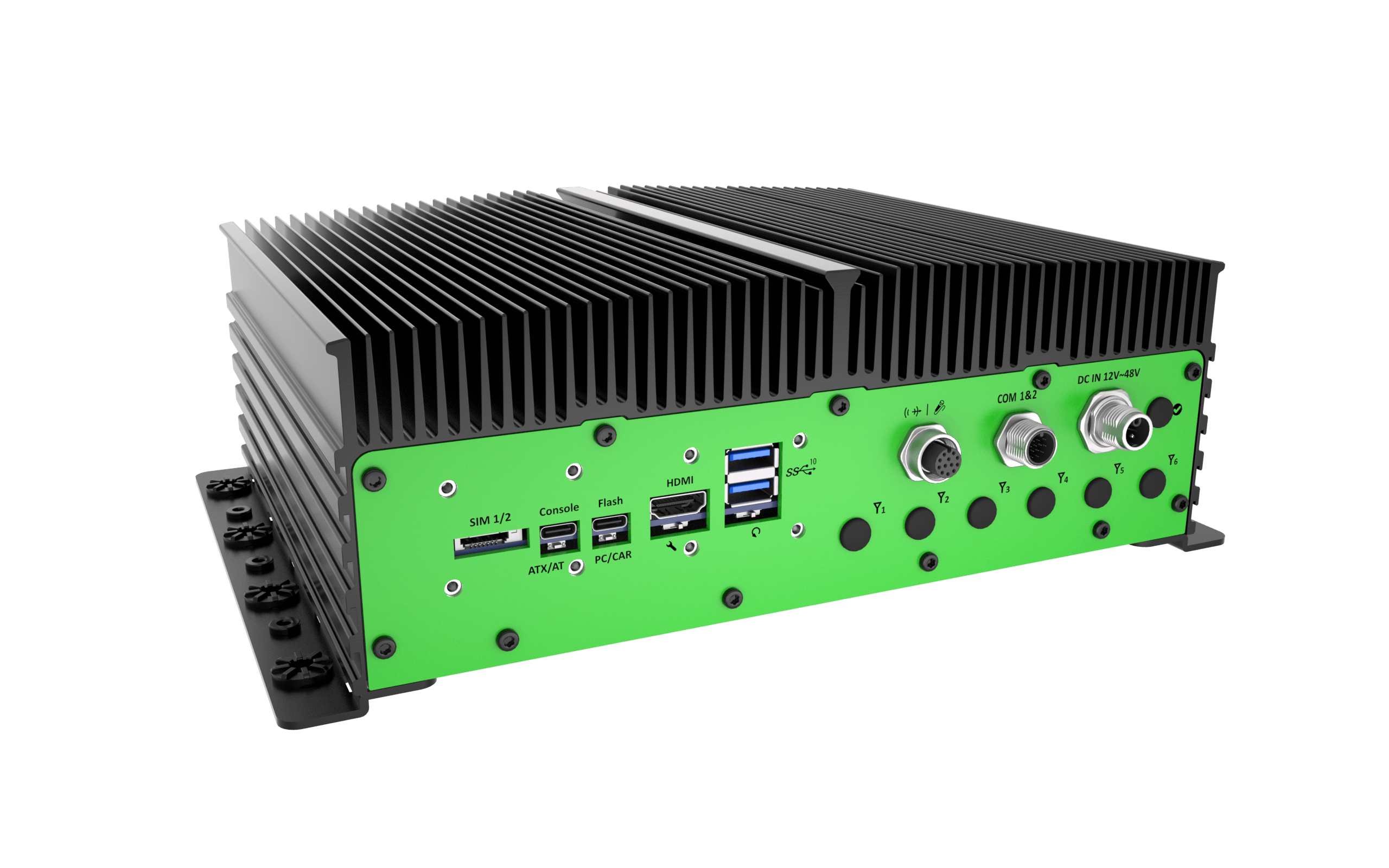

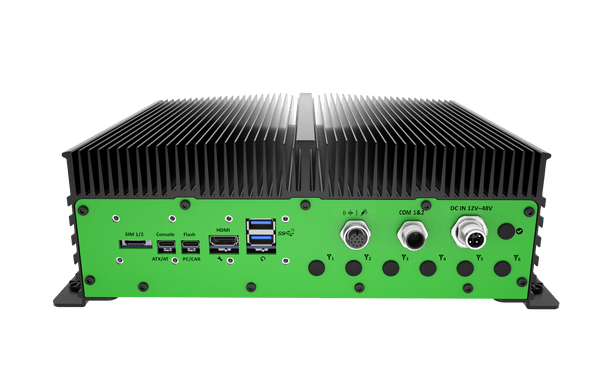

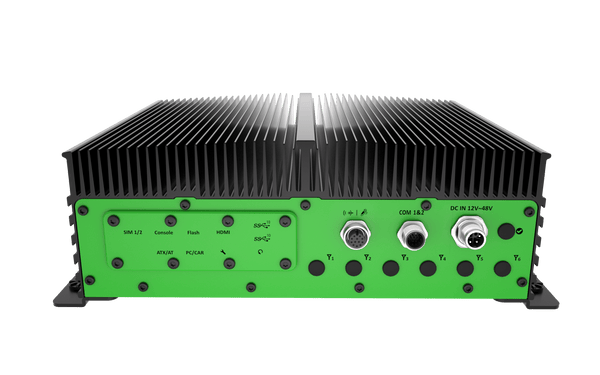

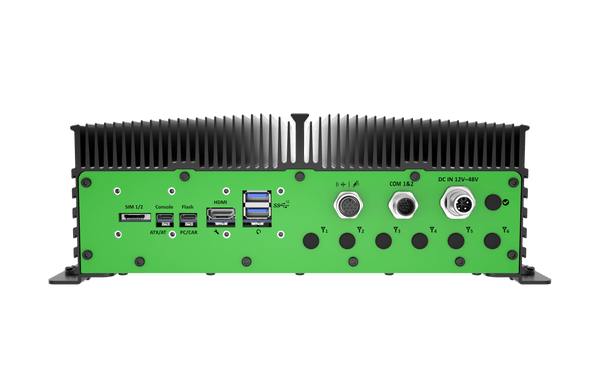

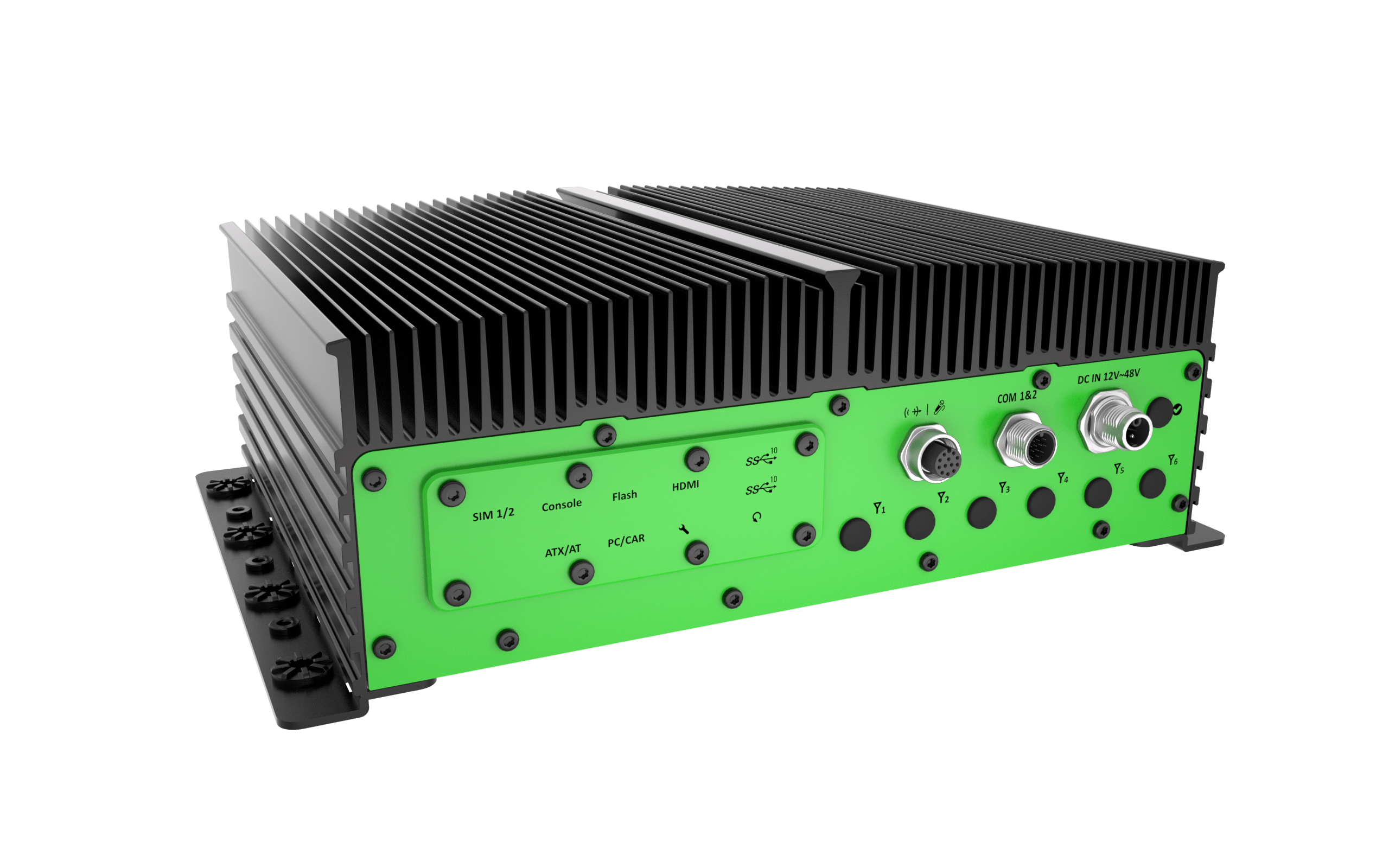

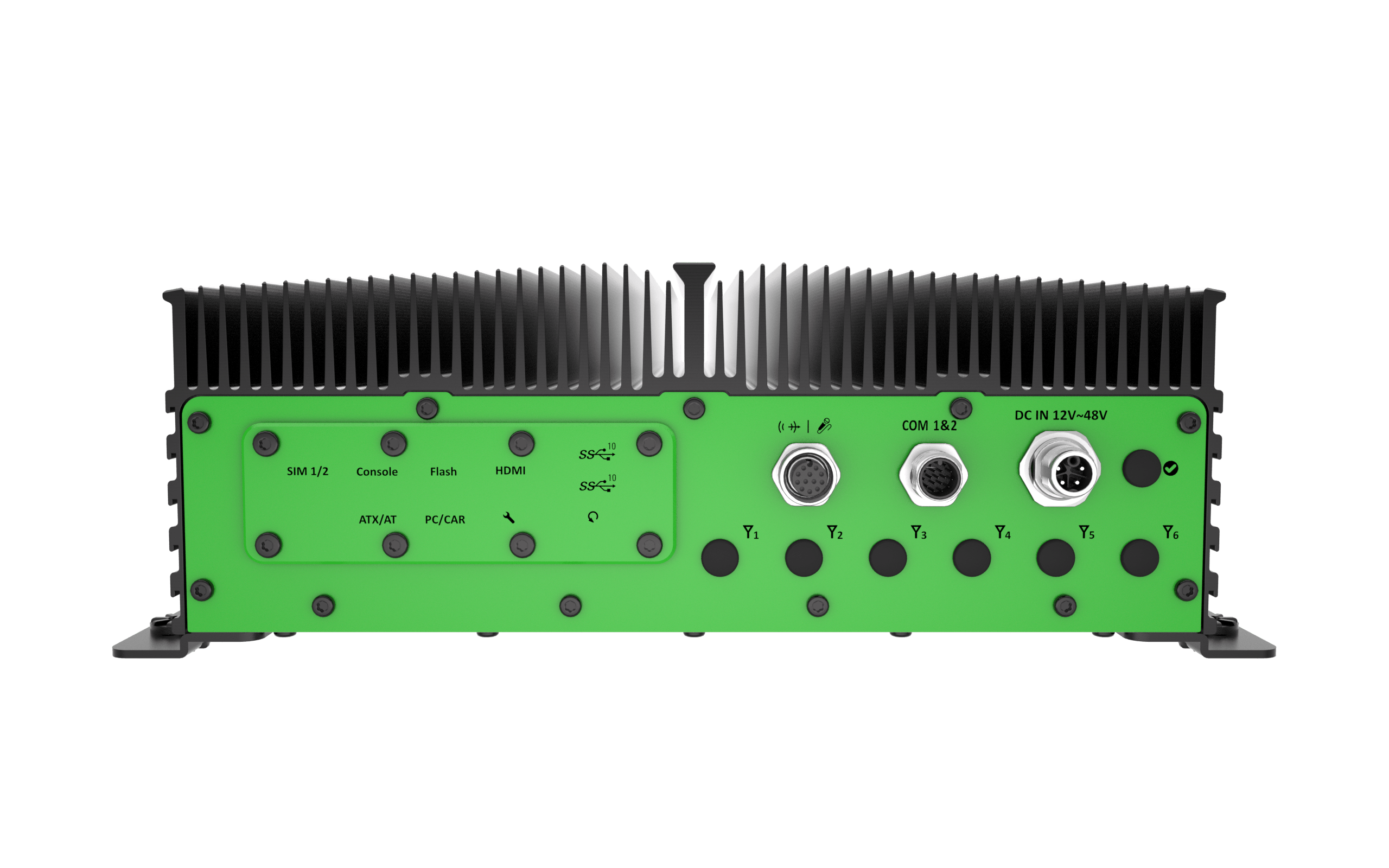

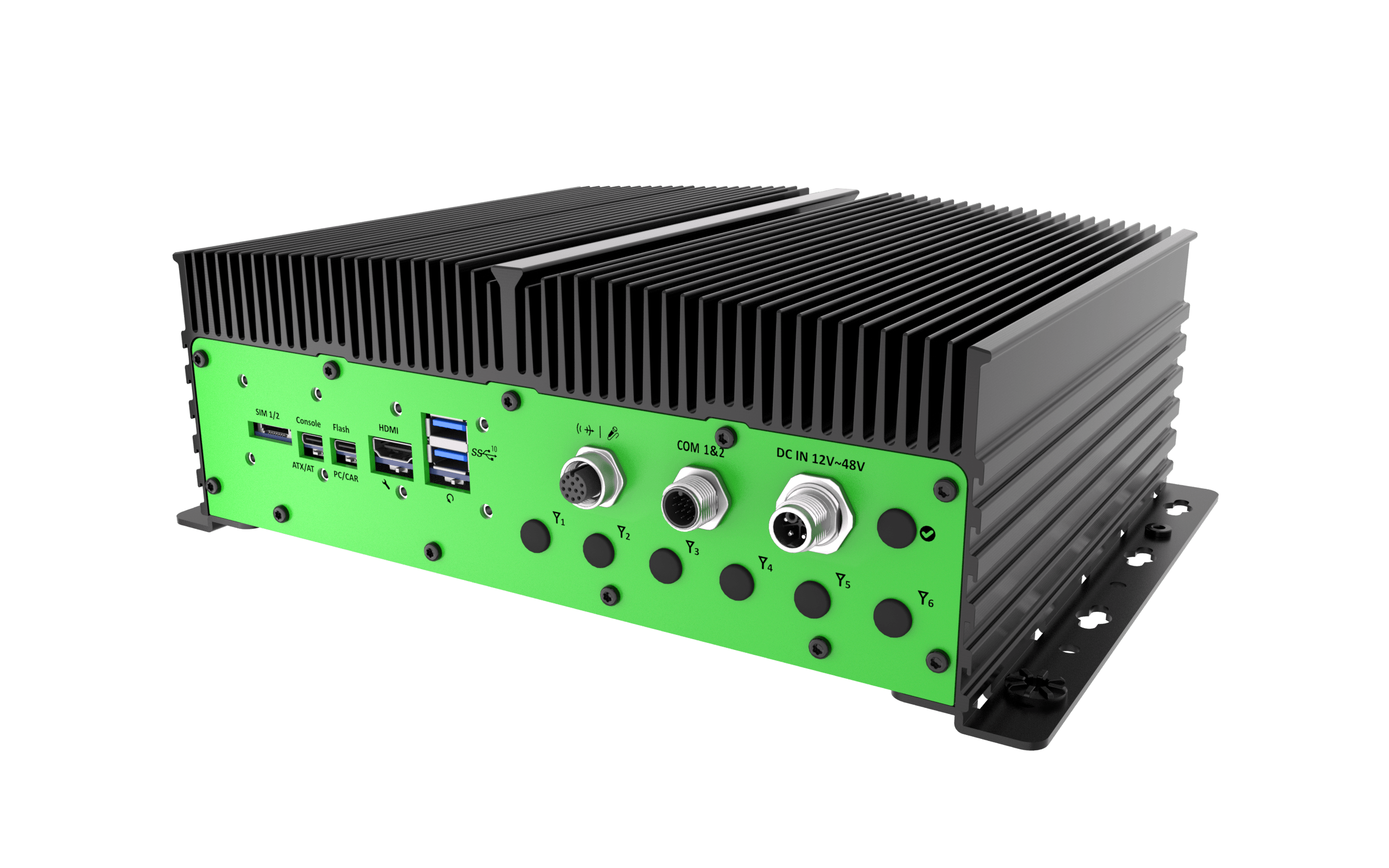

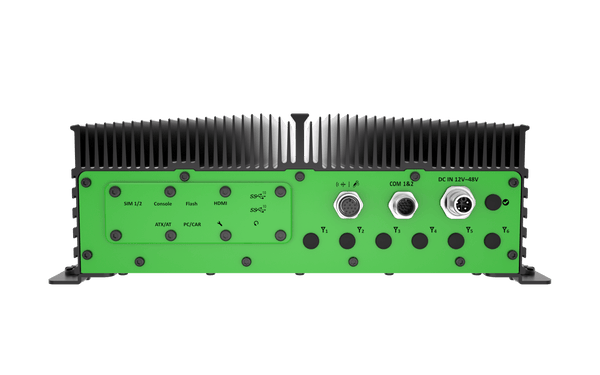

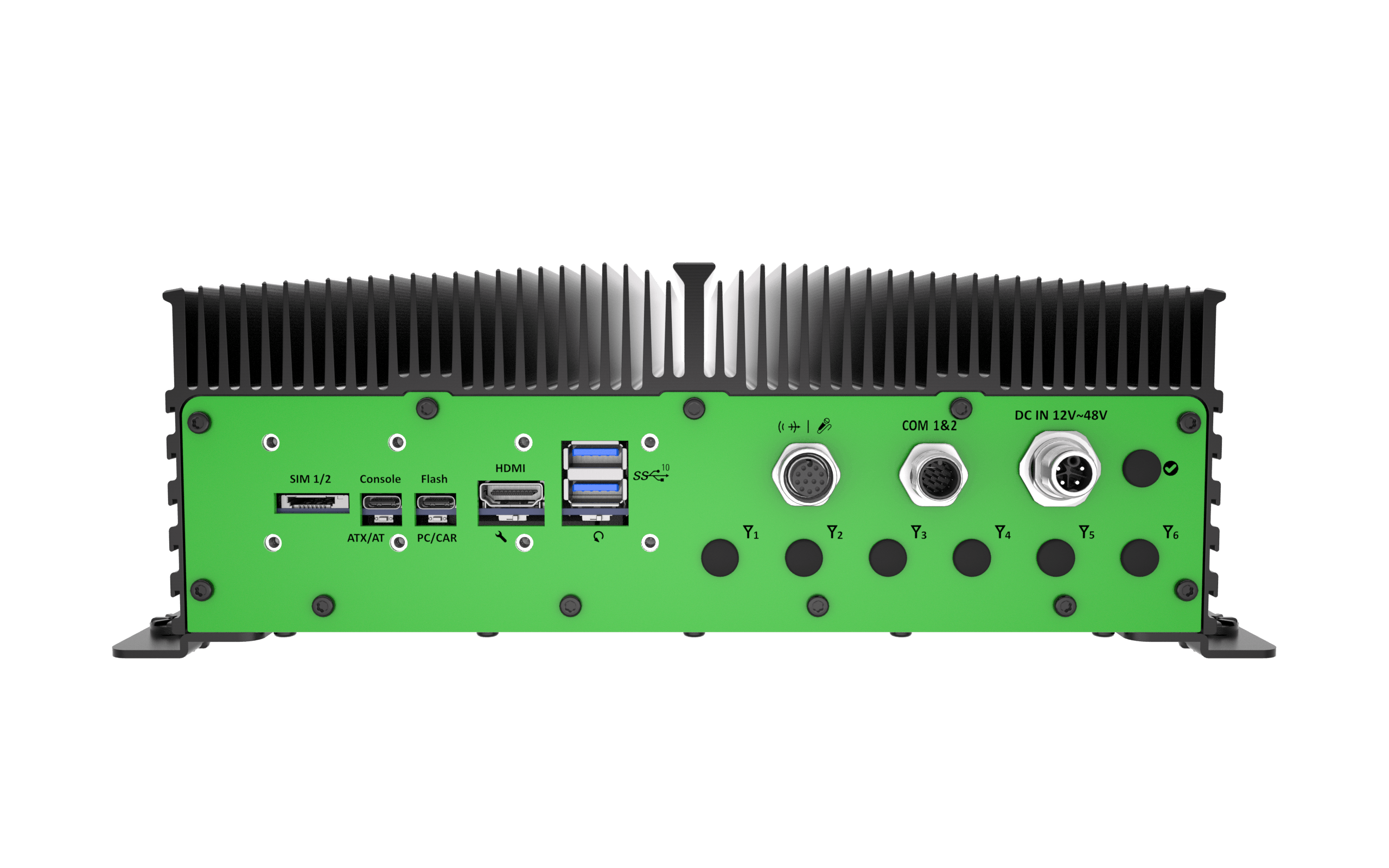

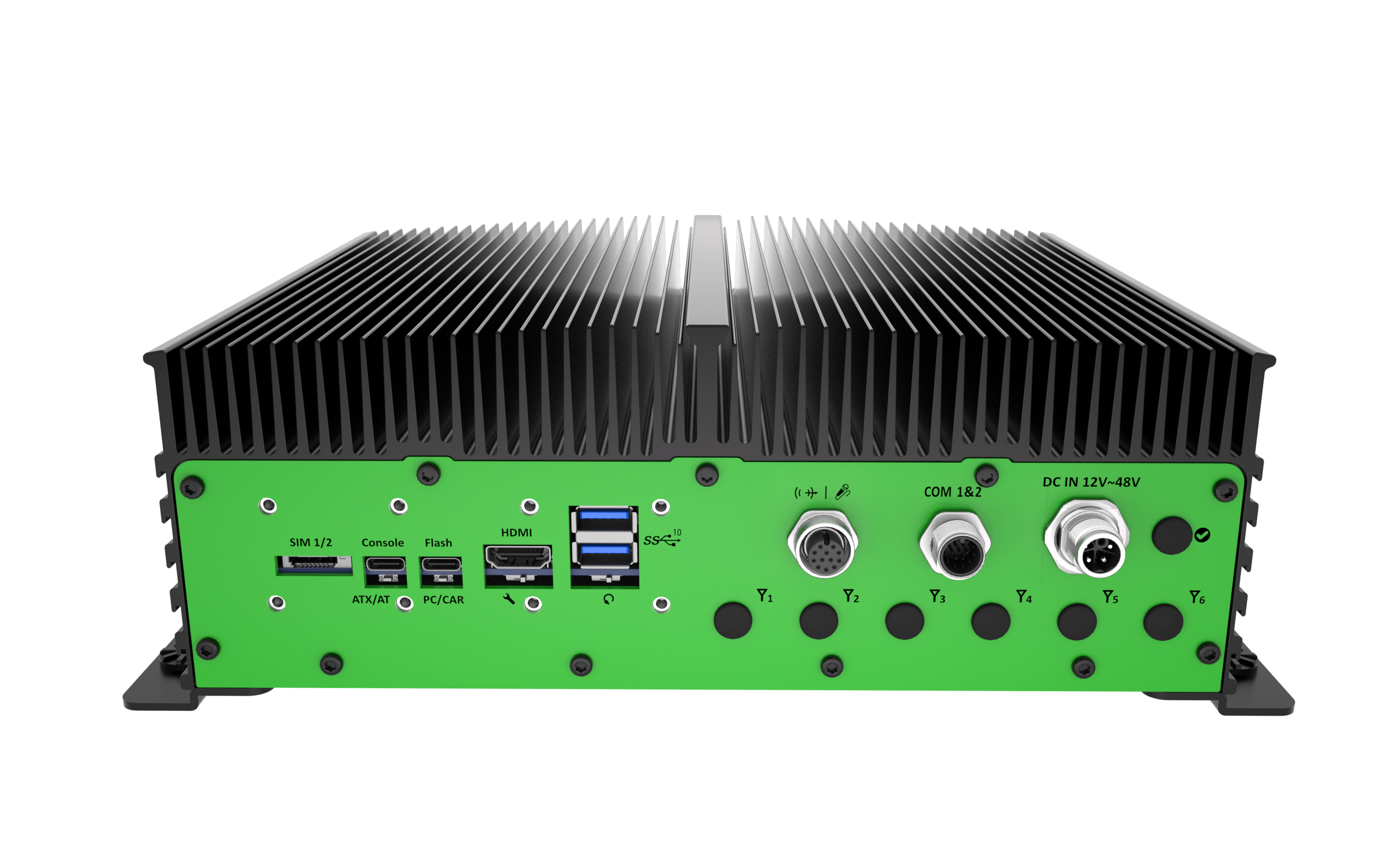

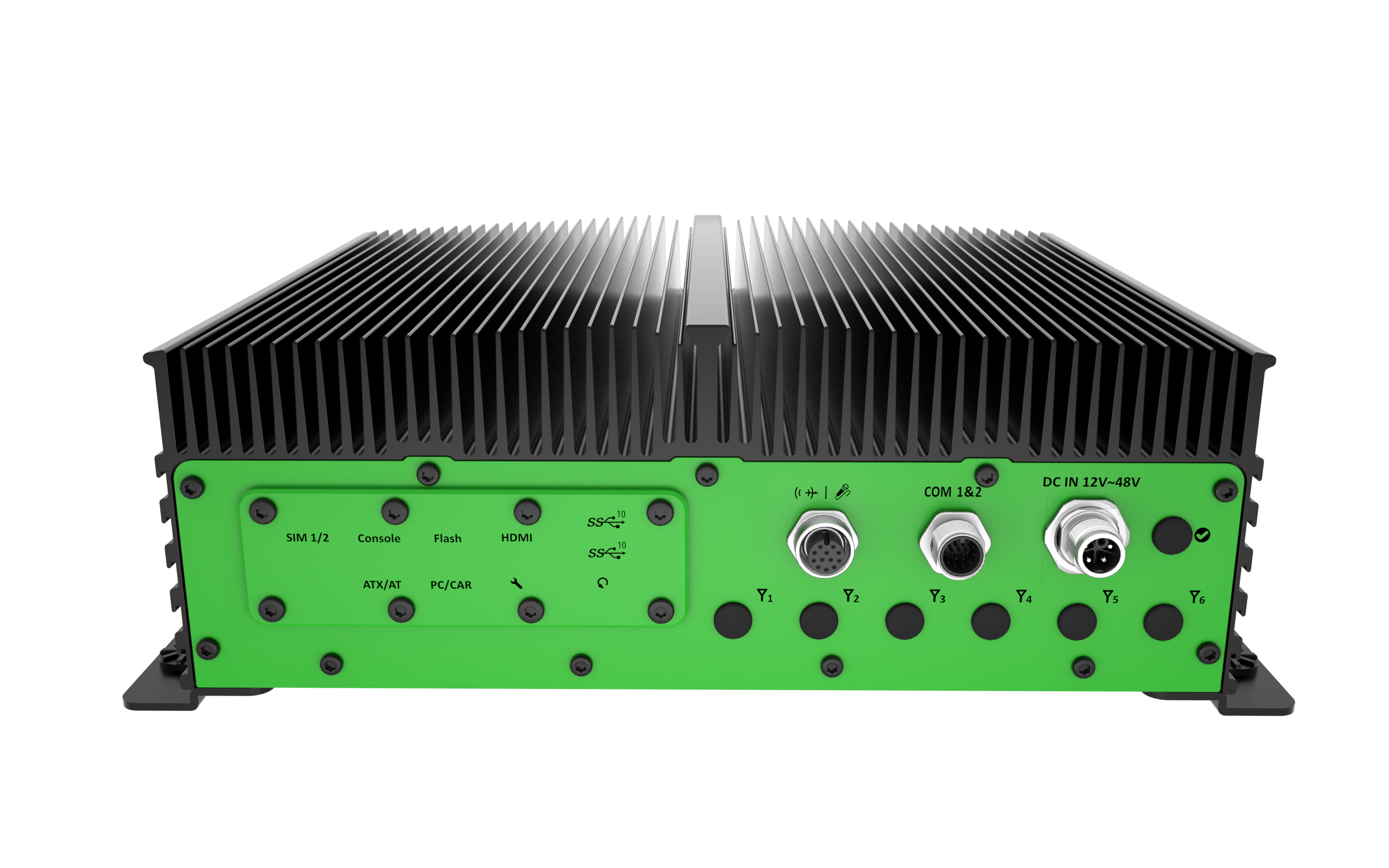

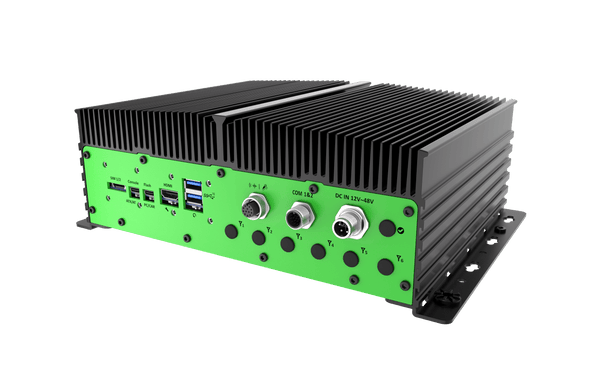

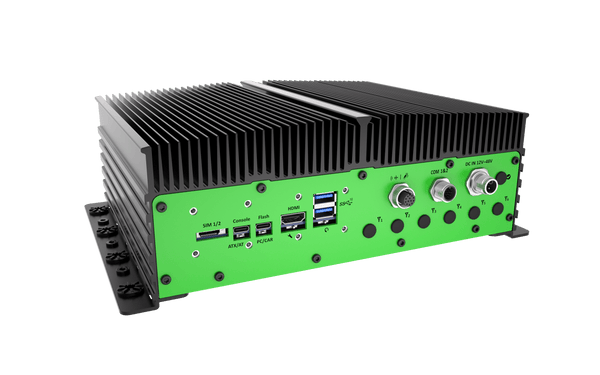

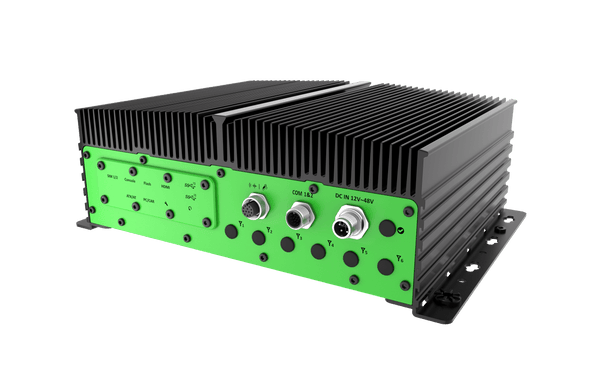

• Service Panel:
1x Micro USB (For Console)
1x USB Type-C (For OS Flash)
1x AT/ATX SW (Default ATX)
1x PC/CAR SW (Default PC)
2x USB Type-A (USB 3.2 Gen2)
1x HDMI

• 1x Power Switch with Blue LED
• 1x Recovery Button
• 1x Reset Button
• 1x Remote Power Switch
• 1x CMOS Battery
• 1x 4-Pin FAN Connector (2.0 pitch)
• Intregated RTC
• 1x IMU6-Axis IMU
• 1x M4 Gounding Screw
• 1x Buzzer
MCU MCU Function:
• LED Control
• GPIO Control
• Device Mode Status
• Buzzer Control
• COM Port Control
• IGN Power On/Off Delay Time Control
• Setting Save Control
• GPIO Configuration Control
• SSD Recovery
• Update FW under Linux OS (by I2C interface)
• PoE Power ON/OFF Control, Power Voltage & Current Sensing and DC IN 12V/24 Detect for PoE Output Power Management
Operating System
Linux Linux Ubuntu 24.04 with JetPack 7.0
Power
Power Adapter Optional AC/DC 24V/9.2A, 220W
Optional AC/DC 24V/11.67V, 280W
Optional AC/DC 48/7.5A, 360W at 220V
Power Mode AT, ATX (Default ATX)
Power Ignition Sensing Yes
Power Supply Voltage 24~48VDC
24V: PoE Power Budget Supports Up to 120W
Power Connector M12 5-Pin K-Code
Power Protection OVP (Over Voltage Protection);
OCP (Over Current Protection)
Reverse Protection
Environment
Operating Temperature 77W TDP Mode: -20°C to 60°C (With PoE 120W)
120W TDP Mode: -20°C to 40°C (With PoE 120W)

*Non-Throttling, with PoE Function, full CPU+GPU stressing, with 0.6 m/s airflow
Storage Temperature -30°C to 85°C
Relative Humidity 10% to 95% (non-condensing)
IP Level IP66
Certification CE, FCC Class B, E-Mark 24, EMC Conformity with EN50155 & EN50121-3-2, UL 62368-1
Vibration With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock With SSD: 50G, half sine, 11ms
Physical
Dimensions 250 (W) x 88.5 (H) x 200 (D) mm
Weights TBD

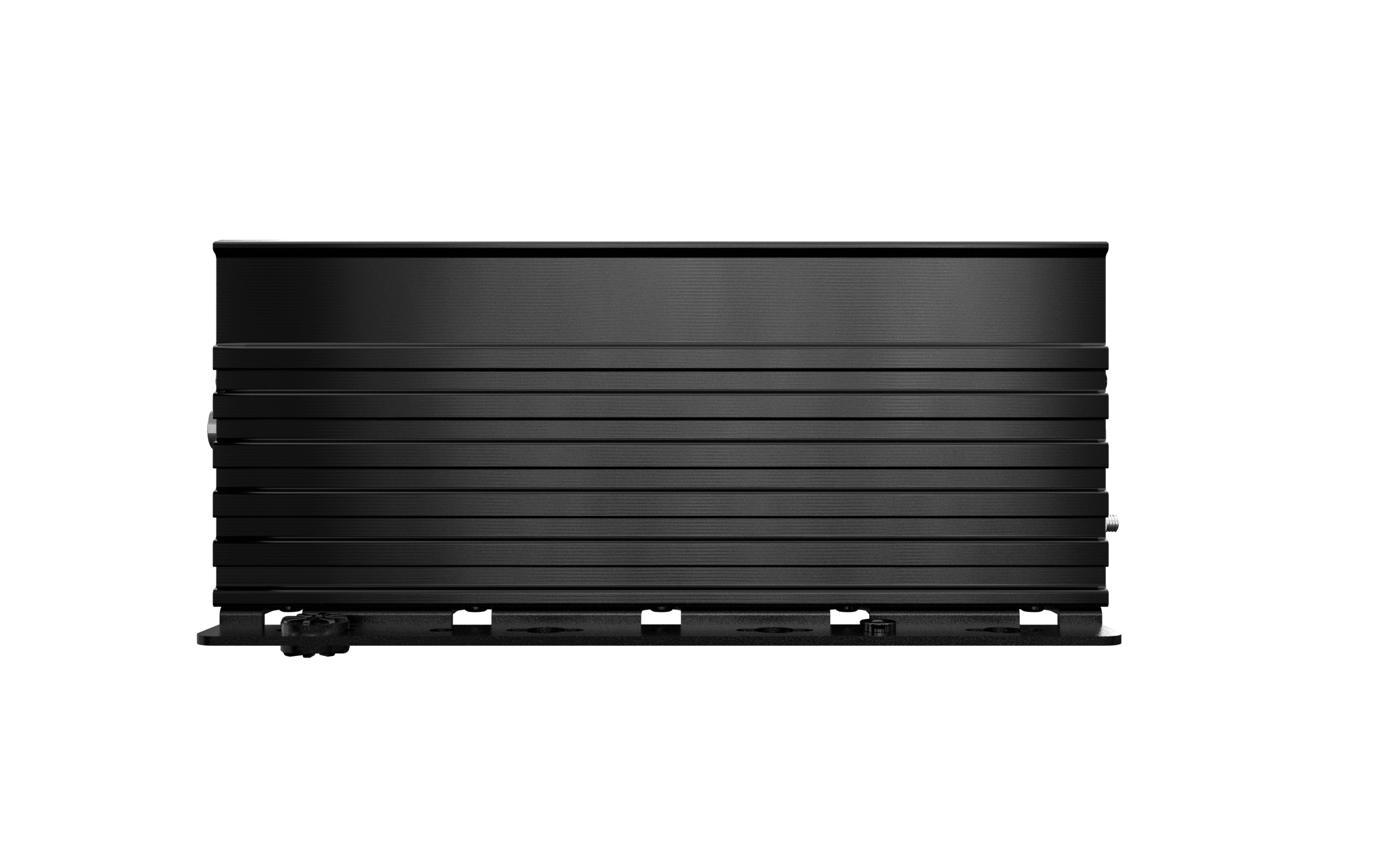

Construction Extruded Aluminum with Heavy Duty Metal
Mounting Options Wall Mounting
