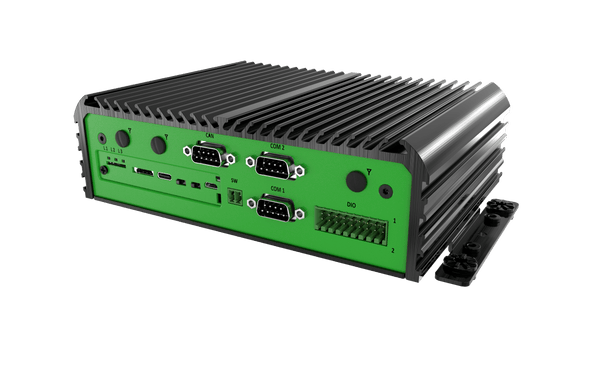

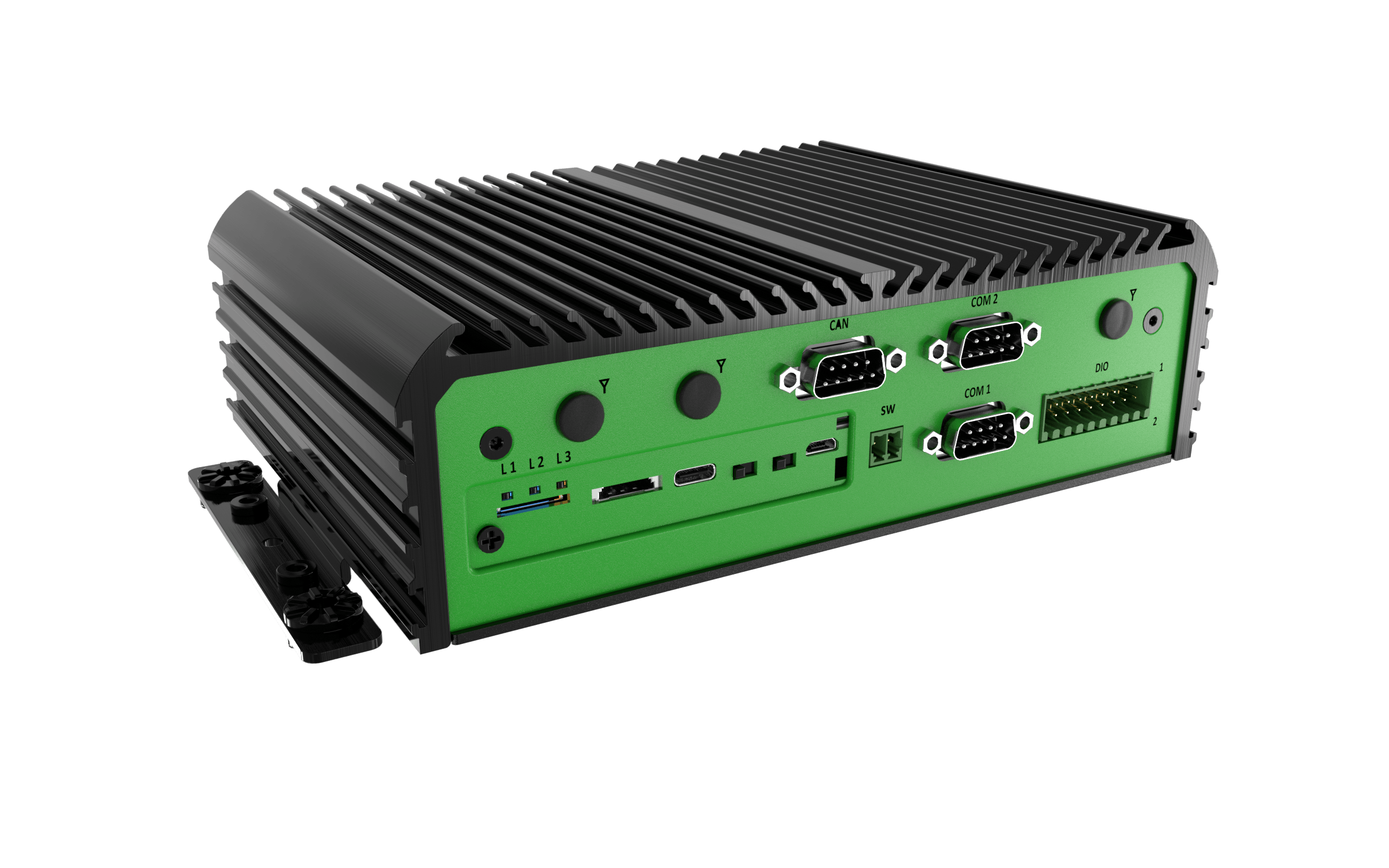

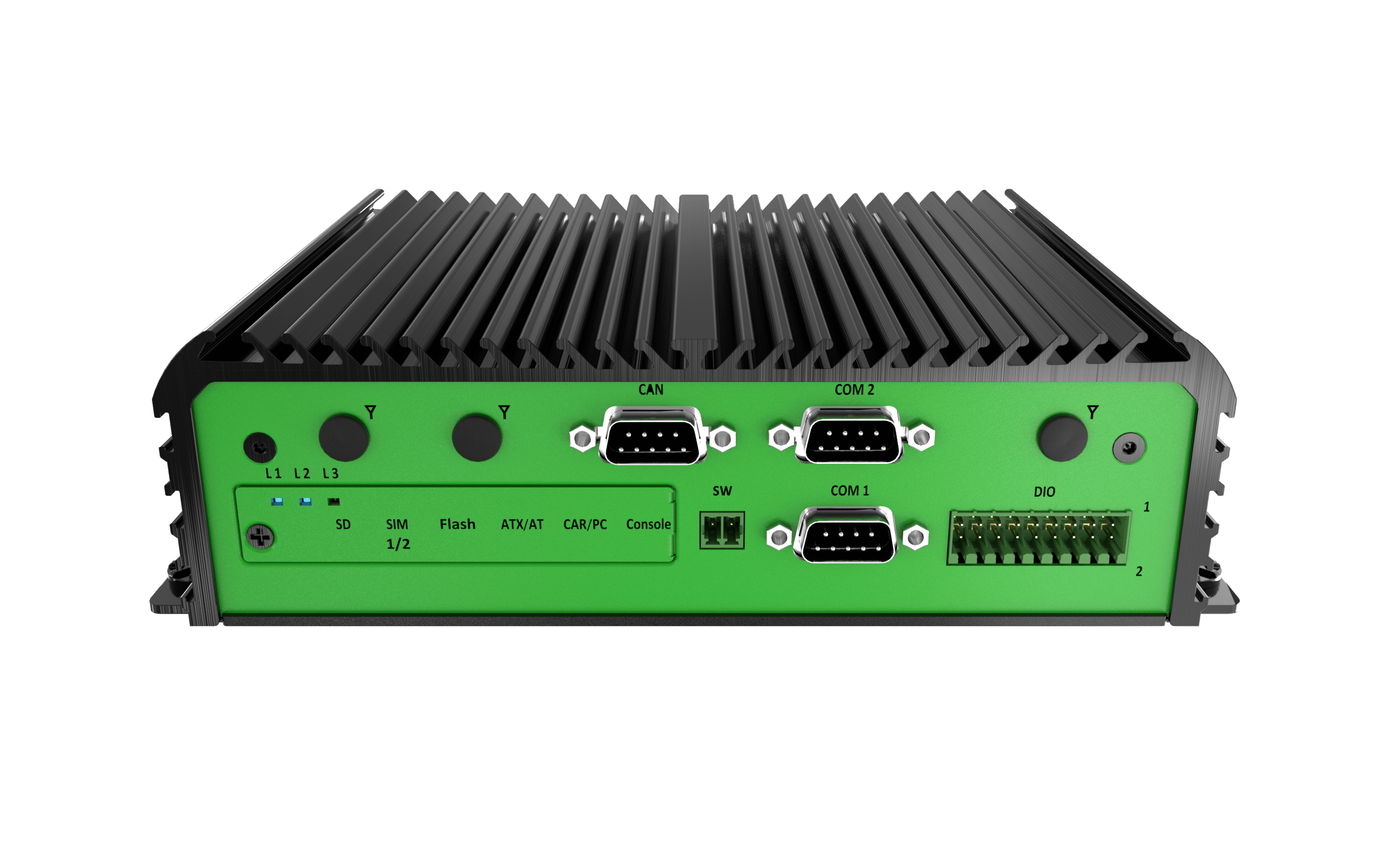

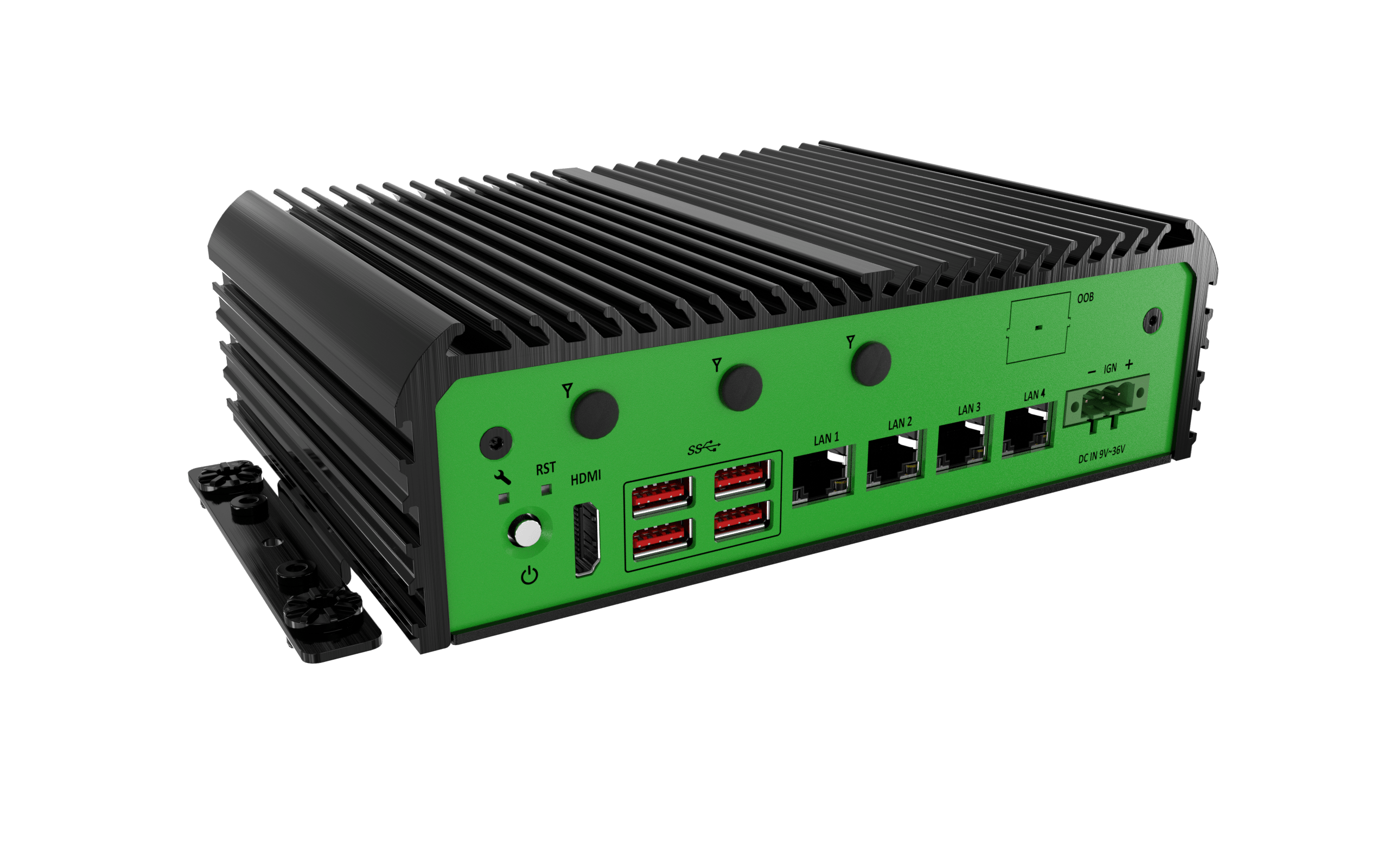

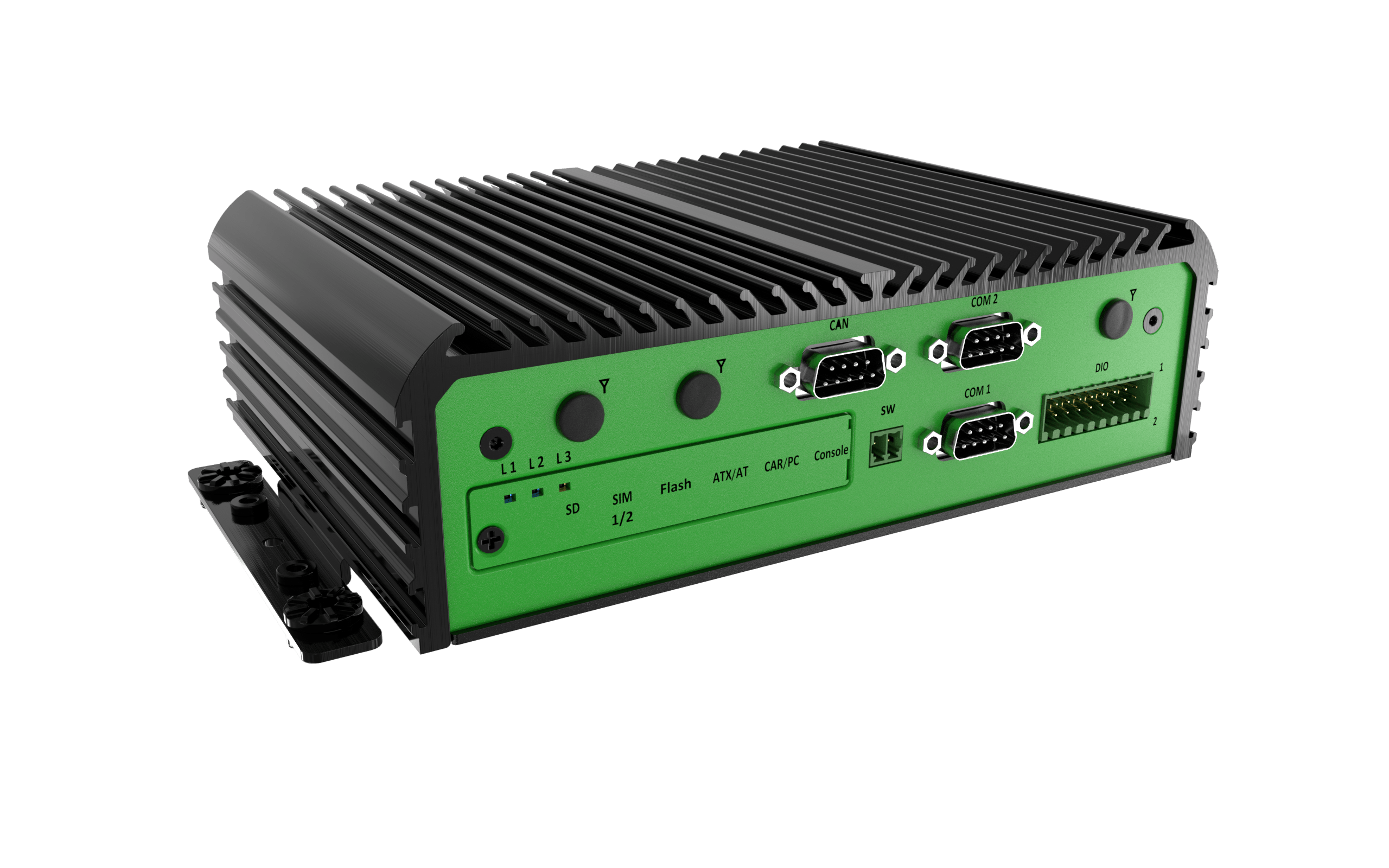

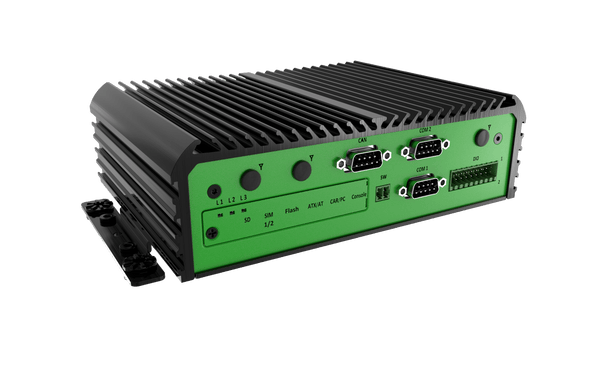

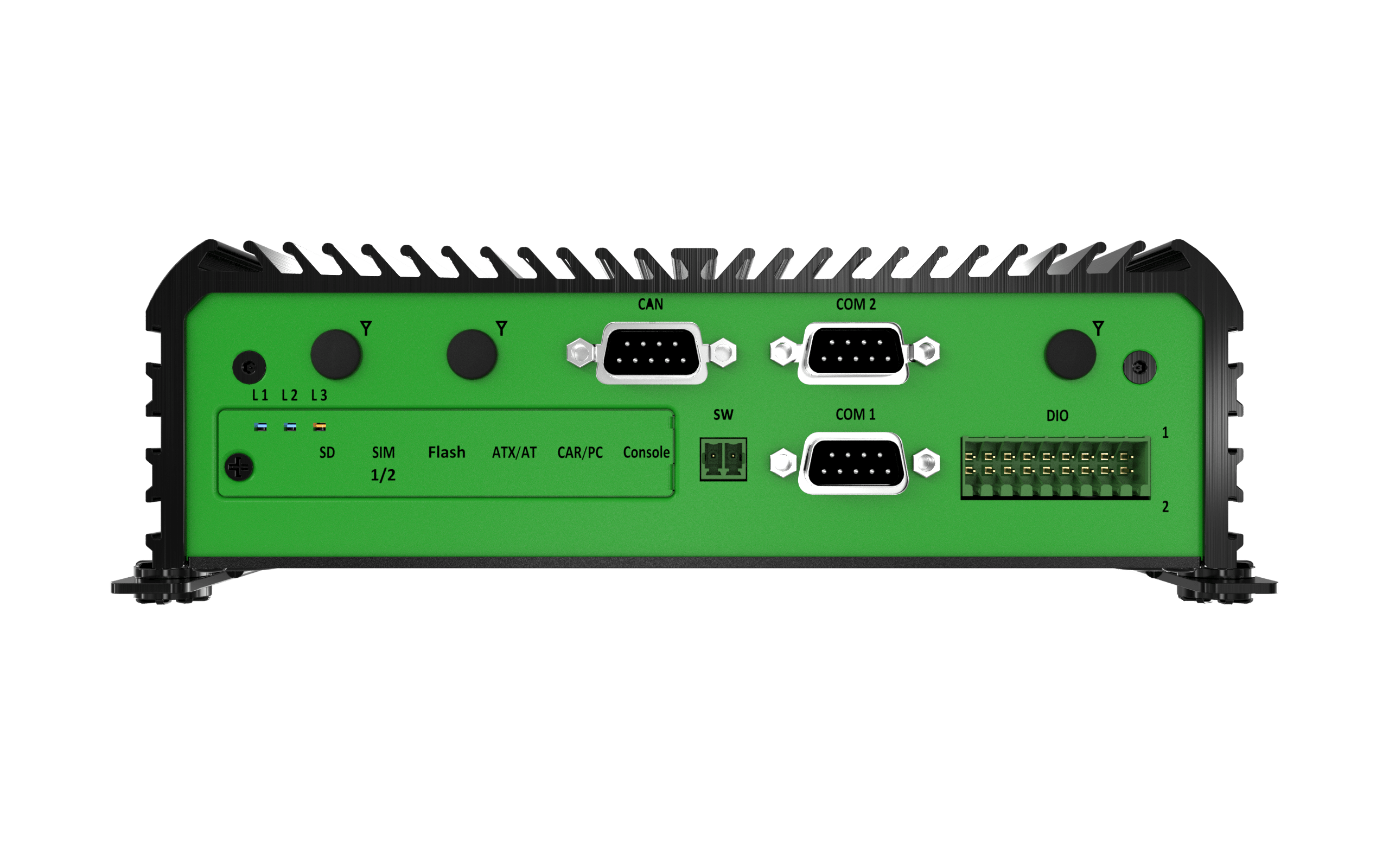

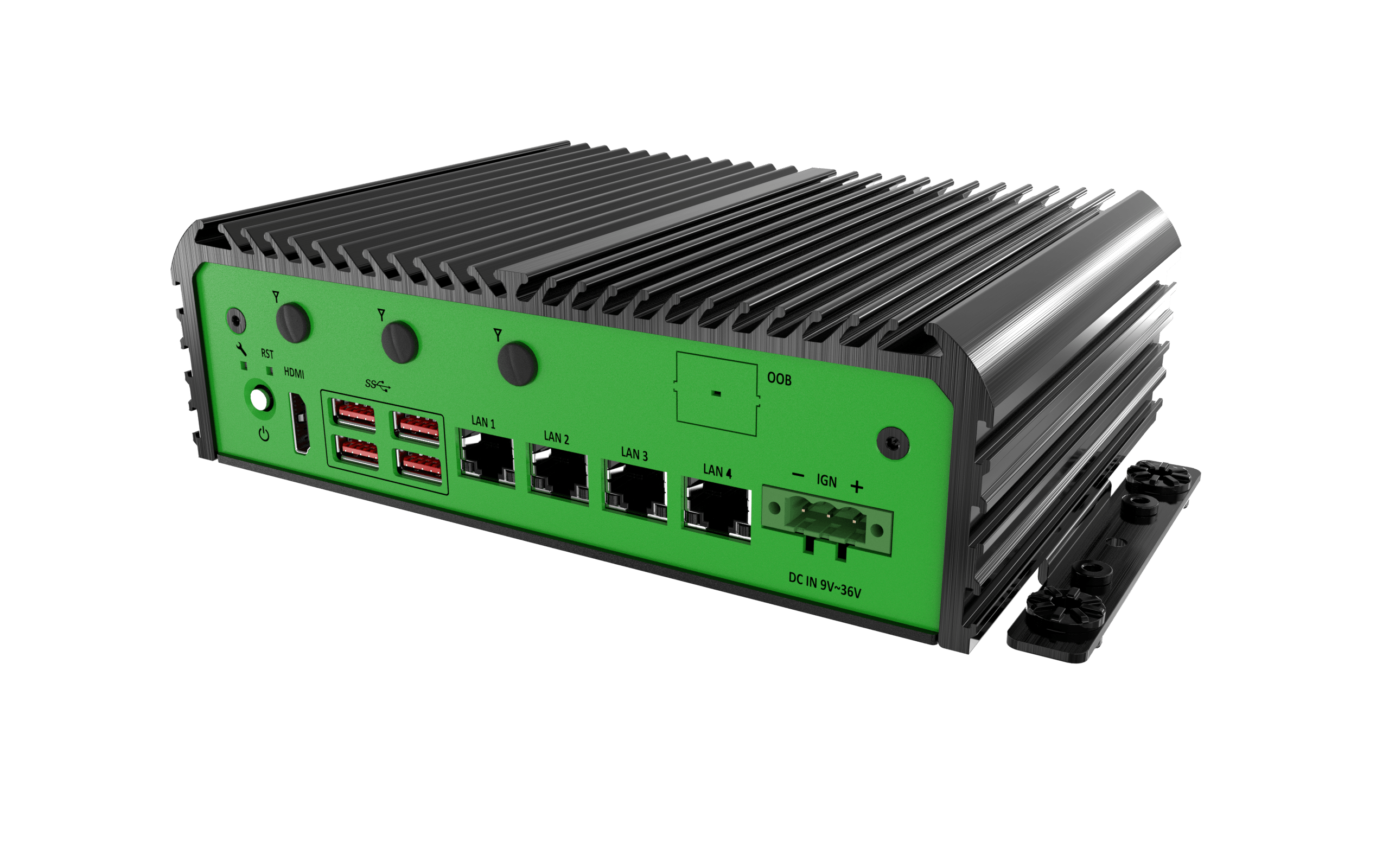

JCO-3000-ORN-B_4L ミッドレンジAIエッジコンピュータ（NVIDIA Jetson Orin™ NXまたはNano Super搭載）
SKU Alias: JCO-3000-ORN-B
• NVIDIA® Jetson Orin™ NX 8GB/16GB または Orin Nano Super 8GB/4GB
• HDMI 4K出力 x 1 (3840 x 2160 @ 60Hz)
• GbE RJ45 LANポート x 4 (PoEオプション対応)
• 外部デュアルナノSIMスロット x 1
• M.2スロット x 1 (Mキー、2242/2280、PCIe x 4、NVMe対応)
• USB 3.2 Gen 2ポート x 4、USB Type-Cポート x 1
• 絶縁型デジタル入力 x 8 + デジタル出力 x 8
• 9～36VDCの広範囲電源入力 (AT/ATXモード対応)
• -20℃～60℃の広い動作温度範囲
• HDMI 4K出力 x 1 (3840 x 2160 @ 60Hz)
• GbE RJ45 LANポート x 4 (PoEオプション対応)
• 外部デュアルナノSIMスロット x 1
• M.2スロット x 1 (Mキー、2242/2280、PCIe x 4、NVMe対応)
• USB 3.2 Gen 2ポート x 4、USB Type-Cポート x 1
• 絶縁型デジタル入力 x 8 + デジタル出力 x 8
• 9～36VDCの広範囲電源入力 (AT/ATXモード対応)
• -20℃～60℃の広い動作温度範囲
モデル:
JCO-3000-ORN-B_4L
認証:
仕様
| System | |
|---|---|
| Processor | - NVIDIA® Jetson Orin™ NX GPU or Orin™ Nano Super GPU • NX 16G: 1024-core NVIDIA Ampere architecture GPU (25W/100 TOPS) • NX 8G: 1024-core NVIDIA Ampere architecture GPU (20W/ 70 TOPS) • Nano Super 8G: 1024-core NVIDIA Ampere architecture GPU (25W/67 TOPS) • Nano Super 4G: 512-core NVIDIA Ampere architecture GPU (25W/34 TOPS) |
| LAN Chipset | GbE1: RGMII GbE2~4: Intel LAN IC |
| System Memory | 8G/16G LPDDR5 @ 3200 MHz on SOM |
| TPM | TPM 2.0 |
| Display | |
| HDMI | 1x HDMI 4K (3840*2160) 60Hz |
| Storage | |
| M.2 | 1x M.2 (M Key, 2242/2280, PCIe x4, NVMe) (Default 128GB) |
| SD | 1x Micro SD Slot |
| SIM Socket | 1x External Dual Nano SIM socket (M.2 B Key attached) |
| Expansion | |
| M.2 | 1x M.2 (B Key, 2242/3042/3052, USB 3.2 Gen1, Support 4G/5G) 1x M.2 (E Key, 2230, PCIe x1, USB 2.0, Support Wi-Fi/Bluetooth) |
| I/O | |
| CAN | CAN 2.0 B |
| COM | 2x RS-232/422/485 (Switch by MCU) |
| DIO | 8 in / 8 out (Isolated) |
| LAN | 4x RJ45 LAN |
| OOB | 1x RJ45 (Optional OOB Management Module, Occupied 1x COM & Micro USB Console Port) |
| PoE | 4x RJ45 (Optional, PoE+ 120W Module, Type 2, Max 25W per Port) |
| USB | 4x USB 3.2 Gen 2 (10 Gbps, Shared with USB 3 Hub) 1x Micro USB (Console) 1x USB Type-C (USB 2.0, For Flash OS) |
| Others | 6x WiFi Antenna Holes 1x Power Switch, 1x Reset Switch, 1x Force Recovery Switch 1x 2P Terminal blcok for Remote Power SW 1x CMOS Battery Cable 1x 4-Pin FAN Connector |
| Operating System | |
| Linux | Linux Ubuntu 22.04 with JetPack 6.2 |
| Power | |
| Power Adapter | Optional AC/DC 12V/5A, 60W Optional AC/DC 24V/5A, 120W (For PoE Model) Optional AC/DC 24V/9.2A, 220W (For PoE Model) |
| Power Mode | AT, ATX |
| Power Ignition Sensing | Adjustable Power Ignition Management |
| Power Supply Voltage | 9~36VDC 12V: PoE Power Budget Supports Up to 60W 24V: PoE Power Budget Supports Up to 120W |
| Power Connector | 3-pin Terminal Block |
| Power Protection | OVP (Over Voltage Protection); OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | -20°C to 60°C (15W) -20°C to 55°C (25W) |
| Storage Temperature | -30°C to 85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certification | • CE, FCC Class A • UL 62368-1, 3rd Ed. • E-mark (E24) • RoHS 3.0, REACH |
| Vibration | With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis) |
| Shock | With SSD: 50G half-sin 11ms |
| Physical | |
| Dimensions | 192 (W) x 140(D) x 58(H) mm |
| Weights | 2.8 ~ 3.6 kg |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting Options | Wall Mounting/DIN rail (Optional) |
リソース
| AWS IoT Greengrass |
Premio-Getting-Started-Guide-for-AWS-IoT-Greengrass-JCO-3000-ORN-B_4L.pdf
|
| Datasheet |
DS_JCO-3000-ORN-B_4L_Premio.pdf
|
| Product Brief |
PB_JCO-3000-ORN.pdf
|
| Quick Start Guide |
Out-Of-Band Quick Start Guide.pdf
|
| User's Manual |
UM_JCO-3000-ORN-B.pdf
|
