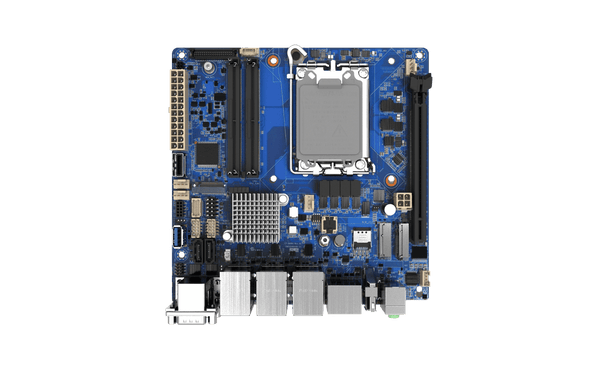

| System | |
|---|---|
| Processor | Intel®Arrow Lake-S Core™ Ultra Processors (Series 2, FCLGA1851) •Intel® Core™ Ultra 5 Processor 225T, 35W •Intel® Core™ Ultra 5 Processor 225, 65W •Intel® Core™ Ultra 7 Processor 265T, 35W •Intel® Core™ Ultra 7 Processor 265, 65W •Intel® Core™ Ultra 9 Processor 285T, 35W •Intel® Core™ Ultra 9 Processor 285, 65W |
| System Chipset | Intel W880 |
| LAN Chipset | GbE1: Intel® I226-LM 2.5GbE LAN iAMT GbE2: Intel® I226-V 2.5GbE LAN GbE3: Intel® I226-V 2.5GbE LAN |
| Audio Codec | Realtek® ALC888 Audio Codec |
| System Memory | 2x 262-pin DDR5 5600MT/s ECC & non-ECC SODIMM. Max Up to 96GB |
| BIOS | AMI UEFI |
| Watchdog | 256-level Watchdog Timer |
| TPM | TPM2.0 |
| Display | |
| Display Port | 2x DP up to 4096 x 2160@60Hz |
| eDP | 1x eDP up to 3840 x 2160@60Hz |
| HDMI | 1x HDMI up to 4096 x 2160@30Hz |
| LVDS | 1x LVDS up to 1920 x 1200@60Hz |
| Multiple Display | Quad Independent Displays |
| Storage | |
| M.2 | 1x M key (PCIe x4 NVMe, SATA-3.0), 2280 |
| SSD/HDD | 2x SATA-3.0 (RAID 0/1, AHCI Mode Supported) |
| Expansion | |
| PCIe | 1x PCIe x16 (Gen 5) (lockable connector) (BIOS support 2 x8 or 1 x16 configure) |
| Expansion Modules | 1x E key (PCIe x1 & USB 2.0), 2230 1x B key (PCIe x2 NVMe,USB3.0), 2242/3042/3052 with SIM Holder |

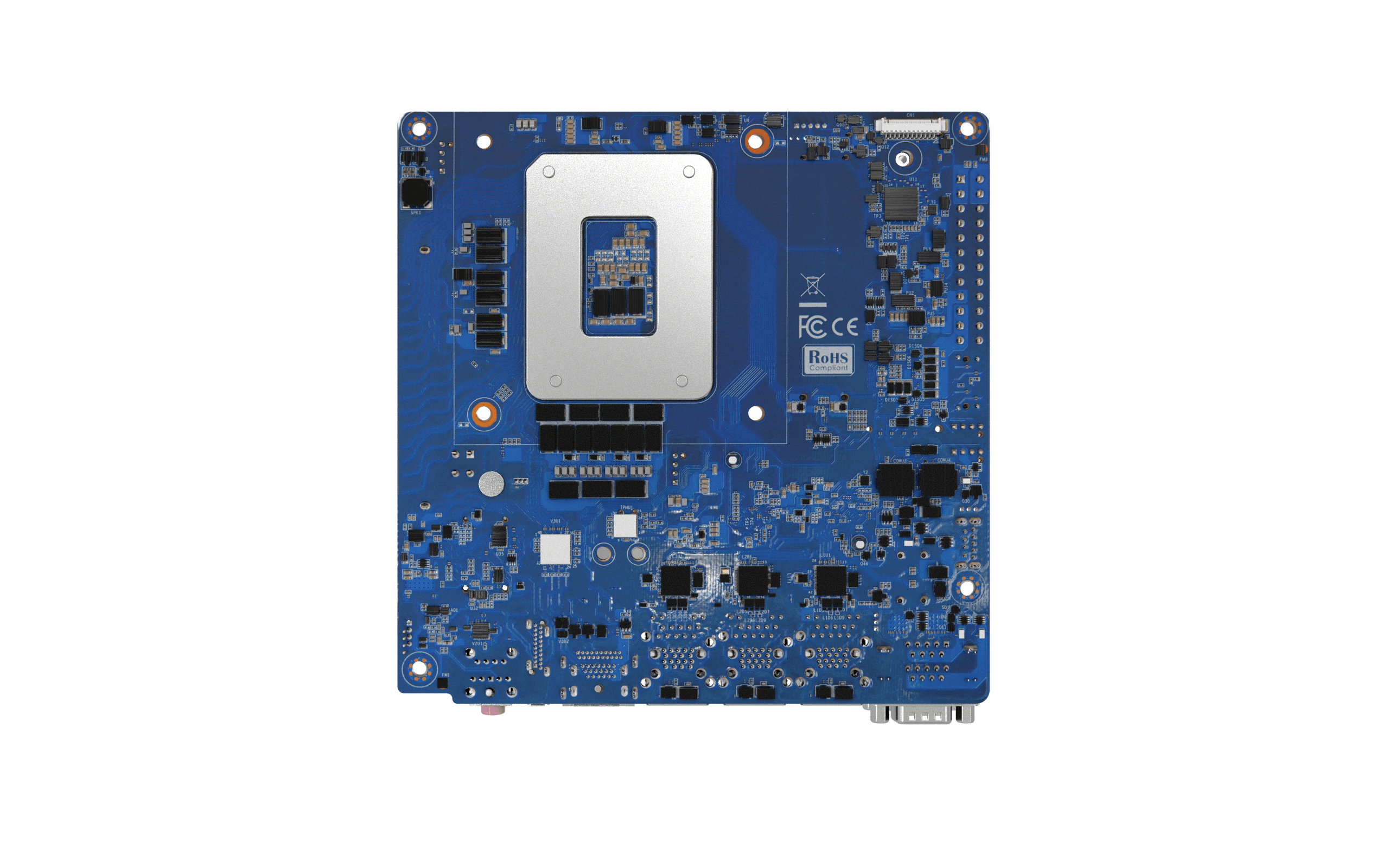

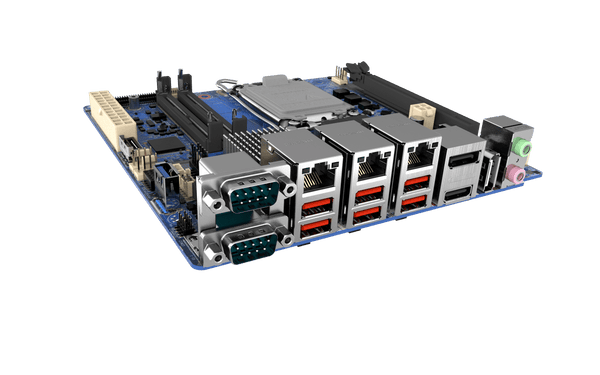

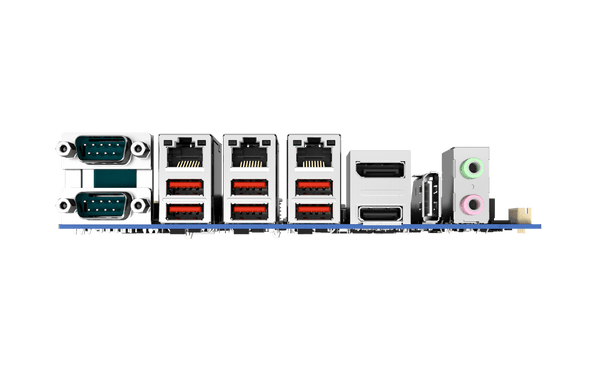

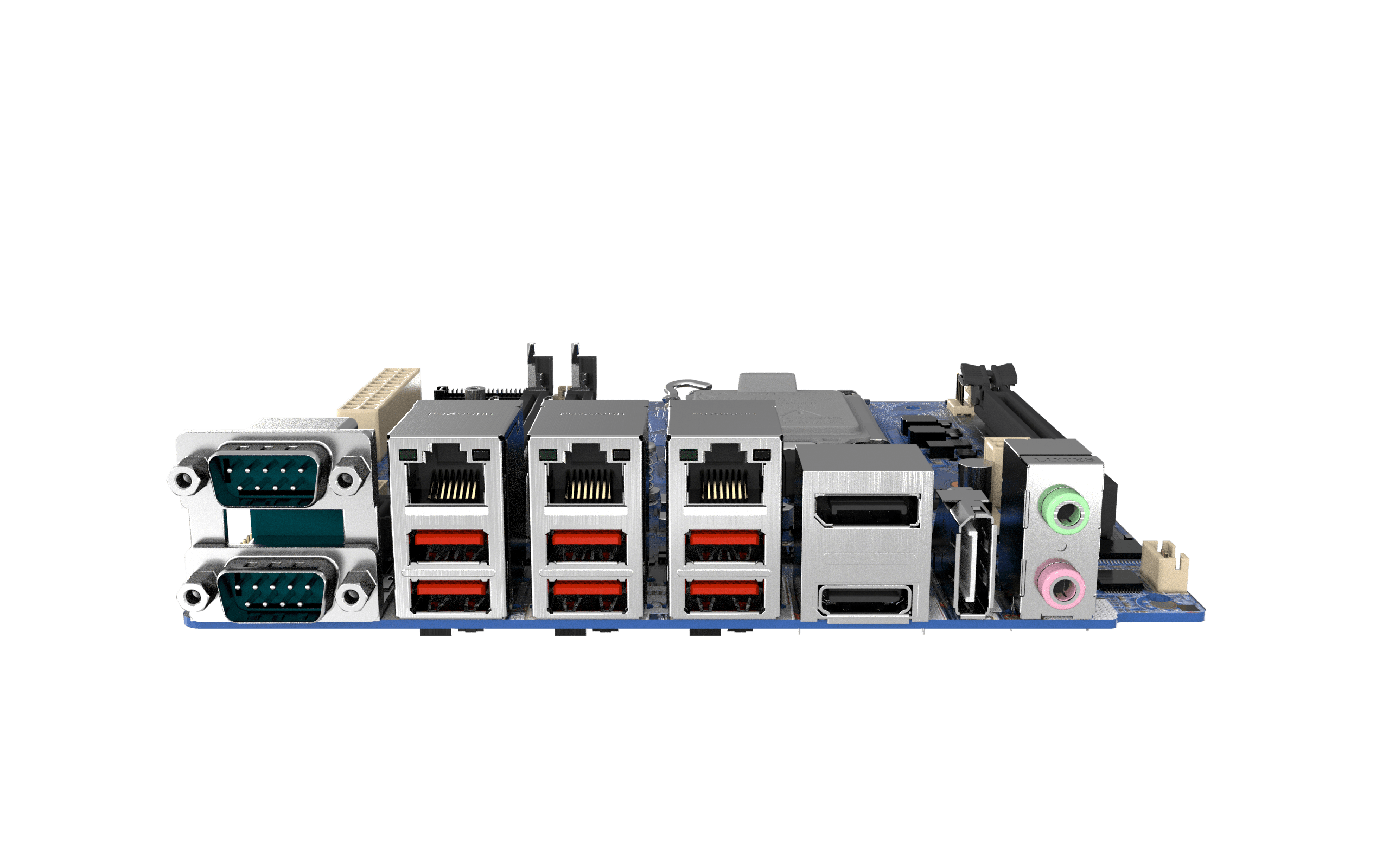

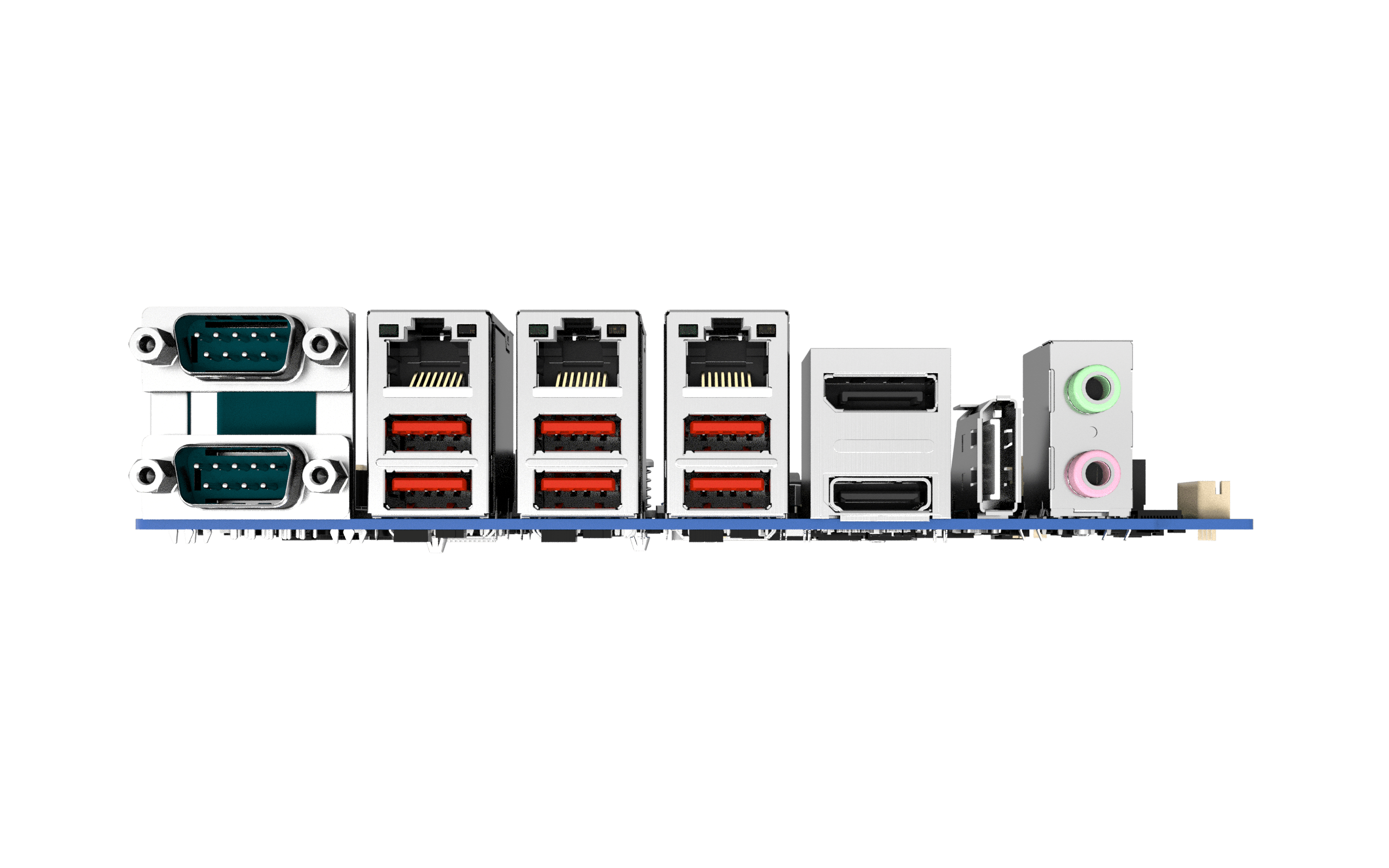

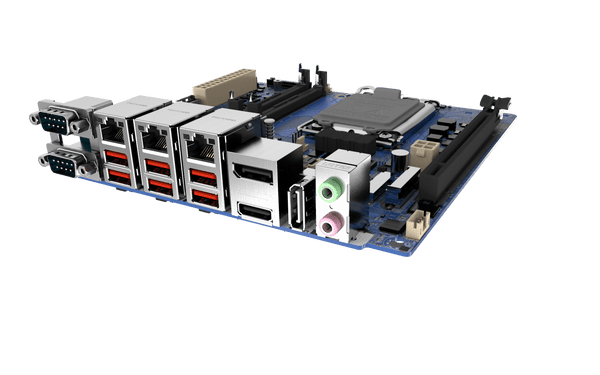

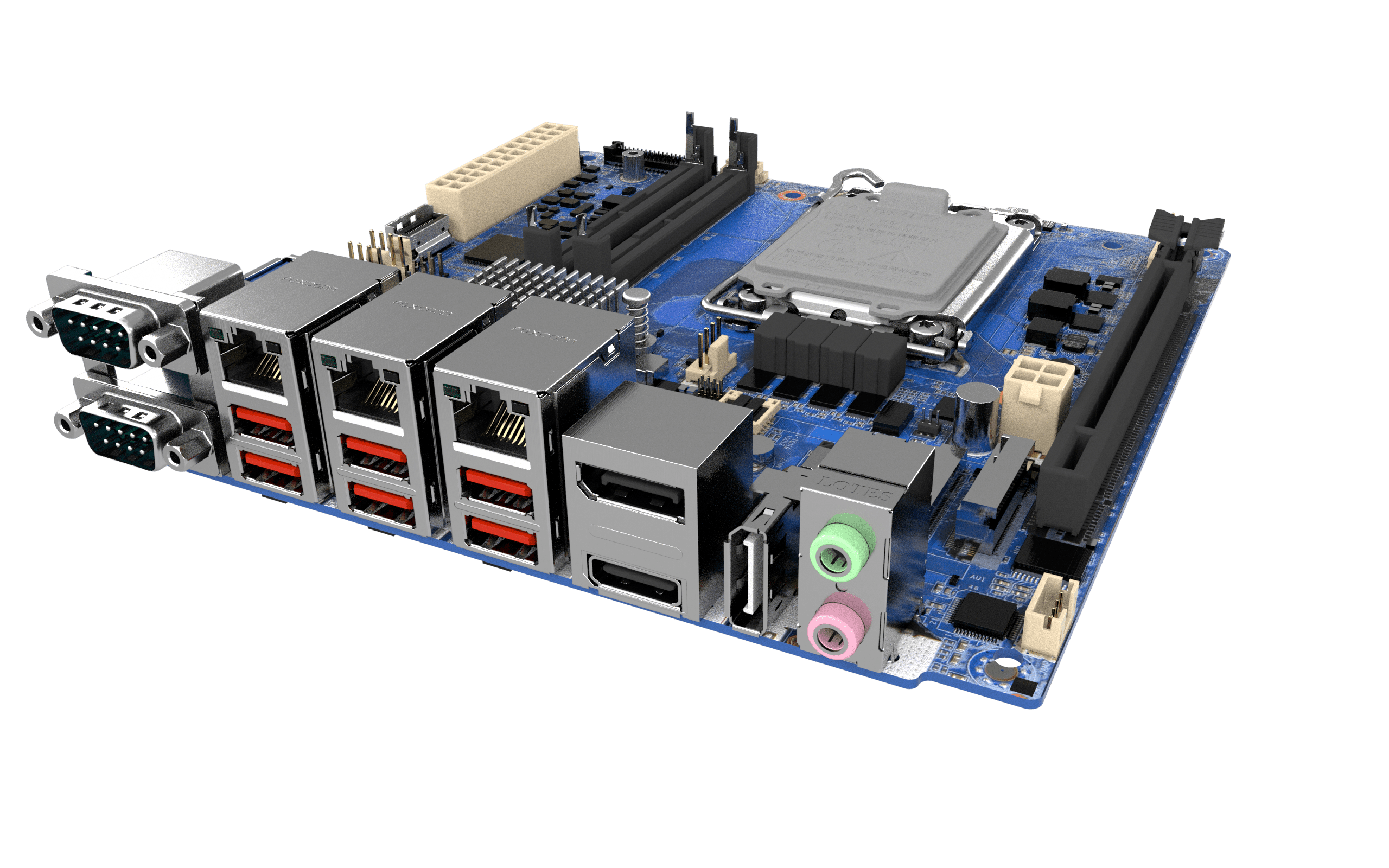

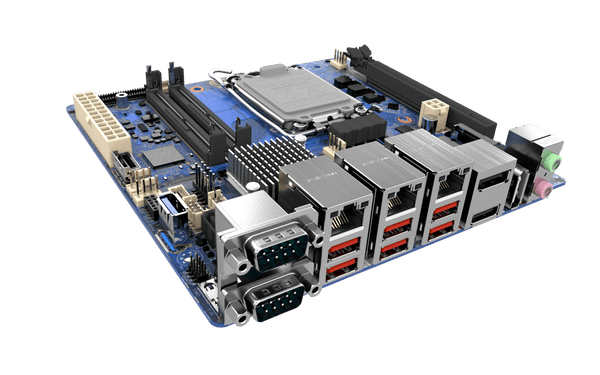

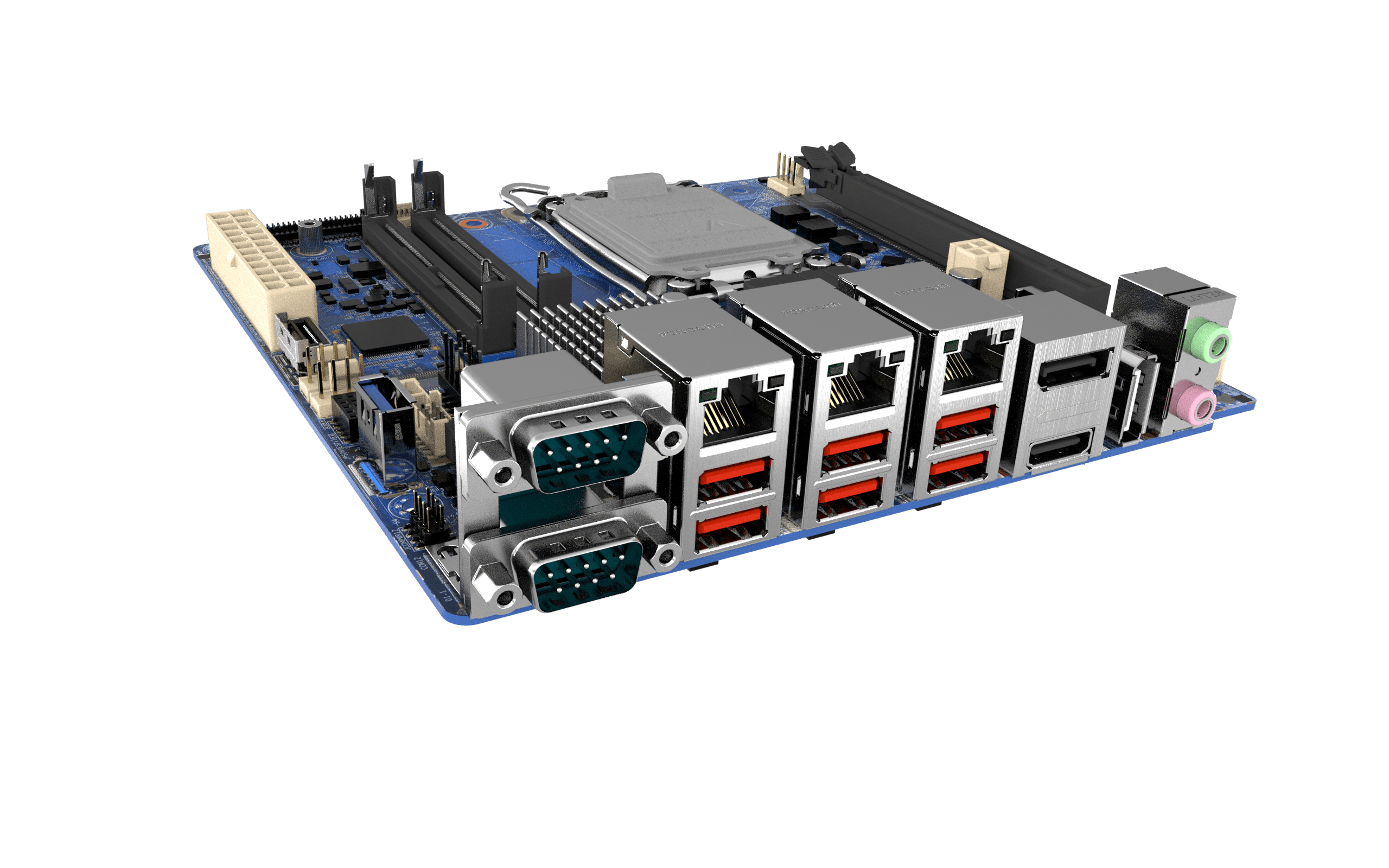

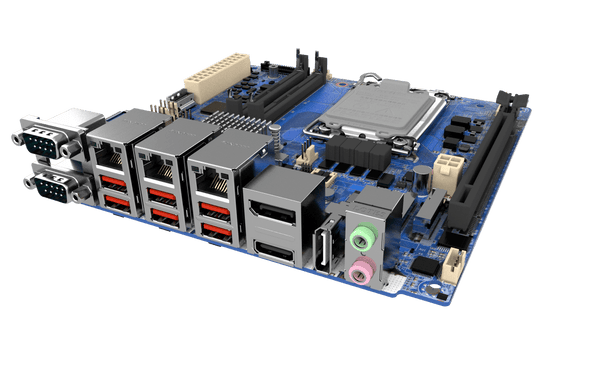

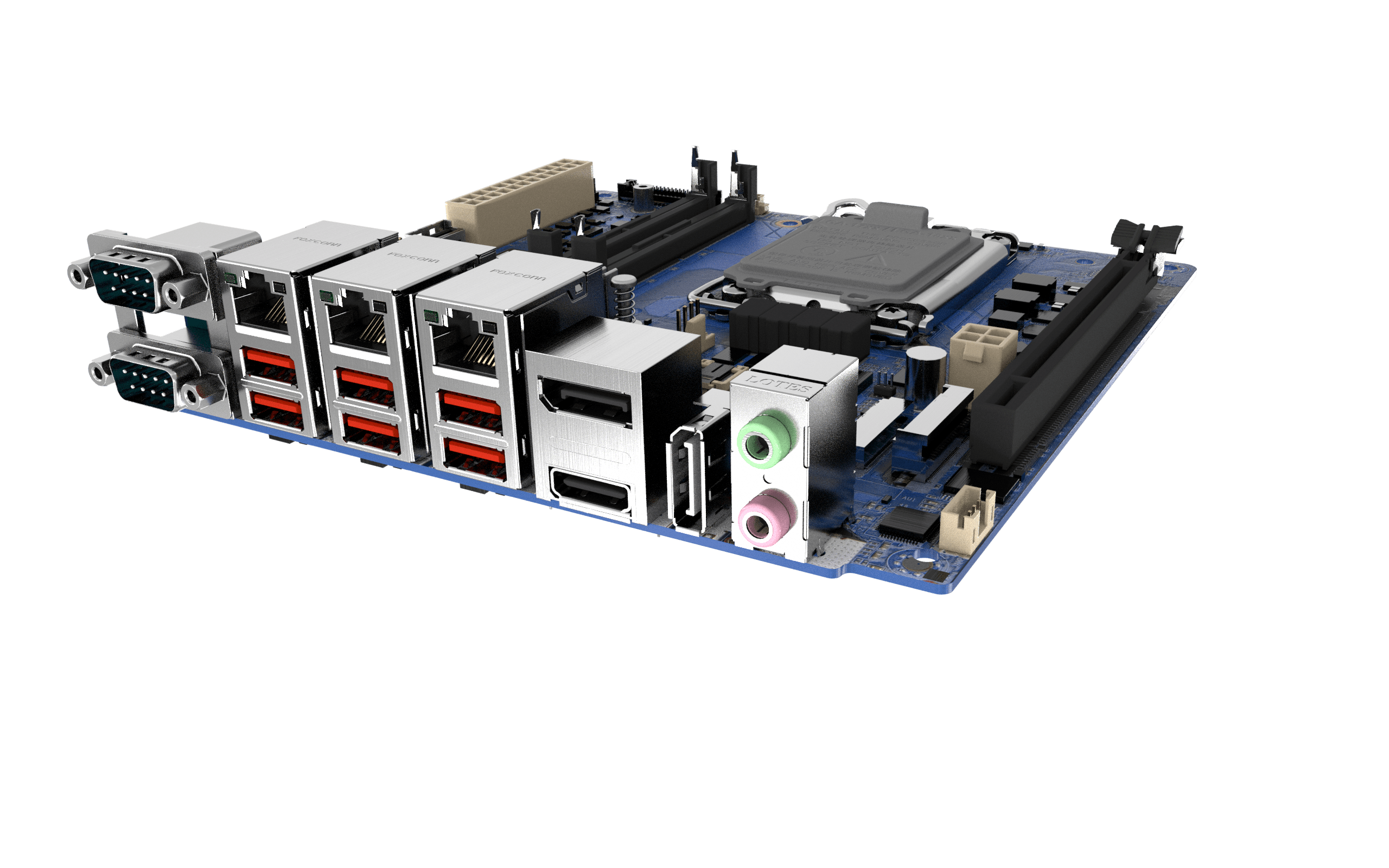

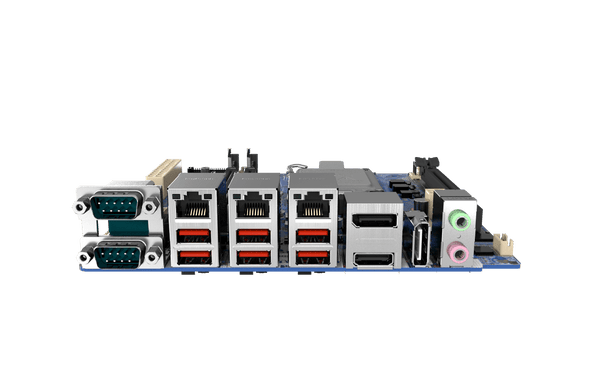

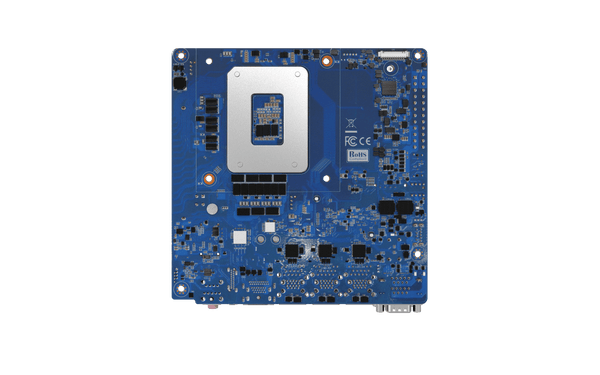

| I/O | |
| Audio | 1x Mic-in, 1x Line-out |
| COM | 2 x COM ports COM1/2 RS-232/422/485, No Signal/5V/12V, Auto-flow Control (real IO) |
| LAN | 3x 2.5GbE RJ45 |
| USB | 6x USB 3.2 Gen 2 TYPE A |
| Internal I/O | |
| COM | 4 x COM ports COM3/4 RS-232 Pin header COM5/6 (CN1) RS-232 Pin header (TX/RX only) |
| GPIO | GPIO 8 bit non-isolation |
| USB | 1x USB 3.0 vertical Type A 2x USB 2.0-Ports Pin header |
| MCIO | 1x PCIe Gen 4 x4-lane |
| Operating System | |
| Windows | Windows 10 IoT Enterprise LTSC (64-bit) Windows 11 IoT Enterprise LTSC (64-bit) |
| Linux | Ubuntu 22.04 / 24.04 LTS , Linux 5.x / 6.x |
| Power | |
| Power Mode | ATX24P |
| Environment | |
| Form Factor | Mini-ITX |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 80°C |
| Relative Humidity | 10% ~ 90% relative humidity, non-condensing |
| Certification | CE, FCC Class A , UKCA |
| Physical | |
| Dimensions | 170mm x 170mm |
