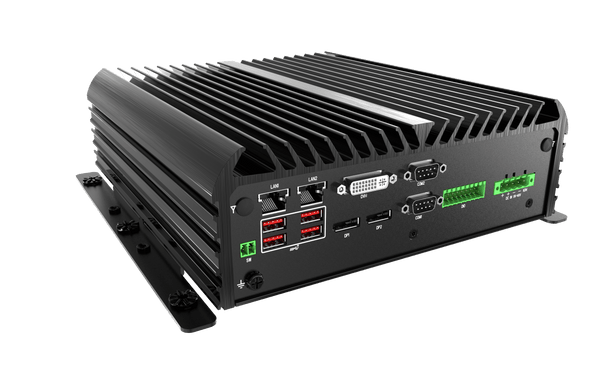

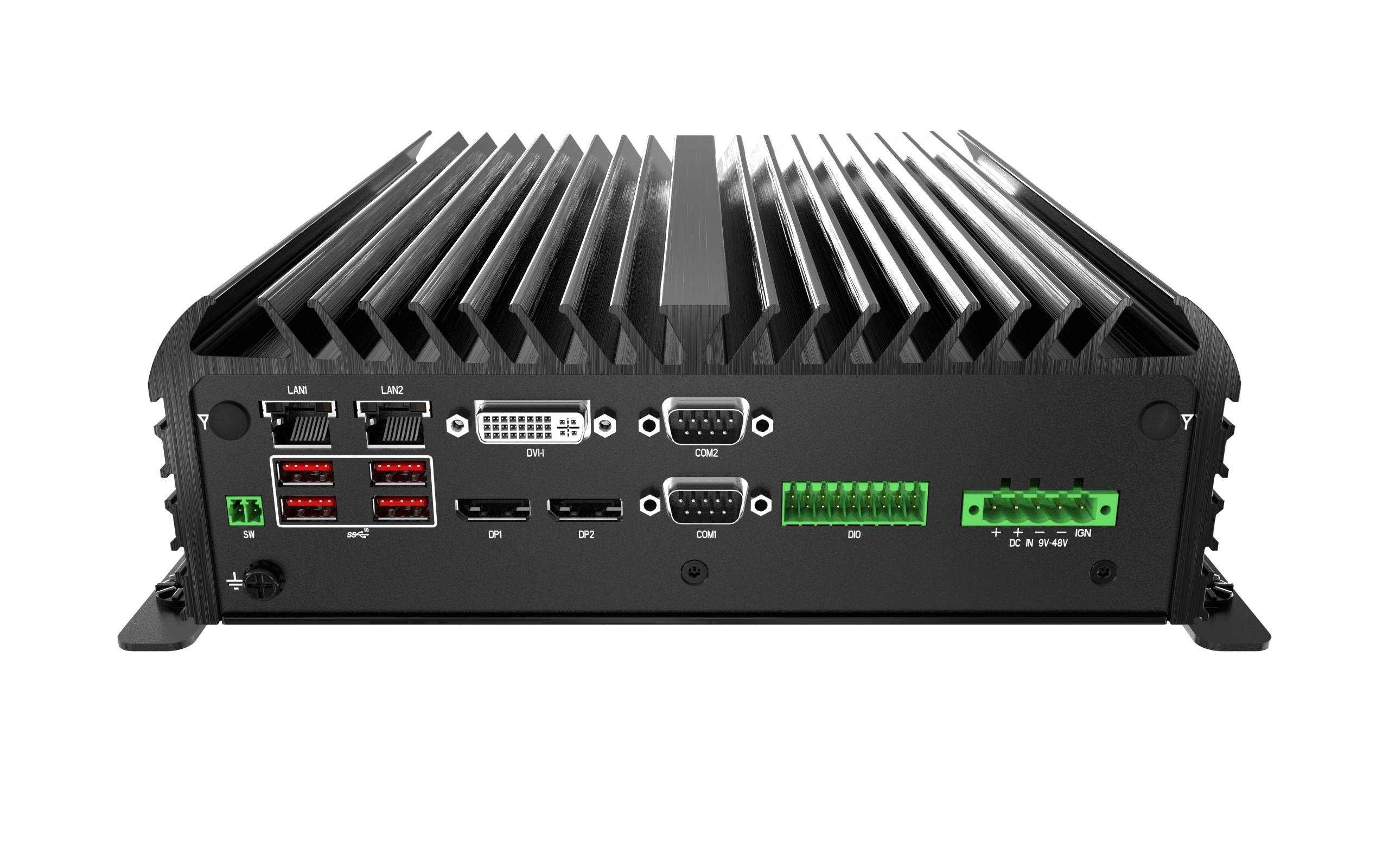

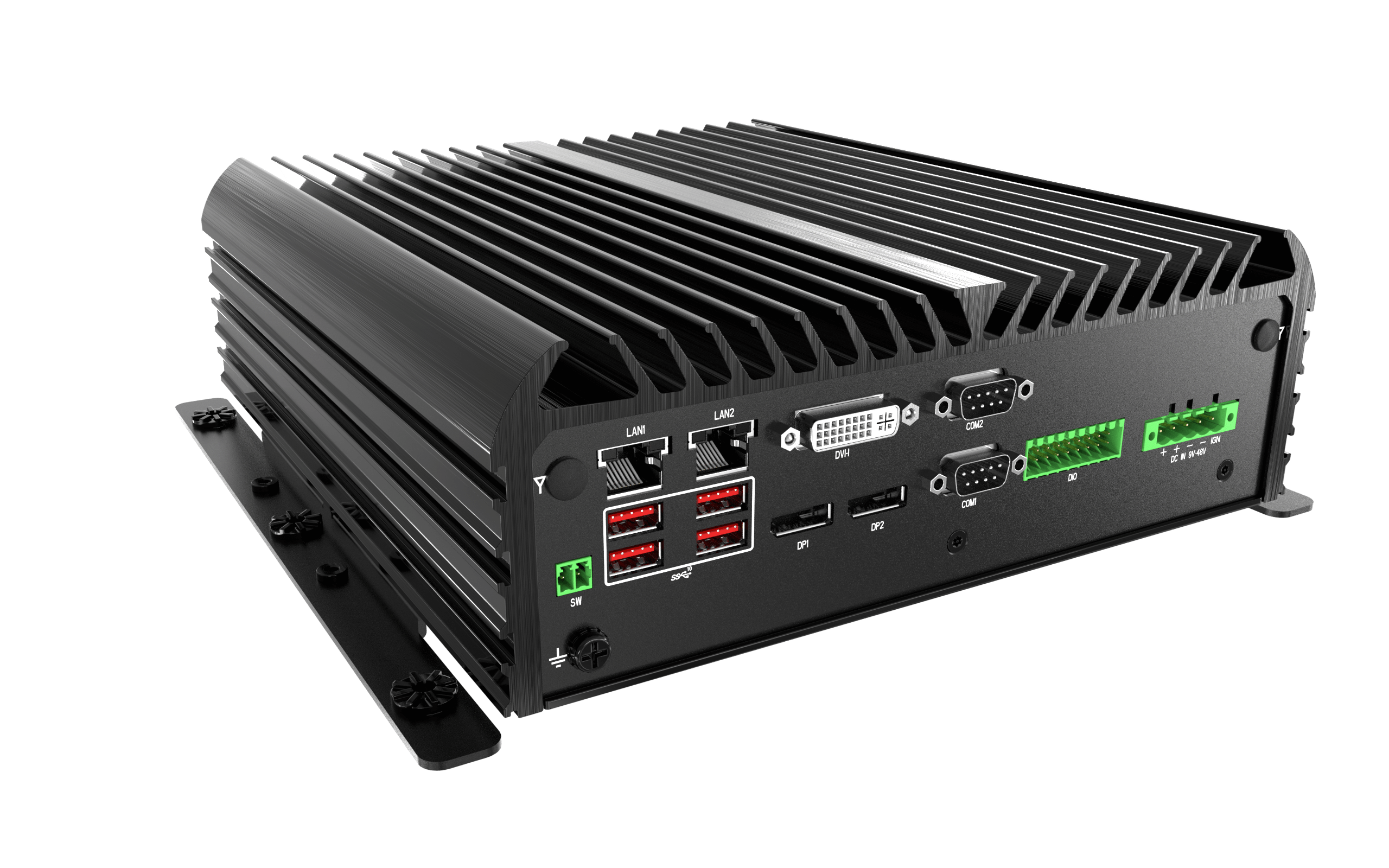

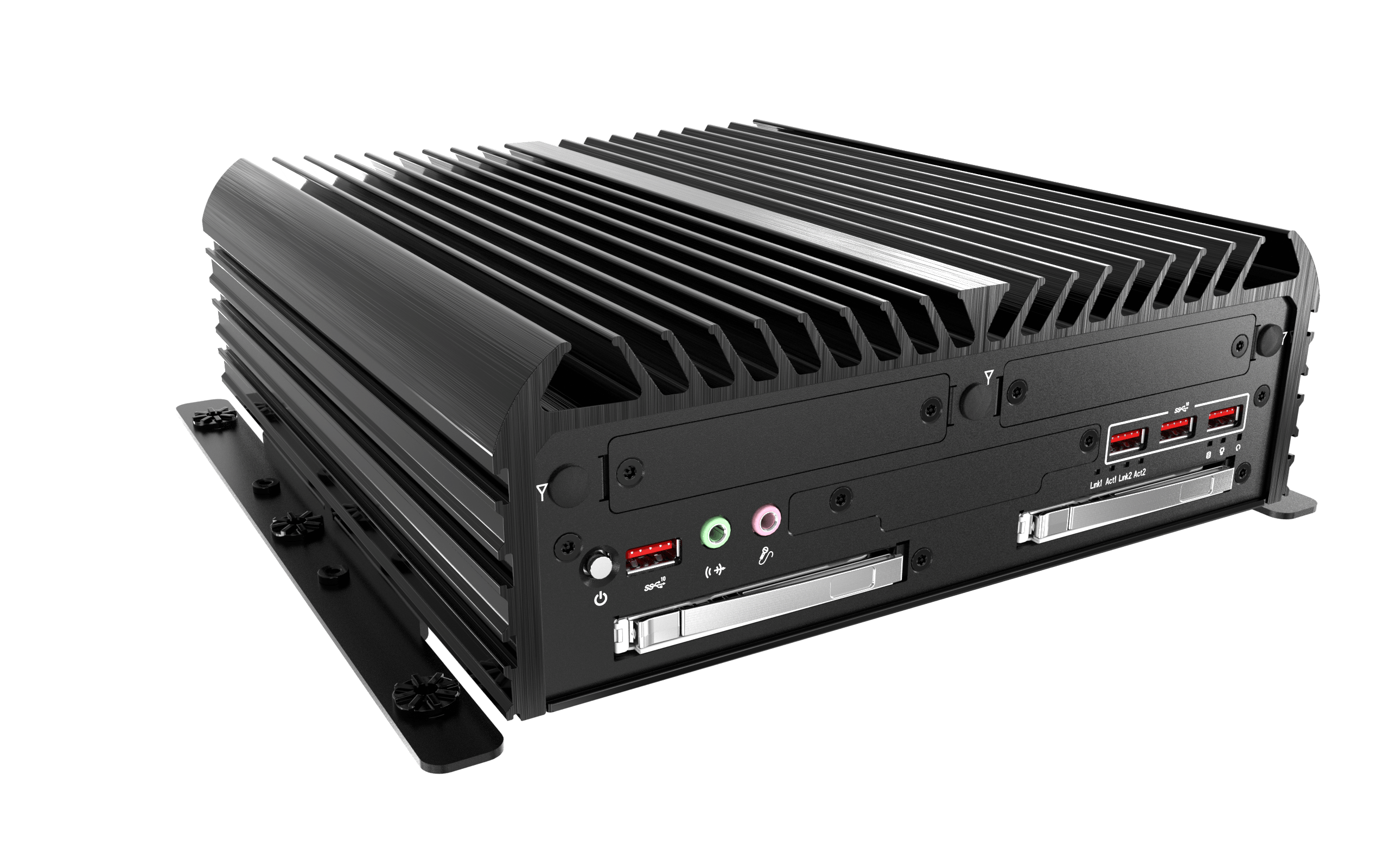

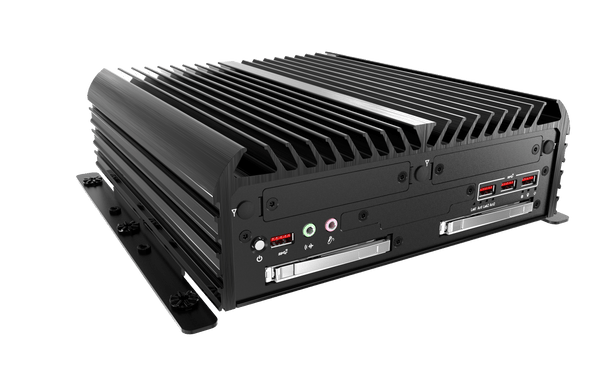

ACO-6000-RPL 鐵路及車載計算機，採用 LGA 1700 接口，支援 Intel® Core™（第二代）/第 14 代/第 13 代/第 12 代處理器和 W680E PCH 晶片組

• 英特爾® 酷睿™ 第 2 代與第 14/13/12 代處理器，LGA1700 介面
• 英特爾® W680E 晶片組
• 2 個 262 針 DDR5 4800/5600 MT/s SODIMM 記憶體插槽。最大容量：最高支援 96GB 記憶體（ECC 和非 ECC）
• 三路獨立顯示：2 個 DisplayPort 接口，1 個 DVI-I 接口
• 2 個 Intel® 2.5 GbE 乙太網路接口，支援網路喚醒 (Wake-on-LAN) 和 PXE 喚醒
• 1 個全尺寸 Mini PCIe 插槽，用於通訊或擴充模組；2 個 SIM 卡插槽
• 3 個 2.5 吋 SATA SSD 硬碟位元（2 個熱插拔，1 個內建）
• 1 個 mSATA 接口，1 個 M.2 B Key 接口（2242/3042/3052），用於 AI/存儲/4G/5G 網絡
• 1 個 M.2 E Key 介面（2230），用於 Wi-Fi/藍牙
• 6 個 RS-232/422/485 接口（4 個內建），8 個 USB 3.2 Gen 2 接口，1 個 USB 3.0 Gen 1 接口（內建）
• 8 個數位輸入 (DI) + 8 個數位輸出 (DO)，附隔離功能
• 12 至48VDC 電源輸入（支援 AT/ATX 模式）
• 寬工作溫度範圍：-25°C 至 70°C（35W/65W CPU）
• 支援 TPM 2.0
• 電源點火管理
查看規格表

型號:

ACO-6000-RPL

認證:

Intel Partner
*僅提供裸機價格；銷售團隊將審核組件配置和價格。

對
ACO-6000-RPL有興趣？

聯絡我們

規格

System
Processor Standard
13th Gen Intel® Core™ Processors (Raptor Lake-S)
- Intel® Core™ i7-13700TE, 35W
- Intel® Core™ i5-13500TE, 35W
12th Gen Intel® Core™ Processors (Alder Lake-S)
- Intel® Core™ i7-12700TE, 35W
- Intel® Core™ i5-12500TE, 35W

Project Based
- Intel® Core™ 3 / 5 / 7 (Series 2, Bartlett Lake-S, 45W)
- 14th Gen Intel® Core™ i3 / i5 / i7 / i9 (Raptor Lake-S Refresh, 35W~65W)
- 13th Gen Intel® Core™ i3 / i5 / i7 / i9 (Raptor Lake-S, 35W~65W)
- 12th Gen Intel® Core™ i3 / i5 / i7 / i9 (Alder Lake-S, 35W~65W)
System Chipset Intel® W680E Chipset
LAN Chipset 2.5 GbE1: Intel I226 (Support Wake-on-LAN and PXE, Support TSN)
2.5 GbE2: Intel I226 (Support Wake-on-LAN and PXE, Support TSN)
Audio Codec Realtek ALC888S
System Memory 2x 262-Pin DDR5 4800/5600MHz SODIMM.
Max. up to 96GB (ECC and Non-ECC)
Graphics Intel® UHD Graphics 770/710
BIOS AMI 256Mbit SPI BIOS
Watchdog Software Programmable Supports 1~255 sec. System Reset
TPM TPM 2.0
Display
Display Port 2x DisplayPort, support resolution 5120 x 3200 (Up to 7680 x 4320)
DVI 1x DVI-I, support resolution 1920 x 1200
Multiple Display Triple Display
VGA Yes (by optional split cable)
Storage
mSATA 1x mSATA (shared by 1x Mini PCIe)
SIM Socket 2x External SIM socket (Mini PCIe attached)
SSD/HDD 1x Internal 2.5" SATA /SSD Bay (support H=9mm)
2x 2.5" SATA SSD Bays (support H=7mm, Hot-swappable)
Support RAID 0, 1
Expansion
M.2 1x M.2 B Key: 2242/3042/3052
(PCIe x2 for AI/NVMe Storage)
(PCIe x1 & USB 3.2 Gen 1 for 4G/5G)

1x M.2 E Key: 2230
(PCIe x1 & USB 2.0) for Wi-Fi/BT)
Mini PCIe 2x Full-size Mini PCIe (1x shared by 1x mSATA)
Expansion Modules Occupied One Universal I/O Slot:
• 4-port GbE module with Intel® I350 Chipset, RJ45 or M12 connector (PoE optional)
I/O
Audio 1x Mic-in, 1x Line-out
CAN 2x CAN 2.0 A/B 2-pin Internal header
COM 6x RS-232/422/485 (4x internal)
DIO 8 in / 8 out (Isolated)
LAN 2x RJ45
Universal I/O Bracket 2x Universal I/O Bracket (By mini PCIe interface)
USB 8x USB 3.2 Gen 2 (10 Gbps)
1x USB 3.2 Gen 1 (5 Gbps, internal)
2x USB 2.0 header (internal)
Others 5x WiFi Antenna Holes
1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off
1x PC/Car Mode Switch, 1x Delay Time Switch
1x Removable CMOS Battery
Operating System
Windows Windows 11
Linux Linux kernel
Power
Power Adapter Optional AC/DC 24V/9.2A, 220W
Optional AC/DC 24V/9.2A, 280W
Optional AC/DC 24V/15A, 360W (i7/i9 CPU)
Power Mode AT, ATX
Power Ignition Sensing Power Ignition Management
Power Supply Voltage 12~48VDC
Power Connector 5-pin Terminal Block
Power Protection OVP (Over Voltage Protection);
OCP (Over Current Protection)
Reverse Protection
Environment
Operating Temperature -25°C to 70°C (35W/45W CPU)
-25°C to 60°C (65W CPU)
Storage Temperature -30°C to 85°C
Relative Humidity 10% to 95% (non-condensing)
Certification CE, FCC Class A, EN50155 EMC Conformity: EN50121-3-2, UL 62368-1
Vibration With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock With SSD: 50G, half sine, 11ms
Physical
Dimensions 240 (W) x 261 (D) x 79.1 (H) mm
Weights 4.5kg
Construction Extruded Aluminum with Heavy Duty Metal
Mounting Options Wall Mounting

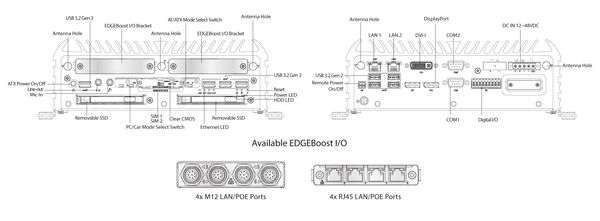

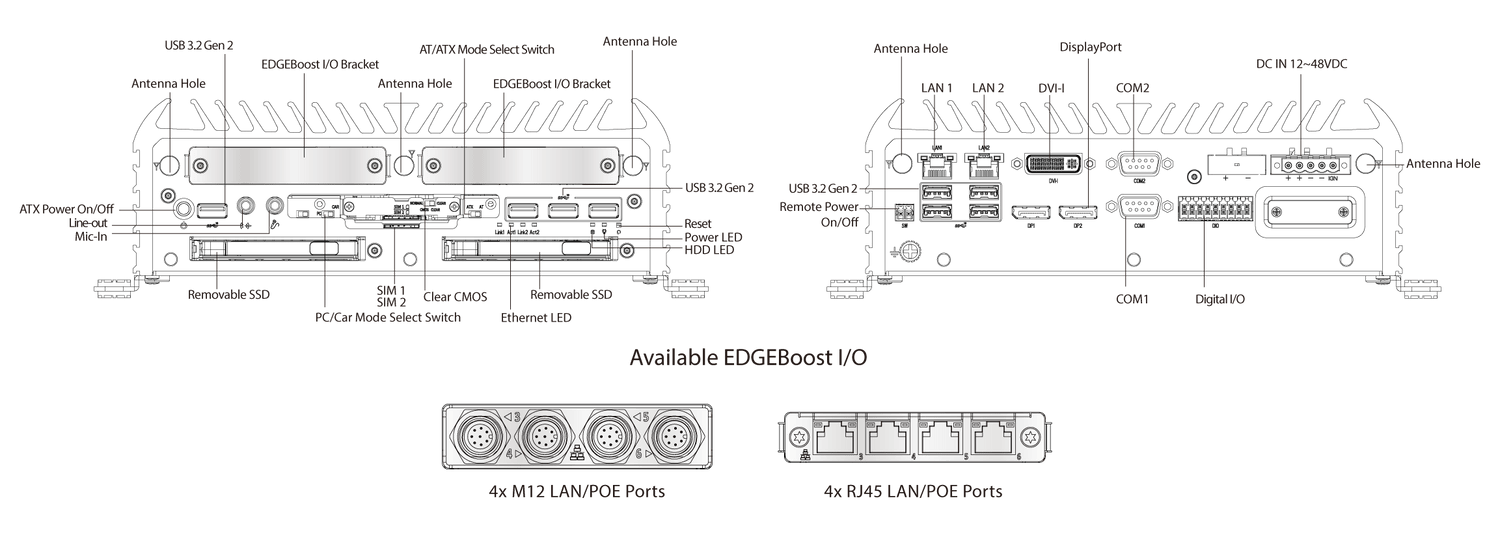

機械佈局

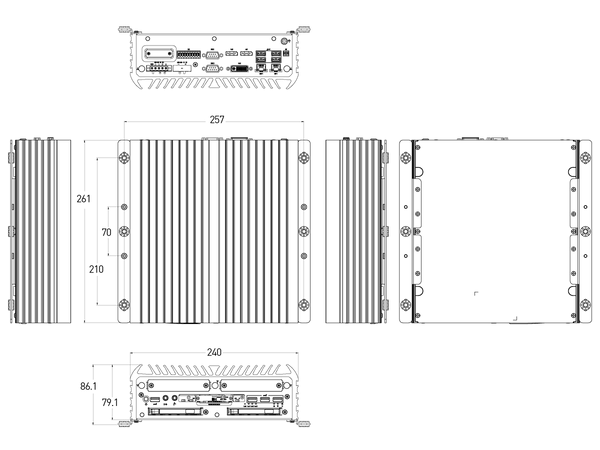

尺寸

單位:mm
