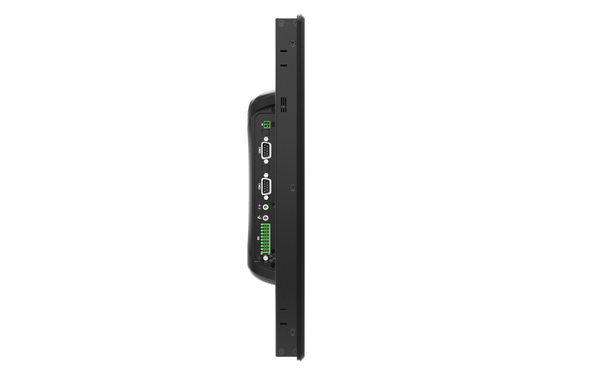

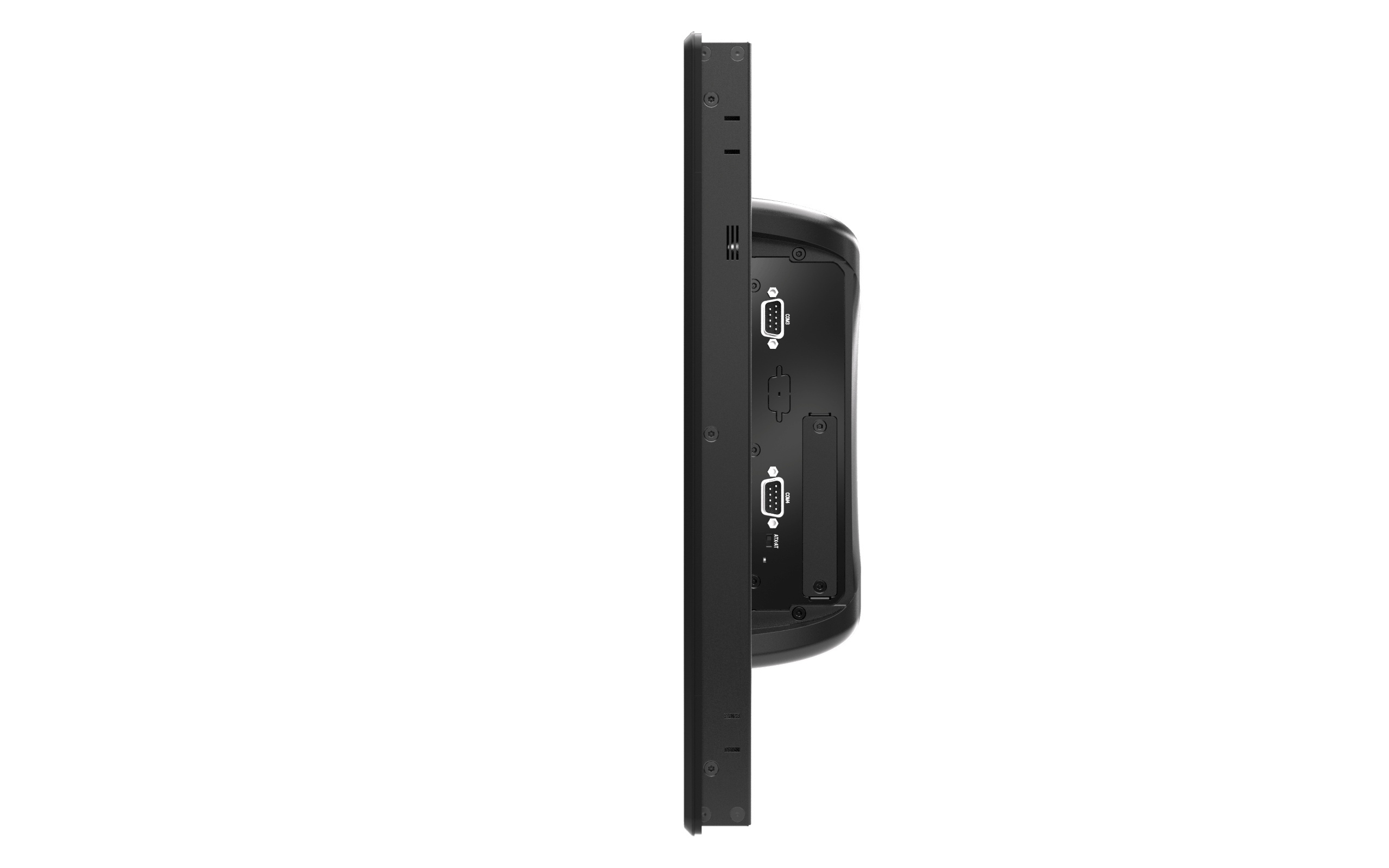

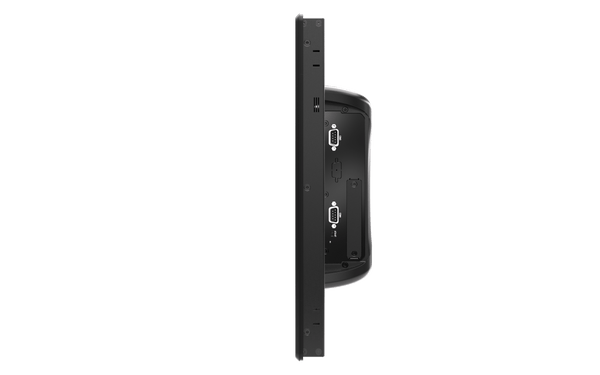

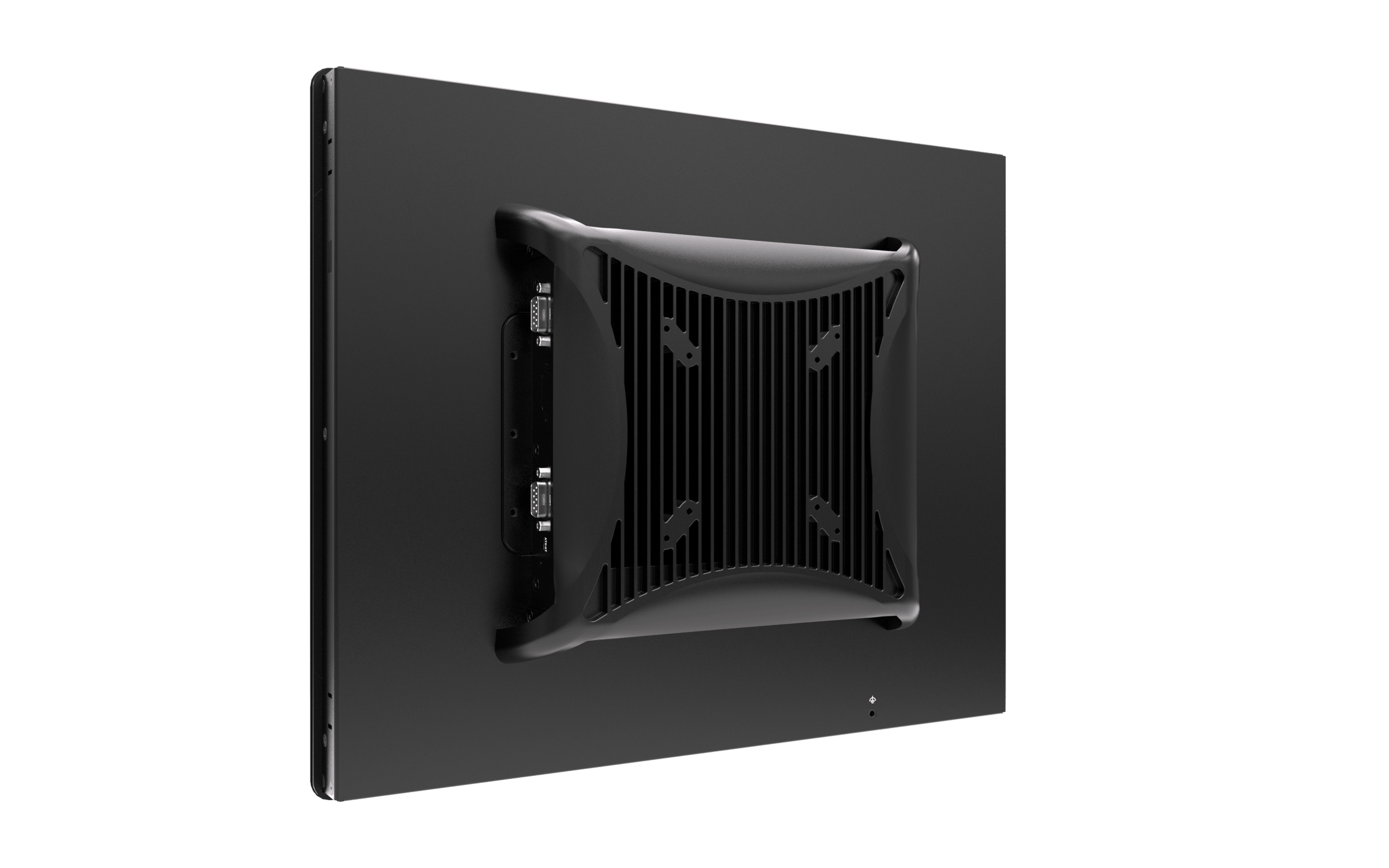

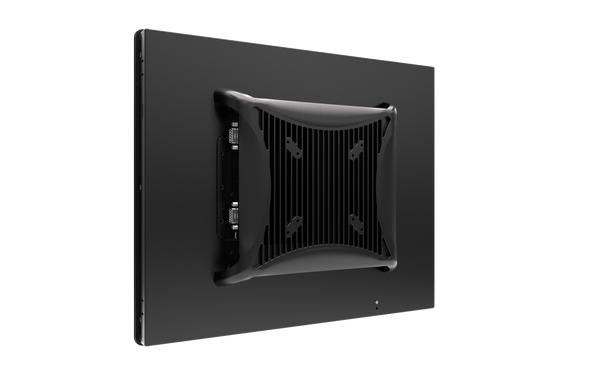

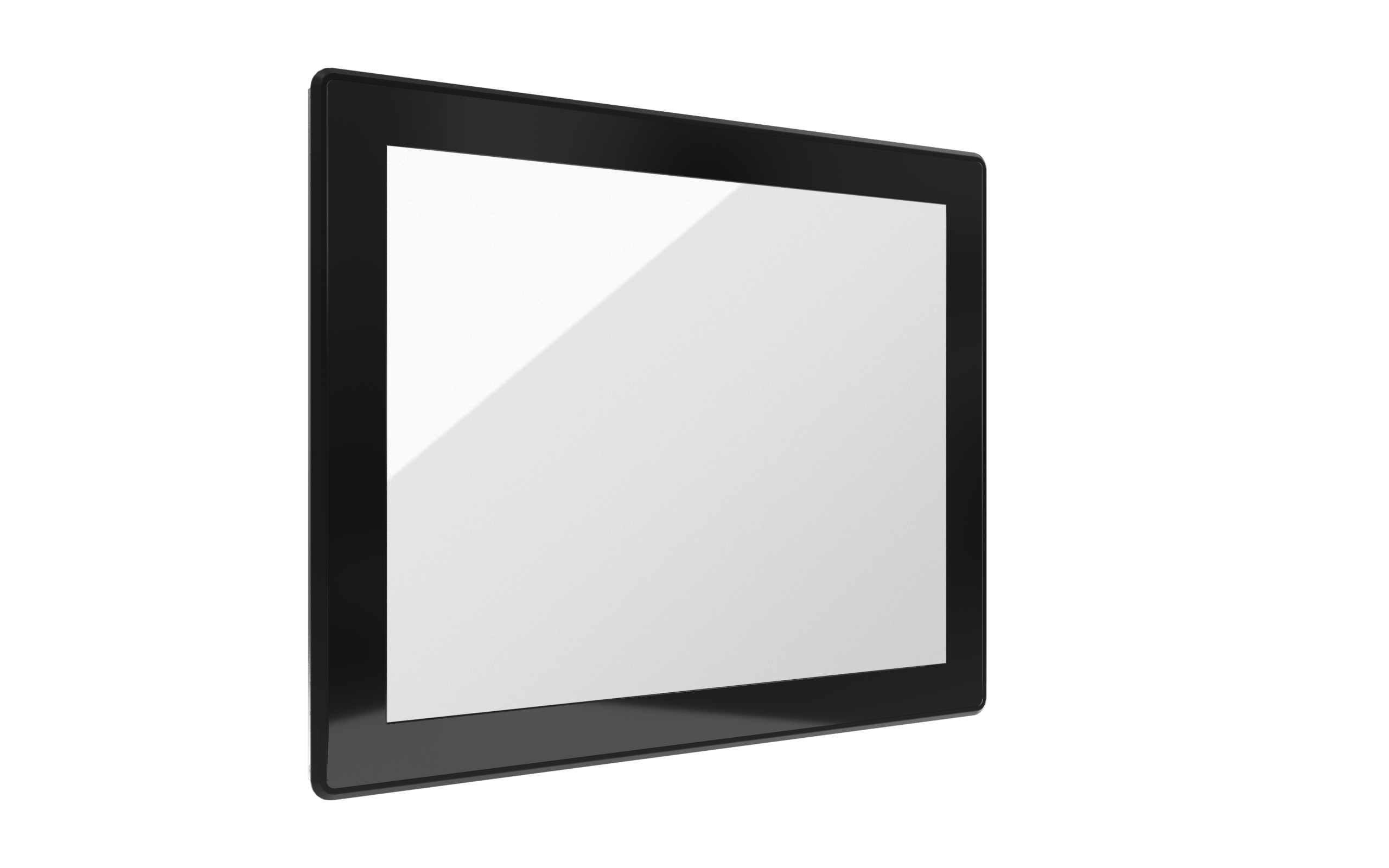

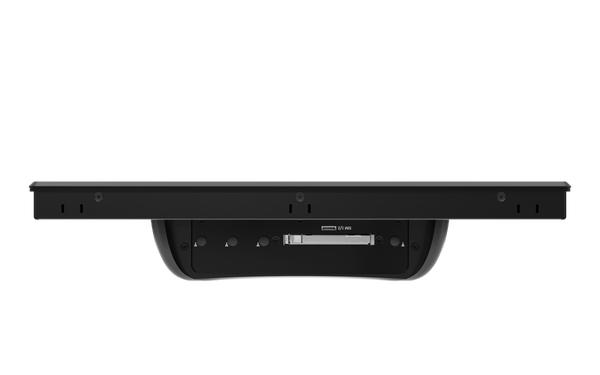

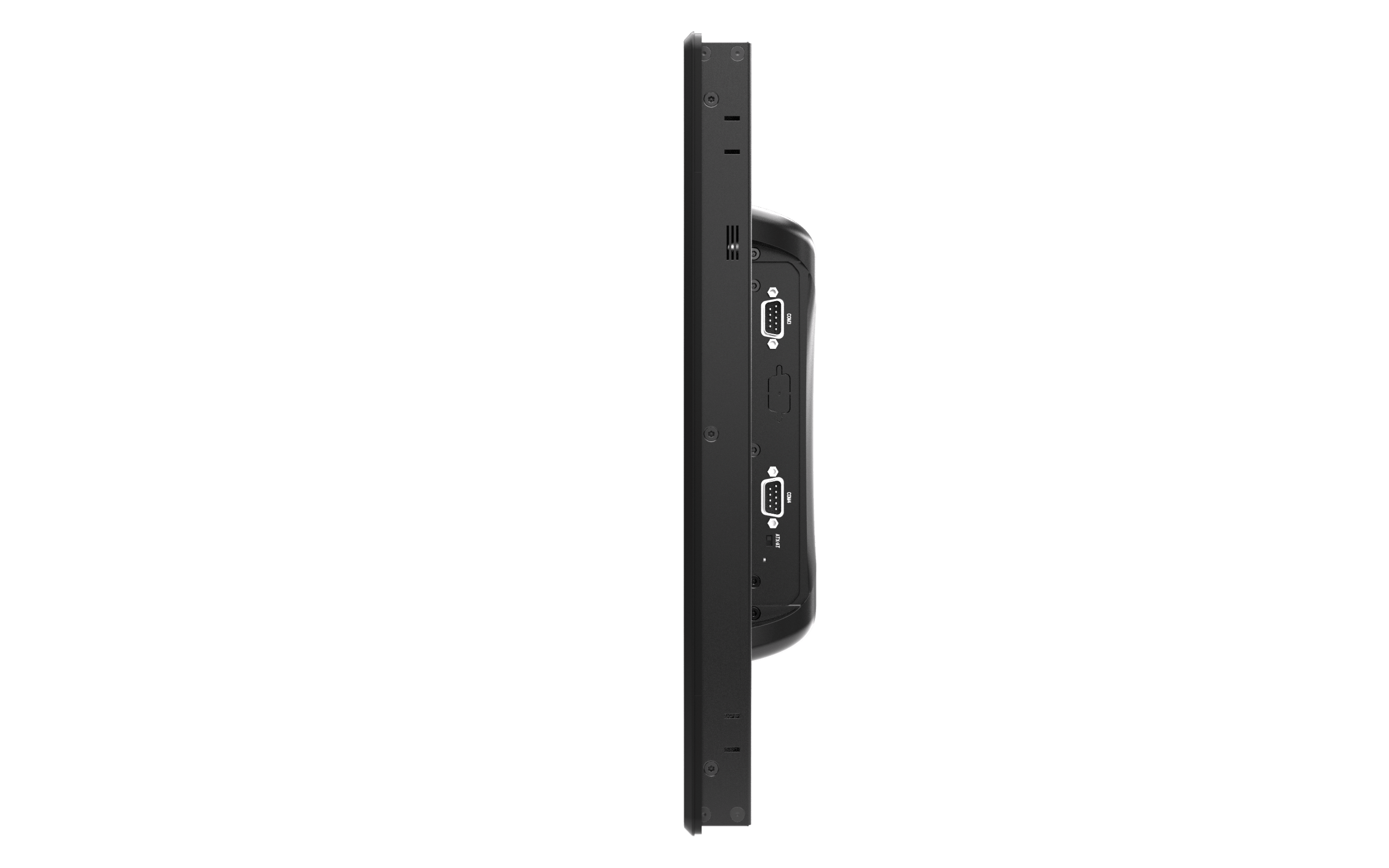

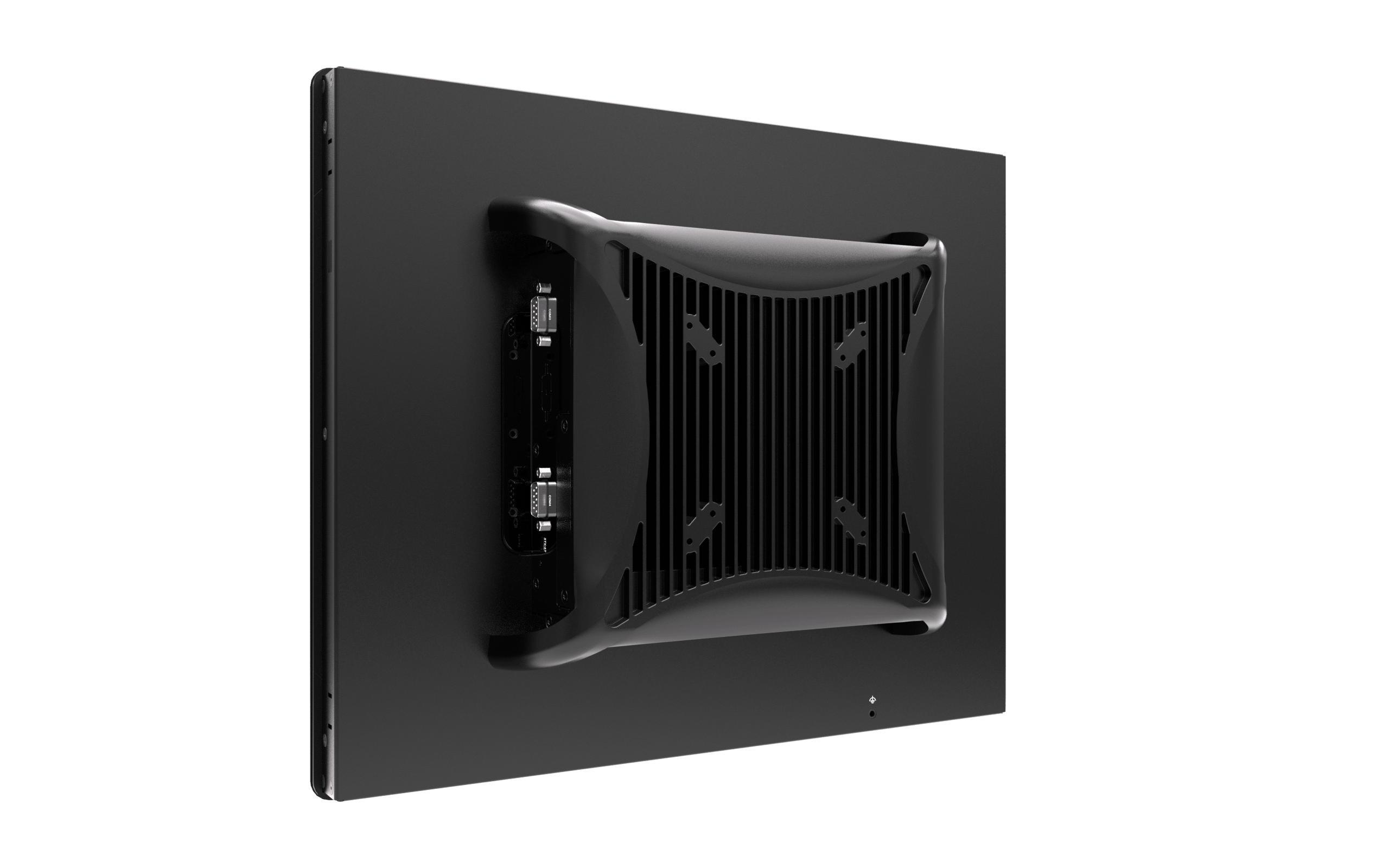

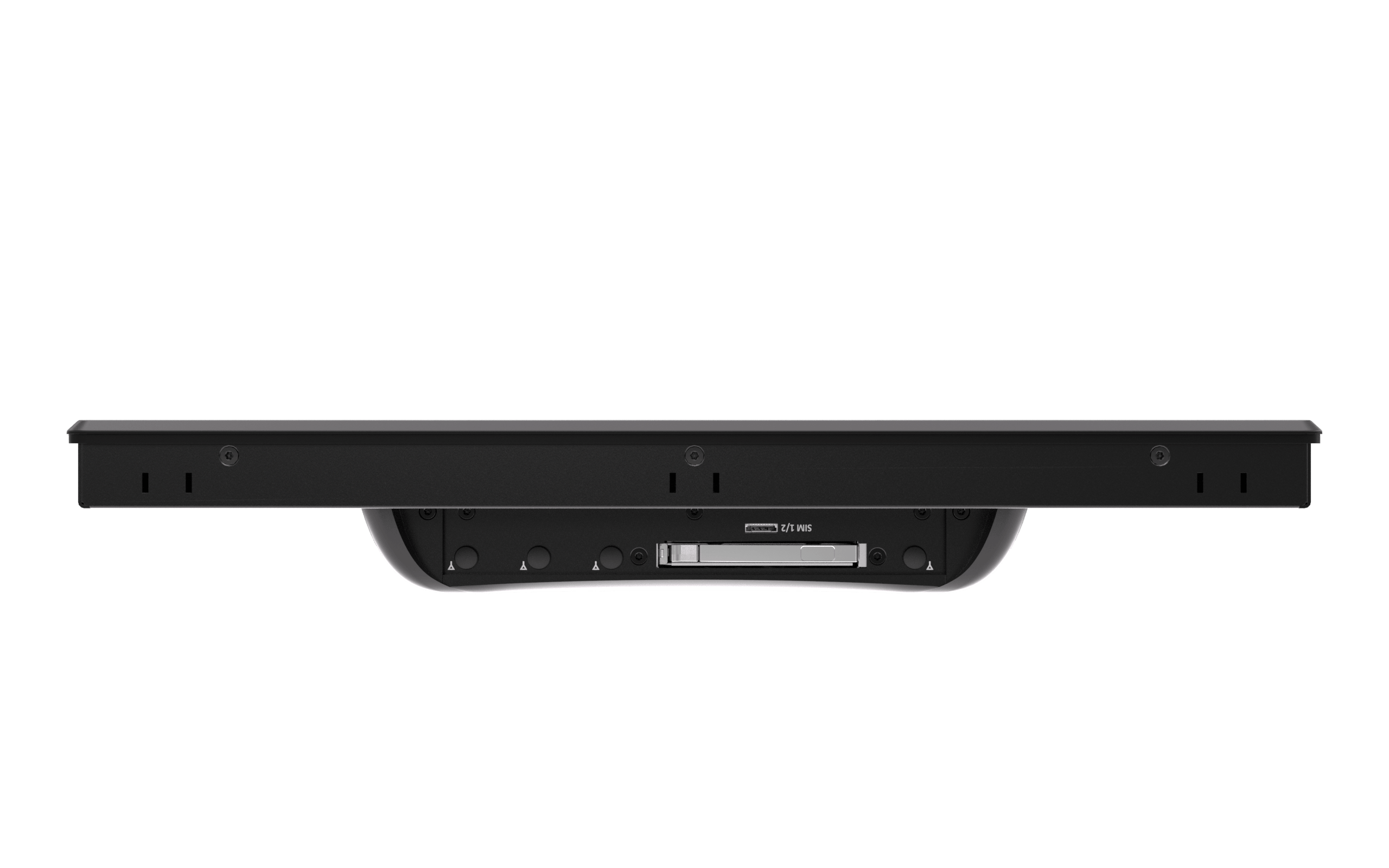

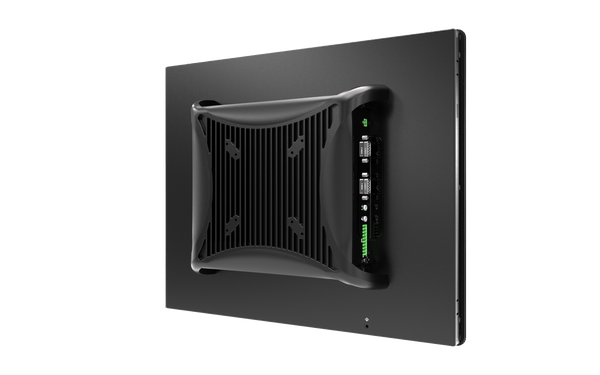

VIO-317-PC100-ASL 17" SXGA IP65 Industrie-Touchscreen-Computer mit Intel Atom® Prozessor, 1x DP, 3x USB, 2x LAN, 4x COM

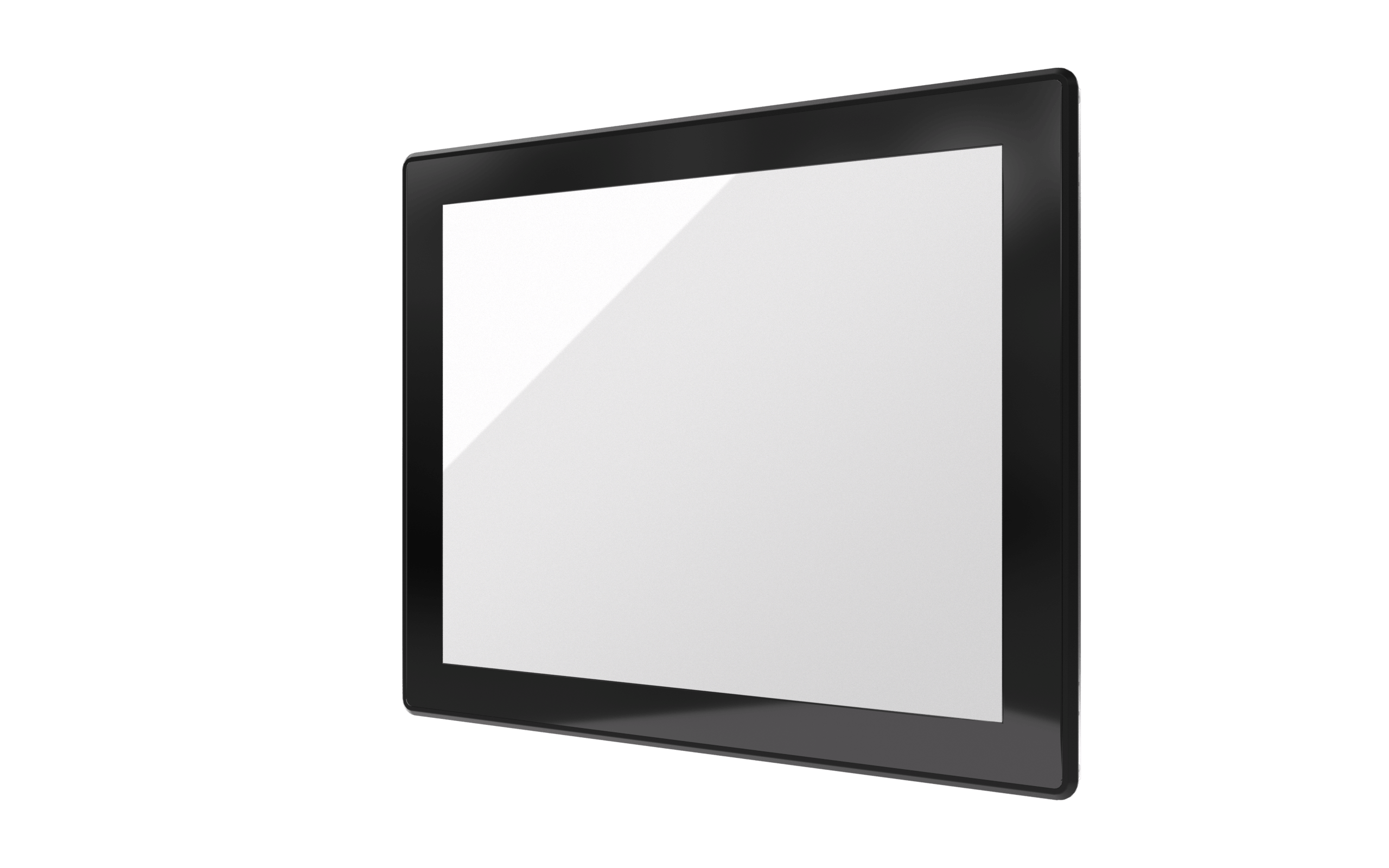

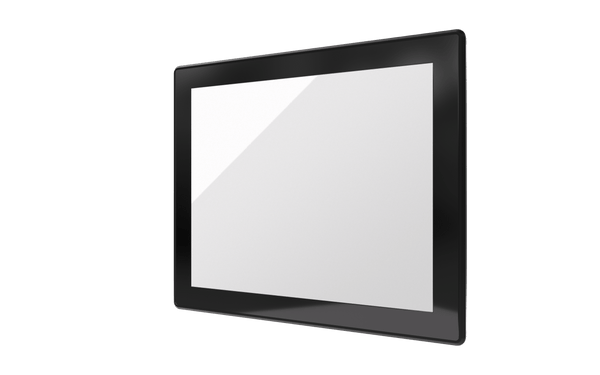

• 17" TFT SXGA 4:3 LCD mit projiziert-kapazitivem Touchscreen
• Intel Atom® x7433RE / x7835RE Prozessor
• 1x DDR5 4800 MT/s SODIMM, max. 16 GB
• 1x 2,5" Hot-Swap-fähige SATA-SSD

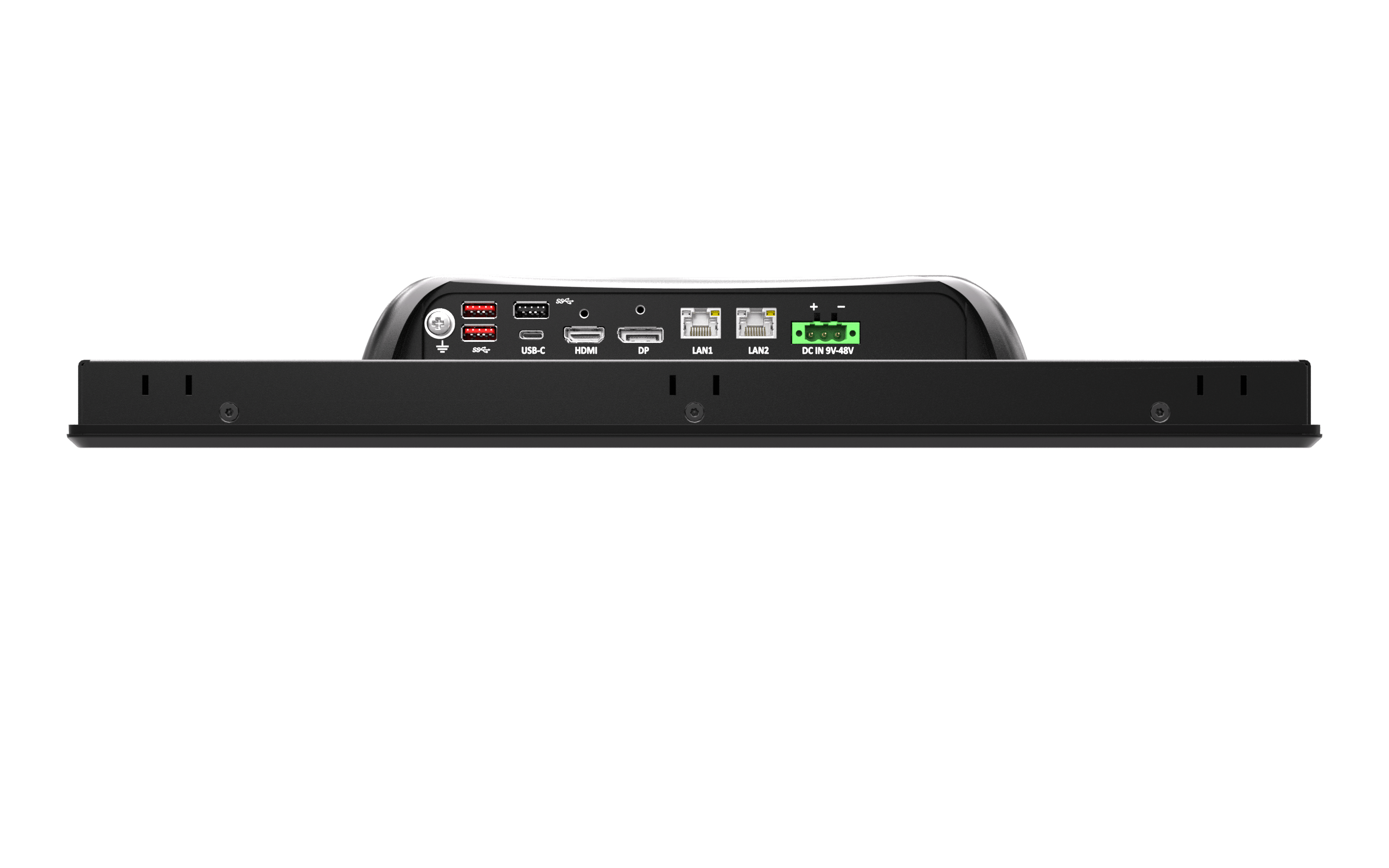

• 2x RJ45 LAN, 1x DisplayPort, 1x HDMI
• 2x USB 3.2 Gen 2, 1x USB 3.2 Gen 1, 1x USB-C 3.2 Gen 1
• 8x DI + 8x DO, 4x RS-232/422/485
• Weitbereichs-Eingangsspannung: 9 bis 36 V DC
• Betriebstemperatur: 0 °C bis 50 °C
• Schutzart IP65

Datenblatt

Modell:

VIO-317-PC100-ASL

VIO-W324-PC100-ASL

VIO-W321-PC100-ASL

VIO-W315-PC100-ASL

VIO-319-PC100-ASL

VIO-317-PC100-ASL

VIO-315-PC100-ASL

VIO-312-PC100-ASL

Zertifizierungen:

Spezifikationen

Display
IP Rating	IP65
LCD Size	17" (4:3)
Max. Resolution	1280 x 1024 (SXGA)
Brightness (cd/m²)	400 / 1000 (Optional)
Contrast Ratio	800:1
LCD Color	16.7M
Pixel Pitch (mm)	0.264(H) x 0.264(V)
Viewing Angle	160/140
Backlight Lifetime	50,000 hrs (LED Backlight)
Touch
Touch Type	Projective Capacitive Resistive 5-Wire (optional)
Surface Hardness	7H / IK07
System
Processor	Intel Atom® x7433RE Processor 6M Cache, up to 3.40 GHz ,4 cores ,9W (Default) Intel Atom® x7835RE Processor 6M Cache, up to 3.60 GHz ,8 cores, 12W
System Chipset	SoC Integrated
LAN Chipset	GbE1: Intel® i226 IT 2.5GbE (Support Wake-on-LAN and PXE) GbE2: Intel® i226 IT 2.5GbE (Support Wake-on-LAN and PXE)
Audio Codec	Realtek ALC888S
System Memory	1x DDR5 4800 MT/s SODIMM. Max. up to 16GB
BIOS	AMI 64Mbit SPI BIOS
Watchdog	Software Programmable Supports 1~255 sec. System Reset
TPM	dTPM2.0
Storage
SIM Socket	1x Dual Nano SIM socket
SSD/HDD	1x Hotswap 2.5" SATA HDD Bay
Expansion
M.2	2x M.2 B-Key PCIe x2, USB 3.0 2242/3042/3052 1x M.2 E-Key PCIe x1, USB 2.0 2230
PCIe	1x PCIe Gen 3 x1 Slot (x4 Connector, Shared with M.2 B-Key #2; 1E Model Only)

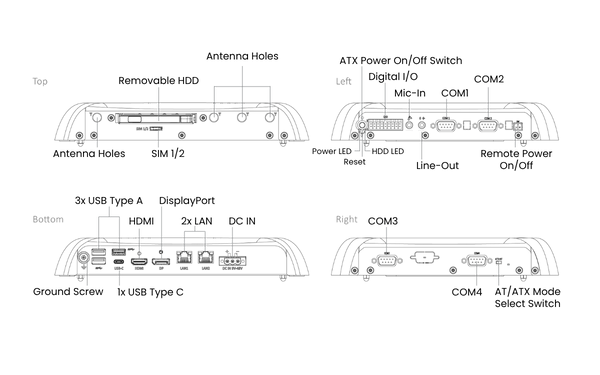

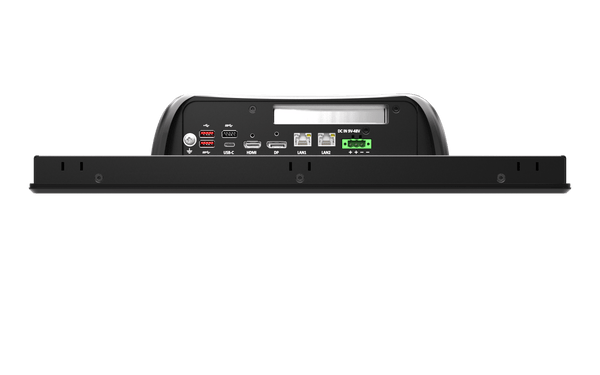

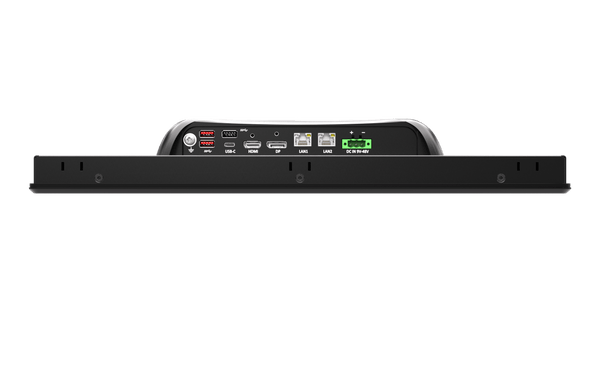

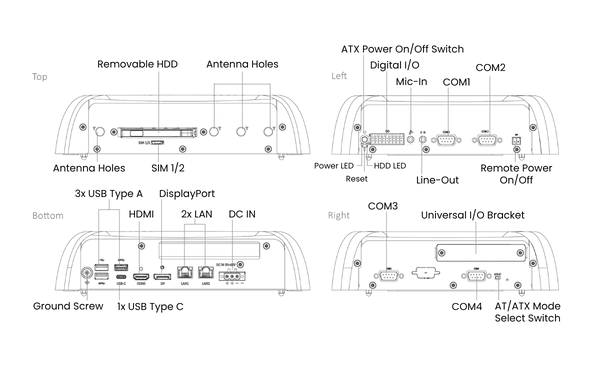

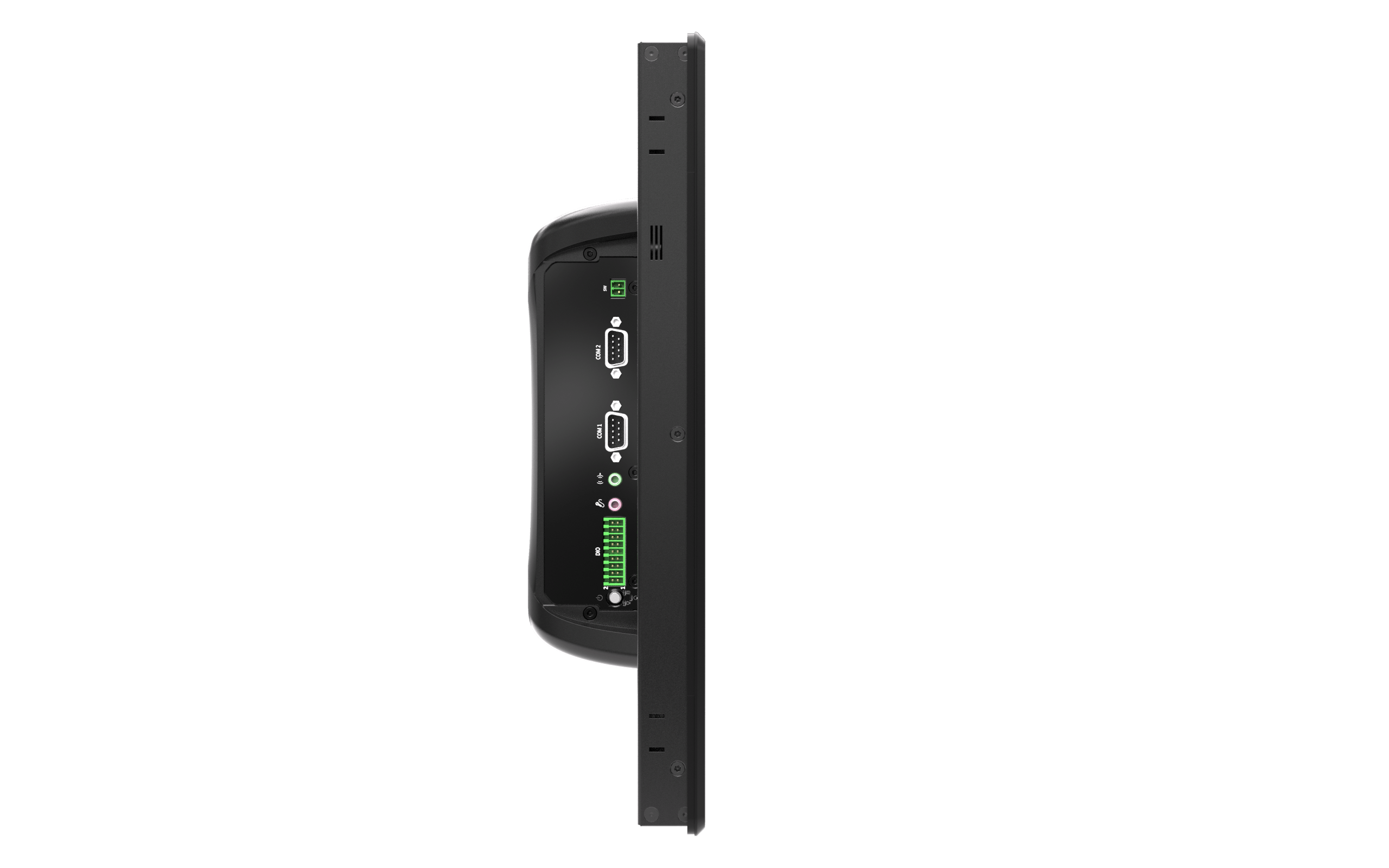

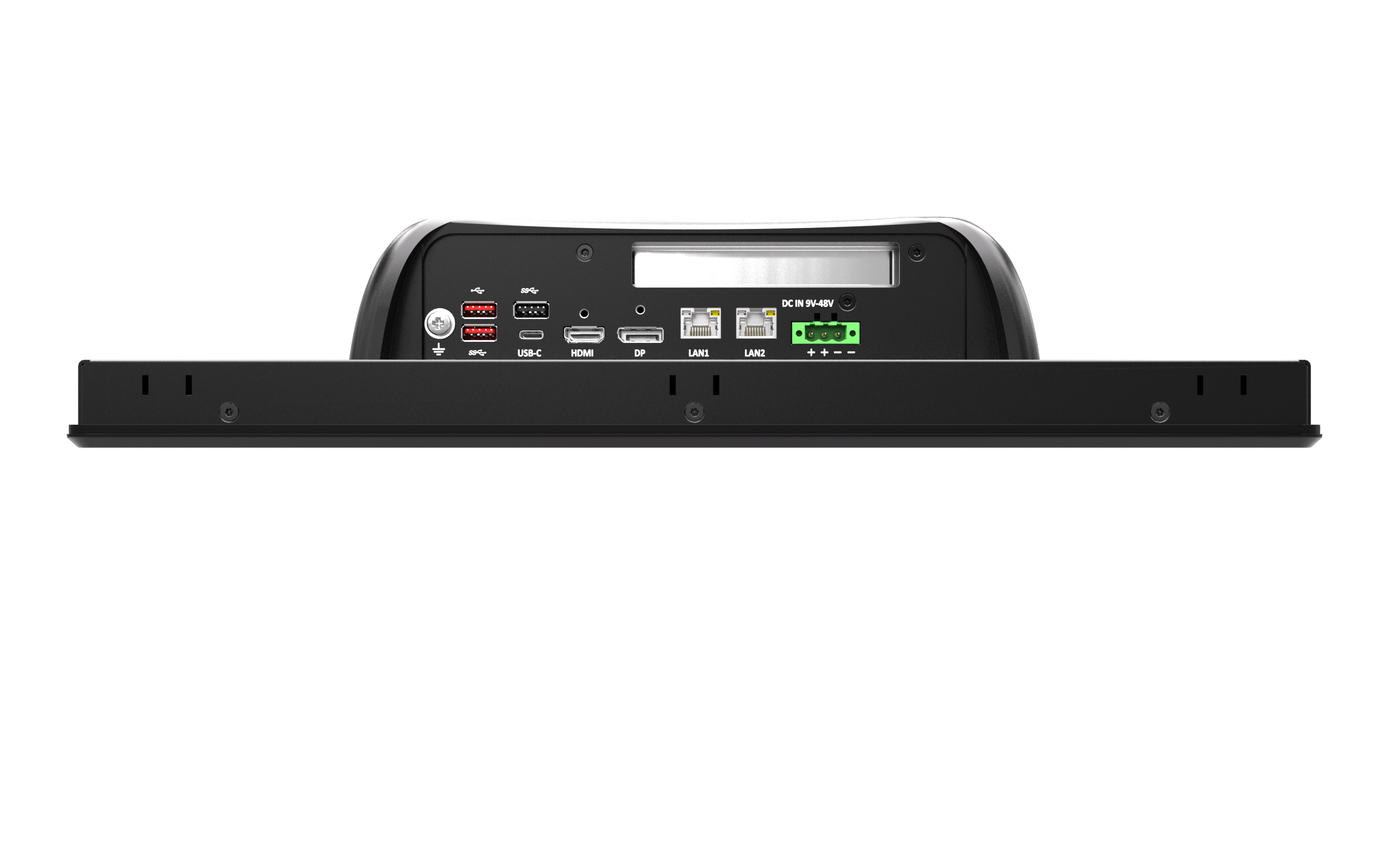

I/O
Audio	1x Mic-in, 1x Line-out
CAN	2x CAN 2.0 A/B 2-pin Header (Internal)
COM	4x RS-232/422/485 2x RS-232/422/485 (internal)
DIO	8 in / 8 out (Isolated)
LAN	2x RJ45
USB	1x USB 3.2 Gen 2 (10 Gbps) 1x USB 3.2 Gen 2 (Type C) 1x USB 3.2 Gen 1 (5 Gbps) 1x USB 2.0
DP	1x DisplayPort (4096 x 2160@60Hz)
HDMI	1x HDMI 1.4b (3840 x 2160@30Hz)
Others	4x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off
Others Features
OSD	LCD On/Off, Auto, Menu, Up and Down Multi-language
Speaker	2x 2w 8ohm
Operating System
Windows	Windows 10/11 IoT Enterprise LTSC (64-bit)
Linux	Ubuntu 22.04 / 24.04 LTS, Linux 5.x / 6.x
Power
Power Adapter	Optional AC/DC 12V/5A, 60W
Power Mode	AT, ATX
Power Supply Voltage	9~36 VDC
Power Connector	3-Pin Terminal Blcok
Power Protection	OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection Surge Protection (DC mode)
Environment
Operating Temperature	0 °C to 50 °C
Storage Temperature	-20 °C to 70°C
Relative Humidity	10%~95% (non-condensing)
IP Level	IP 65 Compliant Front Panel
Certification	UL 62368-1 Ed. 3,, CE, FCC Class B
Vibration	With SSD: 3 Grms, 5 - 500 Hz, 0.5 hr/axis With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock	20G, half sine, 11ms
Physical

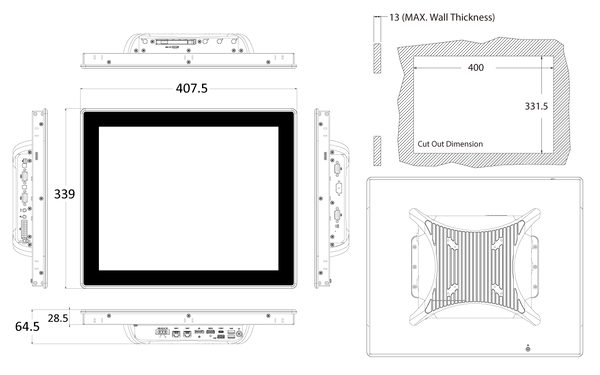

Dimensions	VIO-317-PC100-ASL: 407.5 (W) x 339 (D) x 64.5 (H) mm VIO-317-PC100-ASL-1E: 407.5 (W) x 339 (D) x 86.5 (H) mm
Construction	Extruded Aluminum with Heavy Duty Metal

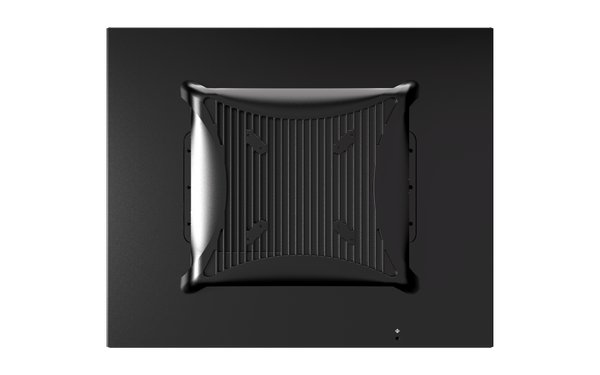

Mounting	VESA Mounting Holes 75 x 75mm, 100 x 100mm
