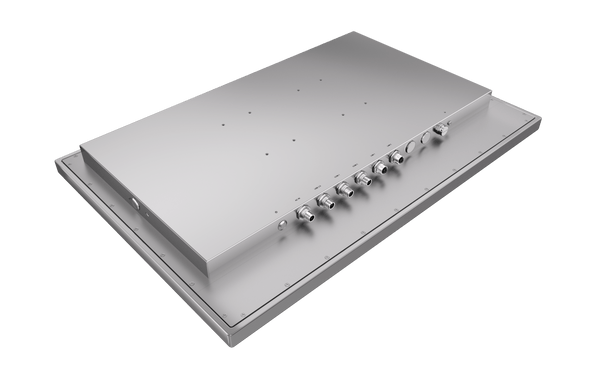

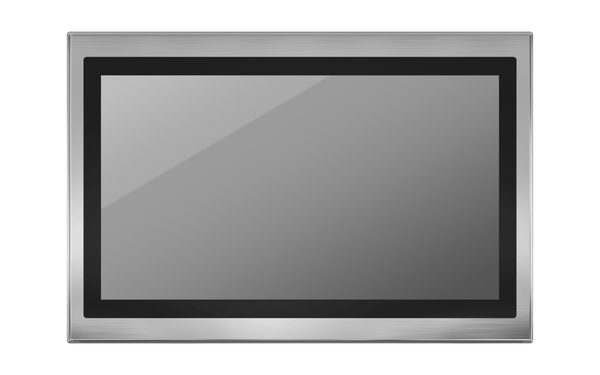

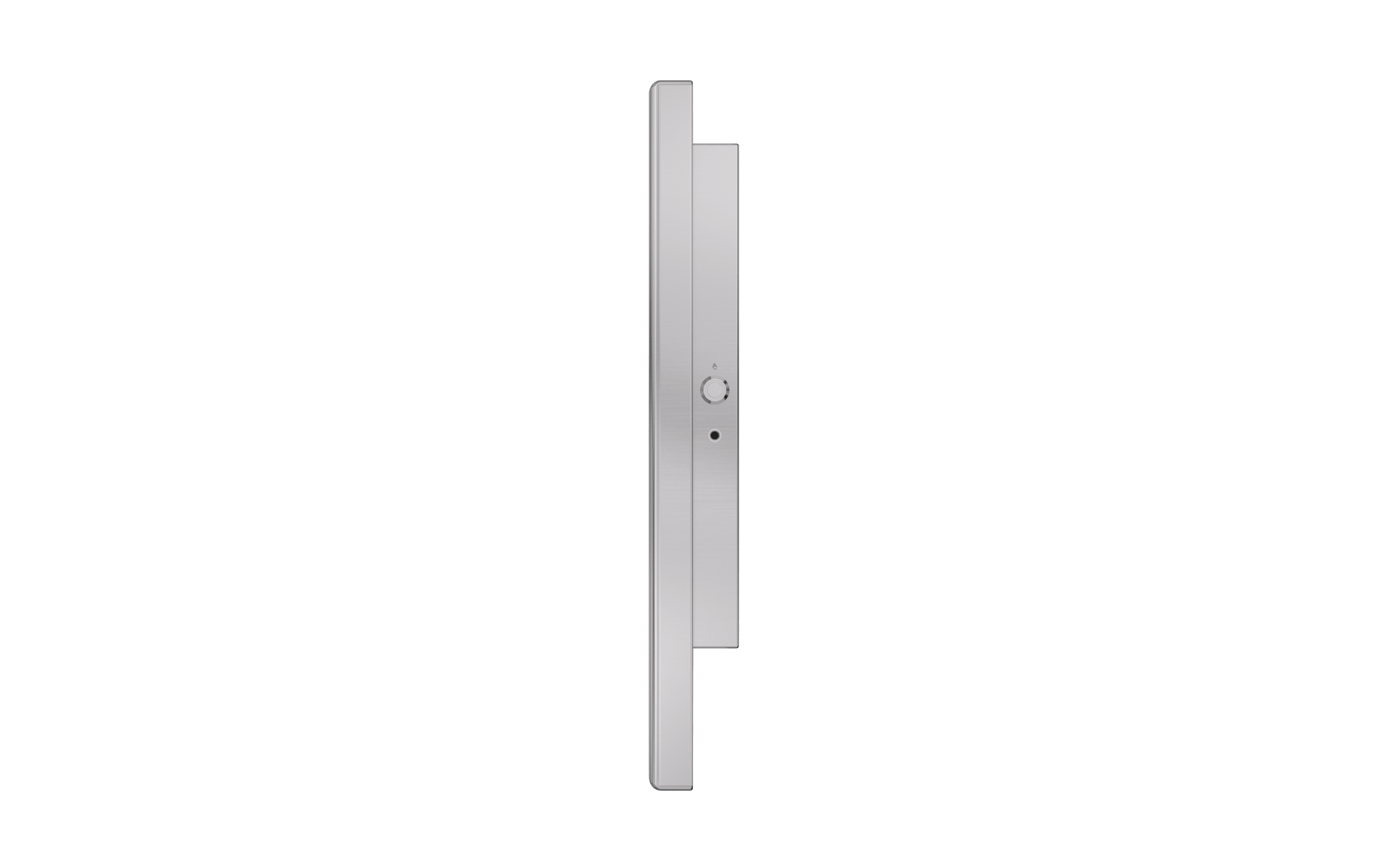

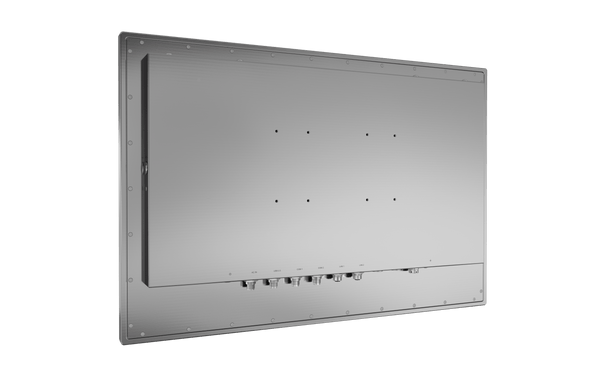

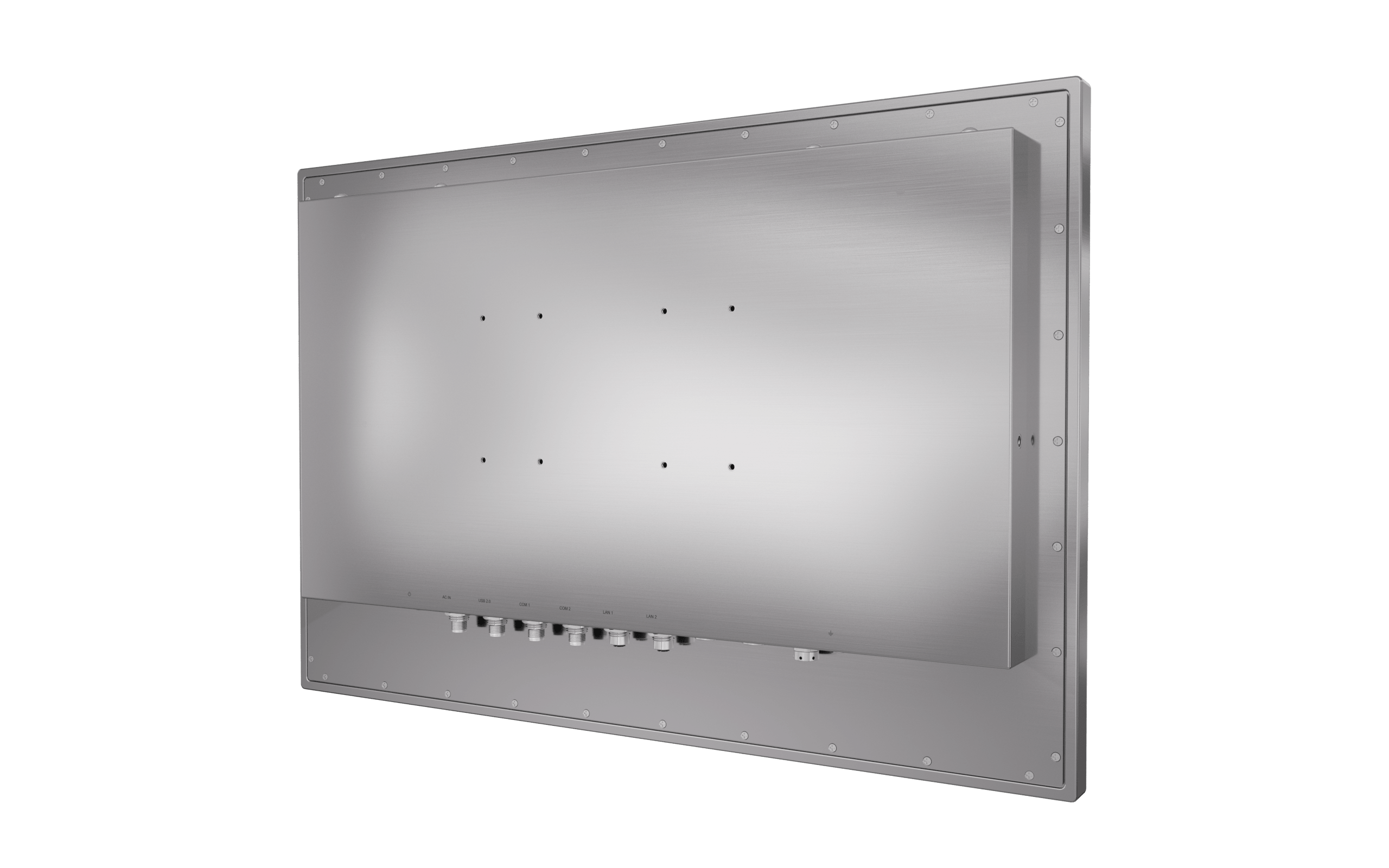

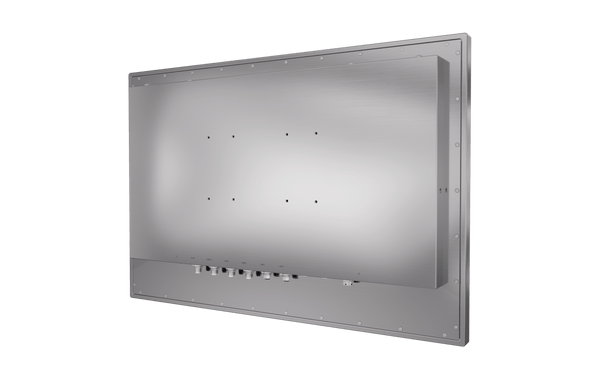

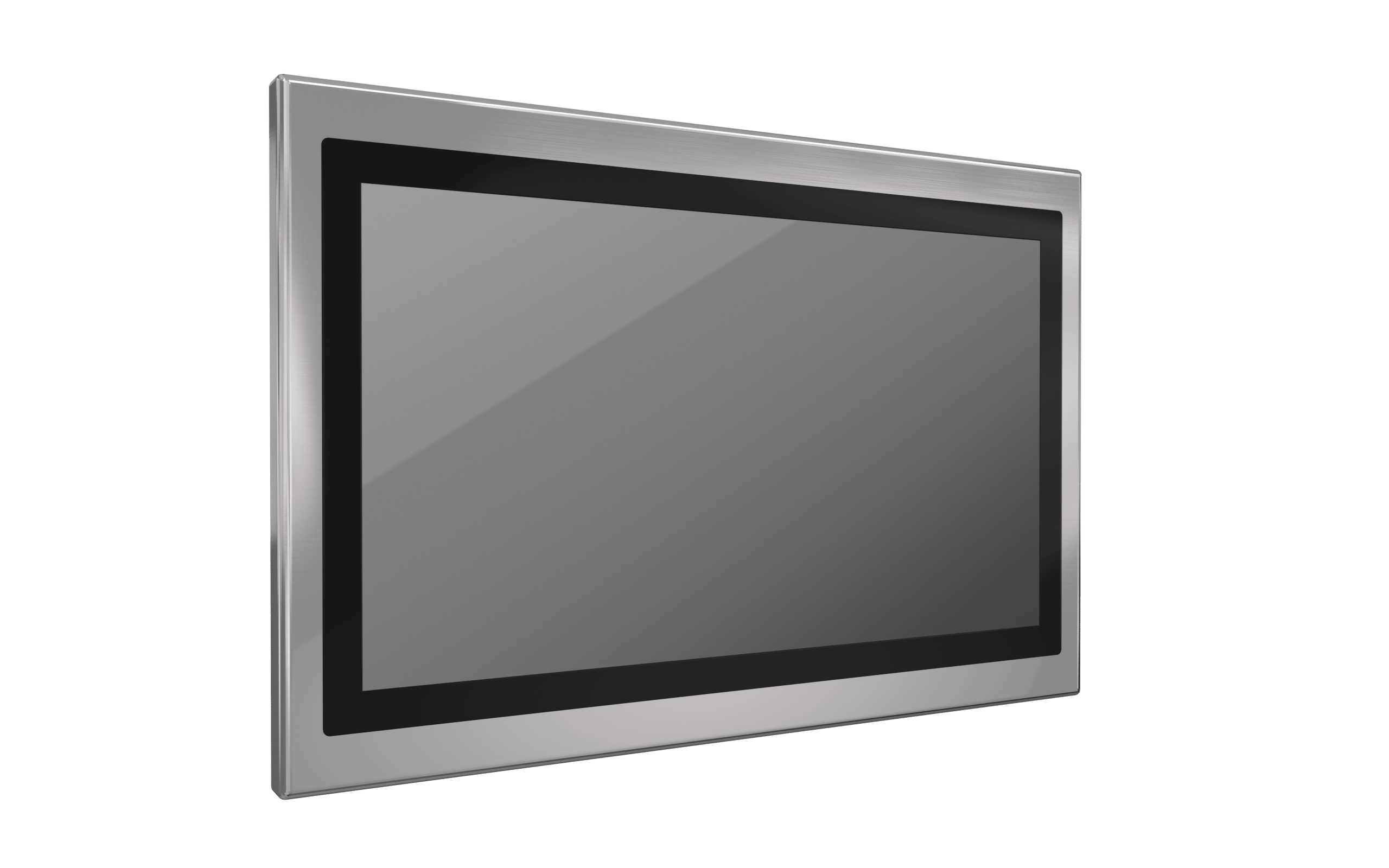

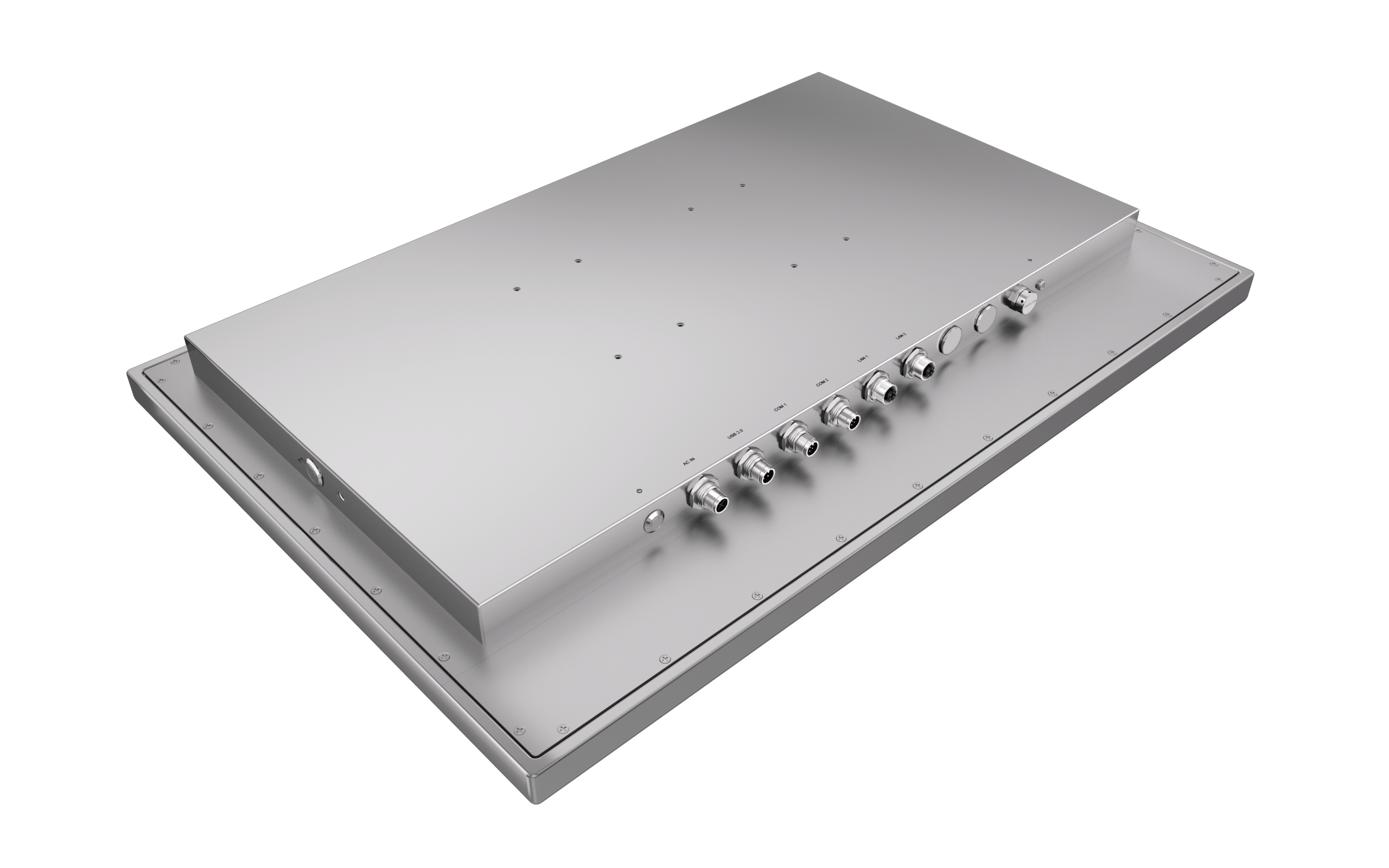

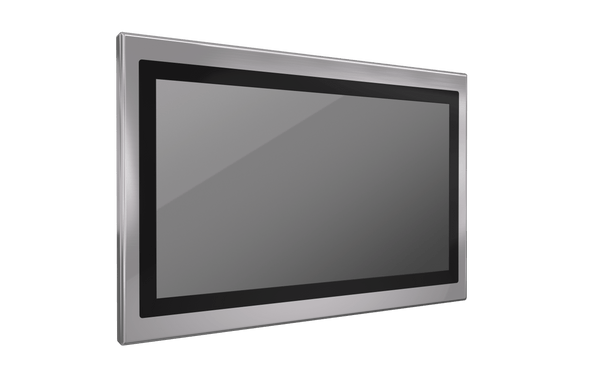

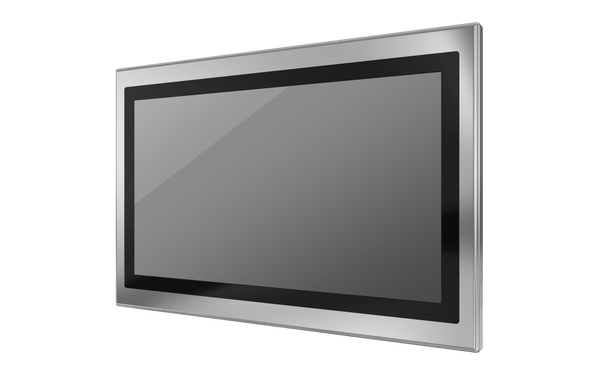

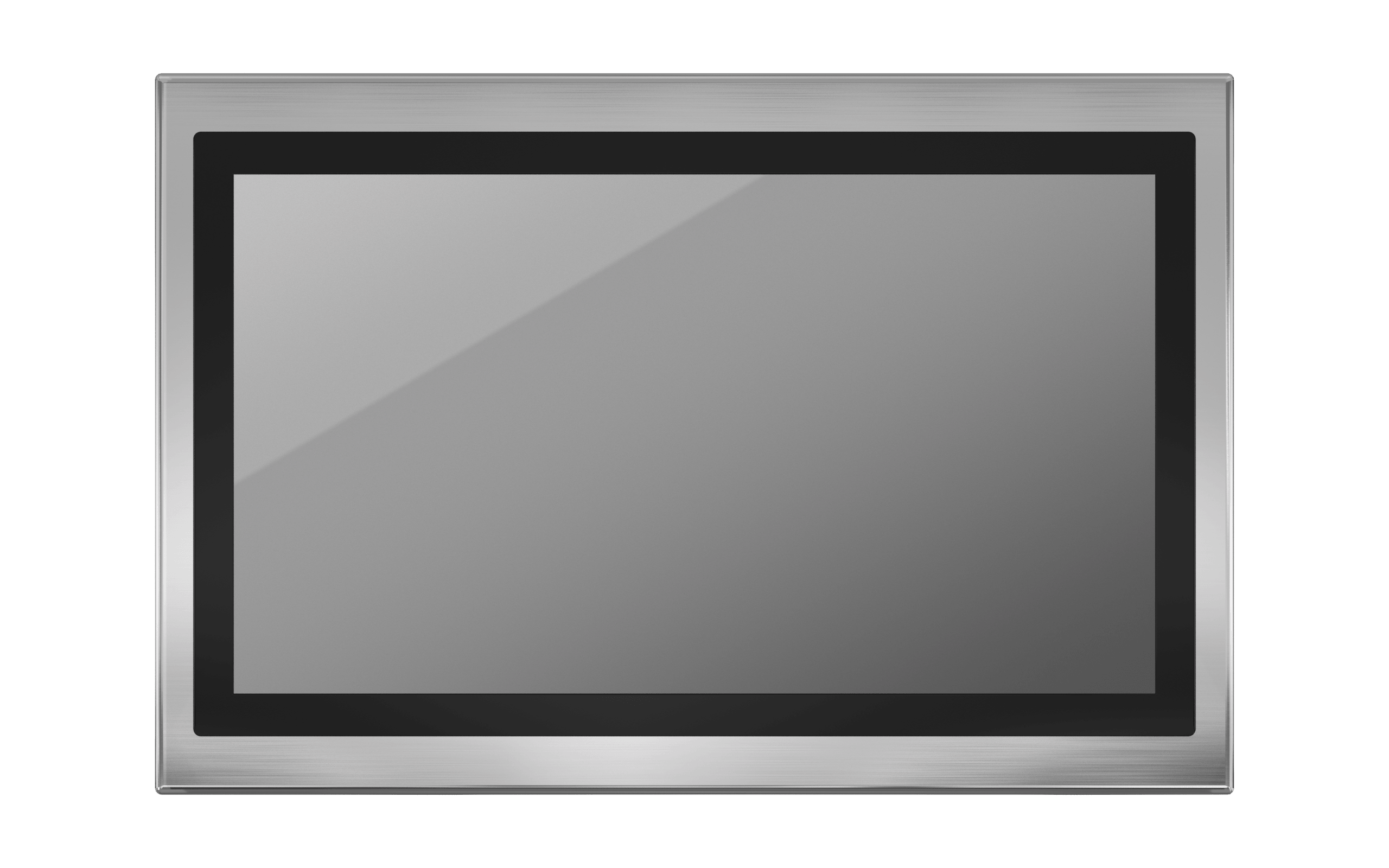

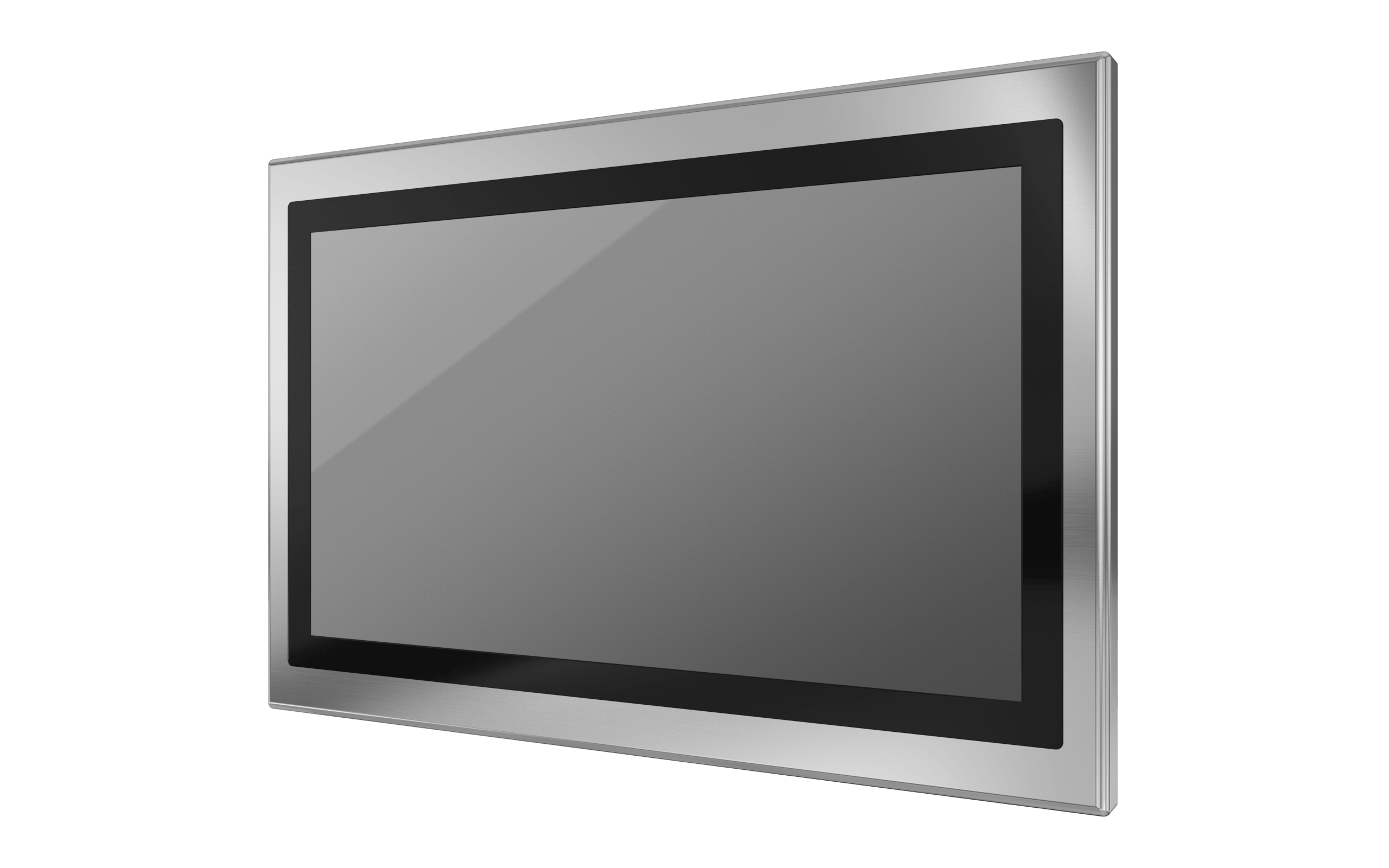

SIO-W324-MTL 23,8" Edelstahl-Panel-PC mit Intel® Core™ Ultra 5 125U Prozessor, 2x LAN, 2x COM, 2x USB
• 23,8" (16:9) FHD LCD-Touchscreen (kapazitiv)
• 1x 262-Pin DDR5 5600 SO-DIMM, max. 48 GB
• 1x M.2 M-Key für NVMe/SATA, automatische Erkennung
• 1x M.2 B-Key für 4G/5G-Unterstützung, 1x M.2 E-Key für WLAN/Bluetooth
• 2x 2,5-GbE-LAN, 2x USB, 2x COM
• Unterstützt 110–240 V Wechselstrom
• Lüfterloser Betrieb von -10 °C bis 50 °C
• Vollständige Schutzart IP66/IP69K mit Edelstahlgehäuse (SUS316)
• Kratzfestes Glas (Härtegrad 7H)
• Optische Verklebung für optimale Bildschärfe
• Druckventil (SUS316L)
• CE- und FCC-Klasse A
• 1x 262-Pin DDR5 5600 SO-DIMM, max. 48 GB
• 1x M.2 M-Key für NVMe/SATA, automatische Erkennung
• 1x M.2 B-Key für 4G/5G-Unterstützung, 1x M.2 E-Key für WLAN/Bluetooth
• 2x 2,5-GbE-LAN, 2x USB, 2x COM
• Unterstützt 110–240 V Wechselstrom
• Lüfterloser Betrieb von -10 °C bis 50 °C
• Vollständige Schutzart IP66/IP69K mit Edelstahlgehäuse (SUS316)
• Kratzfestes Glas (Härtegrad 7H)
• Optische Verklebung für optimale Bildschärfe
• Druckventil (SUS316L)
• CE- und FCC-Klasse A
Modell:
SIO-W324-MTL
Zertifizierungen:
Spezifikationen
| Display | |
|---|---|
| IP Rating | IP66/IP69K |
| LCD Size | 23.8" (16:9) |
| Max. Resolution | 1920 x 1080 (FHD) |
| Brightness (cd/m²) | 450 nits |
| Contrast Ratio | 1000:1 |
| LCD Color | 16.7M |
| Pixel Pitch (mm) | 0.248 (H) x 0.248 (V) |
| Viewing Angle | 89 /89 /89 /89 (Typ.) (CR>=10) |
| Backlight Lifetime | 50,000 hrs (LED Backlight) |
| Touch | |
| Projected Capacitive Touch | Surface Hardness: 7H / IK07 Multi-touch: Default 2 point (Support Glove Mode) Anti-noise: CS 10V rms |
| Resistive Touch (Option) | Surface Hardness: 3H Touch Point: single Touch IP Rating: IP65 |
| System | |
| Processor | Intel® Core™ Ultra 5 Processor 125U 12M Cache, up to 4.30 GHz (2+8+2 core), 15W |
| System Chipset | SoC Integrated |
| LAN Chipset | GbE1: Intel i226V 2.5GbE LAN PXE Support GbE2: Intel i226V 2.5GbE LAN PXE Support |
| Audio Codec | Realtek ALC897 |
| System Memory | 1x 262-Pin DDR5 5600 MT/s SO-DIMM. Max. up to 48GB (Non-ECC) |
| BIOS | AMI uEFI 256MB SPI flash |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| Storage | |
| M.2 | 1x M.2 M-Key (2280, PCIe x4 Gen 4/SATA) support for NVMe/ SATA SSD, Auto Detect |
| Expansion | |
| M.2 | 1 x M.2 B-Key (3042/3052, PCIe x2+USB 3.0+USB 2.0) support for 4G/5G 1 x M.2 E-Key (2230, PCIe+USB 2.0) for Wifi/Bluetooth |

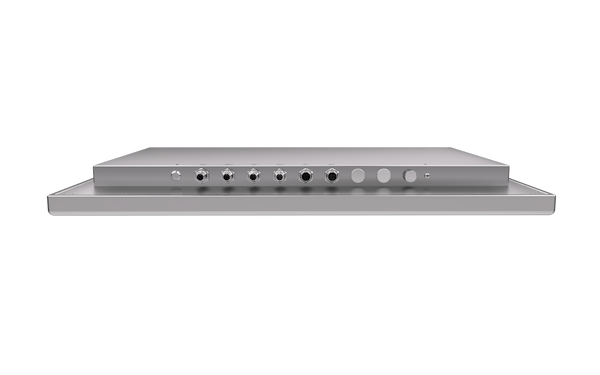

| I/O | |

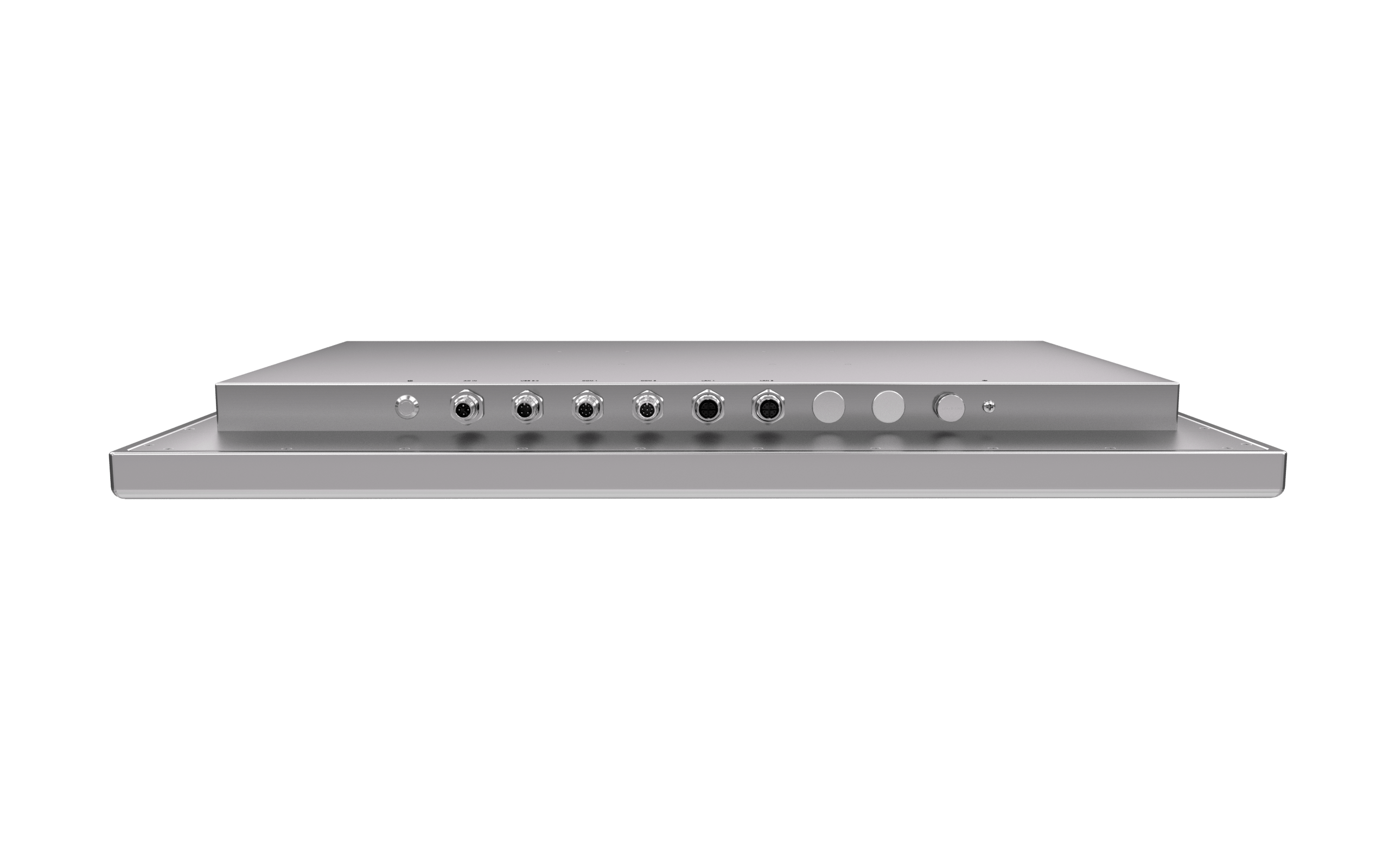

| COM | COM1: 1x RS232/422/485 by M12 A-Code 8-pin (Default RS232) COM2: 1x RS232 by M12 A-Code 8-pin |
| LAN | 2x LAN by M12 X-Code 8-pin |
| USB | 1x M12 A-code by 2x USB 2.0 (8-pin) |
| Others | 4x Antennas (Optional) Power On/Off SUS 316 Vent |
| Operating System | |
| Windows | Windows 10 IoT Enterprise LTSC (64-bit) Windows 11 IoT Enterprise LTSC (64-bit) |
| Linux | Ubuntu 22.04 / 24.04 LTS |
| Power | |
| Power Mode | AT / ATX (default) |
| Power Supply Voltage | 110 ~ 240V AC Input |
| Power Connector | M12 S-code 4-pin |
| Environment | |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Relative Humidity | 10% ~ 80% (non-condensing) |
| IP Level | Full System IP66/IP69K |
| Certification | CE, FCC Class A |
| Vibration | With SSD: 3 Grms (5 - 500 Hz, 0.5 hr/axis) |
| Shock | With SSD: 20G half-sin 11ms |
| Physical | |
| Dimensions | 623 (W) x 417 (H) x 54 (D) mm |
| Weights | 12 kg |
| Construction | Stainless Steel SUS316 with Optical bonding |

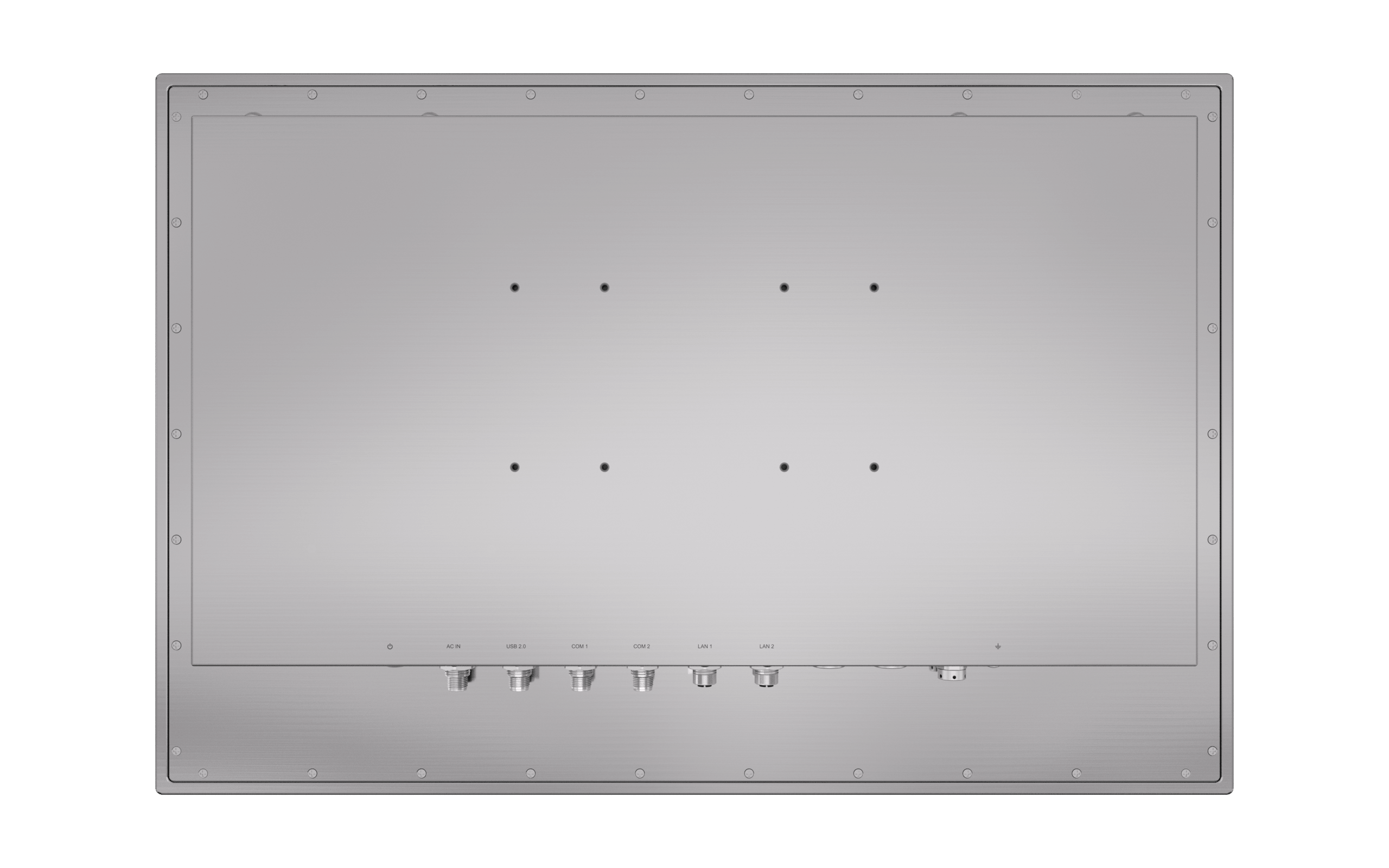

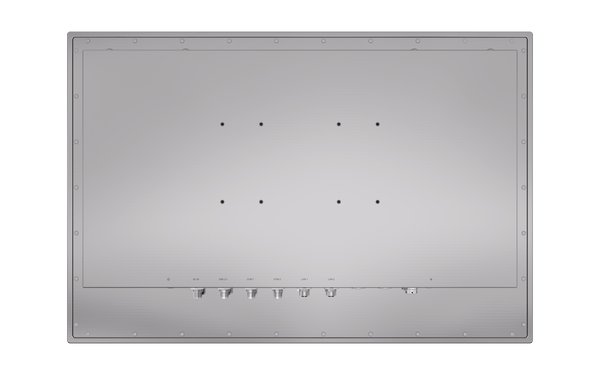

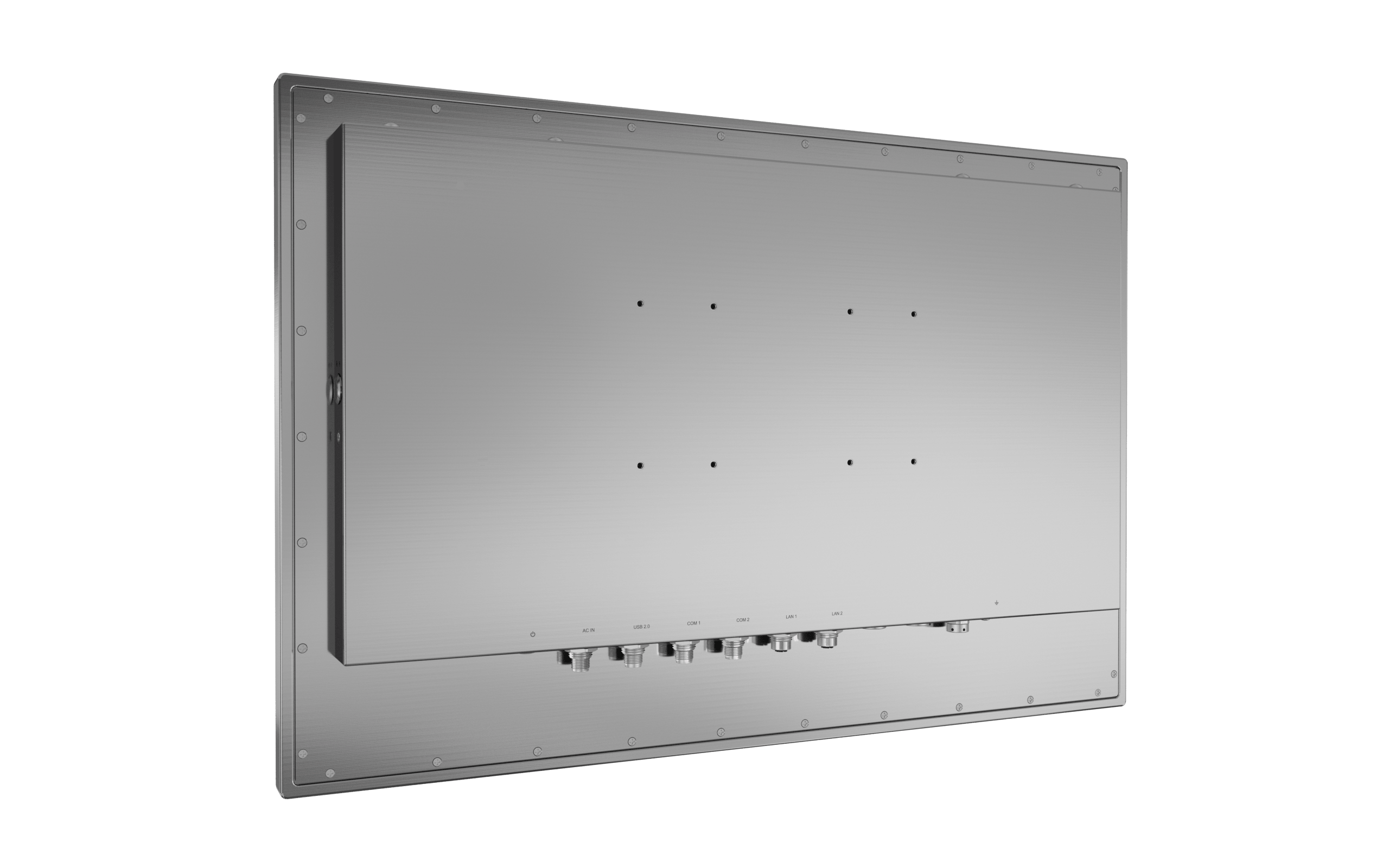

| Mounting Options | VESA Mounting Holes 100 x 100 mm or 200 x 100 mm Optional Yoke Mount |
