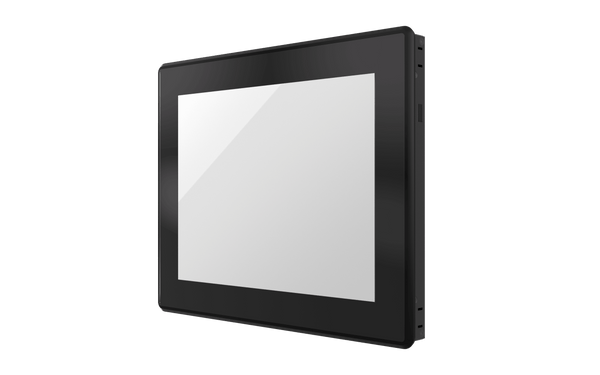

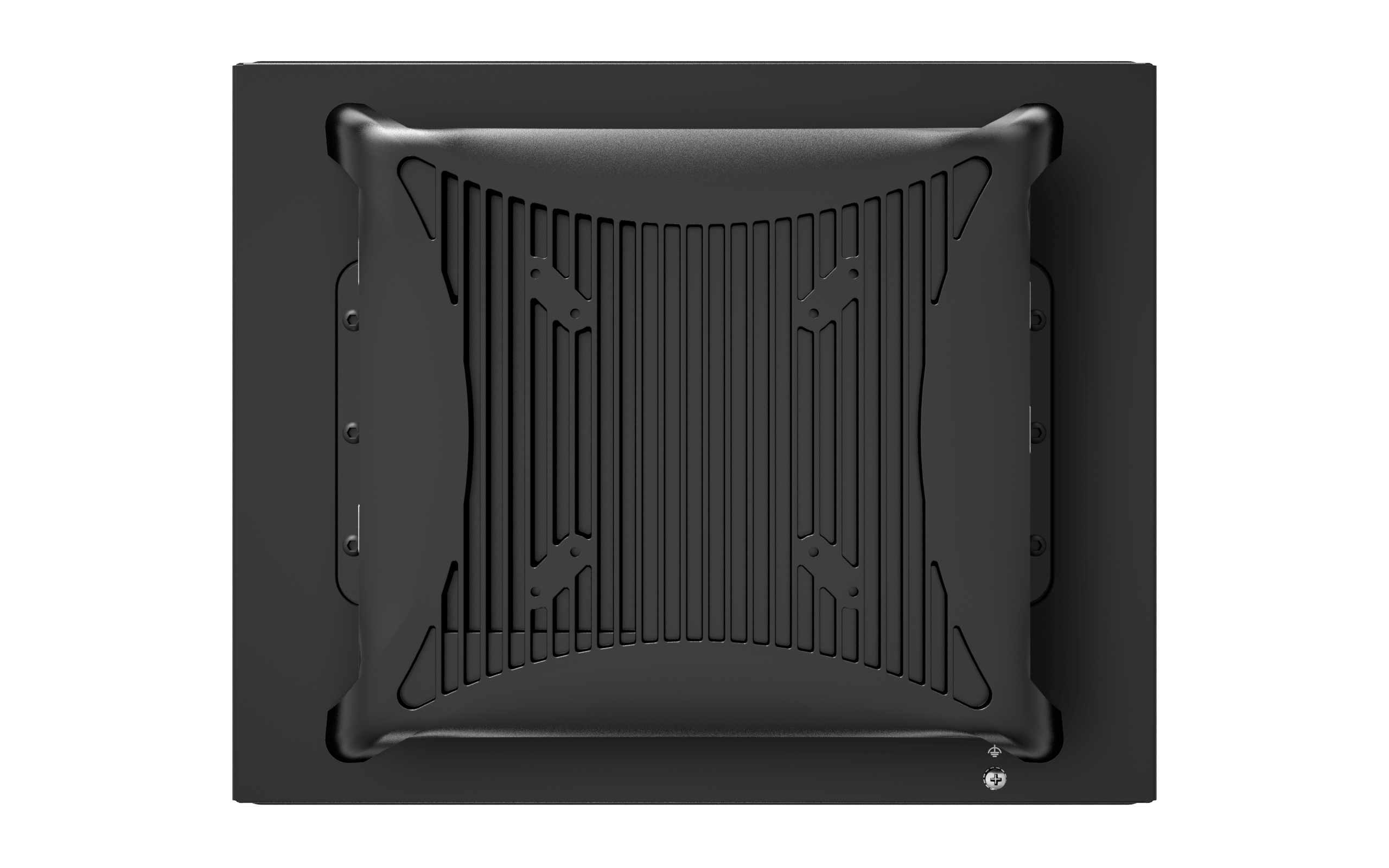

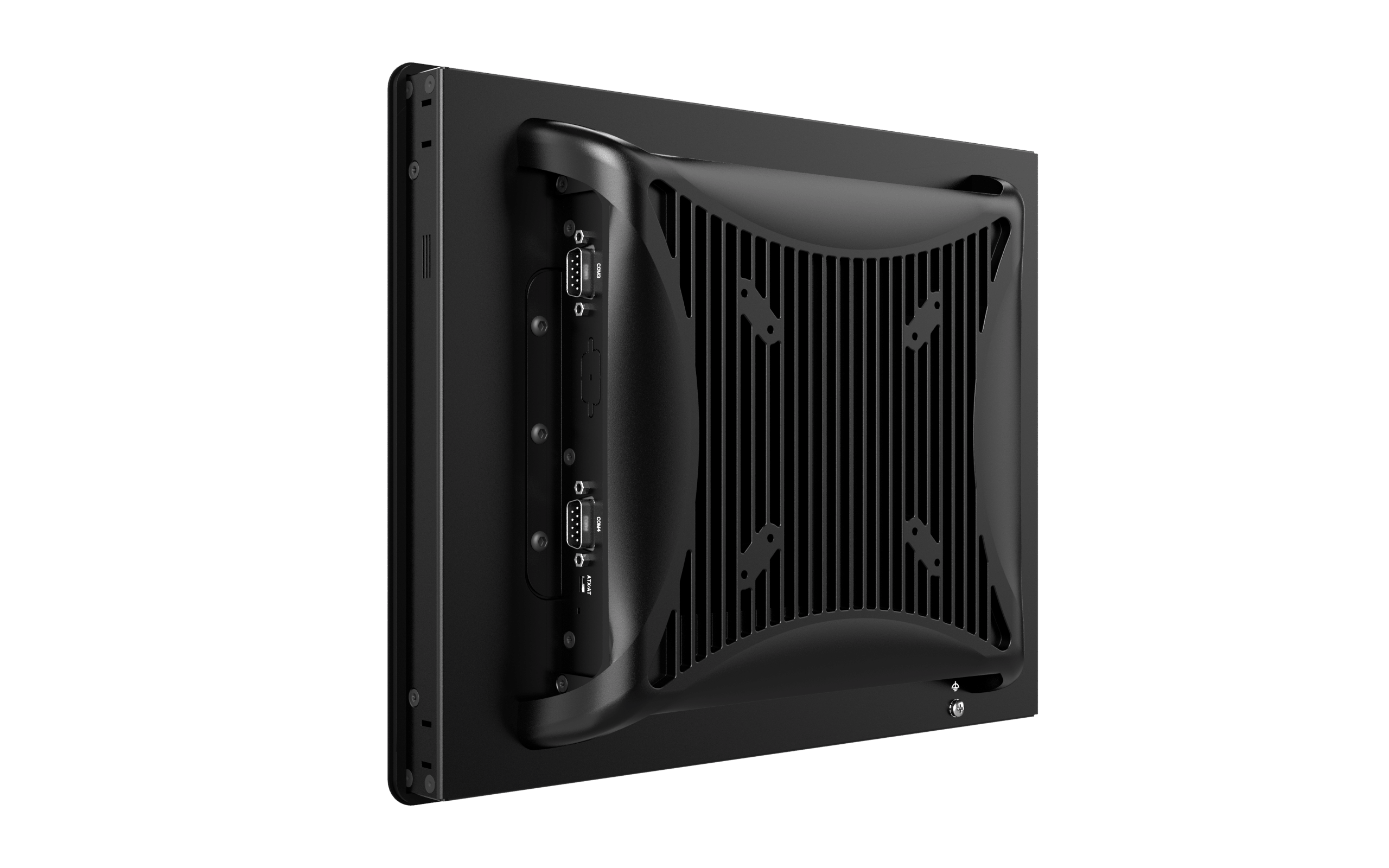

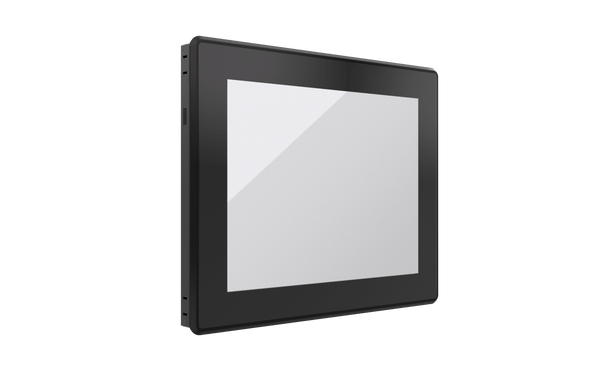

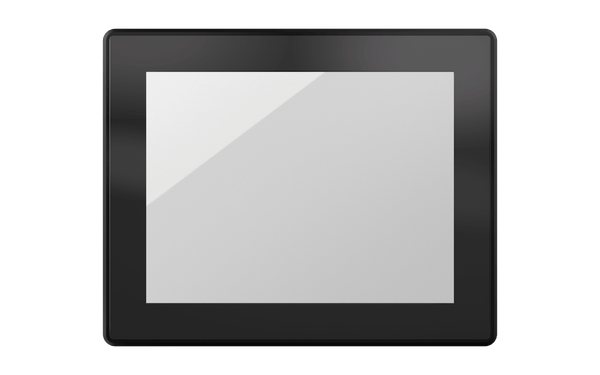

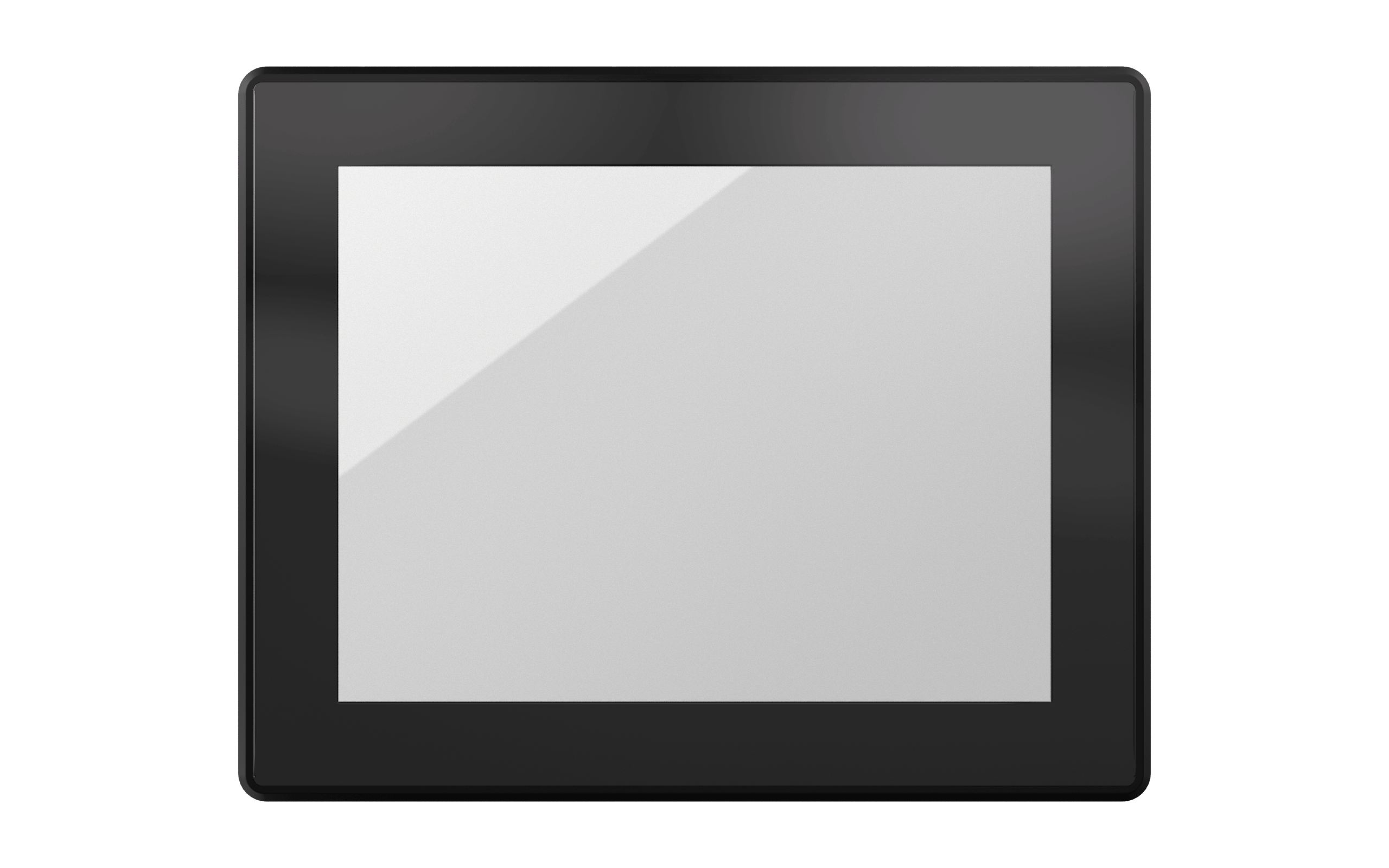

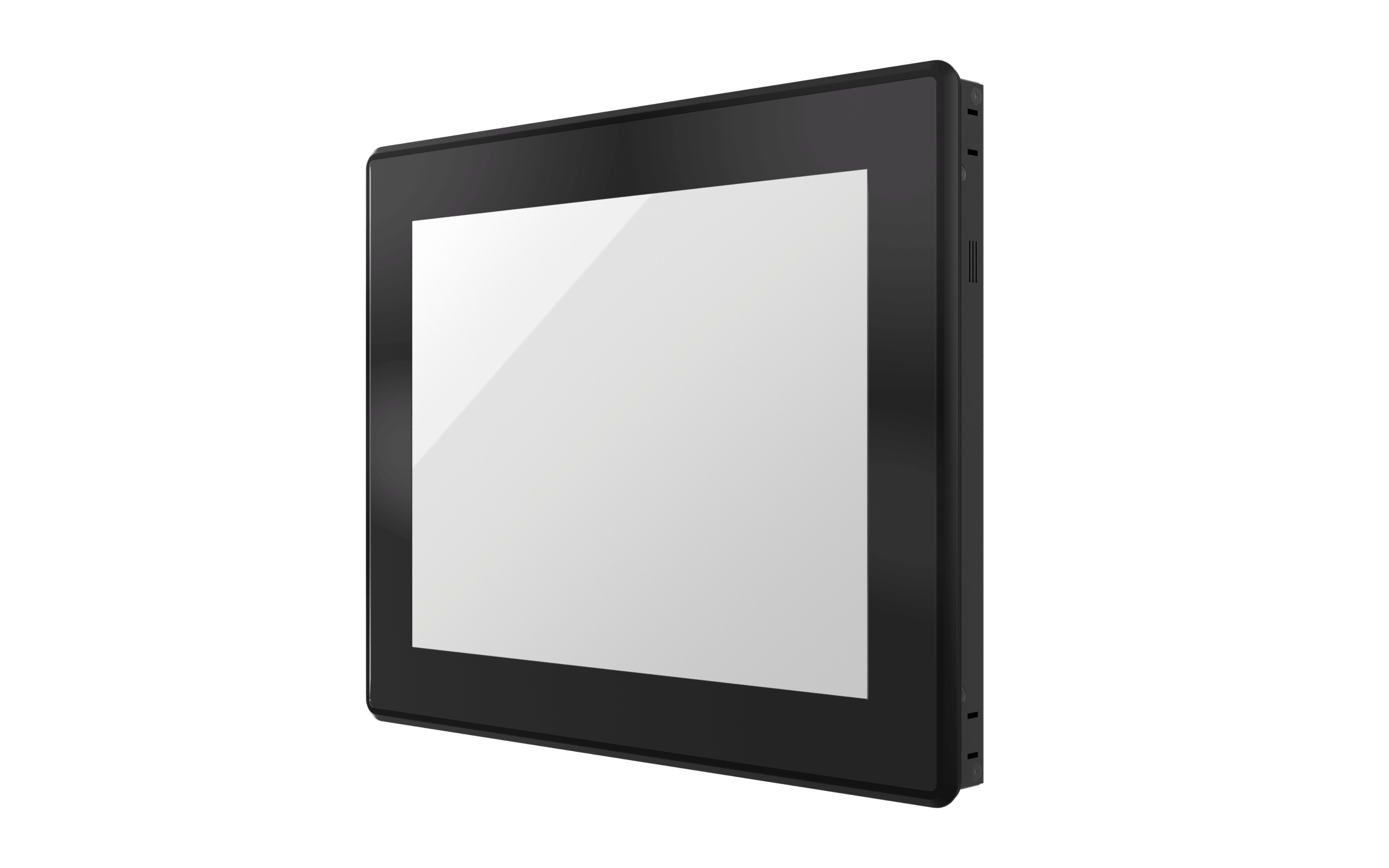

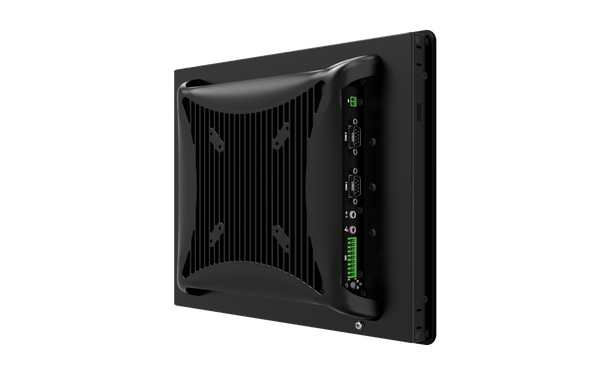

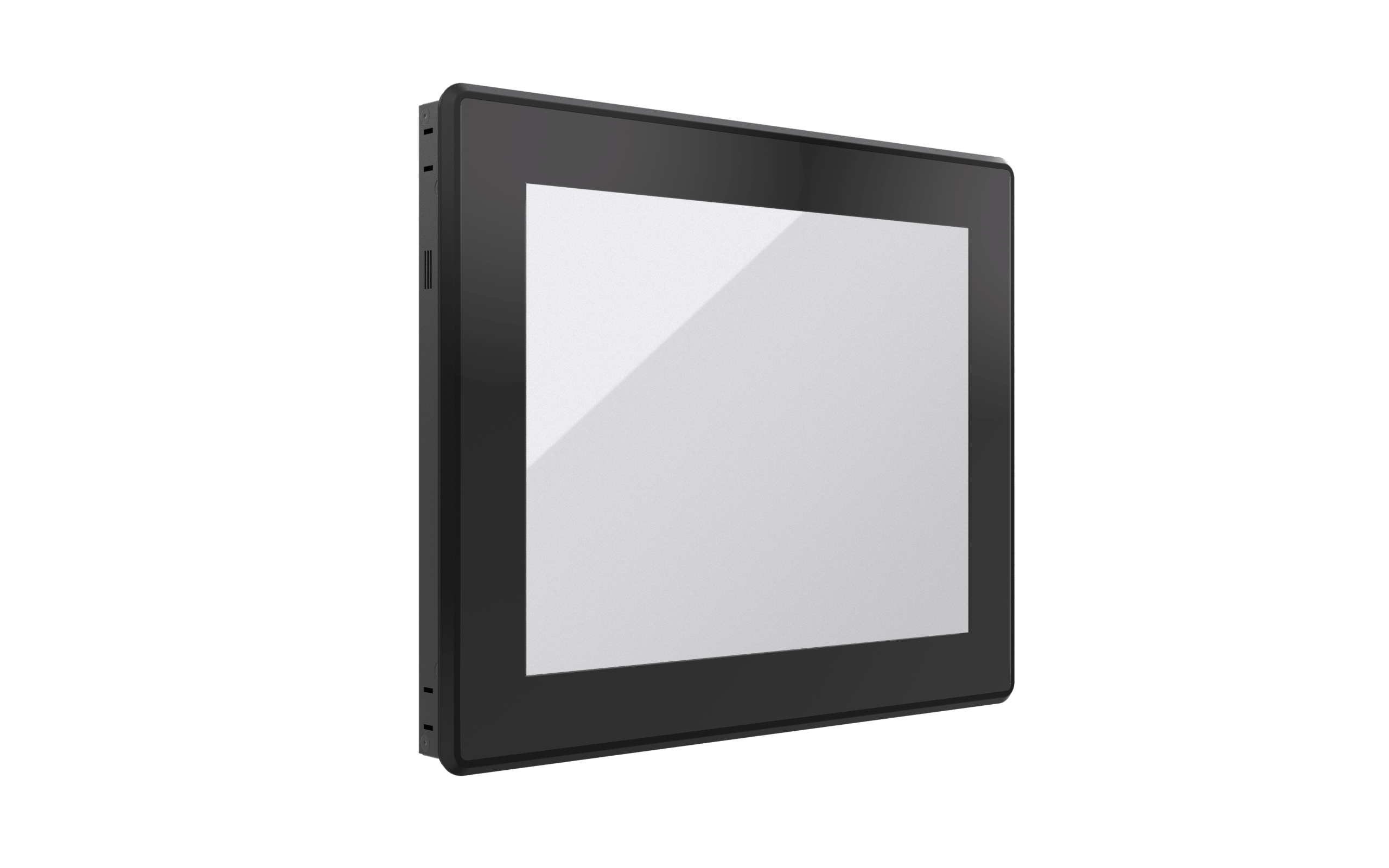

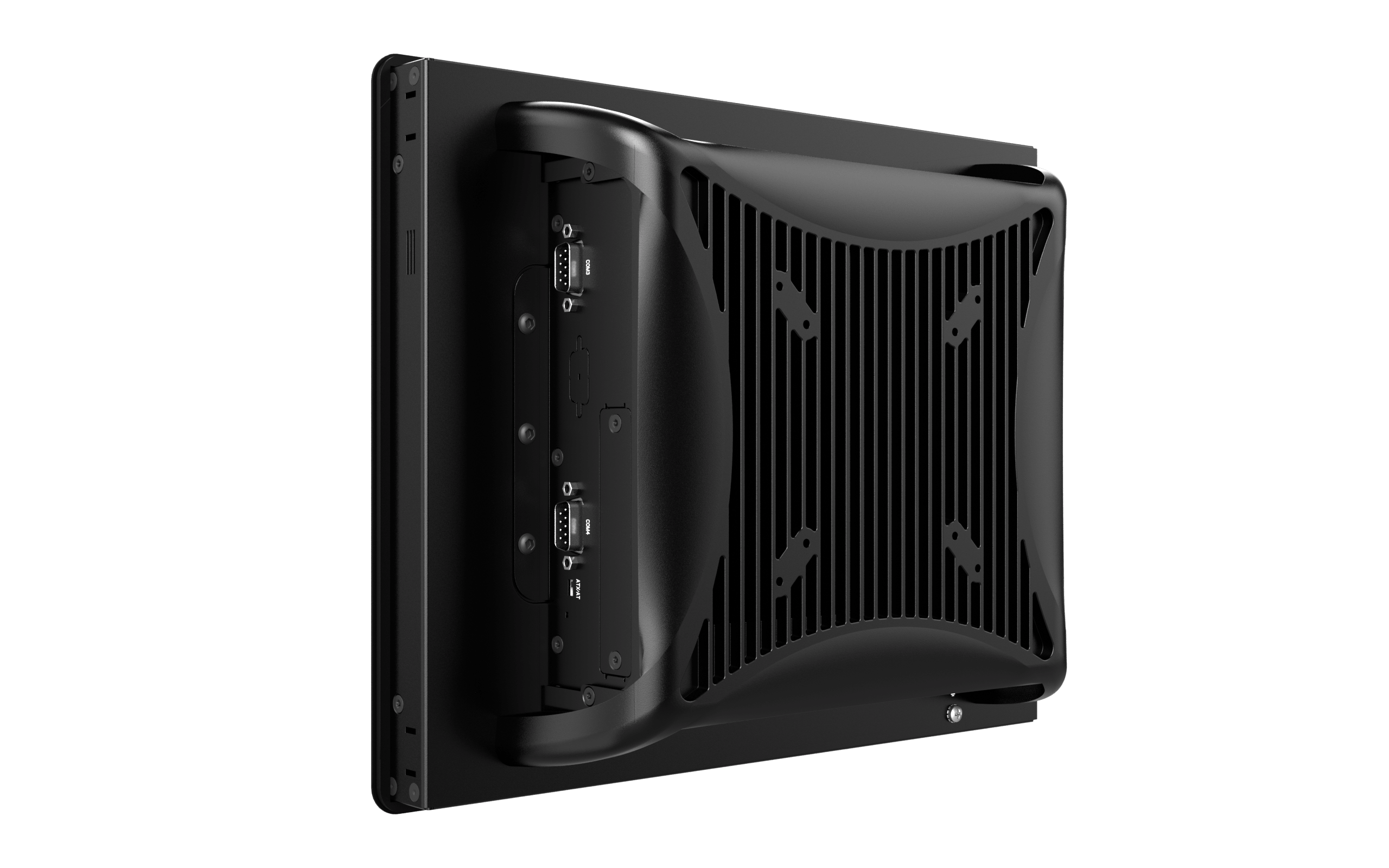

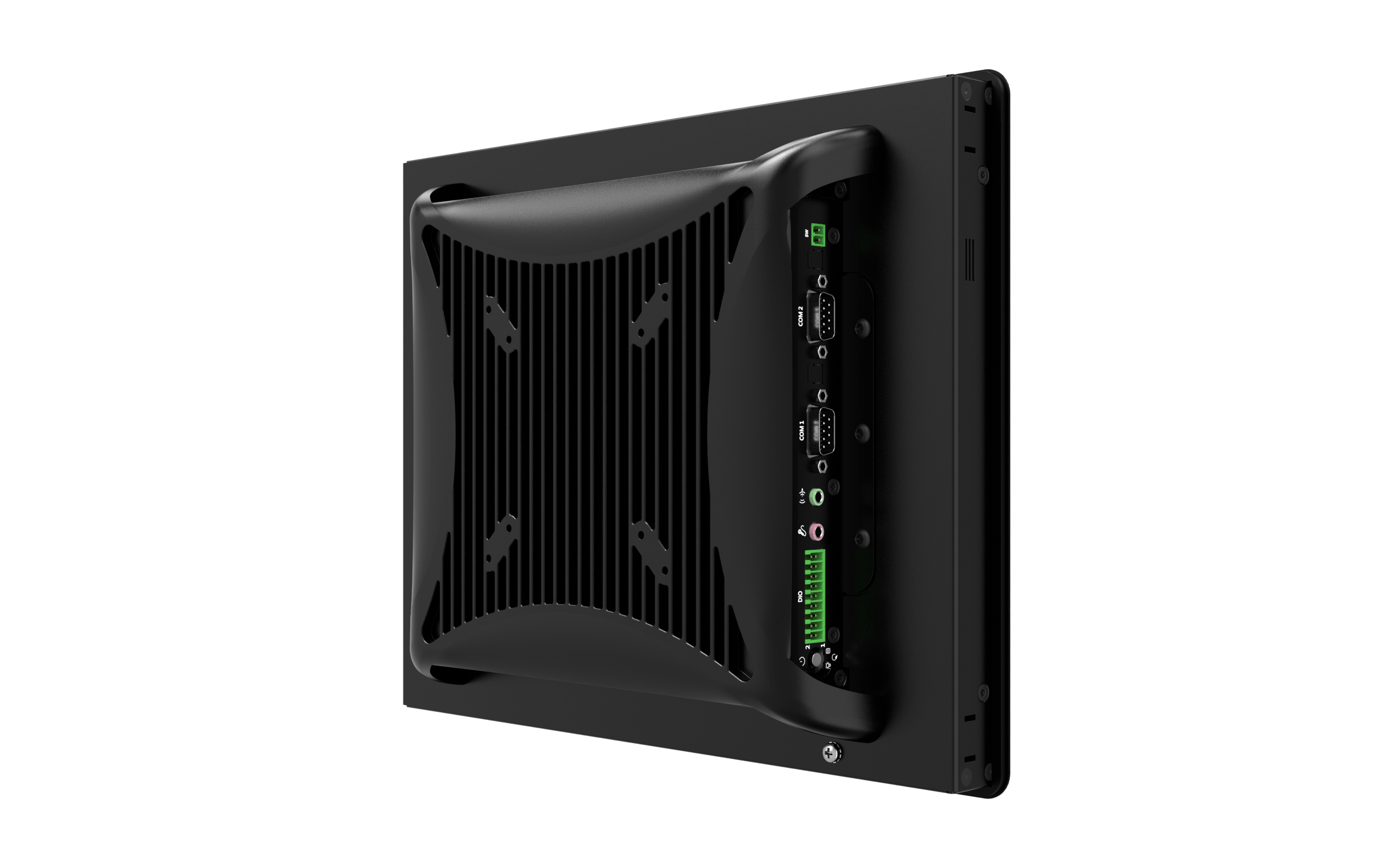

VIO-312-PC600-MTL Ordenador industrial con pantalla táctil XGA de 12,1" IP65 con procesador Intel® Core™ Ultra Series, 1x DP, 3x USB, 2x LAN, 4x COM
• Pantalla LCD TFT XGA 4:3 de 12,1" con táctil capacitivo proyectado y resistivo de 5 hilos
• Procesador Intel® Core™ Ultra Series Meteor Lake-U
• 1 módulo SODIMM DDR5 de 5600 MT/s (hasta 48 GB)

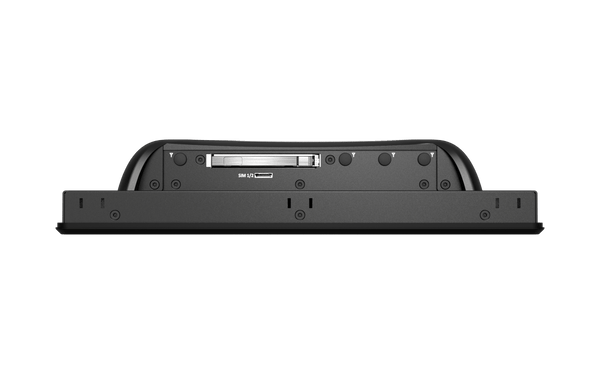

• 1 SSD SATA de 2,5" intercambiable en caliente, 1 NVMe M.2 M-Key

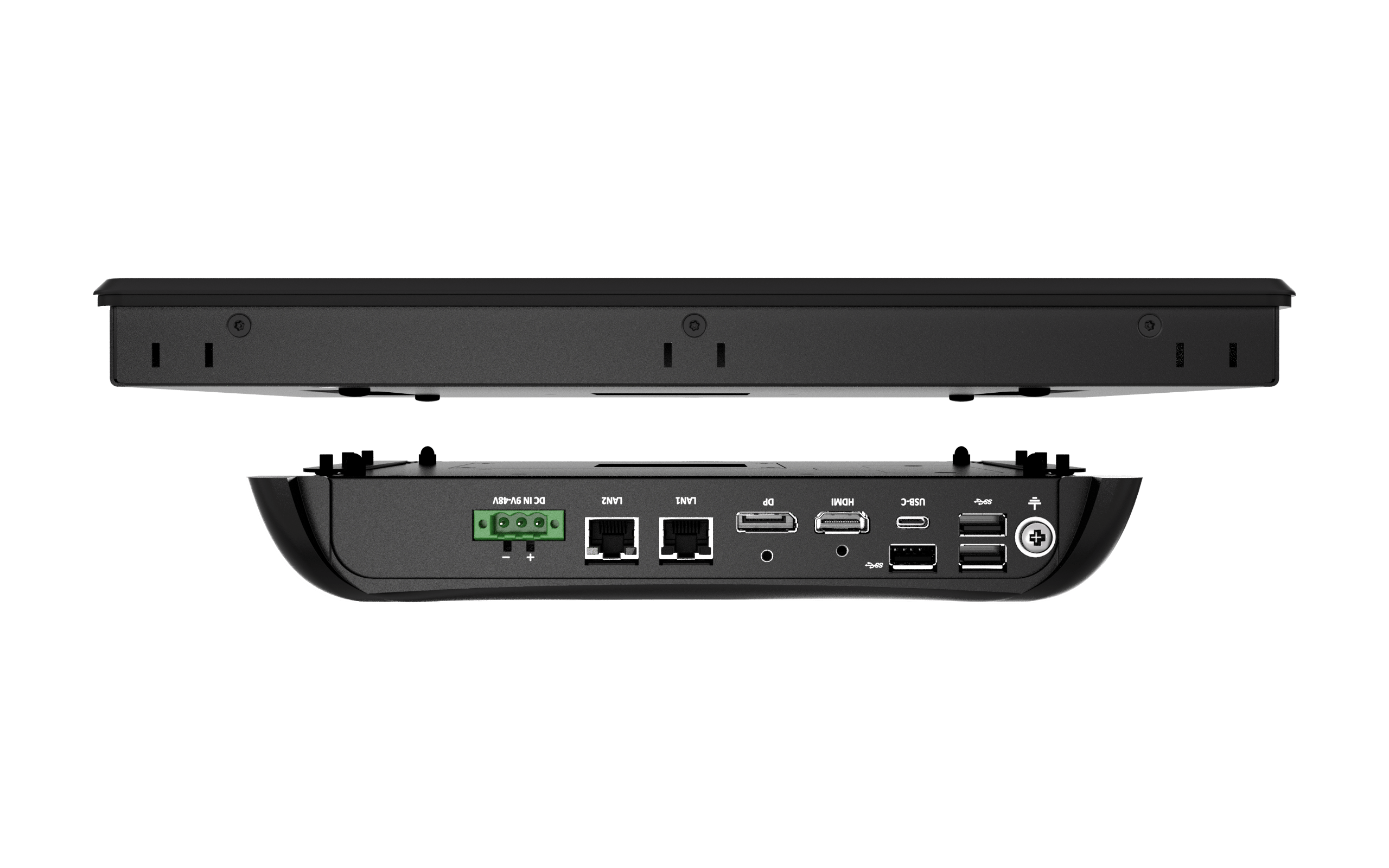

• 2 puertos LAN RJ45, 1 DisplayPort, 1 HDMI
• 2 puertos USB 3.2, 1 USB-C 3.2 Gen 2, 1 USB 2.0
• 8 entradas digitales + 8 salidas digitales, 4 RS-232/422/485
• Entrada de alimentación de amplio rango de 9 a 48 V CC
• Temperatura de funcionamiento de 0 °C a 50 °C
• Panel frontal con certificación IP65
• Procesador Intel® Core™ Ultra Series Meteor Lake-U
• 1 módulo SODIMM DDR5 de 5600 MT/s (hasta 48 GB)
• 1 SSD SATA de 2,5" intercambiable en caliente, 1 NVMe M.2 M-Key
• 2 puertos LAN RJ45, 1 DisplayPort, 1 HDMI
• 2 puertos USB 3.2, 1 USB-C 3.2 Gen 2, 1 USB 2.0
• 8 entradas digitales + 8 salidas digitales, 4 RS-232/422/485
• Entrada de alimentación de amplio rango de 9 a 48 V CC
• Temperatura de funcionamiento de 0 °C a 50 °C
• Panel frontal con certificación IP65
Modelo:
VIO-312-PC600-MTL
Certificaciones:
Especificaciones
| Display | |
|---|---|
| IP Rating | IP65 |
| LCD Size | 12.1" (4:3) |
| Max. Resolution | 1024 x 768 (XGA) |
| Brightness (cd/m²) | 600 / 1000 (Optional) |
| Contrast Ratio | 1000:1 |
| LCD Color | 16.2M |
| Pixel Pitch (mm) | 0.24(H) x 0.24(V) |
| Viewing Angle | 178/178 |
| Backlight Lifetime | 50,000 hrs (LED Backlight) |
| Touch | |
| Touch Type | Projective Capacitive Resistive 5-Wire (optional) |
| Surface Hardness | 7H / IK07 |
| System | |
| Processor | Intel® Core™ Ultra 5 Processor 125U 12M Cache, up to 4.30 GHz Intel® Core™ Ultra 7 Processor 155U 12M Cache, up to 4.80 GHz |
| System Chipset | SoC Integrated |
| LAN Chipset | GbE1: Intel® i226 IT (Support Wake-on-LAN and PXE) GbE2: Intel® i226 IT (Support Wake-on-LAN and PXE) |
| Audio Codec | Realtek ALC888S |
| System Memory | 1x DDR5 5600 MT/s SODIMM. Max. up to 48GB |
| BIOS | AMI 64Mbit SPI BIOS |
| Watchdog | Software Programmable Supports 1~255 sec. System Reset |
| TPM | TPM 2.0 |
| Storage | |
| SIM Socket | 1x Dual Nano SIM socket |
| SSD/HDD | 1x Hotswap 2.5" SATA HDD Bay, 1x M.2 M-key 2280 NVMe |
| Expansion | |
| M.2 | 2x M.2 B-Key PCIe x2, USB 3.0 2242/3042/3052 1x M.2 E-Key PCIe x1, USB 2.0 2230 |
| PCIe | 1x PCIe x4 Slot (Gen 3, 4-Lane; 1E Model Only) |

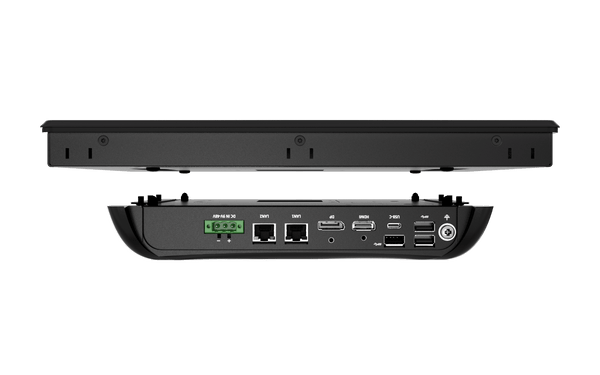

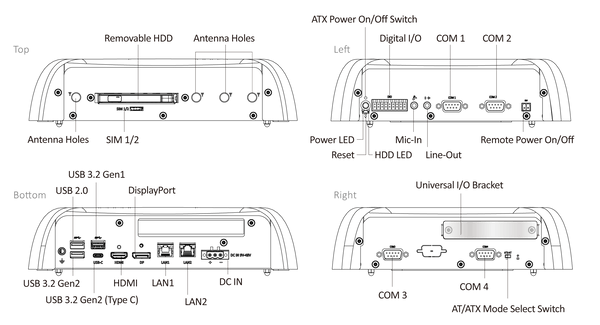

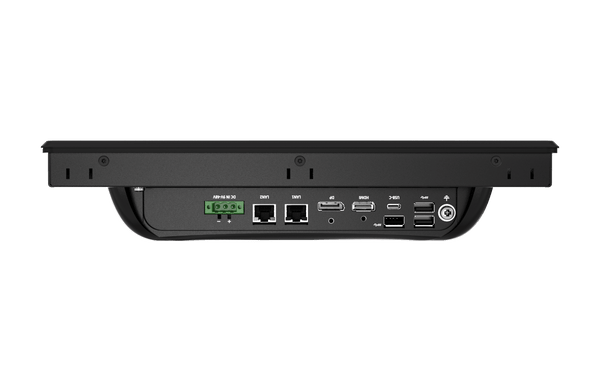

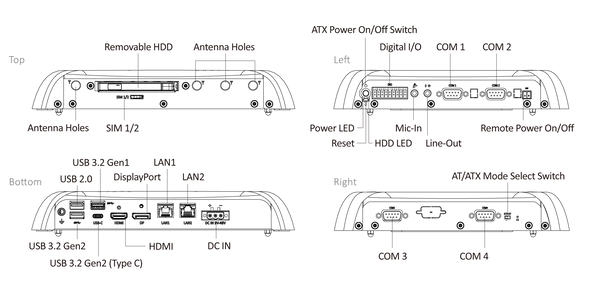

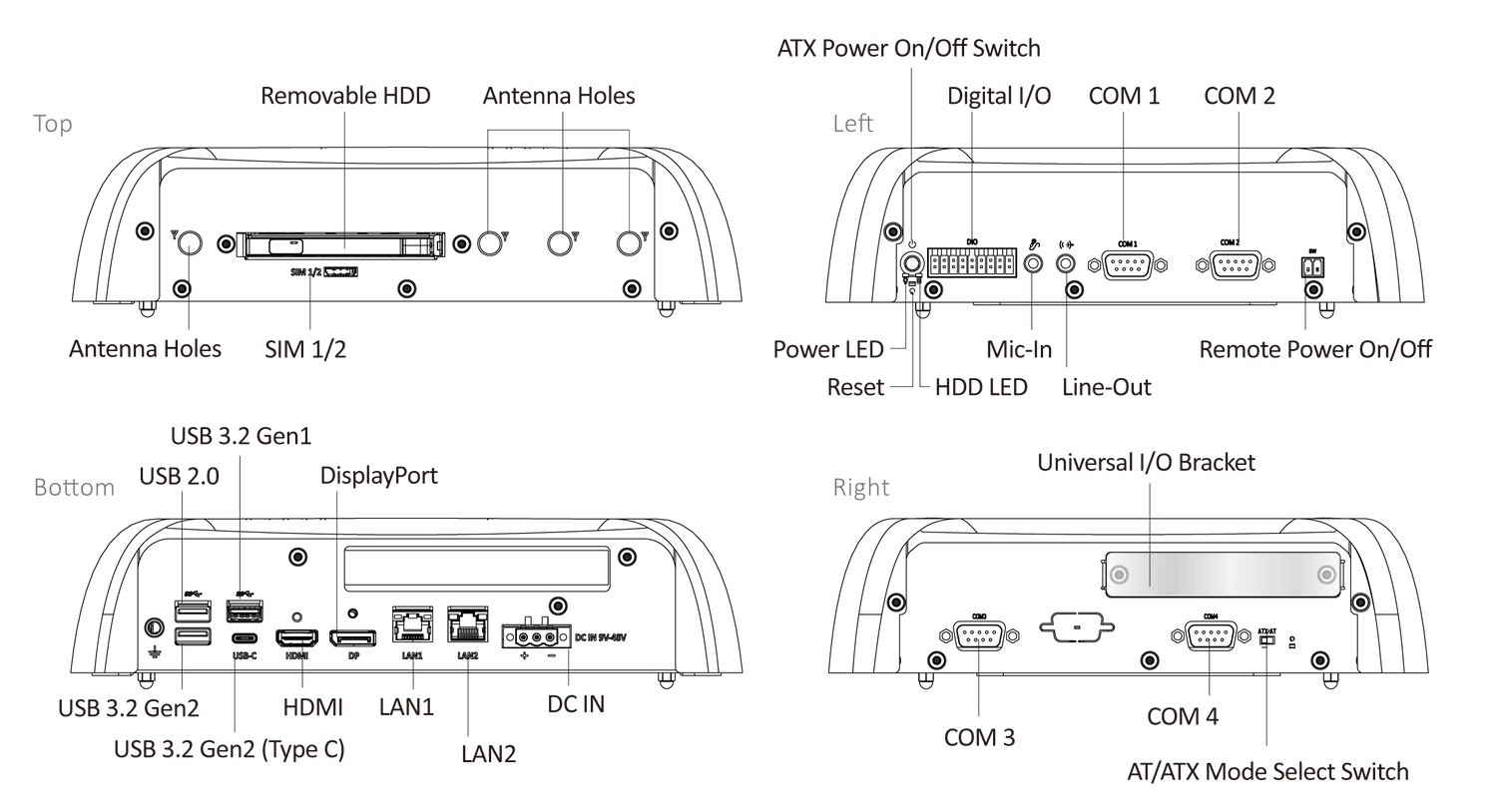

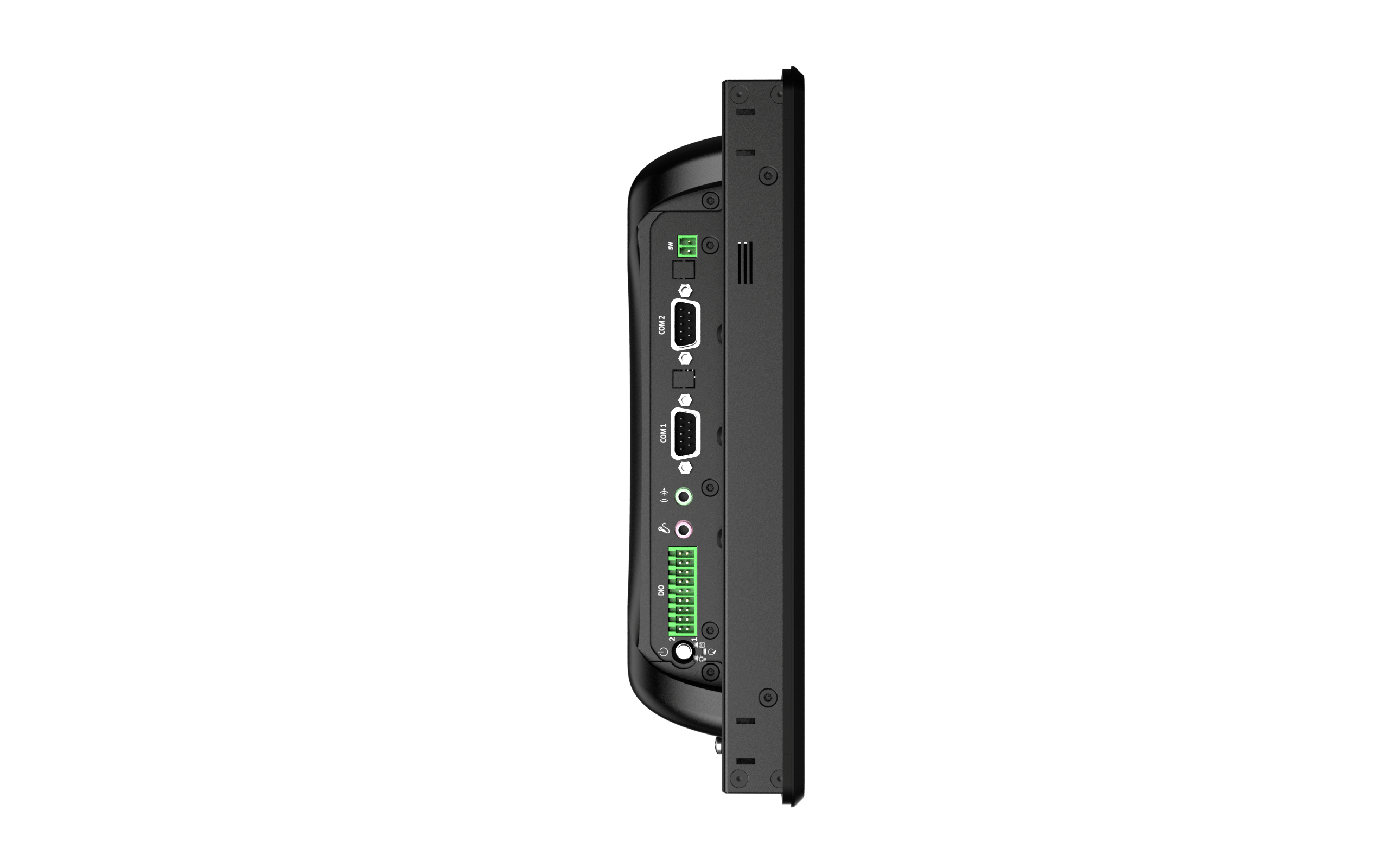

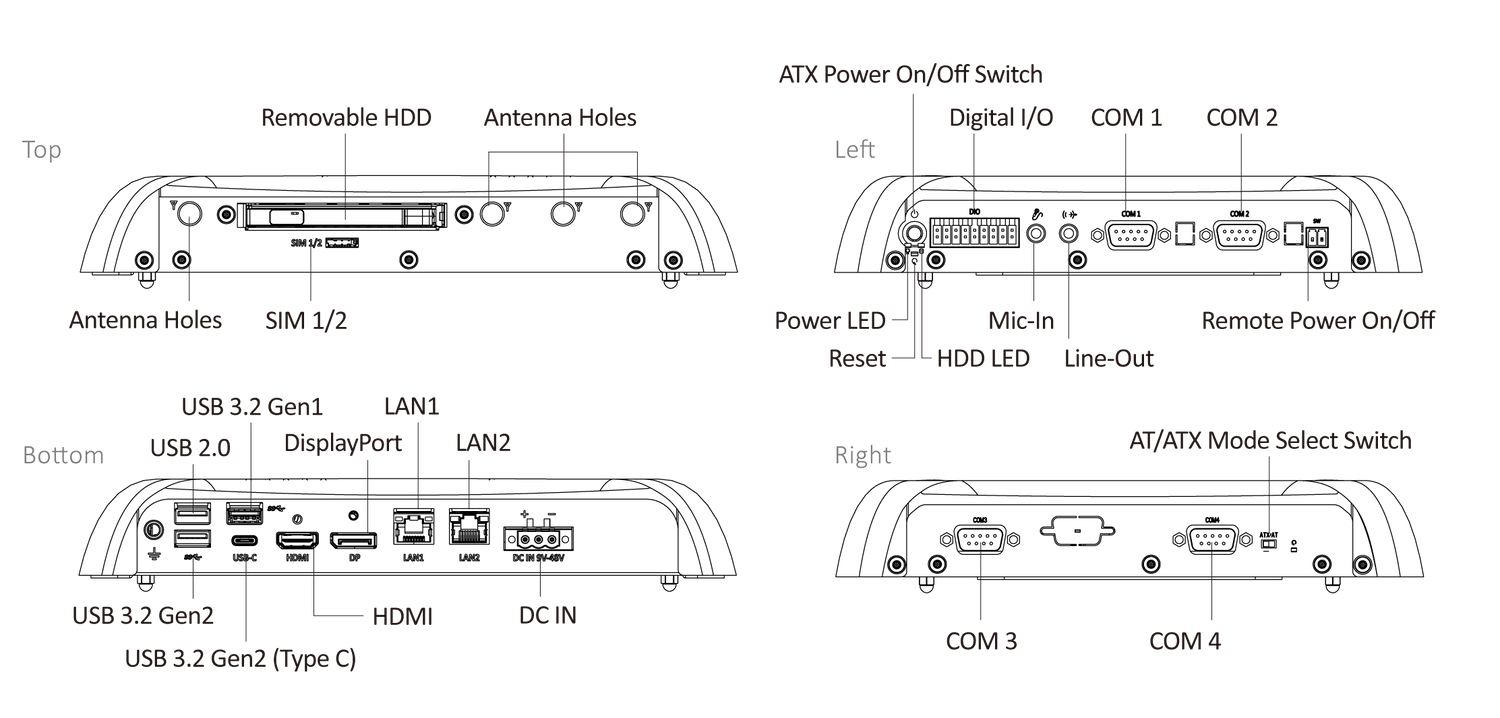

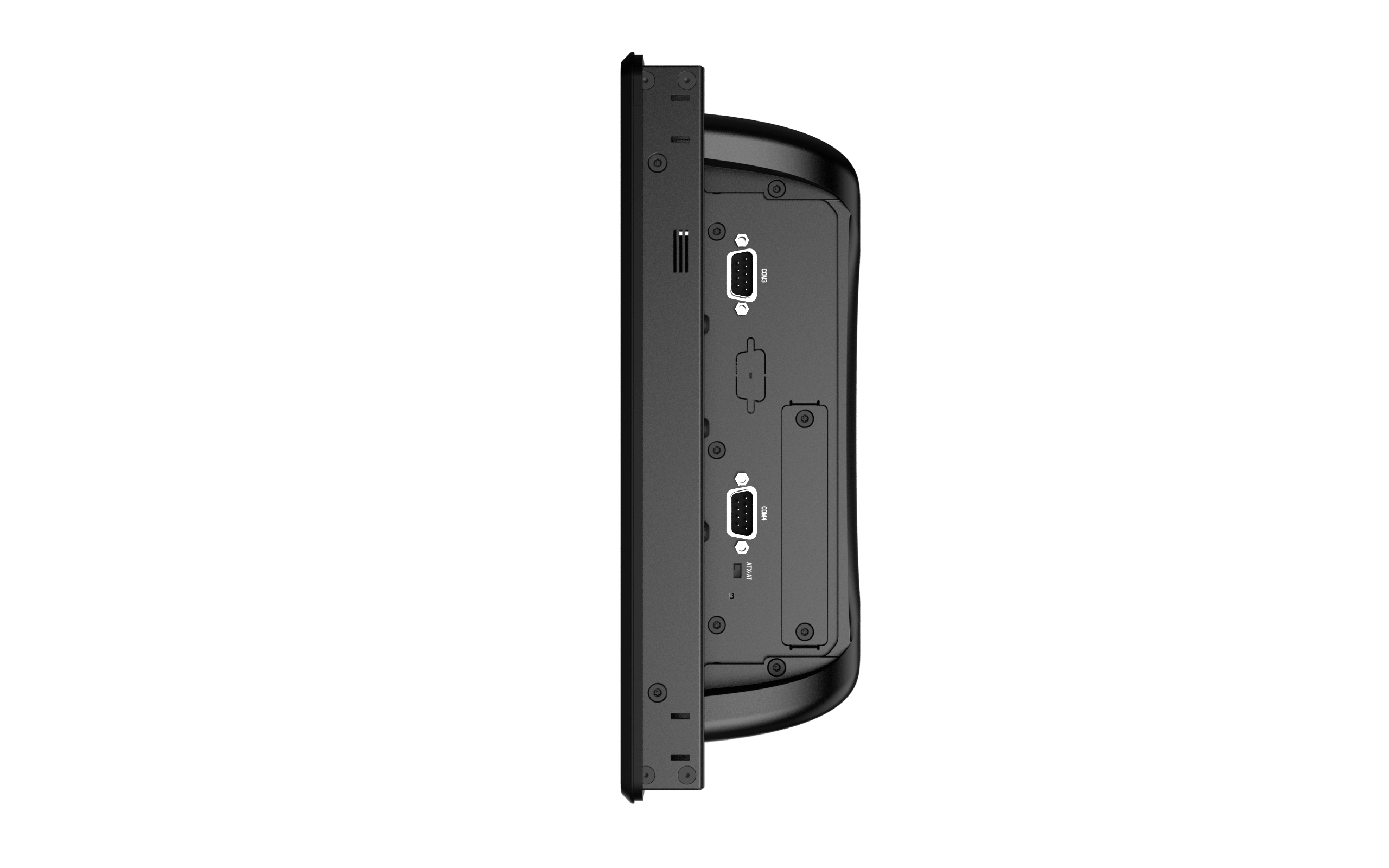

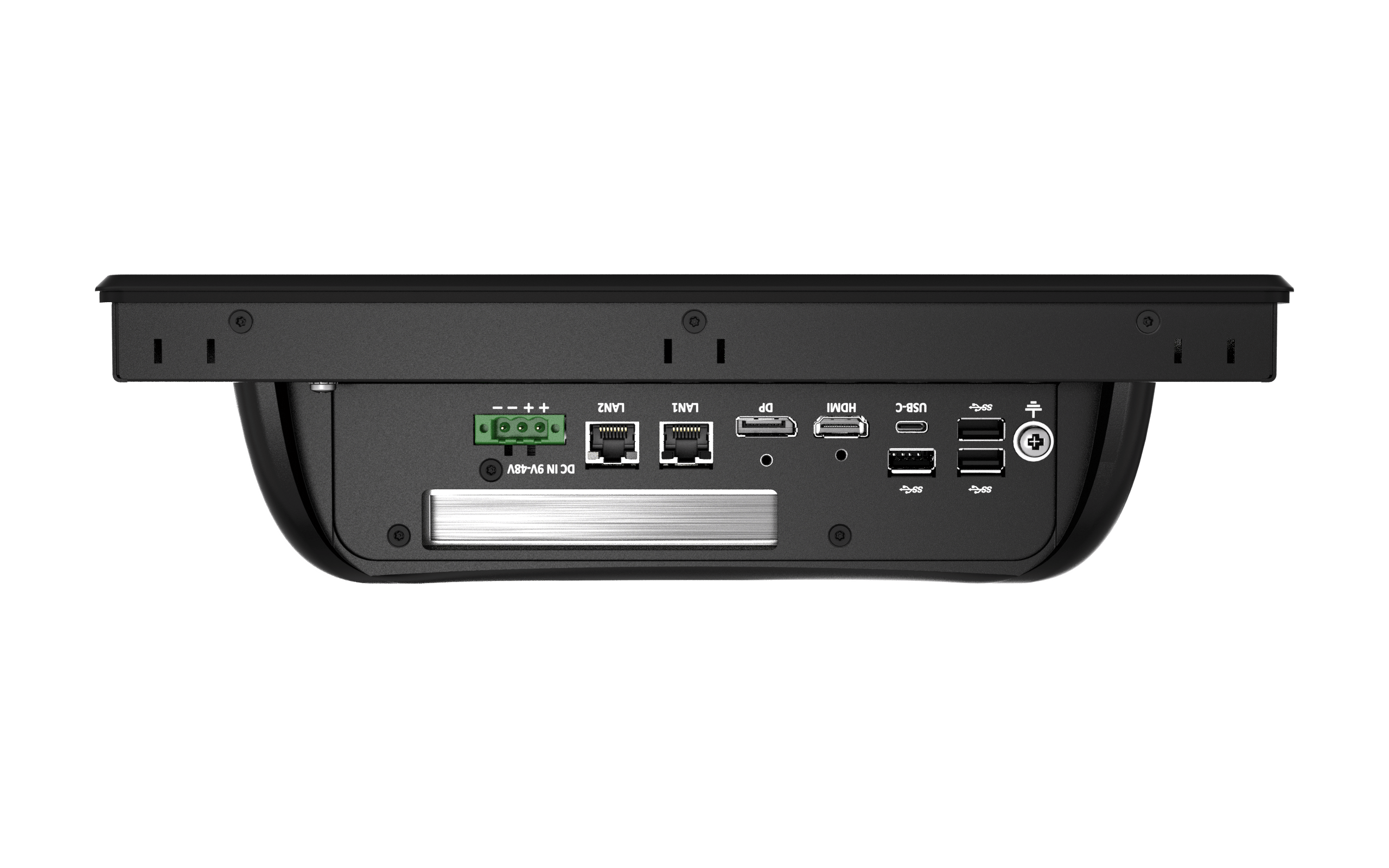

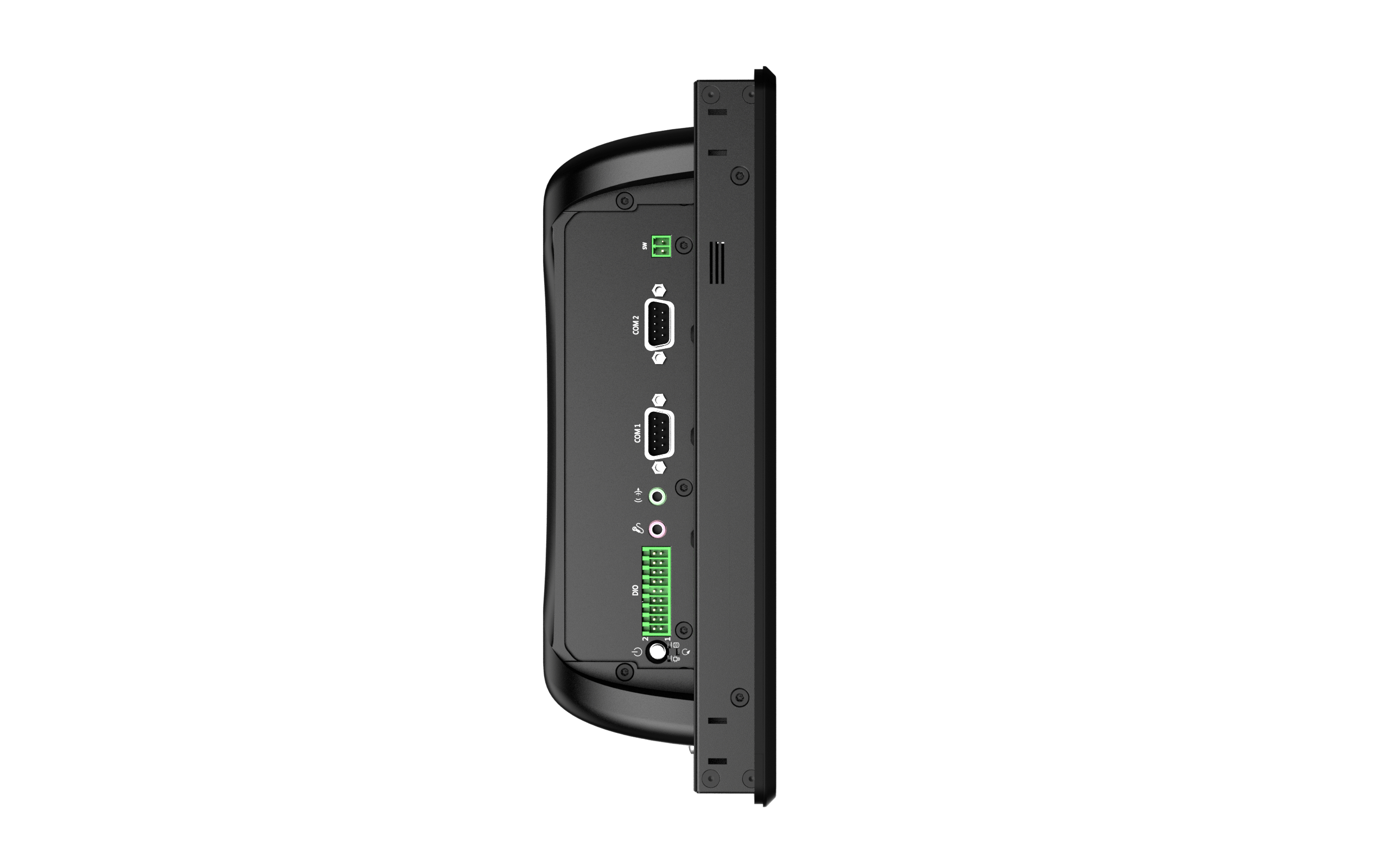

| I/O | |
| Audio | 1x Mic-in, 1x Line-out |
| CAN | 2x CAN 2.0 A/B 2-pin Header (Internal) |
| COM | 4x RS-232/422/485 2x RS-232/422/485 (internal) |
| DIO | 8 in / 8 out (Isolated) |
| LAN | 2x RJ45 |
| USB | 1x USB 3.2 Gen2 (Type C) 1x USB 3.2 Gen2 (10 Gbps) 1x USB 3.2 Gen1 (5 Gbps) 1x USB 2.0 |
| DP | 1x DisplayPort 1.2 (4096 x 2160@60Hz) |
| HDMI | 1x HDMI 2.0b (4096 x 2160@60Hz) |
| LVDS | 1x Dual Channel 24 bit LVDS |
| Others | 4x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off |
| Others Features | |
| OSD | LCD On/Off, Auto, Menu, Up and Down Multi-language |
| Speaker | 2x 2w 8ohm |
| Operating System | |
| Windows | Windows 10, Windows 11 |
| Linux | Ubuntu 22.04 |
| Power | |
| Power Adapter | Optional AC/DC 20V/7.5A, 150W |
| Power Mode | AT, ATX |
| Power Supply Voltage | 9~48 VDC |
| Power Connector | 3-Pin Terminal Blcok |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection |
| Environment | |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -20 °C to 70°C |
| Relative Humidity | 10%~95% (non-condensing) |
| IP Level | IP 65 Compliant Front Panel |
| Certification | CE, FCC Class A |
| Vibration | With SSD: 3 Grms, 5 - 500 Hz, 0.5 hr/axis With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis |
| Shock | 20G, half sine, 11ms |
| Physical | |

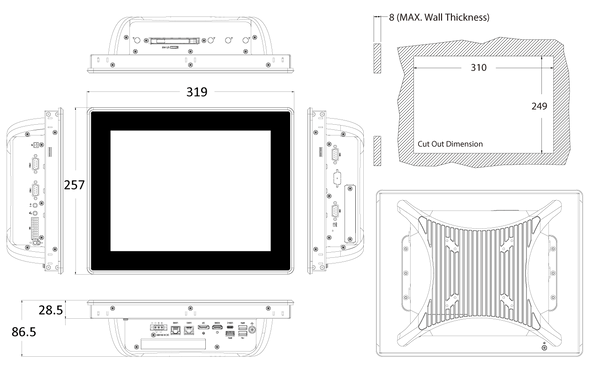

| Dimensions | VIO-312-PC600-MTL: 319 (W) x 257 (D) x 64.5 (H) mm VIO-312-PC600-MTL-1E: 319 (W) x 257 (D) x 86.5 (H) mm |
| Construction | Extruded Aluminum with Heavy Duty Metal |
| Mounting | VESA Mounting Holes 75 x 75mm, 100 x 100mm |
