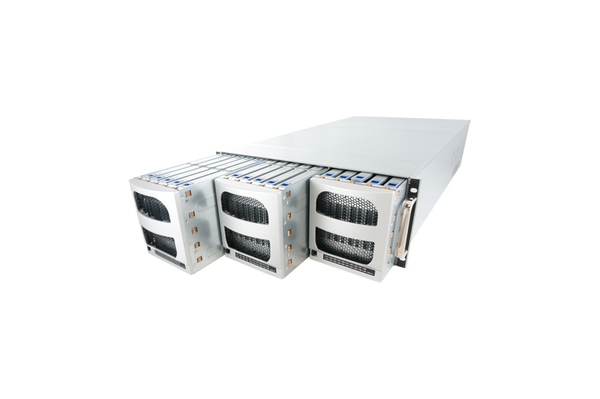

eDrawer4060J-S3 4U 60 BAYS 3.5" HDD 12G SAS DUAL EXPANDER JBOD 1200W HRP
Key Features:
- 4U with 60x top-load 12G SAS patented tray-less hot-swap HDD bays
- Hot-swap redundant 12G Expanders up to 192Gbps per Expander
- 32” short depth with patented internal cable-managementarm
- Ease of serviceability with 6 hotswap exhaust fans and Platinum grade HRP PSU
- Remote management GbE port for status report
Model:
EDRAWER4060J-S3
Certifications:
Specification
| Expander | Single or Dual Redundant expanders; Each expanders with two 12G LSI SAS3X48 |
| Controller Support | 6 or 12Gb/s Host-based SAS RAID or HBAs with external connectivity |
| Storage | 60x 3.5" 12Gbps/6Gbps SAS or SATA HDD bays Patented Trayless drive bay design |
| Enclosure Management | HDD Status/Identifier LeDs, Smart Fan, Thermal Monitor, HDD Monitor, Voltage Monitor, Inband SES Support |
| Cooling | Six 97mm redundant hot-swap exhaust fan modules with smart fan control |

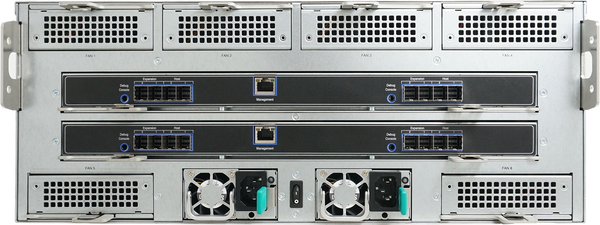

| I/O | Each expander has 4x 12Gbps SAS SFF8644 for Uplink and 4x 12Gbps SAS SFF8644 for Downlink |
| Environment | |
|---|---|
| Operating Temperature | 0°C ~ 35°C |
| Storage Temperature | -20°C ~ 70°C |
| Relative Humidity | 5% ~ 95% relative humidity, non-condensing |
| HTS Code | 8473 30 5100 |
| ECCN | 4A994 |
| Compliance | CE, FCC Class A, RoHS 6/6 compliant |
| Physical | |
| Dimensions (W x H x D) | System: 32"x19"x7" (LxWxH) Packaging: 48“x25"x27"(LxWxH) palletized |
| Weights | Gross Weight: 80lbs without Hard Drives Net Weight: 70lbs without Hard Drive |
