Products:

RCO-3200 Rugged Edge Computer with Intel® Pentium® Processor N4200, 2x LAN
Regular price total regular price: $0.00

RCO-3211 Rugged Edge Computer with Intel® Pentium® Processor N4200, 2x LAN & 1x Expansion Slot
Regular price total regular price: $0.00

RCO-3222 Rugged Edge Computer with Intel® Pentium® Processor N4200, 2x LAN, 2x Expansion Slots
Regular price total regular price: $0.00
Specification:
RCO-3200 | RCO-3211 | RCO-3222 | |
---|---|---|---|
Processor | Intel® Pentium® Processor N4200, Quad Core, 2MB Cache, 2.5 GHz | ||
Memory | 1x 204-pin DDR3L SODIMM. max up to 8GB (un-buffered and non-ECC) | ||
Graphics Output | 1x DVI-I, 1x Display Port | ||
USB, Serial, DIO | 2x USB 3.0, 2x USB 2.0, 2x RS-232/422/485, 4x RS-232/422/485 (internal), 8 in / 8 out (Isolated) | ||
TPM Supported | 2.0 | ||
Storage | 1x Internal 2.5" SATA HDD Bay, 1x Removable 2.5" SATA HDD Bay, 1x mSATA (shared by 1x Mini PCI Express & 1x SATA), 1x CFast (shared by 1x mSATA & 1x SATA) |
||
Power | 9-50 VDC, AT/ATX Select, 3-pin Terminal Block | ||
Audio | Speaker-out / Mic-in Phone Jack | ||
Operating Temp | -40°C to 70°C | ||
LAN | RCO-3200: 2x GbE RJ45 (Support Wake-on-LAN and PXE) rear Additional LAN/PoE ports on the following models: RCO-3200-4L: 4x LAN RCO0-3200-4P: 4x PoE RCO-3200-4L-M12: 4x LAN w/ M12 RCO-3200-4P-M12: 4x PoE w/ M12 RCO-3200-8L: 8x LAN RCO0-3200-8P: 8x PoE RCO-3200-8L-M12: 8x LAN w/ M12 RCO-3200-8P-M12: 8x PoE w/ M12 |
RCO-3211X: 2x GbE RJ45 (Support Wake-on-LAN and PXE) rear Additional LAN/PoE ports on the following models: RCO-3211X-4L: 4x LAN RCO0-3211X-4P: 4x PoE RCO-3211X-4L-M12: 4x LAN w/ M12 RCO-3211X-4P-M12: 4x PoE w/ M12 |
RCO-3222X: 2x GbE RJ45 (Support Wake-on-LAN and PXE) rear Additional LAN/PoE ports on the following models: RCO-3222X-4L: 4x LAN RCO0-3222X-4P: 4x PoE RCO-3222X-4L-M12: 4x LAN w/ M12 RCO-3222X-4P-M12: 4x PoE w/ M12 |
Expansion Slot |
RCO-3200 1x Full-size Mini-PCIe Socket with USIM socket (PCIe + USB + SATA) (Share by 1x SATA Connector) 1x Full-size Mini-PCIe Socket with USIM socket (PCIe + USB) RCO-3200-4L/4P 1x Full-size Mini-PCIe Socket with USIM socket (USB + SATA) (Share by 1x SATA Connector) 1x Full-size Mini-PCIe Socket with USIM socket (PCIe + USB) RCO-3200-8L/8P 1x Full-size Mini-PCIe Socket with USIM socket (USB + SATA) (Share by 1x SATA Connector) 1x Full-size Mini-PCIe Socket with USIM socket (USB) |
RCO-3211X 1x Full-size Mini-PCIe Socket with USIM socket (PCIe + USB + SATA) (Share by 1x SATA Connector) 1x Full-size Mini-PCIe Socket with USIM socket (USB) RCO-3211X-4L/4P 1x Full-size Mini-PCIe Socket with USIM socket (USB + SATA) (Share by 1x SATA Connector) 1x Full-size Mini-PCIe Socket with USIM socket (USB) |
RCO-3222X 1x Full-size Mini-PCIe Socket with USIM socket (PCIe + USB + SATA) (Share by 1x SATA Connector) 1x Full-size Mini-PCIe Socket with USIM socket (USB) RCO-3222X-4L/4P 1x Full-size Mini-PCIe Socket with USIM socket (USB + SATA) (Share by 1x SATA Connector) 1x Full-size Mini-PCIe Socket with USIM socket (USB) |
Universal I/O Slot | RCO-3200: 2x universal I/O slot
RCO-3200-4X: 1x universal I/O slot RCO-3200-8X: None |
RCO-3211X: 3x universal I/O slot
RCO-3211X-4X: 2x universal I/O slot |
RCO-3222X: 3x universal I/O slot
RCO-3222X-4X: 2x universal I/O slot |
Dimensions (WxDxH mm) | 185 (W) x 197 (D) x 57.4 (H) mm | 185 (W) x 197 (D) x 84.9 (H) mm | 185 (W) x 197 (D) x 104.9 (H) mm |
Highly Power Efficient Intel® Pentium® N4200 Processor
Designed for low-power but high performance workloads, the Intel Pentium N4200 is a quad-core CPU with a wide scalable frequency range capable of multitasking workloads. Perfect for IoT environments needing real-time computing in digital surveillance, in-vehicle applications and industrial automation.
- Quad-Core CPU with 1.10 to 2.50Ghz Frequency Range
- 6W Thermal Design Power
- Intel® HD Graphics 505
- Media Processing Acceleration

Flexible LAN or POE I/O
Supports multiple options for various I/O port connectivity to fit the exact application needed. The design allows flexible port availability for additional peripheral devices.
- Up to 2 Universal I/O Ports For LAN/POE or LAN/POE M12
- Support for USB, GPIO, COM and LAN/PoE
- M12 Lockable Connectors for secure connections
- Up to 8 LAN/PoE ports for IP cameras
- Learn more about the most common industrial I/O ports

Storage
The quick access and removable drive bay makes it easy for swapping storage drives for backups and archiving.
- 1x Internal 2.5" SATA HDD Bay
- 1x Removable 2.5" Sata HDD Bay
- 1x mSATA SSD Slot
- 1x CFast Memory Card Slot

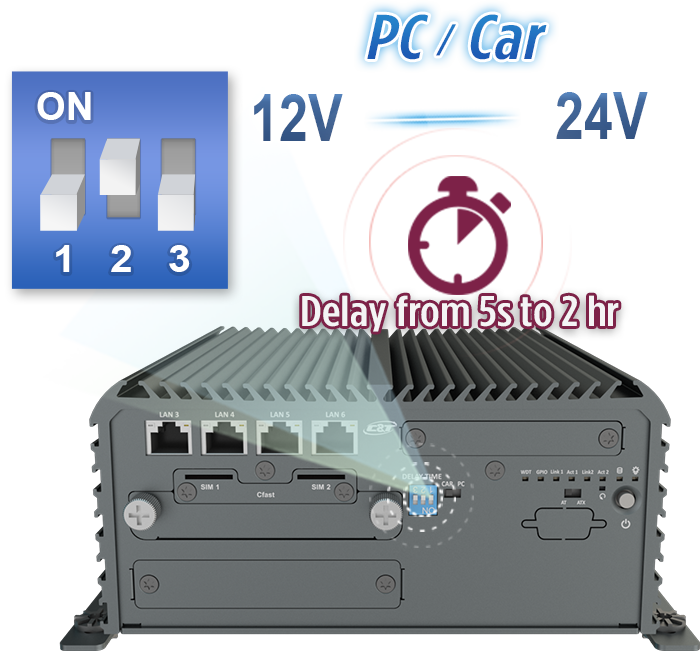

Power Ignition Managment
With smart power ignition sensing, the RCO-3200 rugged edge computer is built for in-vehicle applications to automatically power the system from the vehicle’s power source.
- Support for both 12V and 24V electrical systems
- Adjustable time delay during shutdown to properly save data
- Switch between PC and CAR mode for ignition sensing
- Learn more about Power Ignition Management

Power Protection
Proper power protection prevents potential problems from affecting edge computers to ensure that they stay reliable for mission-critical 24/7 operations.
- Wide voltage input ranges from 9 to 50 VDC
- Overcurrent and overvoltage protection
- Reverse voltage protection

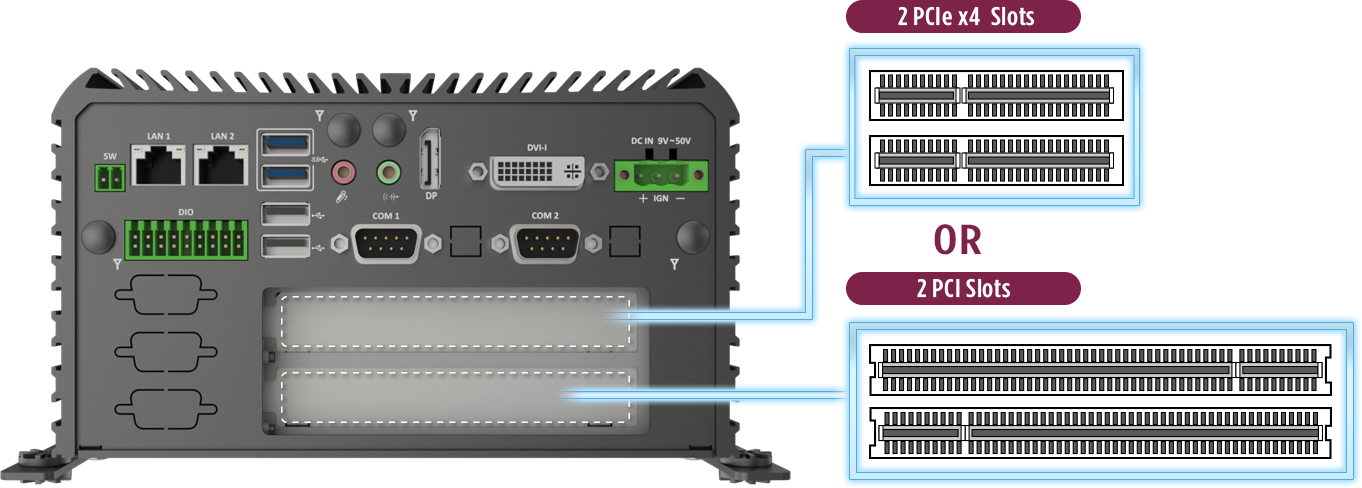

Support Up to 2 PCIe or PCI slots for Add-In Cards

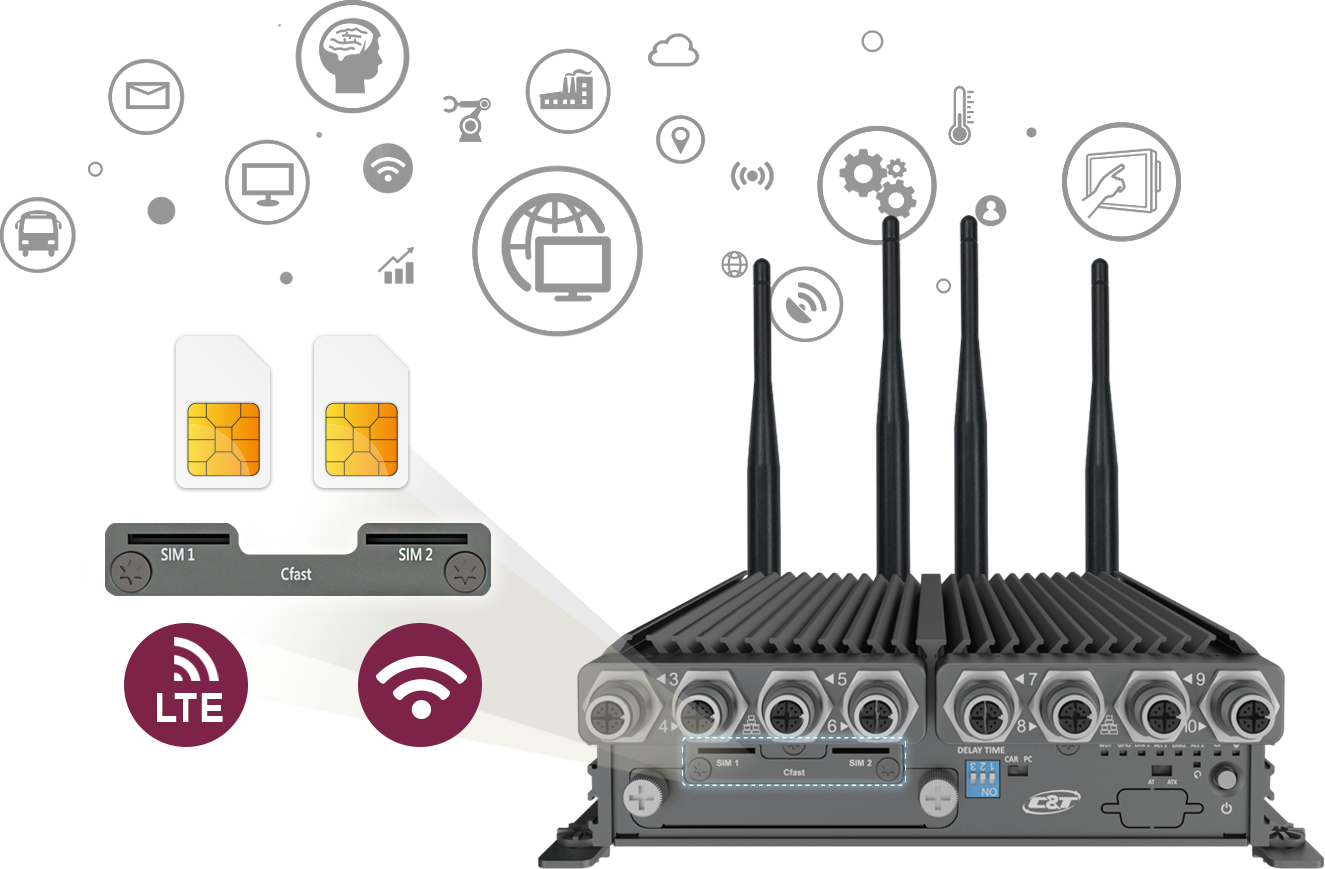

Internet Connectivity
Computing at the edge to reduce latency. Connect the machine to the IoT cloud with Wifi, Bluetooth and LTE to extend the behavior of the machine. Expand connections from rural area to the busiest city with LTE Connection. Provide solid, quality connection with Dual SIM socket.
- Dual External SIM Socket
- 4 Antennas
- Compatible with Major America Network Proverder: AT&T, T-Mobile, Verizon
